Franklin Mining District, Sussex County, New Jersey, USAi
| Regional Level Types | |
|---|---|
| Franklin Mining District | Mining District |
| Sussex County | County |
| New Jersey | State |
| USA | Country |
This page is currently not sponsored. Click here to sponsor this page.
Latitude & Longitude (WGS84):
41° North , 74° West (est.)
Estimate based on other nearby localities or region boundaries.
Margin of Error:
~6km
Type:
Köppen climate type:

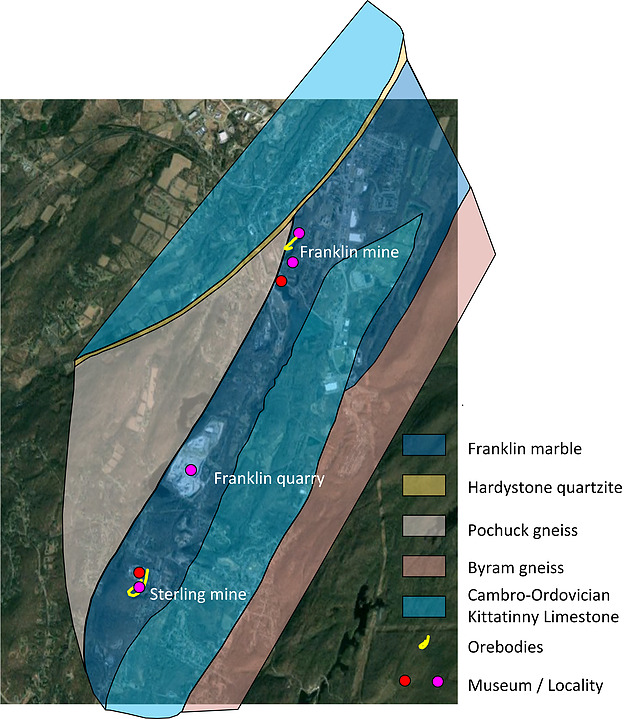

The Franklin Mining District is located in rural Sussex County, New Jersey, some 45 miles (ca. 72 km) NW of New York City. This page contains the complete official list of species that occur within the District's boundaries. The proponent for the official list is the Curator, Franklin Mineral Museum, Franklin, NJ 07416.
The boundaries of the Franklin District are strictly defined:
- Eastern boundary: bases of Sparta Mt & Hamburg Mt;
- Western boundary: eastern edge of the Wildcat Band of marble northward until it plunges beneath the unconformity, then, northerly along the Wallkill River;
-Southern boundary: Brooks Flat Road, an East-West road at the southern margin of Ogdensburg borough;
- Northern boundary: an East-West line from the intersection of state route 23 and county route 517 (Quarry Road) in Hamburg Borough at the Franklin borough-Hamburg borough line (an area formerly called Hardistonville) westward to the Wallkill River (Dunn, P.J. [1995], Pt 1:71).
The mineral list on this page is maintained under a strict protocol to ensure its integrity and credibility. At present, there are over 350 CONFIRMED species on this list. These species occur:
- in the two zinc orebodies (Franklin orebody and Sterling Hill orebody);
- in the several iron orebodies in Franklin (Furnace Magnetite Bed, the magnetite orebodies on Ball's Hill and the other magnetite beds in Franklin);
- in the various quarries in the Precambrian Franklin marble (quarries which "fed" the old iron furnace [Franklin was known as Franklin Furnace until incorporation in 1913]);
- in the quarries worked for agricultural lime, marble chips and aggregate used in landscaping;
- in the quarries excavated by the New Jersey Zinc Co., contiguous with the orebodies, used for backfill in the mined-out areas.
Certain mine workings had unique occurrences of mineral species, hence, they are listed separately on their own, unique pages, but all species from the district are listed on this page.
The list of specific localities with their separate lists of mineral occurrences within the district are listed beneath the master species list.
Those who share an interest in the unique mineralogy of the Franklin, NJ, area owe a special debt of thanks to:
- Samuel L. Penfield of Yale University,
- Charles Palache of Harvard University,
- Paul Brian Moore of the University of Chicago,
- Pete J. Dunn of National Museum of Natural History, Washington, D.C.,
- Richard A. Volkert, New Jersey Geological Survey,
- John L. Baum, Curator Emeritus, Franklin Mineral Museum, and former Head Geologist, New Jersey, Zinc Co., Franklin, NJ, for their significant contributions to the body of knowledge of the history, geology, and mineralogy of this district.
Select Mineral List Type
Standard Detailed Gallery Strunz Chemical ElementsCommodity List
This is a list of exploitable or exploited mineral commodities recorded from this region.Mineral List
Mineral list contains entries from the region specified including sub-localities412 valid minerals. 72 (TL) - type locality of valid minerals. 11 (FRL) - first recorded locality of unapproved mineral/variety/etc. 16 erroneous literature entries.
Rock Types Recorded
Rock list contains entries from the region specified including sub-localities
Select Rock List Type
Alphabetical List Tree DiagramDetailed Mineral List:
| ⓘ Acanthite Formula: Ag2S |
| ⓘ Actinolite Formula: ◻Ca2(Mg4.5-2.5Fe0.5-2.5)Si8O22(OH)2 Localities: Reported from at least 6 localities in this region. |
| ⓘ Adamite Formula: Zn2(AsO4)(OH) |
| ✪ Adelite Formula: CaMg(AsO4)(OH) Habit: Massive Colour: Pink brown to red brown Fluorescence: Not fluorescent in UV |
| ⓘ Aegirine Formula: NaFe3+Si2O6 |
| ⓘ Aegirine-augite Formula: (NaaCabFe2+cMgd)(Fe3+eAlfFe2+gMgh)Si2O6 |
| ✪ Akrochordite Formula: MnMn2Mn2(AsO4)2(OH)4(H2O)4 Habit: Warty to spherical clusters to ove 1.5 cm Colour: Brown Fluorescence: Not fluorescent in UV |
| ⓘ Formula: MnS Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA - erroneously reported |
| ⓘ Albite Formula: Na(AlSi3O8) Localities: Reported from at least 11 localities in this region. |
| ⓘ Albite var. Anorthoclase Formula: (Na,K)AlSi3O8 |
| ⓘ Albite var. Oligoclase Formula: (Na,Ca)[Al(Si,Al)Si2O8] |
| ⓘ Allactite Formula: Mn2+7(AsO4)2(OH)8 |
| ⓘ Allanite-(Ce) Formula: (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) Localities: Description: Occurs in microcline-rich pegmatite intrusives in, and adjacent to, the Franklin orebody as black, tabular crystals. |
| ⓘ 'Allanite Group' Formula: (A12+REE3+)(M13+M23+M32+)O[Si2O7][SiO4](OH) |
| ⓘ Alleghanyite Formula: Mn2+5(SiO4)2(OH)2 Localities: Habit: Vitreous well-formed oblique bladed crystals to 5 mm Colour: Red brown, golden brown Fluorescence: Not fluorescent in UV Description: Alleghanyite occurs as euhedral crystals and in thin seams that crosscut the ore. The crystals frequently accompany arsenate species in hydrothermal veinlets and are formed in apparent equilibrium with several rare species and franklinite, willemite, baryte and carbonates, all as secondary recrystallization. It also occurs as as dull to glassy reddish brown masses associated with manganoan calcite and serpentine in veinlets. Some of the best samples were found in the late 1970s, and numerous well studied specimens are now in the Harvard collection. |
| ⓘ Almandine Formula: Fe2+3Al2(SiO4)3 Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Losee Gneiss, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA ? (more information) Mill site dump, Franklin Mine, Franklin, Sussex County, New Jersey, USA ? (more information) |
| ⓘ 'Amphibole Supergroup' Formula: AB2C5(T8O22)W2 Localities: Franklin Mining District, Sussex County, New Jersey, USA Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Balls Hill Iron Mines, Franklin, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ 'Amphibole Supergroup var. Byssolite' Formula: AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| ⓘ 'Amphibole Supergroup var. Uralite' Formula: AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| ⓘ Analcime Formula: Na(AlSi2O6) · H2O |
| ⓘ Formula: (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 Locality: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA - erroneously reported Description: Anandite was reported by Tracy (1991), but his chemical analyses contained absolutely no sulfur. Three of the reported analyses would have been a new species at the time and are a chlorine-dominant ferrokinoshitalite. References: |
| ⓘ Anatase Formula: TiO2 Localities: Description: Occurs in cavities in the Buckwheat Dolomite. |
| ⓘ Andradite Formula: Ca3Fe3+2(SiO4)3 Localities: Reported from at least 15 localities in this region. Colour: Dark brown, light brown, golden yellow Fluorescence: None. Description: A common skarn mineral in coarse-textured areas of the orebody. |
| ⓘ Andradite var. Melanite Formula: Ca3Fe3+2(SiO4)3 |
| ⓘ Andradite var. Polyadelphite (FRL) Formula: (Ca,Mn)3Fe3+2(SiO4)3 Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Anglesite Formula: PbSO4 Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Noble pit (Lot #10 - Ogden Divisions; Noble Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA |
| ⓘ Anhydrite Formula: CaSO4 |
| ⓘ Annabergite Formula: Ni3(AsO4)2 · 8H2O Description: Occurs as green coatings on primary nickel species in the unique nickel-cobalt-arsenic assemblage. |
| ⓘ Annite Formula: KFe2+3(AlSi3O10)(OH)2 |
| ⓘ 'Anomalite' (FRL) Type Locality: |
| ⓘ Anorthite Formula: Ca(Al2Si2O8) Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Fowler Quarry (Nichol Quarry; B. Nicoll Quarry; Nicoll Quarry; Nicol Quarry; Cellate Quarry), Franklin, Sussex County, New Jersey, USA Franklin Marble, Sussex County, New Jersey, USA Description: Occurs in an assemblage of margarite and corundum in the Precambrian Franklin marble in the footwall of the West vein on the 340' and 430' levels. |
| ⓘ Antigorite Formula: Mg3(Si2O5)(OH)4 Localities: Description: X-ray verified in Franklin Marble by Tony Nickisher. Not observed by Dunn (1995). |
| ⓘ Antigorite var. Vorhauserite Formula: (Mg,Mn)3(Si2O5)(OH)4 |
| ⓘ Antlerite Formula: Cu3(SO4)(OH)4 Description: Occurs on a single specimen associated mixed with gypsum and brochantite on rhodonite and andradite (Franklin Mineral Museum specimen). |
| ⓘ 'Apatite' Formula: Ca5(PO4)3A |
| ⓘ Aragonite Formula: CaCO3 Localities: Reported from at least 7 localities in this region. Habit: Long-prismatic crystals forming coatings of sprays on erose ore matrix (1965). Colour: Colorless, grayish tinted. Fluorescence: Dull greenish to blue-white (SW) + strong whitish phosphorescnece. Description: The first significant occurrence of aragonite in the Sterling mine occurred in large pockets in erose ore adjacent to the "mud zone" in the 1040 and 1080 stopes, between the 430' and 500' levels (witnessed by C. Lemanski, Jr. - 1965). The pockets were large enough for a person to et in, but not very deep. Miners collected what they could on the shifts that encountered the pockets and destroyed what was left so that the cross-shift (evening shift) could not collec any of the best material. This is why there are many busted crystal specimens best only for UV display. |
| ⓘ Arakiite Formula: (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| ✪ Arseniosiderite Formula: Ca2Fe3+3(AsO4)3O2 · 3H2O Colour: Rich brick-brown Fluorescence: None Description: Found coating fracture surfaces and lining thin fracture cavities in black ore on and about the 430 level. The black ore contains the löllingite which provided the arsenic and iron, as well as other iron-rich minerals. References: |
| ⓘ Arsenolite Formula: As2O3 Description: The arsenolite verified by PJD (1995, 2004) has been observed on specimens of arsenic that have no evidence of chemical treatment as originally feared by PJD. References: |
| ⓘ Arsenopyrite Formula: FeAsS Localities: Reported from at least 11 localities in this region. |
| ⓘ Atacamite Formula: Cu2(OH)3Cl |
| ⓘ Augite Formula: (CaxMgyFez)(Mgy1Fez1)Si2O6 Localities: Reported from at least 11 localities in this region. Habit: prismatic with dome terminations Colour: brown-black to green-black Description: Now recognized as augite, this material was formerly called "jeffersonite." It occurs as dark colored, rough crystals to over 20 cm in weathered ore zones between the folds of the Sterling Hill orebody. Good crystals also occur at the contact of very tough, massive, dark augite/hendricksite/augite rock with marble. Crystal terminations typically slightly rounded. |
| ⓘ Aurichalcite Formula: (Zn,Cu)5(CO3)2(OH)6 Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Aurorite Formula: Mn2+Mn4+3O7 · 3H2O Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Description: Occurs in weathered ore between the folds of the Sterling Hill orebody. |
| ⓘ Austinite Formula: CaZn(AsO4)(OH) References: |
| ⓘ Axinite-(Fe) Formula: Ca2Fe2+Al2BSi4O15OH Description: Occurs in conjunction with a magnetite orebody hosted in Cork Hill gneiss at its contact with Precambrian Franklin marble. Palache (1935) describes this mineral as part of a mineral assemblage that almost certainly indicates its occurrence in a secondary vein. This supposition is further supported by the occurrence of axinite-Fe or axinite-Mn in veins, accompanied by similar associated minerals, at 7 other localities along the northwest margin of the Reading Prong highlands. |
| ⓘ Axinite-(Mn) (TL) Formula: Ca2Mn2+Al2BSi4O15(OH) Localities: Reported from at least 6 localities in this region. Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Azurite Formula: Cu3(CO3)2(OH)2 Localities: Reported from at least 6 localities in this region. Description: Occurs as a secondary copper mineral in weathered areas of the Sterling Hill orebody near the "mud zone" in erose ore. |
| ✪ Bannisterite (TL) Formula: (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O Type Locality: Habit: Large platy masses Colour: Brown |
| ⓘ Bariopharmacosiderite Formula: Ba0.5Fe3+4(AsO4)3(OH)4 · 5H2O References: |
| ⓘ Barylite Formula: Be2Ba(Si2O7) |
| ⓘ Barysilite Formula: Pb8Mn2+[Si2O7]3 |
| ⓘ Baryte Formula: BaSO4 Localities: Reported from at least 8 localities in this region. Fluorescence: Bright creamy white (900 ft. level) to bright white (600 ft. level)(SW). Personally observed (C. Lemanski). Description: Occurs in the orebody in secondary veins and fractures. Also occurs as masses and blebs in calcite adjacent to the orebody. |
| ⓘ Bassanite Formula: Ca(SO4) · 0.5H2O References: |
| ⓘ Baumhauerite Formula: Pb12As16S36 |
| ⓘ 'Baumite' References: |
| ⓘ Bementite (TL) Formula: Mn7Si6O15(OH)8 Localities: Description: Occurs in ore within the Franklin orebody. |
| ⓘ Berthierite Formula: FeSb2S4 References: |
| ⓘ Betekhtinite Formula: Pb2(Cu,Fe)22-24S15 Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Description: XRD verified References: |
| ⓘ Bianchite Formula: Zn(H2O)6(SO4) |
| ⓘ 'Biotite' Formula: K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| ⓘ Birnessite Formula: (Na,Ca)0.5(Mn4+,Mn3+)2O4 · 1.5H2O |
| ⓘ Bornite Formula: Cu5FeS4 Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA |
| ✪ Bostwickite (TL) Formula: CaMn3+6Si3O16 · 7H2O Type Locality: Description: Occurs in ore within the Franklin orebody. |
| ⓘ Brandtite Formula: Ca2Mn2+(AsO4)2 · 2H2O |
| ⓘ Breithauptite Formula: NiSb Description: Occurred in the unique nickel-cobalt-arsenic assemblage. |
| ⓘ Brianyoungite Formula: Zn3(CO3,SO4)(OH)4 Locality: Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA References: |
| ⓘ Brochantite Formula: Cu4(SO4)(OH)6 References: |
| ⓘ Brookite Formula: TiO2 Localities: Description: Occurs as small crystals in cavities in the Buckwheat Dolomite. |
| ⓘ Brucite Formula: Mg(OH)2 |
| ⓘ Bultfonteinite Formula: Ca2(HSiO4)F · H2O |
| ⓘ Bustamite (TL) Formula: CaMn2+(Si2O6) Localities: Reported from at least 6 localities in this region. Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA Habit: Blocky prismatic Colour: Pale to medium pink, rarely rich dark pink Fluorescence: Magenta red (LW UV) (rare) |
| ✪ Cahnite (TL) Formula: Ca2[B(OH)4](AsO4) Type Locality: |
| ⓘ Calcite Formula: CaCO3 Localities: Reported from at least 24 localities in this region. |
| ⓘ 'Calcozincite' References: |
| ⓘ Canavesite Formula: Mg2(HBO3)(CO3) · 5H2O |
| ⓘ Formula: PbFe3+2(AsO4)2(OH)2 Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA - erroneously reported Description: Re-identified as a new mineral, jarosewichite |
| ⓘ Formula: CuCo2S4 Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA - erroneously reported Description: Reputedly found as sub-millimeter crystals in bornite. Contact with the person cited (Burke, E.A.J. (2013) personal communication) resulted in a disavowal of the cited 1983 personal communication. The mineral seems to have suffered from miscommunication. |
| ⓘ Caryopilite Formula: Mn2+3Si2O5(OH)4 Localities: Colour: Brown Fluorescence: None. Description: Occurs in a restricted assemblage only at this mine. |
| ⓘ Castellaroite ? Formula: Mn2+3(AsO4)2 · 4H2O Description: Data collection in progress References: |
| ⓘ 'Caswellite' |
| ⓘ Celestine Formula: SrSO4 |
| ⓘ Celsian Formula: Ba(Al2Si2O8) |
| ⓘ Cerussite Formula: PbCO3 Localities: Description: A huge boulder of galena altering to cerussite was found during recent excavations in the pit. The cerussite is nicely crystallized. |
| ⓘ 'Chabazite' References: |
| ⓘ Chabazite-Ca Formula: (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| ⓘ Chalcoalumite Formula: CuAl4(SO4)(OH)12 · 3H2O Localities: Description: 340' Level, 920 Stope |
| ⓘ Chalcocite Formula: Cu2S Localities: |
| ⓘ Chalcophanite (TL) Formula: ZnMn4+3O7 · 3H2O Localities: Type Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Habit: Rhombohedral crystals on stalactites. Colour: bluish black Description: Occurs in weathered ore zones within the folds of the Sterling Hill orebody. |
| ⓘ Chalcopyrite Formula: CuFeS2 Localities: Reported from at least 7 localities in this region. |
| ⓘ Chamosite Formula: Fe2+5Al(AlSi3O10)(OH)8 |
| ⓘ Charlesite (TL) Formula: Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA Description: Was initially described as ettringite. |
| ⓘ 'Chlorite Group' |
| ⓘ Chloritoid Formula: Fe2+Al2O(SiO4)(OH)2 Localities: Description: Occurs as thin blackish films on fracture surfaces in massive andradite garnet. Limited number of specimens, perhaps only 2. |
| ⓘ 'Chloroferrokinoshitalite' (FRL) Formula: (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 Localities: Type Locality: Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Description: Erroneously, first identified "anandite" as that was the "nearest" verified name. |
| ⓘ Chlorophoenicite (TL) Formula: (Mn,Mg)3Zn2(AsO4)(OH,O)6 Localities: Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA North Ore Body, Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA |
| ⓘ Chondrodite Formula: Mg5(SiO4)2F2 |
| ⓘ Chrysocolla Formula: Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| ⓘ Chrysotile Formula: Mg3(Si2O5)(OH)4 Localities: Reported from at least 6 localities in this region. Fluorescence: dim, pale yellow under long-wave (LW) ultraviolet (UV) light |
| ✪ Cianciulliite (TL) Formula: Mn(Mg,Mn)2Zn2(OH)10 · 2-4H2O Type Locality: Description: A single specimen only with two additional suspected specimens (Franklin Mineral Museum assets). |
| ⓘ Clinochlore Formula: Mg5Al(AlSi3O10)(OH)8 Localities: Reported from at least 7 localities in this region. |
| ⓘ 'Clinochrysotile' Formula: Mg3(Si2O5)(OH)4 |
| ⓘ Clinoclase Formula: Cu3(AsO4)(OH)3 |
| ⓘ Clinohedrite (TL) Formula: CaZn(SiO4) · H2O Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Clinohumite Formula: Mg9(SiO4)4F2 |
| ⓘ Clino-suenoite Formula: ◻Mn2+2(Mg5)(Si8O22)(OH)2 Localities: Reported from at least 7 localities in this region. |
| ⓘ Clinozoisite Formula: (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| ⓘ Formula: CaAlMg2(SiAl3O10)(OH)2 Description: Clintonite is an enigmatic entry for this locality. It was "not observed" by Dunn (1995), but was reported in an article published in 1957 and 1958 that was a Ph. D. thesis by Henri Struwe, originally at Leiden University, The Netherlands (Data on the Mineralogy and Petrology of the Dolomite-Bearing Northern Contact Zone of the Querigut Granite: French Pyrenees
by Struwe, Henri). The specimen was reported as from "Franklin". Confirmation of the specimen's identification seems valid, but where in the Franklin Marble it was actually found is unknown. The referenced specimen was located in The Netherlands, but while it was in dolomite, it did not contain clintonite, but did contain phlogopite in a fine-grained pulverant mixture. The Franklin Marble does extend into New York state and Amity is the type locality for clintonite, but it is uncertain if the identified specimen is even from New Jersey. References: |
| ⓘ Formula: CaCu(AsO4)(OH) Localities: Description: Only known specimen is at Harvard University. The material is similar to conichalcite from Utah or Mexico and is believed to be a misattributed specimen. |
| ⓘ Connellite Formula: Cu19(SO4)(OH)32Cl4 · 3H2O |
| ⓘ Corundum Formula: Al2O3 Localities: Reported from at least 6 localities in this region. Description: Collected on the 1000 level, West vein footwall drift, by C. Lemanski, Jr. |
| ⓘ Covellite Formula: CuS |
| ⓘ Cryptomelane Formula: K(Mn4+7Mn3+)O16 |
| ⓘ Cummingtonite Formula: ◻Mg2Mg5(Si8O22)(OH)2 |
| ⓘ Cuprite Formula: Cu2O |
| ⓘ Cuprostibite Formula: Cu2(Sb,Tl) Fluorescence: None. Description: Occurs as microscopic inclusions in a gray, massive willemite matrix associated with copper and domeykite. References: |
| ⓘ Cuspidine Formula: Ca8(Si2O7)2F4 |
| ⓘ Cyanotrichite Formula: Cu4Al2(SO4)(OH)12 · 2H2O |
| ✪ Cyprine Formula: Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 Habit: Masses, coarsely fibrous Colour: Vivid blue, Dark blue, dark green Fluorescence: None. Description: Fitzgerald et al. (1986), Amer. Mineral. 71, 1011-1014. 1.91% CuO, 0.74 Cu p.f.u, Cu > Mn or Fe in Y. |
| ⓘ Datolite Formula: CaB(SiO4)(OH) |
| ⓘ Datolite var. Bakerite Formula: Ca4(H5B5Si3O20) |
| ⓘ Datolite var. Botryolite Formula: CaB(SiO4)(OH) |
| ⓘ Descloizite Formula: PbZn(VO4)(OH) |
| ⓘ Devilline Formula: CaCu4(SO4)2(OH)6 · 3H2O References: |
| ⓘ Digenite Formula: Cu9S5 References: |
| ⓘ Diopside Formula: CaMgSi2O6 Localities: Reported from at least 11 localities in this region. |
| ⓘ Diopside var. Schefferite Formula: (Ca,Mn)(Mg,Fe,Mn)Si2O6 |
| ⓘ Diopside var. Zinc-Schefferite Formula: Ca(Mg,Mn,Zn)Si2O6 |
| ⓘ Dioptase ? Formula: CuSiO3 · H2O Description: Although the specimen was x-rayed by Dr. Eugene Sensel in 1966, it was a component in a mixture with chrysocolla. The entire original specimen is not known to have been preserved. A sub-specimen was subject to XRD in 2020 revealing d-values: 4.90 (25), 4.07 (25)[coincidental to chrysocolla], 2.60 (100)[coincidental to chrysocolla], 2.44 (60), 2.12 (20), 1.50 (15)[coincidental to chrysocolla] References: |
| ⓘ Djurleite Formula: Cu31S16 References: |
| ⓘ Dolomite Formula: CaMg(CO3)2 Localities: Reported from at least 9 localities in this region. |
| ⓘ Domeykite Formula: Cu3As Description: Occurs as microscopic inclusion in massive gray willemite associated with copper and cuprostibite. References: |
| ⓘ Dravite Formula: NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| ⓘ Duftite Formula: PbCu(AsO4)(OH) Description: Duftite has been called duftite-beta and has the adelite structure |
| ✪ Dundasite Formula: PbAl2(CO3)2(OH)4 · H2O Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Habit: Hemispherical aggregates. Colour: White Description: A huge boulder of galena altering to cerussite was found during recent excavations in the pit. The cerussite is nicely crystallized. The white mineral found in this assemblage was analyzed and proved to be dundasite, a mineral new to the locality and the |
| ⓘ Dypingite Formula: Mg5(CO3)4(OH)2 · 5H2O References: |
| ⓘ Edenite Formula: NaCa2Mg5(Si7Al)O22(OH)2 Localities: Reported from at least 6 localities in this region. |
| ⓘ 'Edenite-Pargasite Root Name Series' Formula: |
| ⓘ Enstatite Formula: Mg2Si2O6 |
| ⓘ Enstatite var. Bronzite Formula: (Mg,Fe2+)2[SiO3]2 |
| ⓘ Epidote Formula: (CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH) Localities: Reported from at least 6 localities in this region. |
| ⓘ 'Epidote Group' Formula: (A12+A22+)(M13+M23+M33+)O[Si2O7][SiO4](OH) |
| ⓘ Epidote-(Sr) Formula: (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) Description: occurs as high-z near-rim bands in complexly zoned crystals of (Sr+Pb)-bearing epidote (cores) to Sr-bearing hancockite (rims), intergrown with barite, within massive epidote/hancockite, andradite, and franklinite rock. Hendricksite and cpx(?; not analyzed) are also present. |
| ⓘ Epsomite Formula: MgSO4 · 7H2O |
| ⓘ Erythrite Formula: Co3(AsO4)2 · 8H2O |
| ⓘ Esperite (TL) Formula: PbCa2Zn3(SiO4)3 Localities: Habit: massive Colour: white to creamy, dingy Fluorescence: bright yellow-green Description: Massive, in nodules up to 15 cm, associated with hardystonite, willemite, franklinite, less commonly calcite, clinohedrite, and axinite-(Mn). |
| ⓘ Euchroite Formula: Cu2(AsO4)(OH) · 3H2O |
| ⓘ Eveite Formula: Mn2+2(AsO4)(OH) References: |
| ⓘ Fayalite Formula: Fe2+2(SiO4) |
| ⓘ Fayalite var. Roepperite (of Brush) Formula: (Fe2+,Mn,Zn)2SiO4 |
| ⓘ Feitknechtite (TL) Formula: Mn3+O(OH) Type Locality: |
| ⓘ Ferriakasakaite-(La) Formula: (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) Description: Verified by both microprobe chemical analysis and Raman Spectroscopy References: |
| ⓘ Ferrimolybdite Formula: Fe2(MoO4)3 · nH2O |
| ⓘ Ferro-actinolite Formula: ◻Ca2Fe2+5(Si8O22)(OH)2 |
| ⓘ Ferro-hornblende Formula: ◻Ca2(Fe2+4Al)(Si7Al)O22(OH)2 |
| ⓘ Ferrokinoshitalite Formula: (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| ⓘ Ferro-pargasite Formula: NaCa2(Fe2+4Al)(Si6Al2)O22(OH)2 |
| ⓘ Ferrorhodonite Formula: CaMn3Fe[Si5O15] References: |
| ⓘ Fersmite Formula: CaNb2O6 Locality: Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA Description: Fersmite of the Euxenite Group has been verified by EMPA as inclusions and red-brown crystals associated with hydroxycalciopyrochlore. References: |
| ⓘ Flinkite Formula: Mn2+2Mn3+(AsO4)(OH)4 Localities: Description: Occurs associated with jarosewichite in cavities in massive andradite. |
| ⓘ Fluckite Formula: CaMn2+(AsO3OH)2 · 2H2O Colour: Gray-white. Some pink material has appeared in the marketplace, but may not have been validated. Description: Occurs in cavities in calcite-rich willemite-franklinite ore in a single specimen (ex: Dr. Sidney Williams collection, a portion of which is in the C. Lemanski collection) |
| ⓘ Fluoborite Formula: Mg3(BO3)(F,OH)3 Localities: Description: Occurs in secondary veinlets cutting massive ore. |
| ⓘ Fluorapatite Formula: Ca5(PO4)3F Localities: Reported from at least 11 localities in this region. Habit: prismatic with shallow pyramidal terminations Colour: blue-green, brownish green, white, gray Fluorescence: none Description: Crystals up to 15 cm mostly in marble in contact with augite-rich rock at the saddle between the Passaic and Noble pits. Not fluorescent. Typically have bumpy resorbed surfaces. Some crystals naturally weathered out of calcite in the "mud zone" on the saddle have dull color and chalky appearance. |
| ⓘ Fluorapophyllite-(K) Formula: KCa4(Si8O20)(F,OH) · 8H2O Localities: Description: Found as clusters of small, lustrouys, colorless crystals in cavities in andradite skarn, 1100' level, Sterling mine. |
| ⓘ Formula: NaCa4(Si8O20)F · 8H2O Localities: Description: Optical analysis gave a false positive for fluorapophyllite-(Na) |
| ⓘ Formula: Ca5(SiO4)1.5(SO4)1.5F Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA - erroneously reported Description: A mineral was circulated commercially as fluorellestadite about the year 2000. Recent EDS indicates an absence of Si. The mineral seems to be an arsenatian johnbaumite. |
| ⓘ Fluorite Formula: CaF2 Localities: Reported from at least 12 localities in this region. |
| ⓘ Fluorite var. Chlorophane Formula: CaF2 Locality: Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA References: |
| ⓘ Fluoro-edenite Formula: NaCa2Mg5(Si7Al)O22F2 |
| ⓘ Fluoro-pargasite Formula: NaCa2(Mg4Al)(Si6Al2)O22F2 |
| ⓘ Fluorophlogopite Formula: KMg3(Si3Al)O10F2 Localities: Reported from at least 7 localities in this region. Habit: Columnar pseudohexagonal crystals to nearly 1 meter Colour: Golden brown to gray brown |
| ⓘ Fluoro-tremolite Formula: ◻Ca2Mg5(Si8O22)F2 References: |
| ⓘ Fluor-uvite (TL) Formula: CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F Localities: Reported from at least 9 localities in this region. Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA Habit: Crystals show first and second order prism and first and second order trigonal pyramids. The crystal habit is equant to only slightly elongated along "c". Oftentimes, the crystals are asymmetrical. Colour: Full range of light to dark greens including olive green and brownish green through greenish brown. Fluorescence: Orange yellow in short wave ultraviolet |
| ⓘ 'Fluor-uvite-Uvite Series' Localities: Reported from at least 7 localities in this region. |
| ⓘ Foitite Formula: ◻(Fe2+2Al)Al6(Si6O18)(BO3)3(OH)3(OH) Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA References: |
| ⓘ Forsterite Formula: Mg2(SiO4) |
| ⓘ Fowlerite (TL) Formula: (Mn2+,Zn,Ca)SiO3 Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Fraipontite (TL) Formula: (Zn,Al)3((Si,Al)2O5)(OH)4 Type Locality: |
| ✪ Franklinfurnaceite (TL) Formula: Ca2Fe3+Mn2+3Mn3+(Zn2Si2O10)(OH)8 Type Locality: |
| ⓘ Franklinite (TL) Formula: Zn2+Fe3+2O4 Localities: Reported from at least 14 localities in this region. Habit: Octahedral, dodecahedral, modified octahedrons Colour: Black Fluorescence: None Description: Occurs as a major ore mineral from massive to granular, disseminated granular, and crystals, both free-growing and embedded in calcite. |
| ⓘ Franklinphilite (TL) Formula: (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O Type Locality: |
| ⓘ Friedelite Formula: Mn2+8Si6O15(OH,Cl)10 Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Taylor Mine, Franklin Mine, Franklin, Sussex County, New Jersey, USA Mill site dump, Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ✪ Gageite (TL) Formula: Mn21(Si4O12)2O3(OH)20 Type Locality: |
| ⓘ 'Gageite-2M' (FRL) Formula: (Mn,Mg,Zn)42Si16O54(OH)40 Type Locality: |
| ⓘ Gahnite Formula: ZnAl2O4 Localities: Reported from at least 8 localities in this region. Habit: octahedral Colour: very dark green Fluorescence: none Description: Euhedral crystals typically occur in calcite pods within, or in calcite adjacent to, tough, massive, dark augite/hendricksite/gahnite rock in the East Ore Vein. Crystals can be over 5 cm on an edge, faces usually lustrous with some resorption/rounding. Internally fractured and very brittle, they crumble readily. Also occurs in weathered zones between the folds of the Sterling Hill orebody. |
| ⓘ Galena Formula: PbS Localities: Reported from at least 8 localities in this region. |
| ⓘ Ganomalite Formula: Pb9Ca5Mn(Si2O7)4(SiO4)O References: |
| ⓘ Ganophyllite Formula: (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| ⓘ 'Garnet Group' Formula: X3Z2(SiO4)3 |
| ⓘ Genthelvite Formula: Be3Zn4(SiO4)3S Localities: Habit: 7.5 to 8 cm on edge Colour: Colorless, whitish, pale greenish. Fluorescence: Gray-green (LW UV). Description: Found in an assemblage of gahnite, apatite, rhodonite, galena, quartz, titanite, zircon, barite and ore minerals in the footwall of the East vein, Sterling orebody, in the Passaic Pit at the entrance to the fill quarry. Most specimen were represented by s |
| ⓘ Gersdorffite Formula: NiAsS |
| ✪ Gerstmannite (TL) Formula: MnMgZn(SiO4)(OH)2 Type Locality: Habit: Platy masses, individual microscopic crystals rare. Colour: Colorless, pale tan Fluorescence: None |
| ✪ Glaucochroite (TL) Formula: CaMn2+(SiO4) Type Locality: Colour: blue, blue-gray, tan Fluorescence: None. |
| ⓘ Glaucodot Formula: (Co0.50Fe0.50)AsS Description: Occurs in the unique nickel-cobalt-arsenic assemblage. |
| ⓘ Goethite Formula: Fe3+O(OH) Localities: Reported from at least 9 localities in this region. |
| ⓘ Goldmanite Formula: Ca3V3+2(SiO4)3 |
| ⓘ Gonyerite Formula: Mn2+5Fe3+(Fe3+Si3O10)(OH)8 |
| ✪ Graeserite Formula: Fe3+4Ti3As3+O13(OH) Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Habit: Tabular, exhibiting apparent oscillatory growth pattern. Colour: Black Fluorescence: None. Description: One extraordinaryily large crystal (3.8 x 3.7 x 0.3 cm) in matrix. |
| ⓘ Graphite Formula: C Localities: Reported from at least 11 localities in this region. Habit: Spherules (rare), tabular, barrel-shaped (rare) Colour: Black Fluorescence: None. Description: Rarely found in "black" ore at this mine. Occurs as flakes, tabular crystals, spherules and smudges on fractures. |
| ⓘ Greenockite Formula: CdS Localities: Description: Collected as dark yellow coatings on fracture surfaces in sphalerite-rich matrix, 500' level (C.S. Lemanski, Jr. - analysis by R.E. Jenkins II). |
| ⓘ Grossular Formula: Ca3Al2(SiO4)3 Localities: Reported from at least 7 localities in this region. |
| ⓘ Grossular var. Hydrogrossular Formula: Ca3Al2(SiO4)3 |
| ⓘ Groutite Formula: Mn3+O(OH) |
| ⓘ Grunerite Formula: ◻Fe2+2Fe2+5(Si8O22)(OH)2 Habit: Acicular Colour: Pale yellow-green Description: Occurs as distinct feathery to flat spherical aggregates to 1 cm diameter of fine needles on matrix. |
| ⓘ Guérinite Formula: Ca6(HAsO4)3(AsO4)2 · 10.5H2O Description: The guerinite occurs as a post-mining product on a single seam on the roof of a drift in Precambrian Franklin marble, 340' level, Sterling Mine. References: |
| ⓘ Gypsum Formula: CaSO4 · 2H2O Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Noble pit (Lot #10 - Ogden Divisions; Noble Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Gypsum var. Selenite Formula: CaSO4 · 2H2O References: |
| ⓘ Haidingerite Formula: CaHAsO4 · H2O |
| ⓘ Halotrichite Formula: Fe2+Al2(SO4)4 · 22H2O |
| ⓘ Hancockite (TL) Formula: (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA Habit: Crystals found in the vugs of the massive hancockite are prismatic and normally striated along the longest axis. Colour: brownish-red, maroon Description: Hancockite is found in the calcium silicate units of the Franklin ore body |
| ⓘ Hardystonite (TL) Formula: Ca2Zn[Si2O7] Localities: Franklin Mine, Franklin, Sussex County, New Jersey, USA Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Parker shaft, Franklin Mine, Franklin, Sussex County, New Jersey, USA Mill site dump, Franklin Mine, Franklin, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Hastingsite Formula: NaCa2(Fe2+4Fe3+)(Si6Al2)O22(OH)2 Localities: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Noble pit (Lot #10 - Ogden Divisions; Noble Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Habit: flattened, subhedral to "wrinkly" anhedral Colour: gray/brown-stained Description: The magnesian variety of hastingsite occurring in weathered ore between the folds of the Sterling Hill orebody. Many small, flattened, "wrinkly", epitaxial crystals of this species are found on the abundant pyroxene crystals from the mud zone on the saddle between the Passaic and Noble Pits, although few have been analyzed. |
| ⓘ Hauckite (TL) Formula: Fe3+3(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 Localities: Habit: Small tabular hexagonal crystakls and aggregates. Colour: Yellow, yellowish tan. Fluorescence: None Description: Occurs in fracture voids and seams, commonly with calcite. |
| ⓘ Hausmannite Formula: Mn2+Mn3+2O4 |
| ⓘ Hawleyite Formula: CdS |
| ⓘ Hedenbergite Formula: CaFe2+Si2O6 Localities: Reported from at least 7 localities in this region. |
| ⓘ Hedyphane Formula: Ca2Pb3(AsO4)3Cl |
| ⓘ Hellandite-(Y) Formula: (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 Description: The hellandite-(Y) occurs on a single specimen from the Franklin mine. Remarkably, the species occurs as a secondary mineral, not a primary pegmatitic mineral as is usually the case. It occurs on another, earlier secondary mineral (rhodochrosite). |
| ⓘ Hematite Formula: Fe2O3 Localities: Reported from at least 9 localities in this region. |
| ⓘ Hemimorphite Formula: Zn4Si2O7(OH)2 · H2O Localities: Reported from at least 7 localities in this region. Colour: Colorless to white, brown-stained. Fluorescence: Blue-white to greenish-white (SW) + white phosphorescence Description: Occurs abundantly as crusts and masses of aggregated crystals forming structures termed "maggot ore." |
| ⓘ Hendricksite (TL) Formula: KZn3(Si3Al)O10(OH)2 Localities: Reported from at least 8 localities in this region. Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Hercynite Formula: Fe2+Al2O4 |
| ⓘ Hetaerolite (TL) Formula: ZnMn2O4 Localities: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Noble pit (Lot #10 - Ogden Divisions; Noble Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA |
| ✪ Hetaerolite var. Hydrohetaerolite (FRL) Formula: Zn(Mn,◻)2(O,OH)4 Type Locality: Description: Occurs as crusts and masses in weathered zones within the Sterling Hill orebody. |
| ⓘ Heulandite-Ca Formula: (Ca,Na)5(Si27Al9)O72 · 26H2O |
| ⓘ 'Heulandite Subgroup' Formula: (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| ⓘ Hexahydrite Formula: Mg(H2O)6(SO4) Description: A post-mining product. |
| ⓘ Hodgkinsonite (TL) Formula: Mn2+Zn2(SiO4)(OH)2 Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA Colour: Colorless, pale lilac, purple Fluorescence: None. |
| ⓘ Holdenite (TL) Formula: (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 Localities: Type Locality: Franklin, Sussex County, New Jersey, USA Habit: Equant to thick tabular {100}. Colour: Pink, yellowish red |
| ⓘ 'Hornblende Root Name Group' Formula: ◻Ca2(C2+4C3+)(AlSi7O22)W2 |
| ⓘ Humite Formula: Mg7(SiO4)3F2 |
| ⓘ 'Humite Group' References: |
| ⓘ Hübnerite Formula: MnWO4 References: |
| ⓘ Hydrocerussite Formula: Pb3(CO3)2(OH)2 References: |
| ⓘ 'Hydrohausmannite' (FRL) Type Locality: |
| ⓘ Hydrotalcite Formula: Mg6Al2(CO3)(OH)16 · 4H2O |
| ⓘ Hydroxyapophyllite-(K) Formula: KCa4(Si8O20)(OH,F) · 8H2O |
| ⓘ Hydroxycalciopyrochlore Formula: (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) Locality: Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA References: |
| ⓘ Hydroxycalcioroméite Formula: (Ca,Sb3+)2(Sb5+,Ti)2O6(OH) References: |
| ⓘ Hydroxylapatite Formula: Ca5(PO4)3(OH) References: |
| ⓘ Hydroxylclinohumite Formula: Mg9(SiO4)4(OH)2 References: |
| ⓘ Hydrozincite Formula: Zn5(CO3)2(OH)6 Localities: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Trotter Mine, Franklin Mine, Franklin, Sussex County, New Jersey, USA Mill site dump, Franklin Mine, Franklin, Sussex County, New Jersey, USA Colour: White Fluorescence: Bright blue (SW). Description: Occurs as films and coatings in weathered ore zones within the folds of the Sterling Hill orebody. A notable occurrence in the early 1990's was as veinlets of hydrozincite with copper minerals coursing through red-fluorescent calcite boulders. |
| ⓘ 'Hypersthene' Formula: (Mg,Fe)SiO3 |
| ⓘ Ilmenite Formula: Fe2+TiO3 Localities: Colour: Black. Description: Ilmenite and Albite occur at the contact surfaces between Franklin marble and intruded "camptonite" basaltic dikes. |
| ⓘ Iowaite Formula: Mg6Fe3+2(OH)16Cl2 · 4H2O References: |
| ⓘ Jacobsite Formula: Mn2+Fe3+2O4 |
| ⓘ Jarosewichite (TL) Formula: Mn2+3Mn3+(AsO4)(OH)6 Localities: Description: Occurs associated with flinkite in massive andradite and franklinite. |
| ⓘ Jarosite Formula: KFe3+3(SO4)2(OH)6 |
| ⓘ 'Jeffersonite' (FRL) Formula: Ca(Mn,Zn,Fe)Si2O6 Localities: Type Locality: Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA |
| ⓘ Jerrygibbsite (TL) Formula: Mn2+9(SiO4)4(OH)2 Type Locality: Habit: anhedral Colour: medium violet-pink in color. The mineral resembles some leucophoenicites, but is decidedly more brown and violet-colored than most leucophoenicite Description: Jerrygibbsite occurs as a massive mineral in interlocking, anhedral crystals reaching 0.5 x 2.0 mm, which display a typical metamorphic texture; there are no euhedral crystals. Jerrygibbsite has not been found associated with any Ca-bearing minerals |
| ⓘ Johannsenite (TL) Formula: CaMn2+Si2O6 Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Johnbaumite (TL) Formula: Ca5(AsO4)3(OH) Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Junitoite Formula: CaZn2Si2O7 · H2O Description: A single specimen of junitoite has been verified from the Franklin Mine. References: |
| ⓘ Kaolinite Formula: Al2(Si2O5)(OH)4 References: |
| ⓘ Kentrolite Formula: Pb2Mn3+2(Si2O7)O2 |
| ⓘ Kittatinnyite (TL) Formula: Ca2Mn2Mn(SiO4)2(OH)4 · 9H2O Type Locality: Description: Occurs in ore within the Franklin orebody. |
| ⓘ Kolicite (TL) Formula: Mn2+7Zn4(AsO4)2(SiO4)2(OH)8 Localities: Description: Occurs as crystal groups on fracture surfaces in "red" willemite ore. |
| ⓘ Köttigite Formula: Zn3(AsO4)2 · 8H2O |
| ⓘ 'Köttigite-Parasymplesite Series' |
| ✪ Kraisslite (TL) Formula: Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 Type Locality: Habit: Tabular xls Colour: Pale red-brown, deep coppery brown Description: Occurs as lustrous, deep coppery-brown cleavage plates and crystal aggregates in fractures in "red" willemite-franlinite ore. |
| ⓘ Kutnohorite Formula: CaMn2+(CO3)2 |
| ⓘ Larsenite (TL) Formula: PbZnSiO4 Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA Habit: Acicular to long-prismatic Colour: Colourless, white Fluorescence: None. Description: Acicular to long-prismatic, colourless crystals in fracture surface cavities traversing willemite-franklinite ore with esperite present.
The type locality for larsenite is the Franklin MIne, not the Parker Shaft. Palache (1935) makes it clear: "Larsenite was first found in 1928 and, with the closely related, was described in papers by Palache, Bauer, and Berman (256, 259). The first specimens were found on the picking table at Franklin, and the mineral was afterwards located in the mine at the north end, 20 feet above the 400-foot level in top slice 1080." |
| ⓘ Laumontite Formula: CaAl2Si4O12 · 4H2O |
| ⓘ Lavendulan Formula: NaCaCu5(AsO4)4Cl · 5H2O |
| ✪ Lawsonbauerite (TL) Formula: (Mn2+,Mg)9Zn4(SO4)2(OH)22 · 8H2O Type Locality: Habit: Prismatic monoclinic crystals tending to acicular. Colour: Pale tan, nearly colorless Fluorescence: None Description: Occurs crystallized in fracture voids and seams in massive ore. |
| ⓘ Legrandite Formula: Zn2(AsO4)(OH) · H2O References: |
| ⓘ Lennilenapeite (TL) Formula: K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Leucophoenicite (TL) Formula: Mn2+7(SiO4)3(OH)2 Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA Habit: commonly prismatic, although tabular crystals are known. Colour: commonly some shade of pink, but violet-red and brownish-red hues are known. Description: occurs in secondary veins and vuggy assemblages, both as massive material and as euhedral crystals. It has been found in several different mineral assemblages in these veins, and is also found in calcium-rich primary ore, hydroxyl-bearing ore assemblages, and recrystallized aggregates. In vein assemblages, leucophoenicite crystallizes late, commonly contemporaneously with willemite, the most commonly associated mineral.
Crystals of leucophoenicite appear to be confined to open hydrothermal veins. |
| ⓘ 'Limonite' References: |
| ⓘ Linarite Formula: PbCu(SO4)(OH)2 References: |
| ⓘ Liroconite Formula: Cu2Al(AsO4)(OH)4 · 4H2O References: |
| ⓘ Litharge Formula: PbO Locality: Franklin, Sussex County, New Jersey, USA Description: Micromount specimen from the Steve Pullman collection. "Verified," but method not stated. Several specimens of Franklin litharge are known and are associated with relatively thick lead. (Noted by Steven Kuitems and Pete Dunn.) References: |
| ⓘ Lizardite Formula: Mg3(Si2O5)(OH)4 Localities: Reported from at least 6 localities in this region. Habit: massive Colour: brown, reddish-brown Description: Typically massive in slickensided veins associated with calcite and willemite, or replacing other minerals. |
| ✪ Loseyite (TL) Formula: (Mn2+,Zn,Mg)4Zn3(CO3)2(OH)10 Type Locality: |
| ⓘ Löllingite Formula: FeAs2 Localities: Reported from at least 6 localities in this region. Habit: Square bipyramidal to rectanular prismatic crystals Colour: Metallic silvery white Fluorescence: Not fluorescent in UV |
| ⓘ Macfallite Formula: Ca2Mn3+3(SiO4)(Si2O7)(OH)3 Locality: Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA References: |
| ⓘ Magnesiochlorophoenicite (TL) Formula: (Mg,Mn)3Zn2(AsO4)(OH,O)6 Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Magnesio-fluoro-hastingsite Formula: NaCa2(Mg4Fe3+)(Si6Al2)O22F2 References: |
| ⓘ Magnesio-hornblende Formula: ◻Ca2(Mg4Al)(Si7Al)O22(OH)2 |
| ⓘ Magnesio-riebeckite Formula: ◻Na2(Mg3Fe3+2)(Si8O22)(OH)2 Localities: Description: Occurs as light blue to blue-gray masses of finely fibrous material associated with sphalerite, calcite and lennilenapeite. |
| ⓘ Magnetite Formula: Fe2+Fe3+2O4 Localities: Reported from at least 24 localities in this region. Habit: octahedral, commonly rounded Colour: black metallic Description: Grains and crystals to >15 cm found in the saddle between the Passaic and Noble Pits associated with spessartine, augite, microcline, fluorapatite. The best crystals were found "loose" in saprolite alteration of the enclosing calcite. |
| ✪ Magnussonite Formula: Mn2+10(As3+O3)6(OH,Cl)2 Habit: Massive vein-filling material Colour: Dark green-black Fluorescence: None |
| ⓘ Malachite Formula: Cu2(CO3)(OH)2 Localities: Reported from at least 6 localities in this region. |
| ✪ Manganberzeliite Formula: (NaCa2)Mn2+2(AsO4)3 |
| ⓘ Manganhumite Formula: Mn2+7(SiO4)3(OH)2 |
| ⓘ Manganite Formula: Mn3+O(OH) |
| ⓘ Manganohörnesite Formula: Mn2+3(AsO4)2 · 8H2O References: |
| ⓘ Manganosite Formula: MnO |
| ⓘ Formula: Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 Locality: Franklin, Sussex County, New Jersey, USA - erroneously reported Description: Manganoan vesuvianite is common at Franklin, but manganian vesuvianite is unknown. The name, manganvesuvianite, should not be confused with manganoan vesuvianite. References: |
| ⓘ Manjiroite Formula: Na(Mn4+7Mn3+)O16 |
| ⓘ Marcasite Formula: FeS2 Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Franklin Quarry, Franklin, Sussex County, New Jersey, USA Franklin Iron Furnace foundation excavation, Franklin, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Margarite Formula: CaAl2(Al2Si2O10)(OH)2 |
| ⓘ Margarosanite (TL) Formula: Ca2PbSi3O9 Localities: |
| ⓘ Marialite Formula: Na4Al3Si9O24Cl Habit: elongated prismatic Colour: pale yellow Fluorescence: creamy white to pink under SW UV Description: Crystals in the Harvard Mineralogical and Geological Museum collection have been analyzed (I don't recall with what method) but are marialite. The best one is depicted in The Mineralogy of Franklin and Ogdensburg, New Jersey (2021) page 286. |
| ✪ Marsturite (TL) Formula: NaCaMn3Si5O14(OH) Type Locality: Colour: Tan Fluorescence: None. Description: Grows epitaxially on bladed rhodonite crystals in open fractures in massive franklinite-willemite-zincite ore. |
| ⓘ Mcallisterite Formula: Mg2[B6O7(OH)6]2 · 9H2O |
| ✪ Mcgovernite (TL) Formula: Mn19Zn3(AsO4)3(AsO3)(SiO4)3(OH)21 Type Locality: Habit: Radial aggregates; individual platy grains Colour: Medium to dark bronzy-brown Fluorescence: None References: |
| ⓘ Meionite Formula: Ca4Al6Si6O24CO3 Localities: Habit: massive with fibrous cleavage, granular, stout prismatic crystals Colour: white to pale green Fluorescence: pink to magenta Description: ID based on Dunn's report of the prevalence of meionite in the district. Large cleavable masses to 15 cm, granular, and as stout crystals with calcite, augite, black mica, magnetite, fluorapatite in the saddle between the Passaic and Noble pits. Weathers to a frosty, crumbly, semi-fibrous white material. |
| ⓘ Meionite var. Algerite (FRL) Formula: Ca4Al6Si6O24CO3 Type Locality: References: |
| ⓘ Meta-ankoleite Formula: K2(UO2)2(PO4)2 · 6H2O |
| ⓘ Metalodèvite Formula: Zn(UO2)2(AsO4)2 · 10H2O References: |
| ⓘ Metauranospinite ? Formula: Ca(UO2)2(AsO4)2 · 8H2O |
| ⓘ Metazeunerite Formula: Cu(UO2)2(AsO4)2 · 8H2O |
| ⓘ 'Mica Group' Description: Occurs in Precambrian Franklin marble. |
| ⓘ Microcline Formula: K(AlSi3O8) Localities: Reported from at least 10 localities in this region. Colour: Whitish, green, dark green, blackish-green Fluorescence: Blue-gray to bluish (SW) Description: Occurs in pegmatites and in ore adjacent to pegmatite intrusives, often as crystals. |
| ⓘ Microcline var. Amazonite Formula: K(AlSi3O8) |
| ⓘ Microcline var. Hyalophane Formula: (K,Ba)[Al(Si,Al)Si2O8] |
| ⓘ Miguelromeroite Formula: Mn2+5(AsO3OH)2(AsO4)2(H2O)4 |
| ⓘ Formula: NiS Locality: Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA - erroneously reported |
| ⓘ Mimetite Formula: Pb5(AsO4)3Cl Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Noble pit (Lot #10 - Ogden Divisions; Noble Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA |
| ✪ Minehillite (TL) Formula: (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 Type Locality: |
| ⓘ 'Mineral B ("oyelite-like" mineral)' Formula: Ca10Si8B2O29 · 12.5H2O |
| ⓘ 'Mineral E (of Dunn, et. al., 1982)' References: |
| ⓘ Molybdenite Formula: MoS2 |
| ⓘ Monazite-(Ce) Formula: Ce(PO4) |
| ⓘ Monohydrocalcite Formula: CaCO3 · H2O |
| ⓘ Mooreite (TL) Formula: Mg9◻2Mn2Zn4(SO4)2(OH)26 · 8H2O Localities: Habit: Thin-tabular crystals to aggregates of plates with somewhat radial configuration. Colour: Colorless, tan, light brown Fluorescence: None Description: Occurs in highly alkaline environments in fracture voids (crystals) and filling fracture seams (platy masses). |
| ⓘ Muscovite Formula: KAl2(AlSi3O10)(OH)2 Localities: Reported from at least 7 localities in this region. |
| ⓘ Muscovite var. Illite Formula: K0.65Al2.0[Al0.65Si3.35O10](OH)2 |
| ⓘ Muscovite var. Oellacherite Formula: KAl2(AlSi3O10)(OH)2 Colour: Pink Description: Very fine-grained / massive material. |
| ⓘ Nasonite (TL) Formula: Pb6Ca4(Si2O7)3Cl2 Localities: |
| ⓘ Native Arsenic Formula: As Description: Occurs in Precambrian Franklin marble associated with realgar and arsenopyriteon the 900' level. References: |
| ⓘ Native Copper Formula: Cu Localities: Colour: Copper-red Fluorescence: None Description: Occurs embedded in massive ore minerals as specks, sheets and masses. |
| ⓘ Native Gold Formula: Au |
| ⓘ Native Lead Formula: Pb |
| ⓘ Native Silver Formula: Ag |
| ⓘ Native Sulphur Formula: S8 |
| ⓘ Natrolite Formula: Na2Al2Si3O10 · 2H2O |
| ✪ Nelenite (TL) Formula: (Mn,Fe)16(Si12O30)(OH)14[As3+3O6(OH)3] Type Locality: Description: Occurred approximately 50 feet South of the Trotter shaft, Franklin orebody. References: Dunn, Pete J., Peacor, Donald R., Simmons, William B. (1984) Lennilenapeite, the Mg-analogue of stilpnomelane, and chemical data on other stilpnomelane species from Franklin, New Jersey. The Canadian Mineralogist, 22 (2) 259-263 |
| ⓘ Neotocite Formula: (Mn,Fe)SiO3 · H2O (?) |
| ⓘ Newberyite Formula: Mg(PO3OH) · 3H2O Description: Found in a single specimen from the north ore body (deep levels) of the Sterling Mine. Although there were bats in the Sterling Mine, this occurrence was not related to bat guano, but rather, was a presence in Archean ore. |
| ⓘ Niahite Formula: (NH4)Mn2+(PO4) · H2O References: |
| ⓘ Nickeline Formula: NiAs Description: Occurs in the unique nickel-cobalt-arsenic assemblage. |
| ⓘ Nickelskutterudite Formula: NiAs3 |
| ⓘ Nontronite Formula: Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| ⓘ Norbergite Formula: Mg3(SiO4)F2 Localities: Reported from at least 6 localities in this region. |
| ✪ Ogdensburgite (TL) Formula: Ca2Fe3+4(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O Type Locality: Habit: Coatings of microcrystalline material. Colour: Red-brown Fluorescence: None Description: As coatings in fractures and seams. |
| ⓘ Ojuelaite Formula: ZnFe3+2(AsO4)2(OH)2 · 4H2O References: |
| ⓘ Opal Formula: SiO2 · nH2O |
| ⓘ 'Orthochrysotile' Formula: Mg3(Si2O5)(OH)4 Locality: Franklin, Sussex County, New Jersey, USA |
| ⓘ Orthoclase Formula: K(AlSi3O8) |
| ⓘ Orthoserpierite Formula: Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| ⓘ Otavite Formula: CdCO3 |
| ✪ Parabrandtite (TL) Formula: Ca2Mn2+(AsO4)2 · 2H2O Type Locality: Habit: Clusters of minute crystals Colour: White Description: 3 co-type specimens only (Smithsonian Institution; Fred Parker collection; C. Lemanski, Jr. collection). |
| ⓘ Paragonite Formula: NaAl2(AlSi3O10)(OH)2 |
| ⓘ Pararammelsbergite Formula: NiAs2 Description: Occurs in the unique nickel-cobalt-arsenic assemblage. |
| ⓘ Pararealgar Formula: As4S4 Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Colour: Golden-yellow. Fluorescence: None. Description: Occurs in Precambrian Franklin marble associated with baumhauerite, pyrite and phlogopite. Collected by Mr. Zumrill. References: |
| ⓘ Parasymplesite Formula: Fe2+3(AsO4)2 · 8H2O References: |
| ⓘ Pargasite Formula: NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| ⓘ Pectolite Formula: NaCa2Si3O8(OH) |
| ⓘ Pennantite Formula: Mn2+5Al(AlSi3O10)(OH)8 References: |
| ⓘ Petedunnite (TL) Formula: CaZnSi2O6 Localities: Colour: Dark green. Description: Occurs in a complex assemblage including genthelvite and willemite. |
| ⓘ Peterchinite (TL) Formula: Zn3Zn2(OH)6As[O3(OH)3] Type Locality: |
| ⓘ Pharmacolite Formula: Ca(HAsO4) · 2H2O References: |
| ⓘ Pharmacosiderite Formula: KFe3+4(AsO4)3(OH)4 · 6-7H2O |
| ⓘ Phlogopite Formula: KMg3(AlSi3O10)(OH)2 Localities: Reported from at least 9 localities in this region. Habit: stubby to elongated, tapered prismatic with pseudohexagonal outline rarely terminated by pinacoids Colour: black Description: Large essentially black crystals to over 9 cm across and more than 15 cm long in marble associated with tough, massive, dark augite/gahnite rock in the East Ore Vein. Good crystals at the contacts of these rocks. 2008 EDS analysis shows abundant Mg plus much Fe, Zn and Mn; XRD with 10.3 Å spacing indicates a phlogopite-3T polytype, probably mixed with some phlogopite-1M, seeing that the (001) reflection is broad ranging down to 9.2 Å and the other peaks are sharp (Van King communication 2016). |
| ⓘ 'Phlogopite-1M' Formula: KMg3(AlSi3O10)(OH)2 Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA References: |
| ⓘ 'Phlogopite-3T' Formula: KMg3(AlSi3O10)(OH)2 Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA References: |
| ⓘ Picropharmacolite Formula: Ca4Mg(AsO4)2(HAsO4)2 · 11H2O |
| ⓘ Piemontite Formula: (CaCa)(AlAlMn3+)O[Si2O7][SiO4](OH) |
| ⓘ 'Pimelite' Formula: Ni3Si4O10(OH)2 · 4H2O |
| ⓘ 'Plagioclase' Formula: (Na,Ca)[(Si,Al)AlSi2]O8 |
| ✪ Potassic-ferro-pargasite Formula: KCa2(Fe2+4Al)(Si6Al2)O22(OH)2 Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Habit: equant Colour: black with brown patina Description: At least one equant, 7 x 6 5 cm crystal from the mud zone on the saddle between the Passaic and Noble Pits has been characterized as this species, associated with the much more abundant pyroxene crystals found there, plus magnetite, garnet and fluorapatite. |
| ✪ Potassic-hastingsite Formula: KCa2(Fe2+4Fe3+)(Al2Si6O22)(OH)2 Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Habit: equant Colour: black with brown patina Description: At least 2 specimens (one a 10 x 7 x 4.5 cm cleavage fragment) from the mud zone on the saddle between the Passaic and Noble Pits have been characterized as this species, associated with the much more abundant pyroxene crystals found there, plus magnetite, garnet and fluorapatite. |
| ⓘ Formula: NaFe3+3(Mg2Fe3+4)(Si6O18)(BO3)3(OH)3O Locality: Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA - erroneously reported Description: EDS can not prove the species of a tourmaline, except perhaps in very rare special cases. No povondraite-like mineral has been been verified by quantitative chemical analyses. The report is certainly in error. However, many specimens were sold as povondraite before the error was discovered. See also FrOg On-line #1998-06 The commonly designated species for the former povondraite is dravite. References: |
| ⓘ Powellite Formula: Ca(MoO4) |
| ⓘ 'Powellite-Scheelite Series' References: |
| ⓘ Prehnite Formula: Ca2Al2Si3O10(OH)2 |
| ⓘ Pumpellyite-(Mg) Formula: Ca2MgAl2[Si2O6OH][SiO4](OH)2(OH) References: |
| ⓘ Pyrite Formula: FeS2 Localities: Reported from at least 16 localities in this region. |
| ⓘ Pyroaurite Formula: Mg6Fe3+2(OH)16[CO3] · 4H2O |
| ⓘ 'Pyroaurite-2H' Formula: Mg6Fe3+2(OH)16(CO3) · 4H2O References: |
| ⓘ 'Pyroaurite-3R' Formula: Mg6Fe3+2(OH)16(CO3) · 4H2O References: |
| ⓘ Pyrobelonite Formula: PbMn2+(VO4)(OH) |
| ⓘ 'Pyrochlore Group' Formula: A2Nb2(O,OH)6Z |
| ⓘ Pyrochroite Formula: Mn(OH)2 Localities: Reported from at least 6 localities in this region. |
| ⓘ Pyromorphite ? Formula: Pb5(PO4)3Cl Description: This is a lead phosphate (EDS), but the mineral is one of several species including phosphohedyphane or an unnamed member of the series. References: |
| ⓘ Pyrophanite Formula: Mn2+TiO3 |
| ✪ Pyrosmalite-(Mn) (TL) Formula: Mn2+8Si6O15(OH,Cl)10 Type Locality: Habit: Massive Colour: Red-brown, brown Fluorescence: None Description: Occurs as a seam and fracture filling. |
| ⓘ 'Pyroxene Group' Formula: ADSi2O6 Description: Occurs in conjunction with a magnetite orebody hosted in Cork Hill gneiss at its contact with Precambrian Franklin marble. |
| ✪ Pyroxferroite Formula: (Fe,Mn,Ca)SiO3 Habit: Crystal section are prismatic with crude terminations. Colour: Tan to yellow; crystals are black Description: Originally found in a single specimen found on the Taylor Road dump and subsequently identified in specimens of a similar appearance. Vitreous. In gahnite-rich matrix. One specimen known with black crystal sections to 2 cm in a vein of rhodonite. |
| ⓘ Pyroxmangite Formula: Mn2+SiO3 |
| ⓘ Pyrrhotite Formula: Fe1-xS Localities: Reported from at least 10 localities in this region. |
| ⓘ Quartz Formula: SiO2 Localities: Reported from at least 11 localities in this region. |
| ⓘ Rammelsbergite Formula: NiAs2 Description: Occurred in a restricted assemblage from the Trotter Mine within the Franklin orebody associated with other cobalt-nickel-arsenic species. References: |
| ⓘ Realgar Formula: As4S4 |
| ✪ Reinerite Formula: Zn3(AsO3)2 Fluorescence: Fluorescent olive-yellow in SW and LW, not phosphorescent. Description: XRD and Raman verified. References: |
| ⓘ 'Retzian Group' Formula: Mn2+2REE(AsO4)(OH)4 References: Carnegie Museum of Natural History analysisIdentified by Chris Emproto: XRD, SEM-EDS |
| ⓘ Retzian-(La) (TL) Formula: Mn2+2La(AsO4)(OH)4 Type Locality: |
| ⓘ Retzian-(Nd) (TL) Formula: Mn2+2Nd(AsO4)(OH)4 Type Locality: |
| ⓘ Rhodochrosite Formula: MnCO3 Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Hamburg Mine, Franklin Mine, Franklin, Sussex County, New Jersey, USA North Ore Body, Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA |
| ⓘ Rhodonite Formula: CaMn3Mn[Si5O15] Localities: Reported from at least 10 localities in this region. Habit: tabular, blocky prismatic Colour: Bright pink, red-pink, light pink, dark red-black Fluorescence: None. |
| ⓘ Ribbeite Formula: Mn2+5(SiO4)2(OH)2 References: |
| ⓘ Richterite Formula: Na(CaNa)Mg5(Si8O22)(OH)2 References: |
| ⓘ Roeblingite (TL) Formula: Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O Localities: |
| ⓘ 'Roméite Group' Formula: A2(Sb5+)2O6Z |
| ⓘ Rosasite Formula: (Cu,Zn)2(CO3)(OH)2 |
| ⓘ Rouaite Formula: Cu2(NO3)(OH)3 Description: 2 specimens only (Franklin Mineral Museum and C. Lemanski, Jr. collections). |
| ✪ Roweite (TL) Formula: Ca2Mn2+2B4O7(OH)6 Type Locality: Habit: Narrow veinlet Colour: Light brown |
| ⓘ Roxbyite Formula: Cu58S32 |
| ⓘ Rutile Formula: TiO2 Localities: Reported from at least 8 localities in this region. Description: Occurs in weathered ore between the folds of the Sterling Hill orebody. |
| ⓘ Safflorite Formula: (Co,Ni,Fe)As2 Description: Occurs in the unique nickel-cobalt-arsenic assemblage. |
| ✪ Samfowlerite (TL) Formula: Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 Type Locality: |
| ⓘ Saponite Formula: Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O Locality: Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA References: |
| ⓘ Sarkinite Formula: Mn2+2(AsO4)(OH) |
| ⓘ Sauconite Formula: Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| ⓘ Sauconite var. Vanuxemite Formula: Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| ⓘ 'Scapolite' |
| ⓘ Schallerite (TL) Formula: Mn2+16As3Si12O36(OH)17 Localities: Type Locality: Franklin Mine, Franklin, Sussex County, New Jersey, USA |
| ⓘ Scheelite Formula: Ca(WO4) Localities: |
| ⓘ Schorl Formula: NaFe2+3Al6(Si6O18)(BO3)3(OH)3(OH) |
| ✪ Sclarite (TL) Formula: Zn7(CO3)2(OH)10 Type Locality: |
| ⓘ Scorodite Formula: Fe3+AsO4 · 2H2O |
| ⓘ Segnitite Formula: PbFe3+3AsO4(AsO3OH)(OH)6 Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA References: |
| ⓘ Seligmannite Formula: PbCuAsS3 References: |
| ⓘ Sepiolite Formula: Mg4(Si6O15)(OH)2 · 6H2O |
| ⓘ 'Serpentine Subgroup' Formula: D3[Si2O5](OH)4 Localities: Description: This entry is made to cover specimens of minerals in the group which have not been differentiated by species. |
| ⓘ Serpierite Formula: Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| ⓘ Siderite Formula: FeCO3 Localities: |
| ⓘ Siderophyllite ? Formula: KFe2+2Al(Al2Si2O10)(OH)2 Description: Black mica with high iron contents. EDS References: |
| ⓘ Sillimanite Formula: Al2(SiO4)O |
| ⓘ Formula: Zn5Cl2(OH)8 · H2O Locality: Franklin, Sussex County, New Jersey, USA - erroneously reported Description: Suspicious identification without data and source refuses to provide even the method of identification. Specimen submitted to RRUFF showed that simonkolleite was absent on the specimen. Associated species were typical of Franklin matrix: esperite, willemite, franklinite, etc. References: |
| ⓘ Skutterudite Formula: CoAs3 Description: Occurred in the unique nickel-cobalt-arsenic assemblage. |
| ⓘ Smithsonite Formula: ZnCO3 Localities: Reported from at least 6 localities in this region. |
| ⓘ Formula: (Fe,Ni)3+xS4 (x=0-0.3) Locality: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA - erroneously reported Description: Reported by Pete Modreski of the U. S. Geological Survey. No verified specimens known. Note: Smythite is extremely susceptible to rapid and complete oxidation. Known examples of the species from other localities occur as inclusions where they have been protected from the action of the atmosphere. |
| ⓘ Sonolite Formula: Mn2+9(SiO4)4(OH)2 |
| ⓘ Spangolite Formula: Cu6Al(SO4)(OH)12Cl · 3H2O |
| ⓘ Spessartine Formula: Mn2+3Al2(SiO4)3 |
| ⓘ Sphalerite Formula: ZnS Localities: Reported from at least 13 localities in this region. |
| ⓘ Sphalerite var. Cleiophane (FRL) Formula: ZnS Localities: Type Locality: Franklin, Sussex County, New Jersey, USA |
| ⓘ Spinel Formula: MgAl2O4 Localities: Reported from at least 8 localities in this region. |
| ⓘ Spionkopite ? Formula: Cu39S28 Description: EDS and XRD data analysis pending. References: |
| ⓘ Starkeyite Formula: MgSO4 · 4H2O References: |
| ✪ Sterlinghillite (TL) Formula: Mn2+3(AsO4)2 · 3H2O Type Locality: Habit: Hemispherical aggregates Colour: Pale pink Fluorescence: None. Description: Occurs as a very rare species as tiny, pale pinkish hemispherules on fracture surfaces in ore. Three specimens confirmed: 2 at Franklin Mineral Museum; 1 in the C.S. Lemanski, Jr. collection ("Lee Lowell" specimen). |
| ⓘ Stibnite Formula: Sb2S3 |
| ⓘ Stilbite-Ca Formula: NaCa4(Si27Al9)O72 · 28H2O Description: The stilbite did not contain detectable amounts of Na. Three kinds of stilbite were analyzed: pale yellow to golden yellow; colorless transparent; and milky white. References: |
| ⓘ 'Stilbite Subgroup' Formula: M6-7[Al8-9Si27-28O72] · nH2O |
| ⓘ Stilpnomelane Formula: K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 Localities: Trotter Mine, Franklin Mine, Franklin, Sussex County, New Jersey, USA Franklin, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA ? (more information) Taylor Road dumps, Franklin Mine, Franklin, Sussex County, New Jersey, USA ? (more information) |
| ⓘ Stilpnomelane var. Ferristilpnomelane Formula: K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| ⓘ Stilpnomelane var. Ferrostilpnomelane Formula: (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O Locality: Franklin, Sussex County, New Jersey, USA |
| ⓘ Strontianite Formula: SrCO3 References: |
| ⓘ Strontiopharmacosiderite Formula: Sr0.5Fe3+4[(AsO4)3(OH)4] · 4H2O Description: Observed as outer compositional zones in some pharmacosiderite References: |
| ⓘ Sussexite (TL) Formula: Mn2+BO2(OH) Localities: Reported from at least 6 localities in this region. Habit: Fibrous Colour: White, lilac Description: Occurs as a secondary mineral in ore within the Franklin orebody. |
| ⓘ 'Sussexite-Szaibélyite Series' |
| ⓘ Svabite Formula: Ca5(AsO4)3F Localities: Description: The report of "svabite" by Charles Palache in Professional Paper 180 of the U. S. Geological survey was probably in error given its imprecision. Many subsequent Franklin specimens were labeled "svabite" in the succeeding half century. In 2012, specimens of arsenic-bearing apatite from the Franklin Mining District were chemically and spectrographically analyzed, using quantitativel techniques and some specimens were proven to be svabite. So far the only known verified svabite specimens from the district are the handful chemically analyzed by the Crimmins (2012)study. Newly labeled svabite specimens should be accompanied with documents suitable high F values to validate the identification. |
| ⓘ Synadelphite Formula: Mn2+9(As5+O4)2(As3+O3)(OH)9 · 2H2O |
| ⓘ Synchysite-(Ce) Formula: CaCe(CO3)2F Localities: Description: Occurs as small crystals in cavities in the Buckwheat Dolomite. Discovered by G. Bearss in material collected by Steven Kiss on the Buckwheat dump. |
| ⓘ Szaibélyite Formula: MgBO2(OH) Localities: Description: Name: Szaibélyite
RRUFF ID: R060289
Ideal Chemistry: MgBO2(OH)
Locality: "Franklin", Sussex County, New Jersey, USA
Source: Herb Obodda 099 [view label]
Owner: RRUFF
Description: Pink massive, associated with rhodochrosite.
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Szaibélyite samples (3) ]
CHEMISTRY
RRUFF ID: R060289.2
Sample Description: Microprobe Fragment
Measured Chemistry: gray phase: (Mg0.66Mn2+0.34)Σ=1BO2(OH); B and OH assumed by stoichiometry; light rim: (Mn2+0.70Ca0.18Mg0.12)Σ=1CO3 is rhodochrosite; CO2 estimated by difference |
| ⓘ Talc Formula: Mg3Si4O10(OH)2 Localities: Reported from at least 6 localities in this region. |
| ⓘ 'Tennantite Subgroup' Formula: Cu6(Cu4C2+2)As4S12S References: |
| ⓘ Tennantite-(Zn) Formula: Cu6(Cu4Zn2)As4S12S |
| ⓘ Tenorite Formula: CuO References: |
| ⓘ Tephroite (TL) Formula: Mn2+2(SiO4) Localities: Reported from at least 6 localities in this region. Habit: Very large orthorhombic crystals to massive. Colour: Light brown Fluorescence: None Description: Remarkable occurrences of very large crystals in recrystallized portions of the ore body (pegmatitic texture). Crystals exhibit exsolution of willemite as oriented thin layers within the tephroite crystal structure. |
| ⓘ Tetrahedrite-(Fe) Formula: Cu6(Cu4Fe2+2)Sb4S12S |
| ⓘ 'Tetrahedrite Subgroup' Formula: Cu6(Cu4C2+2)Sb4S12S |
| ⓘ Tetrahedrite-(Zn) Formula: Cu6(Cu4Zn2)Sb4S12S |
| ⓘ Thomsonite-Ca Formula: NaCa2[Al5Si5O20] · 6H2O Localities: Description: Non-fluorescent glassy white to cloudy slender laths to 1 cm on coarse franklinite-rich ore. X-ray by PJD. |
| ⓘ Thorite Formula: Th(SiO4) Localities: Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Trotter Mine, Franklin Mine, Franklin, Sussex County, New Jersey, USA Double Rock pegmatite, Franklin Mine, Franklin, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA Colour: Yellow to orange-yellow. Fluorescence: None. Description: Thorite occurs in microcline & quartz-rich pegmatites. In recent years it was ID'd on such pegmatitic material in the thorutite assemblage. |
| ⓘ Thorite var. Orangite Formula: Th(SiO4) References: |
| ⓘ Thortveitite Formula: Sc2Si2O7 |
| ⓘ Thorutite Formula: (Th,U,Ca)Ti2(O,OH)6 Localities: Habit: Black elongated rods with a characteristic re-entry angle grove along their length. Colour: Black Fluorescence: Not fluorescent Description: Occurs as small (<2 mm), dark, prismatic crystals associated with thorite in microcline-rich pegmatite. Limited number of specimens (est. 15). |
| ⓘ Tilasite Formula: CaMg(AsO4)F |
| ⓘ ' Localities: Description: The mineral reported as tirodite by Klein and Ito (1968), Hawthorne and Grundy (1973, 1977) and Dunn(1995) corresponds to a Zn-rich Mangano-cummingtonite. |
| ⓘ Titanite Formula: CaTi(SiO4)O Localities: Reported from at least 12 localities in this region. Description: Occurs in microcline-rich, intrusive pegamtitic bodies. |
| ⓘ Todorokite Formula: (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| ⓘ Torreyite (TL) Formula: (Mg,Mn2+)7◻2Mn2+2Zn4(SO4)2(OH)22 · 8H2O Localities: Habit: small to minute platelets. Colour: Bluish white, colourless Fluorescence: None Description: Occurs in highly alkaline secondary veins and veinlets in massive ore. |
| ⓘ 'Tourmaline' Formula: AD3G6(T6O18)(BO3)3X3Z |
| ⓘ Tremolite Formula: ◻Ca2Mg5(Si8O22)(OH)2 Localities: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Franklin Quarry, Franklin, Sussex County, New Jersey, USA Whispering Woods Lane, Sterling Hill, Sparta, Sussex County, New Jersey, USA Mill site dump, Franklin Mine, Franklin, Sussex County, New Jersey, USA Habit: acicular Colour: gray Description: Very elongated crystals to at least 9.5 cm, with gray color possibly caused by tiny graphite inclusions. |
| ⓘ Turneaureite (TL) Formula: Ca5(AsO4)3Cl Type Locality: Description: The Franklin mine is one of three co-type localities. |
| ⓘ Tyrolite ? Formula: Ca2Cu9(AsO4)4(CO3)(OH)8 · 11H2O Description: The mineral was supposedly x-rayed. No references known, but specimens with this label exist. Because a mineral also existed during the time period, clinotyrolite, but which was a sulfate instead of a carbonate, the identification was informally referred to as "tyolite-like." The studied specimen was blue, while clijnotyrolite and the subsequent mineral tangdanite are bright green; althought tyrolite may be green also. |
| ⓘ 'UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D)' Formula: (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| ⓘ 'UM1985-26-SiO:CaMgPbZn (Also known as Mineral A)' Formula: Pb2Zn5Ca4Mg2Si7O27 Locality: Franklin, Sussex County, New Jersey, USA |
| ⓘ 'UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995)' (FRL) Formula: Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O Localities: |
| ⓘ 'UM1986-11-CO:Zn' Formula: Zn-C-O-H ? References: |
| ⓘ 'UM1986-23-O:BaMnU' Formula: Ba-Mn-U-O |
| ⓘ 'UM1986-24-O:Cu' Formula: Cu-O ? References: |
| ⓘ Umangite Formula: Cu3Se2 |
| ⓘ Uraninite Formula: UO2 Localities: Buckwheat pit, Franklin Mine, Franklin, Sussex County, New Jersey, USA Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Trotter Mine, Franklin Mine, Franklin, Sussex County, New Jersey, USA Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA Description: Uraninite occurs as black massive material in microcline-rich pegmatitic intrusives. |
| ⓘ Uranophane Formula: Ca(UO2)2(SiO3OH)2 · 5H2O Description: Occurs as an alteration halo around a single crystal of uraninite in calcite within "black ore." References: |
| ⓘ Uranospinite Formula: Ca(UO2)2(AsO4)2 · 10H2O |
| ⓘ Formula: Ca3Cr3+2(SiO4)3 Locality: Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA - erroneously reported Description: Show to be goldmanite by Dunn, Pete J. and Frondel, Clifford (1990), an Uncommon Margarite/corundum assemblage from Sterling Hill, New Jersey, Mineralogical Record, v 21, p. 425-427. References: |
| ⓘ Uvite Formula: CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| ⓘ Vesuvianite Formula: Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 Localities: Reported from at least 6 localities in this region. |
| ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite (FRL) Formula: (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 Type Locality: References: Palache, Charles, Bauer, L. H. (1930) On the occurrence of beryllium in the zinc deposits of Franklin, New Jersey. American Mineralogist, 15 (1) 30-33 |
| ⓘ Vesuvianite var. Manganese-bearing Vesuvianite Formula: Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| ⓘ Formula: (Mn,Ca)Mn2Ca2(AsO3OH)2(AsO4)2 · 4H2O Locality: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA - erroneously reported Description: 2 specimens only (Franklin Mineral Museum and C. Lemanski, Jr. collection) Now known to be miguelromeroite. |
| ⓘ 'Vredenburgite' Locality: Franklin, Sussex County, New Jersey, USA |
| ⓘ 'Wad' |
| ⓘ Wallkilldellite (TL) Formula: Ca2Mn2+3(AsO4)2(OH)4 · 9H2O Localities: Habit: Plates Colour: White |
| ✪ Wawayandaite (TL) Formula: Ca6Mn2BBe9Si6O23(OH,Cl)15 Type Locality: Habit: Thin plates Colour: Pearly white to colourless |
| ⓘ Wendwilsonite (TL) Formula: Ca2Mg(AsO4)2 · 2H2O Type Locality: |
| ⓘ Willemite Formula: Zn2SiO4 Localities: Reported from at least 14 localities in this region. Habit: Crystals prismatic, both stout and slender, terminated by rhombohedra and {0001}, or with rounded terminations. Radial-fibrous (1 specimen only); thin prismatic (green material). Colour: Light tan, brown, dark red-brown, light green, colorless, white, black Fluorescence: Green (SW UV); not phosphorescent to extremely strong green phosphorescence. |
| ⓘ Willemite var. Beta-Willemite Formula: Zn2SiO4 References: |
| ⓘ Willemite var. Troostite Formula: (Zn,Mn)2SiO4 Localities: Description: Troostite is a brown variety of willemite abundant in the Sterling Mine. The color is due to included matter and varies from an opaque tan to a deep mahogany-brown. |
| ⓘ Winchite Formula: ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 Locality: Buckwheat dump mineral collecting site, Franklin Mine, Franklin, Sussex County, New Jersey, USA Description: Winchite from the Buckwheat Dump collecting site was originally labeled "tremolite", although it had a purple gray color. RDS, XRD, and single crystal study demonstartes that it is a manganoan zincian winchite. References: |
| ⓘ Wittichenite Formula: Cu3BiS3 References: |
| ⓘ Wollastonite Formula: Ca3(Si3O9) Localities: Sterling Mine, Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Franklin Mine, Franklin, Sussex County, New Jersey, USA Hamburg Mine, Franklin Mine, Franklin, Sussex County, New Jersey, USA Noble pit (Lot #10 - Ogden Divisions; Noble Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA |
| ⓘ Woodruffite (TL) Formula: Zn2+x/2(Mn4+1-xMn3+x)O2 · yH2O Localities: Type Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA Description: Occurs in weathered ore zones within the folds of the Sterling Hill orebody. |
| ⓘ Woodwardite Formula: Cu1-xAlx(OH)2(SO4)x/2 · nH2O References: Peter ChinIdentified by Vandall Thomas King: XRD, XRF, SEM-EDS |
| ⓘ Wulfenite Formula: Pb(MoO4) |
| ⓘ Wurtzite Formula: (Zn,Fe)S |
| ⓘ Wurtzite var. Voltzite Formula: (Zn,Fe,Mn) S [with O C H ] |
| ⓘ Xonotlite Formula: Ca6(Si6O17)(OH)2 |
| ⓘ Yakhontovite Formula: (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O References: |
| ⓘ Yeatmanite (TL) Formula: Zn6Mn2+9Sb5+2(SiO4)4O12 Localities: Description: Yeatmanite was found on a single specimen associated with johnbaumite, sarkinite and willemite in lean ore from the Buckwheat dump. |
| ⓘ Yukonite Formula: Ca3Fe3+(AsO4)2(OH)3 · 5H2O |
| ⓘ Zálesíite Formula: CaCu6(AsO4)2(AsO3OH)(OH)6 · 3H2O Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA References: Identified by Christopher Emproto with EDS at Carnegie MuseumIdentification: SEM-EDS |
| ⓘ Zeunerite Formula: Cu(UO2)2(AsO4)2 · 12H2O Locality: Passaic pit (Marshall Mine; Passaic Mine), Sterling Hill, Ogdensburg, Sussex County, New Jersey, USA References: Jason B. Smith collectionIdentified by Chris Emproto: XRD, SEM-EDS |
| ⓘ Zincite (TL) Formula: ZnO Localities: Reported from at least 11 localities in this region. Habit: Rarely hexagonal, pinacoidal; commonly massive, platy Colour: Dark red, red, yellow, nearly colorless (rare) Fluorescence: Yellow-green (pale shades only)(SW UV). Description: Occurs throughout the ore body as a primary ore mineral and as secondary material recrystallized in fracture seams. |
| ⓘ Zincmelanterite Formula: Zn(H2O)6(SO4) · H2O References: |
| ⓘ Zincolivenite Formula: CuZn(AsO4)(OH) References: Christopher Emproto analysis, Carnegie Museum of Natural HistoryIdentified by Jason B. Smith: XRD, SEM-EDS |
| ⓘ Zinkenite Formula: Pb9Sb22S42 |
| ⓘ Zircon Formula: Zr(SiO4) Localities: Reported from at least 9 localities in this region. Description: Large, lustrous, dark brown zircon crystals were found at the keel of the Sterling Hill orebody, 600' level, in coarsely crystallized, franklinite-rich ore, associated with large black mica crystals. |
| ⓘ Znucalite Formula: Zn10Ca0.83(UO2)0.83(CO3)4(OH)15.31(H2O)5.48 Localities: Habit: Coatings of tiny platy crystals. Colour: Pale yellow Description: A post-mining product forming on mine working walls where running water was present. |
| ⓘ Zoisite Formula: (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
Gallery:
Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2Oⓘ 'UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995)' (FRL)
(Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite (FRL)
List of minerals arranged by Strunz 10th Edition classification
| Group 1 - Elements | |||
|---|---|---|---|
| ⓘ | Native Copper | 1.AA.05 | Cu |
| ⓘ | Native Gold | 1.AA.05 | Au |
| ⓘ | Native Lead | 1.AA.05 | Pb |
| ⓘ | Native Silver | 1.AA.05 | Ag |
| ⓘ | Native Arsenic | 1.CA.05 | As |
| ⓘ | Graphite | 1.CB.05a | C |
| ⓘ | Native Sulphur | 1.CC.05 | S8 |
| Group 2 - Sulphides and Sulfosalts | |||
| ⓘ | Domeykite | 2.AA.10b | Cu3As |
| ⓘ | Cuprostibite | 2.AA.20 | Cu2(Sb,Tl) |
| ⓘ | Chalcocite | 2.BA.05 | Cu2S |
| ⓘ | Djurleite | 2.BA.05 | Cu31S16 |
| ⓘ | Roxbyite | 2.BA.05 | Cu58S32 |
| ⓘ | Digenite | 2.BA.10 | Cu9S5 |
| ⓘ | Bornite | 2.BA.15 | Cu5FeS4 |
| ⓘ | Umangite | 2.BA.25 | Cu3Se2 |
| ⓘ | Acanthite | 2.BA.35 | Ag2S |
| ⓘ | Betekhtinite | 2.BE.05 | Pb2(Cu,Fe)22-24S15 |
| ⓘ | Covellite | 2.CA.05a | CuS |
| ⓘ | Spionkopite ? | 2.CA.05c | Cu39S28 |
| ⓘ | Hawleyite | 2.CB.05a | CdS |
| ⓘ | Sphalerite | 2.CB.05a | ZnS |
| ⓘ | var. Cleiophane (TL) | 2.CB.05a | ZnS |
| ⓘ | Chalcopyrite | 2.CB.10a | CuFeS2 |
| ⓘ | Greenockite | 2.CB.45 | CdS |
| ⓘ | Wurtzite var. Voltzite | 2.CB.45 | (Zn,Fe,Mn) S [with O C H ] |
| ⓘ | 2.CB.45 | (Zn,Fe)S | |
| ⓘ | Breithauptite | 2.CC.05 | NiSb |
| ⓘ | Nickeline | 2.CC.05 | NiAs |
| ⓘ | Pyrrhotite | 2.CC.10 | Fe1-xS |
| ⓘ | Smythite ? | 2.CC.10 | (Fe,Ni)3+xS4 (x=0-0.3) |
| ⓘ | Millerite ? | 2.CC.20 | NiS |
| ⓘ | Alabandite ? | 2.CD.10 | MnS |
| ⓘ | Galena | 2.CD.10 | PbS |
| ⓘ | Carrollite ? | 2.DA.05 | CuCo2S4 |
| ⓘ | Stibnite | 2.DB.05 | Sb2S3 |
| ⓘ | Molybdenite | 2.EA.30 | MoS2 |
| ⓘ | Pyrite | 2.EB.05a | FeS2 |
| ⓘ | Marcasite | 2.EB.10a | FeS2 |
| ⓘ | Glaucodot | 2.EB.10c | (Co0.50Fe0.50)AsS |
| ⓘ | Pararammelsbergite | 2.EB.10e | NiAs2 |
| ⓘ | Löllingite | 2.EB.15a | FeAs2 |
| ⓘ | Rammelsbergite | 2.EB.15a | NiAs2 |
| ⓘ | Safflorite | 2.EB.15a | (Co,Ni,Fe)As2 |
| ⓘ | Arsenopyrite | 2.EB.20 | FeAsS |
| ⓘ | Gersdorffite | 2.EB.25 | NiAsS |
| ⓘ | Nickelskutterudite | 2.EC.05 | NiAs3 |
| ⓘ | Skutterudite | 2.EC.05 | CoAs3 |
| ⓘ | Realgar | 2.FA.15a | As4S4 |
| ⓘ | Pararealgar | 2.FA.15b | As4S4 |
| ⓘ | Wittichenite | 2.GA.20 | Cu3BiS3 |
| ⓘ | Seligmannite | 2.GA.50 | PbCuAsS3 |
| ⓘ | 'Tennantite Subgroup' | 2.GB.05 | Cu6(Cu4C2+2)As4S12S |
| ⓘ | 'Tetrahedrite Subgroup' | 2.GB.05 | Cu6(Cu4C2+2)Sb4S12S |
| ⓘ | Tennantite-(Zn) | 2.GB.05 | Cu6(Cu4Zn2)As4S12S |
| ⓘ | Tetrahedrite-(Zn) | 2.GB.05 | Cu6(Cu4Zn2)Sb4S12S |
| ⓘ | Tetrahedrite-(Fe) | 2.GB.05 | Cu6(Cu4Fe2+2)Sb4S12S |
| ⓘ | Berthierite | 2.HA.20 | FeSb2S4 |
| ⓘ | Baumhauerite | 2.HC.05b | Pb12As16S36 |
| ⓘ | Zinkenite | 2.JB.35a | Pb9Sb22S42 |
| Group 3 - Halides | |||
| ⓘ | Fluorite var. Chlorophane | 3.AB.25 | CaF2 |
| ⓘ | 3.AB.25 | CaF2 | |
| ⓘ | Atacamite | 3.DA.10a | Cu2(OH)3Cl |
| ⓘ | Simonkolleite ? | 3.DA.20 | Zn5Cl2(OH)8 · H2O |
| ⓘ | Connellite | 3.DA.25 | Cu19(SO4)(OH)32Cl4 · 3H2O |
| Group 4 - Oxides and Hydroxides | |||
| ⓘ | Goethite | 4.00. | Fe3+O(OH) |
| ⓘ | 'Pyrochlore Group' | 4.00. | A2Nb2(O,OH)6Z |
| ⓘ | Cuprite | 4.AA.10 | Cu2O |
| ⓘ | Tenorite | 4.AB.10 | CuO |
| ⓘ | Zincite (TL) | 4.AB.20 | ZnO |
| ⓘ | Manganosite | 4.AB.25 | MnO |
| ⓘ | Litharge | 4.AC.20 | PbO |
| ⓘ | Franklinite (TL) | 4.BB.05 | Zn2+Fe3+2O4 |
| ⓘ | Gahnite | 4.BB.05 | ZnAl2O4 |
| ⓘ | Hercynite | 4.BB.05 | Fe2+Al2O4 |
| ⓘ | Jacobsite | 4.BB.05 | Mn2+Fe3+2O4 |
| ⓘ | Magnetite | 4.BB.05 | Fe2+Fe3+2O4 |
| ⓘ | Spinel | 4.BB.05 | MgAl2O4 |
| ⓘ | Hausmannite | 4.BB.10 | Mn2+Mn3+2O4 |
| ⓘ | Hetaerolite (TL) | 4.BB.10 | ZnMn2O4 |
| ⓘ | var. Hydrohetaerolite (TL) | 4.BB.10 | Zn(Mn,◻)2(O,OH)4 |
| ⓘ | Corundum | 4.CB.05 | Al2O3 |
| ⓘ | Hematite | 4.CB.05 | Fe2O3 |
| ⓘ | Ilmenite | 4.CB.05 | Fe2+TiO3 |
| ⓘ | Pyrophanite | 4.CB.05 | Mn2+TiO3 |
| ⓘ | Arsenolite | 4.CB.50 | As2O3 |
| ⓘ | Quartz | 4.DA.05 | SiO2 |
| ⓘ | Opal | 4.DA.10 | SiO2 · nH2O |
| ⓘ | Rutile | 4.DB.05 | TiO2 |
| ⓘ | Hübnerite | 4.DB.30 | MnWO4 |
| ⓘ | Anatase | 4.DD.05 | TiO2 |
| ⓘ | Brookite | 4.DD.10 | TiO2 |
| ⓘ | Fersmite | 4.DG.05 | CaNb2O6 |
| ⓘ | 'Roméite Group' | 4.DH. | A2(Sb5+)2O6Z |
| ⓘ | Thorutite | 4.DH.05 | (Th,U,Ca)Ti2(O,OH)6 |
| ⓘ | Hydroxycalciopyrochlore | 4.DH.15 | (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) |
| ⓘ | Hydroxycalcioroméite | 4.DH.20 | (Ca,Sb3+)2(Sb5+,Ti)2O6(OH) |
| ⓘ | Cryptomelane | 4.DK.05a | K(Mn4+7Mn3+)O16 |
| ⓘ | Manjiroite | 4.DK.05a | Na(Mn4+7Mn3+)O16 |
| ⓘ | Todorokite | 4.DK.10 | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| ⓘ | Uraninite | 4.DL.05 | UO2 |
| ⓘ | Groutite | 4.FD.10 | Mn3+O(OH) |
| ⓘ | Manganite | 4.FD.15 | Mn3+O(OH) |
| ⓘ | Brucite | 4.FE.05 | Mg(OH)2 |
| ⓘ | Pyrochroite | 4.FE.05 | Mn(OH)2 |
| ⓘ | Feitknechtite (TL) | 4.FE.25 | Mn3+O(OH) |
| ⓘ | Iowaite | 4.FL.05 | Mg6Fe3+2(OH)16Cl2 · 4H2O |
| ⓘ | Aurorite | 4.FL.20 | Mn2+Mn4+3O7 · 3H2O |
| ⓘ | Chalcophanite (TL) | 4.FL.20 | ZnMn4+3O7 · 3H2O |
| ⓘ | Woodruffite (TL) | 4.FL.25 | Zn2+x/2(Mn4+1-xMn3+x)O2 · yH2O |
| ⓘ | Birnessite | 4.FL.45 | (Na,Ca)0.5(Mn4+,Mn3+)2O4 · 1.5H2O |
| ⓘ | Cianciulliite (TL) | 4.FL.55 | Mn(Mg,Mn)2Zn2(OH)10 · 2-4H2O |
| ⓘ | Reinerite | 4.JA.10 | Zn3(AsO3)2 |
| ⓘ | Magnussonite | 4.JB.15 | Mn2+10(As3+O3)6(OH,Cl)2 |
| ⓘ | Graeserite | 4.JB.55 | Fe3+4Ti3As3+O13(OH) |
| Group 5 - Nitrates and Carbonates | |||
| ⓘ | Calcite | 5.AB.05 | CaCO3 |
| ⓘ | Otavite | 5.AB.05 | CdCO3 |
| ⓘ | Rhodochrosite | 5.AB.05 | MnCO3 |
| ⓘ | Siderite | 5.AB.05 | FeCO3 |
| ⓘ | Smithsonite | 5.AB.05 | ZnCO3 |
| ⓘ | Dolomite | 5.AB.10 | CaMg(CO3)2 |
| ⓘ | Kutnohorite | 5.AB.10 | CaMn2+(CO3)2 |
| ⓘ | Aragonite | 5.AB.15 | CaCO3 |
| ⓘ | Cerussite | 5.AB.15 | PbCO3 |
| ⓘ | Strontianite | 5.AB.15 | SrCO3 |
| ⓘ | Azurite | 5.BA.05 | Cu3(CO3)2(OH)2 |
| ⓘ | Malachite | 5.BA.10 | Cu2(CO3)(OH)2 |
| ⓘ | Rosasite | 5.BA.10 | (Cu,Zn)2(CO3)(OH)2 |
| ⓘ | Aurichalcite | 5.BA.15 | (Zn,Cu)5(CO3)2(OH)6 |
| ⓘ | Hydrozincite | 5.BA.15 | Zn5(CO3)2(OH)6 |
| ⓘ | Loseyite (TL) | 5.BA.30 | (Mn2+,Zn,Mg)4Zn3(CO3)2(OH)10 |
| ⓘ | Sclarite (TL) | 5.BA.30 | Zn7(CO3)2(OH)10 |
| ⓘ | Synchysite-(Ce) | 5.BD.20c | CaCe(CO3)2F |
| ⓘ | Hydrocerussite | 5.BE.10 | Pb3(CO3)2(OH)2 |
| ⓘ | Brianyoungite | 5.BF.30 | Zn3(CO3,SO4)(OH)4 |
| ⓘ | Monohydrocalcite | 5.CB.20 | CaCO3 · H2O |
| ⓘ | Dypingite | 5.DA.05 | Mg5(CO3)4(OH)2 · 5H2O |
| ⓘ | 'UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995)' (TL) | 5.DA.05 | Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O |
| ⓘ | 'Pyroaurite-2H' | 5.DA.45 | Mg6Fe3+2(OH)16(CO3) · 4H2O |
| ⓘ | Hydrotalcite | 5.DA.50 | Mg6Al2(CO3)(OH)16 · 4H2O |
| ⓘ | Pyroaurite | 5.DA.50 | Mg6Fe3+2(OH)16[CO3] · 4H2O |
| ⓘ | Dundasite | 5.DB.10 | PbAl2(CO3)2(OH)4 · H2O |
| ⓘ | Znucalite | 5.ED.45 | Zn10Ca0.83(UO2)0.83(CO3)4(OH)15.31(H2O)5.48 |
| ⓘ | Rouaite | 5.NB.05 | Cu2(NO3)(OH)3 |
| Group 6 - Borates | |||
| ⓘ | Fluoborite | 6.AB.50 | Mg3(BO3)(F,OH)3 |
| ⓘ | Cahnite (TL) | 6.AC.70 | Ca2[B(OH)4](AsO4) |
| ⓘ | Sussexite (TL) | 6.BA.15 | Mn2+BO2(OH) |
| ⓘ | Szaibélyite | 6.BA.15 | MgBO2(OH) |
| ⓘ | Roweite (TL) | 6.DA.25 | Ca2Mn2+2B4O7(OH)6 |
| ⓘ | Mcallisterite | 6.FA.10 | Mg2[B6O7(OH)6]2 · 9H2O |
| ⓘ | Canavesite | 6.H0.50 | Mg2(HBO3)(CO3) · 5H2O |
| Group 7 - Sulphates, Chromates, Molybdates and Tungstates | |||
| ⓘ | Anhydrite | 7.AD.30 | CaSO4 |
| ⓘ | Anglesite | 7.AD.35 | PbSO4 |
| ⓘ | Baryte | 7.AD.35 | BaSO4 |
| ⓘ | Celestine | 7.AD.35 | SrSO4 |
| ⓘ | Hauckite (TL) | 7.BB.10 | Fe3+3(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| ⓘ | Antlerite | 7.BB.15 | Cu3(SO4)(OH)4 |
| ⓘ | Brochantite | 7.BB.25 | Cu4(SO4)(OH)6 |
| ⓘ | Jarosite | 7.BC.10 | KFe3+3(SO4)2(OH)6 |
| ⓘ | Linarite | 7.BC.65 | PbCu(SO4)(OH)2 |
| ⓘ | Starkeyite | 7.CB.15 | MgSO4 · 4H2O |
| ⓘ | Bianchite | 7.CB.25 | Zn(H2O)6(SO4) |
| ⓘ | Hexahydrite | 7.CB.25 | Mg(H2O)6(SO4) |
| ⓘ | Zincmelanterite | 7.CB.35 | Zn(H2O)6(SO4) · H2O |
| ⓘ | Epsomite | 7.CB.40 | MgSO4 · 7H2O |
| ⓘ | Halotrichite | 7.CB.85 | Fe2+Al2(SO4)4 · 22H2O |
| ⓘ | Gypsum | 7.CD.40 | CaSO4 · 2H2O |
| ⓘ | var. Selenite | 7.CD.40 | CaSO4 · 2H2O |
| ⓘ | Bassanite | 7.CD.45 | Ca(SO4) · 0.5H2O |
| ⓘ | Spangolite | 7.DD.15 | Cu6Al(SO4)(OH)12Cl · 3H2O |
| ⓘ | Devilline | 7.DD.30 | CaCu4(SO4)2(OH)6 · 3H2O |
| ⓘ | Orthoserpierite | 7.DD.30 | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| ⓘ | Serpierite | 7.DD.30 | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| ⓘ | Woodwardite | 7.DD.35 | Cu1-xAlx(OH)2(SO4)x/2 · nH2O |
| ⓘ | Lawsonbauerite (TL) | 7.DD.40 | (Mn2+,Mg)9Zn4(SO4)2(OH)22 · 8H2O |
| ⓘ | Torreyite (TL) | 7.DD.40 | (Mg,Mn2+)7◻2Mn2+2Zn4(SO4)2(OH)22 · 8H2O |
| ⓘ | Mooreite (TL) | 7.DD.45 | Mg9◻2Mn2Zn4(SO4)2(OH)26 · 8H2O |
| ⓘ | Chalcoalumite | 7.DD.75 | CuAl4(SO4)(OH)12 · 3H2O |
| ⓘ | Cyanotrichite | 7.DE.10 | Cu4Al2(SO4)(OH)12 · 2H2O |
| ⓘ | Charlesite (TL) | 7.DG.15 | Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O |
| ⓘ | Powellite | 7.GA.05 | Ca(MoO4) |
| ⓘ | Scheelite | 7.GA.05 | Ca(WO4) |
| ⓘ | Wulfenite | 7.GA.05 | Pb(MoO4) |
| ⓘ | Ferrimolybdite | 7.GB.30 | Fe2(MoO4)3 · nH2O |
| Group 8 - Phosphates, Arsenates and Vanadates | |||
| ⓘ | Manganberzeliite | 8.AC.25 | (NaCa2)Mn2+2(AsO4)3 |
| ⓘ | Monazite-(Ce) | 8.AD.50 | Ce(PO4) |
| ⓘ | Tilasite | 8.BB. | CaMg(AsO4)F |
| ⓘ | Sarkinite | 8.BB.15 | Mn2+2(AsO4)(OH) |
| ⓘ | Adamite | 8.BB.30 | Zn2(AsO4)(OH) |
| ⓘ | Eveite | 8.BB.30 | Mn2+2(AsO4)(OH) |
| ⓘ | Zincolivenite | 8.BB.30 | CuZn(AsO4)(OH) |
| ⓘ | Clinoclase | 8.BE.20 | Cu3(AsO4)(OH)3 |
| ⓘ | Allactite | 8.BE.30 | Mn2+7(AsO4)2(OH)8 |
| ⓘ | Flinkite | 8.BE.30 | Mn2+2Mn3+(AsO4)(OH)4 |
| ⓘ | Chlorophoenicite (TL) | 8.BE.35 | (Mn,Mg)3Zn2(AsO4)(OH,O)6 |
| ⓘ | Magnesiochlorophoenicite (TL) | 8.BE.35 | (Mg,Mn)3Zn2(AsO4)(OH,O)6 |
| ⓘ | 'Mineral E (of Dunn, et. al., 1982)' | 8.BE.35 | |
| ⓘ | Kraisslite (TL) | 8.BE.45 | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| ⓘ | Mcgovernite (TL) | 8.BE.45 | Mn19Zn3(AsO4)3(AsO3)(SiO4)3(OH)21 |
| ⓘ | Arakiite | 8.BE.45 | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| ⓘ | Synadelphite | 8.BE.50 | Mn2+9(As5+O4)2(As3+O3)(OH)9 · 2H2O |
| ⓘ | Holdenite (TL) | 8.BE.55 | (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 |
| ⓘ | Kolicite (TL) | 8.BE.60 | Mn2+7Zn4(AsO4)2(SiO4)2(OH)8 |
| ⓘ | Jarosewichite (TL) | 8.BE.70 | Mn2+3Mn3+(AsO4)(OH)6 |
| ⓘ | Peterchinite (TL) | 8.BH. | Zn3Zn2(OH)6As[O3(OH)3] |
| ⓘ | Carminite ? | 8.BH.30 | PbFe3+2(AsO4)2(OH)2 |
| ⓘ | Adelite | 8.BH.35 | CaMg(AsO4)(OH) |
| ⓘ | Austinite | 8.BH.35 | CaZn(AsO4)(OH) |
| ⓘ | Conichalcite ? | 8.BH.35 | CaCu(AsO4)(OH) |
| ⓘ | Duftite | 8.BH.35 | PbCu(AsO4)(OH) |
| ⓘ | Descloizite | 8.BH.40 | PbZn(VO4)(OH) |
| ⓘ | Pyrobelonite | 8.BH.40 | PbMn2+(VO4)(OH) |
| ⓘ | Segnitite | 8.BL.10 | PbFe3+3AsO4(AsO3OH)(OH)6 |
| ⓘ | Retzian-(La) (TL) | 8.BM.05 | Mn2+2La(AsO4)(OH)4 |
| ⓘ | Retzian-(Nd) (TL) | 8.BM.05 | Mn2+2Nd(AsO4)(OH)4 |
| ⓘ | Fluorapatite | 8.BN.05 | Ca5(PO4)3F |
| ⓘ | Hedyphane | 8.BN.05 | Ca2Pb3(AsO4)3Cl |
| ⓘ | Hydroxylapatite | 8.BN.05 | Ca5(PO4)3(OH) |
| ⓘ | Johnbaumite (TL) | 8.BN.05 | Ca5(AsO4)3(OH) |
| ⓘ | Mimetite | 8.BN.05 | Pb5(AsO4)3Cl |
| ⓘ | Pyromorphite ? | 8.BN.05 | Pb5(PO4)3Cl |
| ⓘ | Svabite | 8.BN.05 | Ca5(AsO4)3F |
| ⓘ | Turneaureite (TL) | 8.BN.05 | Ca5(AsO4)3Cl |
| ⓘ | Villyaellenite ? | 8.CB.10 | (Mn,Ca)Mn2Ca2(AsO3OH)2(AsO4)2 · 4H2O |
| ⓘ | Miguelromeroite | 8.CB.10 | Mn2+5(AsO3OH)2(AsO4)2(H2O)4 |
| ⓘ | Castellaroite ? | 8.CD. | Mn2+3(AsO4)2 · 4H2O |
| ⓘ | Scorodite | 8.CD.10 | Fe3+AsO4 · 2H2O |
| ⓘ | Sterlinghillite (TL) | 8.CD.25 | Mn2+3(AsO4)2 · 3H2O |
| ⓘ | Newberyite | 8.CE.10 | Mg(PO3OH) · 3H2O |
| ⓘ | Annabergite | 8.CE.40 | Ni3(AsO4)2 · 8H2O |
| ⓘ | Erythrite | 8.CE.40 | Co3(AsO4)2 · 8H2O |
| ⓘ | Köttigite | 8.CE.40 | Zn3(AsO4)2 · 8H2O |
| ⓘ | Manganohörnesite | 8.CE.40 | Mn2+3(AsO4)2 · 8H2O |
| ⓘ | Parasymplesite | 8.CE.40 | Fe2+3(AsO4)2 · 8H2O |
| ⓘ | Fluckite | 8.CG. | CaMn2+(AsO3OH)2 · 2H2O |
| ⓘ | Parabrandtite (TL) | 8.CG.05 | Ca2Mn2+(AsO4)2 · 2H2O |
| ⓘ | Brandtite | 8.CG.10 | Ca2Mn2+(AsO4)2 · 2H2O |
| ⓘ | Wendwilsonite (TL) | 8.CG.10 | Ca2Mg(AsO4)2 · 2H2O |
| ⓘ | Picropharmacolite | 8.CH.15 | Ca4Mg(AsO4)2(HAsO4)2 · 11H2O |
| ⓘ | Niahite | 8.CH.20 | (NH4)Mn2+(PO4) · H2O |
| ⓘ | Haidingerite | 8.CJ.20 | CaHAsO4 · H2O |
| ⓘ | Pharmacolite | 8.CJ.50 | Ca(HAsO4) · 2H2O |
| ⓘ | Guérinite | 8.CJ.75 | Ca6(HAsO4)3(AsO4)2 · 10.5H2O |
| ⓘ | Euchroite | 8.DC.07 | Cu2(AsO4)(OH) · 3H2O |
| ⓘ | Legrandite | 8.DC.10 | Zn2(AsO4)(OH) · H2O |
| ⓘ | Ojuelaite | 8.DC.15 | ZnFe3+2(AsO4)2(OH)2 · 4H2O |
| ⓘ | Ogdensburgite (TL) | 8.DC.57 | Ca2Fe3+4(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O |
| ⓘ | Akrochordite | 8.DD.10 | MnMn2Mn2(AsO4)2(OH)4(H2O)4 |
| ⓘ | Liroconite | 8.DF.20 | Cu2Al(AsO4)(OH)4 · 4H2O |
| ⓘ | Lavendulan | 8.DG.05 | NaCaCu5(AsO4)4Cl · 5H2O |
| ⓘ | Arseniosiderite | 8.DH.30 | Ca2Fe3+3(AsO4)3O2 · 3H2O |
| ⓘ | Bariopharmacosiderite | 8.DK.10 | Ba0.5Fe3+4(AsO4)3(OH)4 · 5H2O |
| ⓘ | Pharmacosiderite | 8.DK.10 | KFe3+4(AsO4)3(OH)4 · 6-7H2O |
| ⓘ | Strontiopharmacosiderite | 8.DK.10 | Sr0.5Fe3+4[(AsO4)3(OH)4] · 4H2O |
| ⓘ | Zálesíite | 8.DL.15 | CaCu6(AsO4)2(AsO3OH)(OH)6 · 3H2O |
| ⓘ | Wallkilldellite (TL) | 8.DL.20 | Ca2Mn2+3(AsO4)2(OH)4 · 9H2O |
| ⓘ | Tyrolite ? | 8.DM.10 | Ca2Cu9(AsO4)4(CO3)(OH)8 · 11H2O |
| ⓘ | Yukonite | 8.DM.25 | Ca3Fe3+(AsO4)2(OH)3 · 5H2O |
| ⓘ | Uranospinite | 8.EB.05 | Ca(UO2)2(AsO4)2 · 10H2O |
| ⓘ | Zeunerite | 8.EB.05 | Cu(UO2)2(AsO4)2 · 12H2O |
| ⓘ | Metauranospinite ? | 8.EB.10 | Ca(UO2)2(AsO4)2 · 8H2O |
| ⓘ | Metazeunerite | 8.EB.10 | Cu(UO2)2(AsO4)2 · 8H2O |
| ⓘ | Meta-ankoleite | 8.EB.15 | K2(UO2)2(PO4)2 · 6H2O |
| ⓘ | Metalodèvite | 8.ED.10 | Zn(UO2)2(AsO4)2 · 10H2O |
| Group 9 - Silicates | |||
| ⓘ | Chrysotile | 9.00. | Mg3(Si2O5)(OH)4 |
| ⓘ | Willemite | 9.AA.05 | Zn2SiO4 |
| ⓘ | var. Troostite | 9.AA.05 | (Zn,Mn)2SiO4 |
| ⓘ | var. Beta-Willemite | 9.AA.05 | Zn2SiO4 |
| ⓘ | Larsenite (TL) | 9.AB.10 | PbZnSiO4 |
| ⓘ | Esperite (TL) | 9.AB.15 | PbCa2Zn3(SiO4)3 |
| ⓘ | Fayalite | 9.AC.05 | Fe2+2(SiO4) |
| ⓘ | Forsterite | 9.AC.05 | Mg2(SiO4) |
| ⓘ | Glaucochroite (TL) | 9.AC.05 | CaMn2+(SiO4) |
| ⓘ | Tephroite (TL) | 9.AC.05 | Mn2+2(SiO4) |
| ⓘ | Fayalite var. Roepperite (of Brush) | 9.AC.05 | (Fe2+,Mn,Zn)2SiO4 |
| ⓘ | Andradite | 9.AD.25 | Ca3Fe3+2(SiO4)3 |
| ⓘ | Almandine | 9.AD.25 | Fe2+3Al2(SiO4)3 |
| ⓘ | Goldmanite | 9.AD.25 | Ca3V3+2(SiO4)3 |
| ⓘ | Grossular | 9.AD.25 | Ca3Al2(SiO4)3 |
| ⓘ | var. Hydrogrossular | 9.AD.25 | Ca3Al2(SiO4)3 |
| ⓘ | Spessartine | 9.AD.25 | Mn2+3Al2(SiO4)3 |
| ⓘ | Uvarovite ? | 9.AD.25 | Ca3Cr3+2(SiO4)3 |
| ⓘ | Andradite var. Melanite | 9.AD.25 | Ca3Fe3+2(SiO4)3 |
| ⓘ | var. Polyadelphite (TL) | 9.AD.25 | (Ca,Mn)3Fe3+2(SiO4)3 |
| ⓘ | Thorite var. Orangite | 9.AD.30 | Th(SiO4) |
| ⓘ | 9.AD.30 | Th(SiO4) | |
| ⓘ | Zircon | 9.AD.30 | Zr(SiO4) |
| ⓘ | Hodgkinsonite (TL) | 9.AE.20 | Mn2+Zn2(SiO4)(OH)2 |
| ⓘ | Gerstmannite (TL) | 9.AE.25 | MnMgZn(SiO4)(OH)2 |
| ⓘ | Clinohedrite (TL) | 9.AE.30 | CaZn(SiO4) · H2O |
| ⓘ | Yeatmanite (TL) | 9.AE.45 | Zn6Mn2+9Sb5+2(SiO4)4O12 |
| ⓘ | Sillimanite | 9.AF.05 | Al2(SiO4)O |
| ⓘ | Norbergite | 9.AF.40 | Mg3(SiO4)F2 |
| ⓘ | Alleghanyite | 9.AF.45 | Mn2+5(SiO4)2(OH)2 |
| ⓘ | Chondrodite | 9.AF.45 | Mg5(SiO4)2F2 |
| ⓘ | Humite | 9.AF.50 | Mg7(SiO4)3F2 |
| ⓘ | Manganhumite | 9.AF.50 | Mn2+7(SiO4)3(OH)2 |
| ⓘ | Clinohumite | 9.AF.55 | Mg9(SiO4)4F2 |
| ⓘ | Sonolite | 9.AF.55 | Mn2+9(SiO4)4(OH)2 |
| ⓘ | Hydroxylclinohumite | 9.AF.55 | Mg9(SiO4)4(OH)2 |
| ⓘ | Leucophoenicite (TL) | 9.AF.60 | Mn2+7(SiO4)3(OH)2 |
| ⓘ | Ribbeite | 9.AF.65 | Mn2+5(SiO4)2(OH)2 |
| ⓘ | Jerrygibbsite (TL) | 9.AF.70 | Mn2+9(SiO4)4(OH)2 |
| ⓘ | Chloritoid | 9.AF.85 | Fe2+Al2O(SiO4)(OH)2 |
| ⓘ | Titanite | 9.AG.15 | CaTi(SiO4)O |
| ⓘ | Kittatinnyite (TL) | 9.AG.35 | Ca2Mn2Mn(SiO4)2(OH)4 · 9H2O |
| ⓘ | Bultfonteinite | 9.AG.80 | Ca2(HSiO4)F · H2O |
| ⓘ | Fluorellestadite ? | 9.AH.25 | Ca5(SiO4)1.5(SO4)1.5F |
| ⓘ | Datolite var. Bakerite | 9.AJ.20 | Ca4(H5B5Si3O20) |
| ⓘ | var. Botryolite | 9.AJ.20 | CaB(SiO4)(OH) |
| ⓘ | 9.AJ.20 | CaB(SiO4)(OH) | |
| ⓘ | Uranophane | 9.AK.15 | Ca(UO2)2(SiO3OH)2 · 5H2O |
| ⓘ | Hardystonite (TL) | 9.BB.10 | Ca2Zn[Si2O7] |
| ⓘ | Barylite | 9.BB.15 | Be2Ba(Si2O7) |
| ⓘ | Thortveitite | 9.BC.05 | Sc2Si2O7 |
| ⓘ | Barysilite | 9.BC.20 | Pb8Mn2+[Si2O7]3 |
| ⓘ | Hemimorphite | 9.BD.10 | Zn4Si2O7(OH)2 · H2O |
| ⓘ | Junitoite | 9.BD.15 | CaZn2Si2O7 · H2O |
| ⓘ | Axinite-(Fe) | 9.BD.20 | Ca2Fe2+Al2BSi4O15OH |
| ⓘ | Axinite-(Mn) (TL) | 9.BD.20 | Ca2Mn2+Al2BSi4O15(OH) |
| ⓘ | Cuspidine | 9.BE.17 | Ca8(Si2O7)2F4 |
| ⓘ | Nasonite (TL) | 9.BE.77 | Pb6Ca4(Si2O7)3Cl2 |
| ⓘ | Kentrolite | 9.BE.80 | Pb2Mn3+2(Si2O7)O2 |
| ⓘ | Samfowlerite (TL) | 9.BF.10 | Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 |
| ⓘ | Clinozoisite | 9.BG.05a | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| ⓘ | Epidote | 9.BG.05a | (CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| ⓘ | Hancockite (TL) | 9.BG.05a | (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| ⓘ | Piemontite | 9.BG.05a | (CaCa)(AlAlMn3+)O[Si2O7][SiO4](OH) |
| ⓘ | Epidote-(Sr) | 9.BG.05a | (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| ⓘ | Allanite-(Ce) | 9.BG.05b | (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) |
| ⓘ | Ferriakasakaite-(La) | 9.BG.05b | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| ⓘ | Zoisite | 9.BG.10 | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| ⓘ | Macfallite | 9.BG.15 | Ca2Mn3+3(SiO4)(Si2O7)(OH)3 |
| ⓘ | Pumpellyite-(Mg) | 9.BG.20 | Ca2MgAl2[Si2O6OH][SiO4](OH)2(OH) |
| ⓘ | Ganomalite | 9.BG.25 | Pb9Ca5Mn(Si2O7)4(SiO4)O |
| ⓘ | Vesuvianite var. Manganese-bearing Vesuvianite | 9.BG.35 | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| ⓘ | 9.BG.35 | Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 | |
| ⓘ | Manganvesuvianite ? | 9.BG.35 | Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| ⓘ | Vesuvianite var. Beryllium-bearing Vesuvianite (TL) | 9.BG.35 | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| ⓘ | Cyprine | 9.BG.35 | Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 |
| ⓘ | Margarosanite (TL) | 9.CA.25 | Ca2PbSi3O9 |
| ⓘ | Roeblingite (TL) | 9.CB.05 | Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O |
| ⓘ | Dioptase ? | 9.CJ.30 | CuSiO3 · H2O |
| ⓘ | Dravite | 9.CK.05 | NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| ⓘ | Foitite | 9.CK.05 | ◻(Fe2+2Al)Al6(Si6O18)(BO3)3(OH)3(OH) |
| ⓘ | Povondraite ? | 9.CK.05 | NaFe3+3(Mg2Fe3+4)(Si6O18)(BO3)3(OH)3O |
| ⓘ | Schorl | 9.CK.05 | NaFe2+3Al6(Si6O18)(BO3)3(OH)3(OH) |
| ⓘ | Fluor-uvite (TL) | 9.CK.05 | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| ⓘ | Uvite | 9.CK.05 | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| ⓘ | Enstatite | 9.DA.05 | Mg2Si2O6 |
| ⓘ | var. Bronzite | 9.DA.05 | (Mg,Fe2+)2[SiO3]2 |
| ⓘ | Augite | 9.DA.15 | (CaxMgyFez)(Mgy1Fez1)Si2O6 |
| ⓘ | Diopside | 9.DA.15 | CaMgSi2O6 |
| ⓘ | Hedenbergite | 9.DA.15 | CaFe2+Si2O6 |
| ⓘ | Johannsenite (TL) | 9.DA.15 | CaMn2+Si2O6 |
| ⓘ | Petedunnite (TL) | 9.DA.15 | CaZnSi2O6 |
| ⓘ | Diopside var. Schefferite | 9.DA.15 | (Ca,Mn)(Mg,Fe,Mn)Si2O6 |
| ⓘ | var. Zinc-Schefferite | 9.DA.15 | Ca(Mg,Mn,Zn)Si2O6 |
| ⓘ | 'Jeffersonite' (TL) | 9.DA.15 va | Ca(Mn,Zn,Fe)Si2O6 |
| ⓘ | Aegirine-augite | 9.DA.20 | (NaaCabFe2+cMgd)(Fe3+eAlfFe2+gMgh)Si2O6 |
| ⓘ | Aegirine | 9.DA.25 | NaFe3+Si2O6 |
| ⓘ | Clino-suenoite | 9.DE. | ◻Mn2+2(Mg5)(Si8O22)(OH)2 |
| ⓘ | Cummingtonite | 9.DE.05 | ◻Mg2Mg5(Si8O22)(OH)2 |
| ⓘ | Grunerite | 9.DE.05 | ◻Fe2+2Fe2+5(Si8O22)(OH)2 |
| ⓘ | Actinolite | 9.DE.10 | ◻Ca2(Mg4.5-2.5Fe0.5-2.5)Si8O22(OH)2 |
| ⓘ | Ferro-actinolite | 9.DE.10 | ◻Ca2Fe2+5(Si8O22)(OH)2 |
| ⓘ | Ferro-hornblende | 9.DE.10 | ◻Ca2(Fe2+4Al)(Si7Al)O22(OH)2 |
| ⓘ | Magnesio-hornblende | 9.DE.10 | ◻Ca2(Mg4Al)(Si7Al)O22(OH)2 |
| ⓘ | Tremolite | 9.DE.10 | ◻Ca2Mg5(Si8O22)(OH)2 |
| ⓘ | Fluoro-tremolite | 9.DE.10 | ◻Ca2Mg5(Si8O22)F2 |
| ⓘ | Edenite | 9.DE.15 | NaCa2Mg5(Si7Al)O22(OH)2 |
| ⓘ | Ferro-pargasite | 9.DE.15 | NaCa2(Fe2+4Al)(Si6Al2)O22(OH)2 |
| ⓘ | Hastingsite | 9.DE.15 | NaCa2(Fe2+4Fe3+)(Si6Al2)O22(OH)2 |
| ⓘ | Pargasite | 9.DE.15 | NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| ⓘ | Fluoro-edenite | 9.DE.15 | NaCa2Mg5(Si7Al)O22F2 |
| ⓘ | Magnesio-fluoro-hastingsite | 9.DE.15 | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| ⓘ | Fluoro-pargasite | 9.DE.15 | NaCa2(Mg4Al)(Si6Al2)O22F2 |
| ⓘ | Potassic-ferro-pargasite | 9.DE.15 | KCa2(Fe2+4Al)(Si6Al2)O22(OH)2 |
| ⓘ | Potassic-hastingsite | 9.DE.15 | KCa2(Fe2+4Fe3+)(Al2Si6O22)(OH)2 |
| ⓘ | Richterite | 9.DE.20 | Na(CaNa)Mg5(Si8O22)(OH)2 |
| ⓘ | Winchite | 9.DE.20 | ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 |
| ⓘ | Magnesio-riebeckite | 9.DE.25 | ◻Na2(Mg3Fe3+2)(Si8O22)(OH)2 |
| ⓘ | Bustamite (TL) | 9.DG.05 | CaMn2+(Si2O6) |
| ⓘ | Pectolite | 9.DG.05 | NaCa2Si3O8(OH) |
| ⓘ | Wollastonite | 9.DG.05 | Ca3(Si3O9) |
| ⓘ | Xonotlite | 9.DG.35 | Ca6(Si6O17)(OH)2 |
| ⓘ | 'Gageite-2M' (TL) | 9.DH. | (Mn,Mg,Zn)42Si16O54(OH)40 |
| ⓘ | Gageite (TL) | 9.DH.35 | Mn21(Si4O12)2O3(OH)20 |
| ⓘ | Ferrorhodonite | 9.DK. | CaMn3Fe[Si5O15] |
| ⓘ | Marsturite (TL) | 9.DK.05 | NaCaMn3Si5O14(OH) |
| ⓘ | Rhodonite | 9.DK.05 | CaMn3Mn[Si5O15] |
| ⓘ | Fowlerite (TL) | 9.DK.05 | (Mn2+,Zn,Ca)SiO3 |
| ⓘ | Hellandite-(Y) | 9.DK.20 | (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 |
| ⓘ | Pyroxferroite | 9.DO.05 | (Fe,Mn,Ca)SiO3 |
| ⓘ | Pyroxmangite | 9.DO.05 | Mn2+SiO3 |
| ⓘ | Prehnite | 9.DP.20 | Ca2Al2Si3O10(OH)2 |
| ⓘ | Fluorapophyllite-(K) | 9.EA.15 | KCa4(Si8O20)(F,OH) · 8H2O |
| ⓘ | Hydroxyapophyllite-(K) | 9.EA.15 | KCa4(Si8O20)(OH,F) · 8H2O |
| ⓘ | Fluorapophyllite-(Na) ? | 9.EA.15 | NaCa4(Si8O20)F · 8H2O |
| ⓘ | Talc | 9.EC.05 | Mg3Si4O10(OH)2 |
| ⓘ | Muscovite var. Illite | 9.EC.15 | K0.65Al2.0[Al0.65Si3.35O10](OH)2 |
| ⓘ | 9.EC.15 | KAl2(AlSi3O10)(OH)2 | |
| ⓘ | Paragonite | 9.EC.15 | NaAl2(AlSi3O10)(OH)2 |
| ⓘ | Muscovite var. Oellacherite | 9.EC.15 | KAl2(AlSi3O10)(OH)2 |
| ⓘ | Annite | 9.EC.20 | KFe2+3(AlSi3O10)(OH)2 |
| ⓘ | Hendricksite (TL) | 9.EC.20 | KZn3(Si3Al)O10(OH)2 |
| ⓘ | Phlogopite | 9.EC.20 | KMg3(AlSi3O10)(OH)2 |
| ⓘ | Siderophyllite ? | 9.EC.20 | KFe2+2Al(Al2Si2O10)(OH)2 |
| ⓘ | Fluorophlogopite | 9.EC.20 | KMg3(Si3Al)O10F2 |
| ⓘ | 'Chloroferrokinoshitalite' (TL) | 9.EC.20 | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| ⓘ | 'Pimelite' | 9.EC.22 | Ni3Si4O10(OH)2 · 4H2O |
| ⓘ | Margarite | 9.EC.30 | CaAl2(Al2Si2O10)(OH)2 |
| ⓘ | Anandite ? | 9.EC.35 | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| ⓘ | Clintonite ? | 9.EC.35 | CaAlMg2(SiAl3O10)(OH)2 |
| ⓘ | Ferrokinoshitalite | 9.EC.35 | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| ⓘ | Nontronite | 9.EC.40 | Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| ⓘ | Yakhontovite | 9.EC.40 | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| ⓘ | Saponite | 9.EC.45 | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| ⓘ | Sauconite | 9.EC.45 | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| ⓘ | var. Vanuxemite | 9.EC.45 | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| ⓘ | Chamosite | 9.EC.55 | Fe2+5Al(AlSi3O10)(OH)8 |
| ⓘ | Clinochlore | 9.EC.55 | Mg5Al(AlSi3O10)(OH)8 |
| ⓘ | Franklinfurnaceite (TL) | 9.EC.55 | Ca2Fe3+Mn2+3Mn3+(Zn2Si2O10)(OH)8 |
| ⓘ | Gonyerite | 9.EC.55 | Mn2+5Fe3+(Fe3+Si3O10)(OH)8 |
| ⓘ | Pennantite | 9.EC.55 | Mn2+5Al(AlSi3O10)(OH)8 |
| ⓘ | 'Clinochrysotile' | 9.ED. | Mg3(Si2O5)(OH)4 |
| ⓘ | Kaolinite | 9.ED.05 | Al2(Si2O5)(OH)4 |
| ⓘ | Antigorite | 9.ED.15 | Mg3(Si2O5)(OH)4 |
| ⓘ | Caryopilite | 9.ED.15 | Mn2+3Si2O5(OH)4 |
| ⓘ | Fraipontite (TL) | 9.ED.15 | (Zn,Al)3((Si,Al)2O5)(OH)4 |
| ⓘ | Lizardite | 9.ED.15 | Mg3(Si2O5)(OH)4 |
| ⓘ | Antigorite var. Vorhauserite | 9.ED.15 | (Mg,Mn)3(Si2O5)(OH)4 |
| ⓘ | Chrysocolla | 9.ED.20 | Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| ⓘ | Neotocite | 9.ED.20 | (Mn,Fe)SiO3 · H2O (?) |
| ⓘ | Bementite (TL) | 9.EE.05 | Mn7Si6O15(OH)8 |
| ⓘ | Friedelite | 9.EE.10 | Mn2+8Si6O15(OH,Cl)10 |
| ⓘ | Pyrosmalite-(Mn) (TL) | 9.EE.10 | Mn2+8Si6O15(OH,Cl)10 |
| ⓘ | Nelenite (TL) | 9.EE.15 | (Mn,Fe)16(Si12O30)(OH)14[As3+3O6(OH)3] |
| ⓘ | Schallerite (TL) | 9.EE.15 | Mn2+16As3Si12O36(OH)17 |
| ⓘ | Sepiolite | 9.EE.25 | Mg4(Si6O15)(OH)2 · 6H2O |
| ⓘ | Minehillite (TL) | 9.EE.75 | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| ⓘ | Ganophyllite | 9.EG.30 | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| ⓘ | Franklinphilite (TL) | 9.EG.40 | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| ⓘ | Lennilenapeite (TL) | 9.EG.40 | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| ⓘ | Stilpnomelane | 9.EG.40 | K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 |
| ⓘ | var. Ferrostilpnomelane | 9.EG.40 | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| ⓘ | var. Ferristilpnomelane | 9.EG.40 | K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| ⓘ | Bannisterite (TL) | 9.EG.75 | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| ⓘ | Microcline var. Amazonite | 9.FA.30 | K(AlSi3O8) |
| ⓘ | Celsian | 9.FA.30 | Ba(Al2Si2O8) |
| ⓘ | Microcline var. Hyalophane | 9.FA.30 | (K,Ba)[Al(Si,Al)Si2O8] |
| ⓘ | 9.FA.30 | K(AlSi3O8) | |
| ⓘ | Orthoclase | 9.FA.30 | K(AlSi3O8) |
| ⓘ | Albite | 9.FA.35 | Na(AlSi3O8) |
| ⓘ | Anorthite | 9.FA.35 | Ca(Al2Si2O8) |
| ⓘ | Albite var. Anorthoclase | 9.FA.35 | (Na,K)AlSi3O8 |
| ⓘ | var. Oligoclase | 9.FA.35 | (Na,Ca)[Al(Si,Al)Si2O8] |
| ⓘ | Genthelvite | 9.FB.10 | Be3Zn4(SiO4)3S |
| ⓘ | Meionite var. Algerite (TL) | 9.FB.15 | Ca4Al6Si6O24CO3 |
| ⓘ | Marialite | 9.FB.15 | Na4Al3Si9O24Cl |
| ⓘ | Meionite | 9.FB.15 | Ca4Al6Si6O24CO3 |
| ⓘ | Natrolite | 9.GA.05 | Na2Al2Si3O10 · 2H2O |
| ⓘ | Thomsonite-Ca | 9.GA.10 | NaCa2[Al5Si5O20] · 6H2O |
| ⓘ | Analcime | 9.GB.05 | Na(AlSi2O6) · H2O |
| ⓘ | Laumontite | 9.GB.10 | CaAl2Si4O12 · 4H2O |
| ⓘ | Chabazite-Ca | 9.GD.10 | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| ⓘ | Heulandite-Ca | 9.GE.05 | (Ca,Na)5(Si27Al9)O72 · 26H2O |
| ⓘ | Stilbite-Ca | 9.GE.10 | NaCa4(Si27Al9)O72 · 28H2O |
| ⓘ | Wawayandaite (TL) | 9.HA.20 | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| ⓘ | Bostwickite (TL) | 9.HC.10 | CaMn3+6Si3O16 · 7H2O |
| Unclassified | |||
| ⓘ | 'Amphibole Supergroup' | - | AB2C5(T8O22)W2 |
| ⓘ | 'Anomalite' (TL) | - | |
| ⓘ | 'Baumite' | - | |
| ⓘ | 'Biotite' | - | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| ⓘ | 'Chabazite' | - | |
| ⓘ | 'Chlorite Group' | - | |
| ⓘ | 'Heulandite Subgroup' | - | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| ⓘ | 'Hypersthene' | - | (Mg,Fe)SiO3 |
| ⓘ | 'Limonite' | - | |
| ⓘ | 'Orthochrysotile' | - | Mg3(Si2O5)(OH)4 |
| ⓘ | 'Stilbite Subgroup' | - | M6-7[Al8-9Si27-28O72] · nH2O |
| ⓘ | 'Tirodite' ? | - | |
| ⓘ | 'Tourmaline' | - | AD3G6(T6O18)(BO3)3X3Z |
| ⓘ | 'Amphibole Supergroup var. Uralite' | - | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| ⓘ | 'Fluor-uvite-Uvite Series' | - | |
| ⓘ | 'Wad' | - | |
| ⓘ | 'Mica Group' | - | |
| ⓘ | 'Sussexite-Szaibélyite Series' | - | |
| ⓘ | 'Powellite-Scheelite Series' | - | |
| ⓘ | 'Köttigite-Parasymplesite Series' | - | |
| ⓘ | 'Scapolite' | - | |
| ⓘ | 'Hornblende Root Name Group' | - | ◻Ca2(C2+4C3+)(AlSi7O22)W2 |
| ⓘ | 'Hydrohausmannite' (TL) | - | |
| ⓘ | 'Plagioclase' | - | (Na,Ca)[(Si,Al)AlSi2]O8 |
| ⓘ | 'Vredenburgite' | - | |
| ⓘ | 'Pyroxene Group' | - | ADSi2O6 |
| ⓘ | 'Garnet Group' | - | X3Z2(SiO4)3 |
| ⓘ | 'Amphibole Supergroup var. Byssolite' | - | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| ⓘ | 'Serpentine Subgroup' | - | D3[Si2O5](OH)4 |
| ⓘ | 'Calcozincite' | - | |
| ⓘ | 'Apatite' | - | Ca5(PO4)3A |
| ⓘ | 'Humite Group' | - | |
| ⓘ | 'Retzian Group' | - | Mn2+2REE(AsO4)(OH)4 |
| ⓘ | 'Phlogopite-1M' | - | KMg3(AlSi3O10)(OH)2 |
| ⓘ | 'Phlogopite-3T' | - | KMg3(AlSi3O10)(OH)2 |
| ⓘ | 'Edenite-Pargasite Root Name Series' | - | |
| ⓘ | 'Caswellite' | - | |
| ⓘ | 'Allanite Group' | - | (A12+REE3+)(M13+M23+M32+)O[Si2O7][SiO4](OH) |
| ⓘ | 'Epidote Group' | - | (A12+A22+)(M13+M23+M33+)O[Si2O7][SiO4](OH) |
| ⓘ | 'Pyroaurite-3R' | - | Mg6Fe3+2(OH)16(CO3) · 4H2O |
| ⓘ | 'UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D)' | - | (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| ⓘ | 'UM1985-26-SiO:CaMgPbZn (Also known as Mineral A)' | - | Pb2Zn5Ca4Mg2Si7O27 |
| ⓘ | 'UM1986-11-CO:Zn' | - | Zn-C-O-H ? |
| ⓘ | 'UM1986-23-O:BaMnU' | - | Ba-Mn-U-O |
| ⓘ | 'UM1986-24-O:Cu' | - | Cu-O ? |
| ⓘ | 'Mineral B ("oyelite-like" mineral)' | - | Ca10Si8B2O29 · 12.5H2O |
List of minerals for each chemical element
| H | Hydrogen | |
|---|---|---|
| H | ⓘ Actinolite | ◻Ca2(Mg4.5-2.5Fe0.5-2.5)Si8O22(OH)2 |
| H | ⓘ Adamite | Zn2(AsO4)(OH) |
| H | ⓘ Adelite | CaMg(AsO4)(OH) |
| H | ⓘ Akrochordite | MnMn2Mn2(AsO4)2(OH)4(H2O)4 |
| H | ⓘ Allactite | Mn72+(AsO4)2(OH)8 |
| H | ⓘ Allanite-(Ce) | (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) |
| H | ⓘ Alleghanyite | Mn52+(SiO4)2(OH)2 |
| H | ⓘ Analcime | Na(AlSi2O6) · H2O |
| H | ⓘ Annabergite | Ni3(AsO4)2 · 8H2O |
| H | ⓘ Annite | KFe32+(AlSi3O10)(OH)2 |
| H | ⓘ Antigorite | Mg3(Si2O5)(OH)4 |
| H | ⓘ Antlerite | Cu3(SO4)(OH)4 |
| H | ⓘ Arseniosiderite | Ca2Fe33+(AsO4)3O2 · 3H2O |
| H | ⓘ Atacamite | Cu2(OH)3Cl |
| H | ⓘ Aurichalcite | (Zn,Cu)5(CO3)2(OH)6 |
| H | ⓘ Aurorite | Mn2+Mn34+O7 · 3H2O |
| H | ⓘ Austinite | CaZn(AsO4)(OH) |
| H | ⓘ Azurite | Cu3(CO3)2(OH)2 |
| H | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| H | ⓘ Bariopharmacosiderite | Ba0.5Fe43+(AsO4)3(OH)4 · 5H2O |
| H | ⓘ Datolite var. Bakerite | Ca4(H5B5Si3O20) |
| H | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| H | ⓘ Bassanite | Ca(SO4) · 0.5H2O |
| H | ⓘ Bementite | Mn7Si6O15(OH)8 |
| H | ⓘ Bianchite | Zn(H2O)6(SO4) |
| H | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| H | ⓘ Birnessite | (Na,Ca)0.5(Mn4+,Mn3+)2O4 · 1.5H2O |
| H | ⓘ Bostwickite | CaMn63+Si3O16 · 7H2O |
| H | ⓘ Datolite var. Botryolite | CaB(SiO4)(OH) |
| H | ⓘ Brandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| H | ⓘ Brianyoungite | Zn3(CO3,SO4)(OH)4 |
| H | ⓘ Brochantite | Cu4(SO4)(OH)6 |
| H | ⓘ Bultfonteinite | Ca2(HSiO4)F · H2O |
| H | ⓘ Brucite | Mg(OH)2 |
| H | ⓘ Cahnite | Ca2[B(OH)4](AsO4) |
| H | ⓘ Canavesite | Mg2(HBO3)(CO3) · 5H2O |
| H | ⓘ Carminite | PbFe23+(AsO4)2(OH)2 |
| H | ⓘ Caryopilite | Mn32+Si2O5(OH)4 |
| H | ⓘ Chlorophoenicite | (Mn,Mg)3Zn2(AsO4)(OH,O)6 |
| H | ⓘ Chalcophanite | ZnMn34+O7 · 3H2O |
| H | ⓘ Chalcoalumite | CuAl4(SO4)(OH)12 · 3H2O |
| H | ⓘ Chamosite | Fe52+Al(AlSi3O10)(OH)8 |
| H | ⓘ Charlesite | Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O |
| H | ⓘ Chrysotile | Mg3(Si2O5)(OH)4 |
| H | ⓘ Chloritoid | Fe2+Al2O(SiO4)(OH)2 |
| H | ⓘ Chrysocolla | Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| H | ⓘ Cianciulliite | Mn(Mg,Mn)2Zn2(OH)10 · 2-4H2O |
| H | ⓘ Clinoclase | Cu3(AsO4)(OH)3 |
| H | ⓘ Clinochlore | Mg5Al(AlSi3O10)(OH)8 |
| H | ⓘ Clinochrysotile | Mg3(Si2O5)(OH)4 |
| H | ⓘ Clinohedrite | CaZn(SiO4) · H2O |
| H | ⓘ Clinozoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| H | ⓘ Clintonite | CaAlMg2(SiAl3O10)(OH)2 |
| H | ⓘ Conichalcite | CaCu(AsO4)(OH) |
| H | ⓘ Connellite | Cu19(SO4)(OH)32Cl4 · 3H2O |
| H | ⓘ Cummingtonite | ◻Mg2Mg5(Si8O22)(OH)2 |
| H | ⓘ Cyanotrichite | Cu4Al2(SO4)(OH)12 · 2H2O |
| H | ⓘ Descloizite | PbZn(VO4)(OH) |
| H | ⓘ Devilline | CaCu4(SO4)2(OH)6 · 3H2O |
| H | ⓘ Dioptase | CuSiO3 · H2O |
| H | ⓘ Dravite | NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| H | ⓘ Duftite | PbCu(AsO4)(OH) |
| H | ⓘ Dundasite | PbAl2(CO3)2(OH)4 · H2O |
| H | ⓘ Dypingite | Mg5(CO3)4(OH)2 · 5H2O |
| H | ⓘ Datolite | CaB(SiO4)(OH) |
| H | ⓘ Edenite | NaCa2Mg5(Si7Al)O22(OH)2 |
| H | ⓘ Epidote | (CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| H | ⓘ Epsomite | MgSO4 · 7H2O |
| H | ⓘ Erythrite | Co3(AsO4)2 · 8H2O |
| H | ⓘ Euchroite | Cu2(AsO4)(OH) · 3H2O |
| H | ⓘ Eveite | Mn22+(AsO4)(OH) |
| H | ⓘ Axinite-(Fe) | Ca2Fe2+Al2BSi4O15OH |
| H | ⓘ Feitknechtite | Mn3+O(OH) |
| H | ⓘ Ferrimolybdite | Fe2(MoO4)3 · nH2O |
| H | ⓘ Ferro-actinolite | ◻Ca2Fe52+(Si8O22)(OH)2 |
| H | ⓘ Ferro-hornblende | ◻Ca2(Fe42+Al)(Si7Al)O22(OH)2 |
| H | ⓘ Ferro-pargasite | NaCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| H | ⓘ Flinkite | Mn22+Mn3+(AsO4)(OH)4 |
| H | ⓘ Fluckite | CaMn2+(AsO3OH)2 · 2H2O |
| H | ⓘ Fluoborite | Mg3(BO3)(F,OH)3 |
| H | ⓘ Fluorapophyllite-(K) | KCa4(Si8O20)(F,OH) · 8H2O |
| H | ⓘ Foitite | ◻(Fe22+Al)Al6(Si6O18)(BO3)3(OH)3(OH) |
| H | ⓘ Fraipontite | (Zn,Al)3((Si,Al)2O5)(OH)4 |
| H | ⓘ Franklinfurnaceite | Ca2Fe3+Mn32+Mn3+(Zn2Si2O10)(OH)8 |
| H | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| H | ⓘ Friedelite | Mn82+Si6O15(OH,Cl)10 |
| H | ⓘ Gageite | Mn21(Si4O12)2O3(OH)20 |
| H | ⓘ Ganophyllite | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| H | ⓘ Gerstmannite | MnMgZn(SiO4)(OH)2 |
| H | ⓘ Goethite | Fe3+O(OH) |
| H | ⓘ Gonyerite | Mn52+Fe3+(Fe3+Si3O10)(OH)8 |
| H | ⓘ Groutite | Mn3+O(OH) |
| H | ⓘ Grunerite | ◻Fe22+Fe52+(Si8O22)(OH)2 |
| H | ⓘ Guérinite | Ca6(HAsO4)3(AsO4)2 · 10.5H2O |
| H | ⓘ Gypsum | CaSO4 · 2H2O |
| H | ⓘ Haidingerite | CaHAsO4 · H2O |
| H | ⓘ Halotrichite | Fe2+Al2(SO4)4 · 22H2O |
| H | ⓘ Hancockite | (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| H | ⓘ Hastingsite | NaCa2(Fe42+Fe3+)(Si6Al2)O22(OH)2 |
| H | ⓘ Hauckite | Fe33+(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| H | ⓘ Hellandite-(Y) | (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 |
| H | ⓘ Hemimorphite | Zn4Si2O7(OH)2 · H2O |
| H | ⓘ Hendricksite | KZn3(Si3Al)O10(OH)2 |
| H | ⓘ Heulandite Subgroup | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| H | ⓘ Hexahydrite | Mg(H2O)6(SO4) |
| H | ⓘ Hodgkinsonite | Mn2+Zn2(SiO4)(OH)2 |
| H | ⓘ Holdenite | (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 |
| H | ⓘ Hydrocerussite | Pb3(CO3)2(OH)2 |
| H | ⓘ Hetaerolite var. Hydrohetaerolite | Zn(Mn,◻)2(O,OH)4 |
| H | ⓘ Hydrotalcite | Mg6Al2(CO3)(OH)16 · 4H2O |
| H | ⓘ Hydroxyapophyllite-(K) | KCa4(Si8O20)(OH,F) · 8H2O |
| H | ⓘ Hydroxylapatite | Ca5(PO4)3(OH) |
| H | ⓘ Hydrozincite | Zn5(CO3)2(OH)6 |
| H | ⓘ Muscovite var. Illite | K0.65Al2.0[Al0.65Si3.35O10](OH)2 |
| H | ⓘ Iowaite | Mg6Fe23+(OH)16Cl2 · 4H2O |
| H | ⓘ Jarosewichite | Mn32+Mn3+(AsO4)(OH)6 |
| H | ⓘ Jarosite | KFe33+(SO4)2(OH)6 |
| H | ⓘ Jerrygibbsite | Mn92+(SiO4)4(OH)2 |
| H | ⓘ Johnbaumite | Ca5(AsO4)3(OH) |
| H | ⓘ Junitoite | CaZn2Si2O7 · H2O |
| H | ⓘ Kaolinite | Al2(Si2O5)(OH)4 |
| H | ⓘ Kittatinnyite | Ca2Mn2Mn(SiO4)2(OH)4 · 9H2O |
| H | ⓘ Kolicite | Mn72+Zn4(AsO4)2(SiO4)2(OH)8 |
| H | ⓘ Köttigite | Zn3(AsO4)2 · 8H2O |
| H | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| H | ⓘ Laumontite | CaAl2Si4O12 · 4H2O |
| H | ⓘ Lavendulan | NaCaCu5(AsO4)4Cl · 5H2O |
| H | ⓘ Lawsonbauerite | (Mn2+,Mg)9Zn4(SO4)2(OH)22 · 8H2O |
| H | ⓘ Legrandite | Zn2(AsO4)(OH) · H2O |
| H | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| H | ⓘ Leucophoenicite | Mn72+(SiO4)3(OH)2 |
| H | ⓘ Hydroxycalcioroméite | (Ca,Sb3+)2(Sb5+,Ti)2O6(OH) |
| H | ⓘ Linarite | PbCu(SO4)(OH)2 |
| H | ⓘ Liroconite | Cu2Al(AsO4)(OH)4 · 4H2O |
| H | ⓘ Lizardite | Mg3(Si2O5)(OH)4 |
| H | ⓘ Loseyite | (Mn2+,Zn,Mg)4Zn3(CO3)2(OH)10 |
| H | ⓘ Manganhumite | Mn72+(SiO4)3(OH)2 |
| H | ⓘ Pyrosmalite-(Mn) | Mn82+Si6O15(OH,Cl)10 |
| H | ⓘ Manganohörnesite | Mn32+(AsO4)2 · 8H2O |
| H | ⓘ Magnesiochlorophoenicite | (Mg,Mn)3Zn2(AsO4)(OH,O)6 |
| H | ⓘ Axinite-(Mn) | Ca2Mn2+Al2BSi4O15(OH) |
| H | ⓘ Macfallite | Ca2Mn33+(SiO4)(Si2O7)(OH)3 |
| H | ⓘ Magnesio-riebeckite | ◻Na2(Mg3Fe23+)(Si8O22)(OH)2 |
| H | ⓘ Manganite | Mn3+O(OH) |
| H | ⓘ Magnesio-hornblende | ◻Ca2(Mg4Al)(Si7Al)O22(OH)2 |
| H | ⓘ Magnussonite | Mn102+(As3+O3)6(OH,Cl)2 |
| H | ⓘ Malachite | Cu2(CO3)(OH)2 |
| H | ⓘ Vesuvianite var. Manganese-bearing Vesuvianite | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| H | ⓘ Margarite | CaAl2(Al2Si2O10)(OH)2 |
| H | ⓘ Marsturite | NaCaMn3Si5O14(OH) |
| H | ⓘ Mcallisterite | Mg2[B6O7(OH)6]2 · 9H2O |
| H | ⓘ Mcgovernite | Mn19Zn3(AsO4)3(AsO3)(SiO4)3(OH)21 |
| H | ⓘ Meta-ankoleite | K2(UO2)2(PO4)2 · 6H2O |
| H | ⓘ Metauranospinite | Ca(UO2)2(AsO4)2 · 8H2O |
| H | ⓘ Metalodèvite | Zn(UO2)2(AsO4)2 · 10H2O |
| H | ⓘ Metazeunerite | Cu(UO2)2(AsO4)2 · 8H2O |
| H | ⓘ Minehillite | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| H | ⓘ Monohydrocalcite | CaCO3 · H2O |
| H | ⓘ Mooreite | Mg9◻2Mn2Zn4(SO4)2(OH)26 · 8H2O |
| H | ⓘ Muscovite | KAl2(AlSi3O10)(OH)2 |
| H | ⓘ Fluorapophyllite-(Na) | NaCa4(Si8O20)F · 8H2O |
| H | ⓘ Nelenite | (Mn,Fe)16(Si12O30)(OH)14[As33+O6(OH)3] |
| H | ⓘ Neotocite | (Mn,Fe)SiO3 · H2O (?) |
| H | ⓘ Newberyite | Mg(PO3OH) · 3H2O |
| H | ⓘ Niahite | (NH4)Mn2+(PO4) · H2O |
| H | ⓘ Nontronite | Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| H | ⓘ Natrolite | Na2Al2Si3O10 · 2H2O |
| H | ⓘ Ogdensburgite | Ca2Fe43+(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O |
| H | ⓘ Ojuelaite | ZnFe23+(AsO4)2(OH)2 · 4H2O |
| H | ⓘ Opal | SiO2 · nH2O |
| H | ⓘ Orthochrysotile | Mg3(Si2O5)(OH)4 |
| H | ⓘ Orthoserpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| H | ⓘ Parabrandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| H | ⓘ Paragonite | NaAl2(AlSi3O10)(OH)2 |
| H | ⓘ Parasymplesite | Fe32+(AsO4)2 · 8H2O |
| H | ⓘ Pargasite | NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| H | ⓘ Pectolite | NaCa2Si3O8(OH) |
| H | ⓘ Pennantite | Mn52+Al(AlSi3O10)(OH)8 |
| H | ⓘ Pharmacolite | Ca(HAsO4) · 2H2O |
| H | ⓘ Pharmacosiderite | KFe43+(AsO4)3(OH)4 · 6-7H2O |
| H | ⓘ Phlogopite | KMg3(AlSi3O10)(OH)2 |
| H | ⓘ Picropharmacolite | Ca4Mg(AsO4)2(HAsO4)2 · 11H2O |
| H | ⓘ Piemontite | (CaCa)(AlAlMn3+)O[Si2O7][SiO4](OH) |
| H | ⓘ Povondraite | NaFe33+(Mg2Fe43+)(Si6O18)(BO3)3(OH)3O |
| H | ⓘ Prehnite | Ca2Al2Si3O10(OH)2 |
| H | ⓘ Pumpellyite-(Mg) | Ca2MgAl2[Si2O6OH][SiO4](OH)2(OH) |
| H | ⓘ Pyrobelonite | PbMn2+(VO4)(OH) |
| H | ⓘ Pyrochlore Group | A2Nb2(O,OH)6Z |
| H | ⓘ Pyrochroite | Mn(OH)2 |
| H | ⓘ Pyroaurite | Mg6Fe23+(OH)16[CO3] · 4H2O |
| H | ⓘ Retzian-(La) | Mn22+La(AsO4)(OH)4 |
| H | ⓘ Retzian-(Nd) | Mn22+Nd(AsO4)(OH)4 |
| H | ⓘ Ribbeite | Mn52+(SiO4)2(OH)2 |
| H | ⓘ Richterite | Na(CaNa)Mg5(Si8O22)(OH)2 |
| H | ⓘ Roeblingite | Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O |
| H | ⓘ Rosasite | (Cu,Zn)2(CO3)(OH)2 |
| H | ⓘ Roweite | Ca2Mn22+B4O7(OH)6 |
| H | ⓘ Samfowlerite | Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 |
| H | ⓘ Saponite | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| H | ⓘ Sarkinite | Mn22+(AsO4)(OH) |
| H | ⓘ Sauconite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| H | ⓘ Schallerite | Mn162+As3Si12O36(OH)17 |
| H | ⓘ Schorl | NaFe32+Al6(Si6O18)(BO3)3(OH)3(OH) |
| H | ⓘ Sclarite | Zn7(CO3)2(OH)10 |
| H | ⓘ Scorodite | Fe3+AsO4 · 2H2O |
| H | ⓘ Segnitite | PbFe33+AsO4(AsO3OH)(OH)6 |
| H | ⓘ Sepiolite | Mg4(Si6O15)(OH)2 · 6H2O |
| H | ⓘ Serpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| H | ⓘ Siderophyllite | KFe22+Al(Al2Si2O10)(OH)2 |
| H | ⓘ Simonkolleite | Zn5Cl2(OH)8 · H2O |
| H | ⓘ Pyroaurite-2H | Mg6Fe23+(OH)16(CO3) · 4H2O |
| H | ⓘ Sonolite | Mn92+(SiO4)4(OH)2 |
| H | ⓘ Spangolite | Cu6Al(SO4)(OH)12Cl · 3H2O |
| H | ⓘ Starkeyite | MgSO4 · 4H2O |
| H | ⓘ Sterlinghillite | Mn32+(AsO4)2 · 3H2O |
| H | ⓘ Stilbite Subgroup | M6-7[Al8-9Si27-28O72] · nH2O |
| H | ⓘ Stilpnomelane | K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 |
| H | ⓘ Sussexite | Mn2+BO2(OH) |
| H | ⓘ Synadelphite | Mn92+(As5+O4)2(As3+O3)(OH)9 · 2H2O |
| H | ⓘ Szaibélyite | MgBO2(OH) |
| H | ⓘ Talc | Mg3Si4O10(OH)2 |
| H | ⓘ Thomsonite-Ca | NaCa2[Al5Si5O20] · 6H2O |
| H | ⓘ Thorutite | (Th,U,Ca)Ti2(O,OH)6 |
| H | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| H | ⓘ Torreyite | (Mg,Mn2+)7◻2Mn22+Zn4(SO4)2(OH)22 · 8H2O |
| H | ⓘ Tremolite | ◻Ca2Mg5(Si8O22)(OH)2 |
| H | ⓘ Tyrolite | Ca2Cu9(AsO4)4(CO3)(OH)8 · 11H2O |
| H | ⓘ Amphibole Supergroup var. Uralite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| H | ⓘ Uranophane | Ca(UO2)2(SiO3OH)2 · 5H2O |
| H | ⓘ Uranospinite | Ca(UO2)2(AsO4)2 · 10H2O |
| H | ⓘ Fluor-uvite-Uvite Series | |
| H | ⓘ Sauconite var. Vanuxemite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| H | ⓘ Villyaellenite | (Mn,Ca)Mn2Ca2(AsO3OH)2(AsO4)2 · 4H2O |
| H | ⓘ Wurtzite var. Voltzite | (Zn,Fe,Mn) S [with O C H ] |
| H | ⓘ Vesuvianite | Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| H | ⓘ Wallkilldellite | Ca2Mn32+(AsO4)2(OH)4 · 9H2O |
| H | ⓘ Wawayandaite | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| H | ⓘ Wendwilsonite | Ca2Mg(AsO4)2 · 2H2O |
| H | ⓘ Winchite | ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 |
| H | ⓘ Woodruffite | Zn2+x/2(Mn4+1-xMnx3+)O2 · yH2O |
| H | ⓘ Woodwardite | Cu1-xAlx(OH)2(SO4)x/2 · nH2O |
| H | ⓘ Xonotlite | Ca6(Si6O17)(OH)2 |
| H | ⓘ Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| H | ⓘ Yukonite | Ca3Fe3+(AsO4)2(OH)3 · 5H2O |
| H | ⓘ Zeunerite | Cu(UO2)2(AsO4)2 · 12H2O |
| H | ⓘ Zincmelanterite | Zn(H2O)6(SO4) · H2O |
| H | ⓘ Znucalite | Zn10Ca0.83(UO2)0.83(CO3)4(OH)15.31(H2O)5.48 |
| H | ⓘ Zoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| H | ⓘ Gypsum var. Selenite | CaSO4 · 2H2O |
| H | ⓘ Arakiite | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| H | ⓘ Chabazite-Ca | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| H | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| H | ⓘ Gageite-2M | (Mn,Mg,Zn)42Si16O54(OH)40 |
| H | ⓘ Graeserite | Fe43+Ti3As3+O13(OH) |
| H | ⓘ Heulandite-Ca | (Ca,Na)5(Si27Al9)O72 · 26H2O |
| H | ⓘ Zálesíite | CaCu6(AsO4)2(AsO3OH)(OH)6 · 3H2O |
| H | ⓘ Pimelite | Ni3Si4O10(OH)2 · 4H2O |
| H | ⓘ Stilbite-Ca | NaCa4(Si27Al9)O72 · 28H2O |
| H | ⓘ Hydroxylclinohumite | Mg9(SiO4)4(OH)2 |
| H | ⓘ Sussexite-Szaibélyite Series | |
| H | ⓘ Köttigite-Parasymplesite Series | |
| H | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| H | ⓘ Stilpnomelane var. Ferristilpnomelane | K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| H | ⓘ Rouaite | Cu2(NO3)(OH)3 |
| H | ⓘ Muscovite var. Oellacherite | KAl2(AlSi3O10)(OH)2 |
| H | ⓘ Amphibole Supergroup var. Byssolite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| H | ⓘ Serpentine Subgroup | D3[Si2O5](OH)4 |
| H | ⓘ Manganvesuvianite | Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| H | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| H | ⓘ Zincolivenite | CuZn(AsO4)(OH) |
| H | ⓘ Epidote-(Sr) | (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| H | ⓘ Retzian Group | Mn22+REE(AsO4)(OH)4 |
| H | ⓘ Phlogopite-1M | KMg3(AlSi3O10)(OH)2 |
| H | ⓘ Phlogopite-3T | KMg3(AlSi3O10)(OH)2 |
| H | ⓘ Potassic-ferro-pargasite | KCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| H | ⓘ Potassic-hastingsite | KCa2(Fe42+Fe3+)(Al2Si6O22)(OH)2 |
| H | ⓘ UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995) | Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O |
| H | ⓘ Miguelromeroite | Mn52+(AsO3OH)2(AsO4)2(H2O)4 |
| H | ⓘ Hydroxycalciopyrochlore | (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) |
| H | ⓘ Strontiopharmacosiderite | Sr0.5Fe43+[(AsO4)3(OH)4] · 4H2O |
| H | ⓘ Edenite-Pargasite Root Name Series | |
| H | ⓘ Antigorite var. Vorhauserite | (Mg,Mn)3(Si2O5)(OH)4 |
| H | ⓘ Fluor-uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| H | ⓘ Ferriakasakaite-(La) | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| H | ⓘ Allanite Group | (A12+REE3+)(M13+M23+M32+)O[Si2O7][SiO4](OH) |
| H | ⓘ Epidote Group | (A12+A22+)(M13+M23+M33+)O[Si2O7][SiO4](OH) |
| H | ⓘ Pyroaurite-3R | Mg6Fe23+(OH)16(CO3) · 4H2O |
| H | ⓘ Cyprine | Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 |
| H | ⓘ Castellaroite | Mn32+(AsO4)2 · 4H2O |
| H | ⓘ UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D) | (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| H | ⓘ UM1986-11-CO:Zn | Zn-C-O-H ? |
| H | ⓘ Clino-suenoite | ◻Mn22+(Mg5)(Si8O22)(OH)2 |
| H | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| H | ⓘ Uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| H | ⓘ Mineral B ("oyelite-like" mineral) | Ca10Si8B2O29 · 12.5H2O |
| H | ⓘ Peterchinite | Zn3Zn2(OH)6As[O3(OH)3] |
| Be | Beryllium | |
| Be | ⓘ Barylite | Be2Ba(Si2O7) |
| Be | ⓘ Genthelvite | Be3Zn4(SiO4)3S |
| Be | ⓘ Samfowlerite | Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 |
| Be | ⓘ Wawayandaite | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| Be | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| B | Boron | |
| B | ⓘ Datolite var. Bakerite | Ca4(H5B5Si3O20) |
| B | ⓘ Datolite var. Botryolite | CaB(SiO4)(OH) |
| B | ⓘ Cahnite | Ca2[B(OH)4](AsO4) |
| B | ⓘ Canavesite | Mg2(HBO3)(CO3) · 5H2O |
| B | ⓘ Charlesite | Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O |
| B | ⓘ Dravite | NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| B | ⓘ Datolite | CaB(SiO4)(OH) |
| B | ⓘ Axinite-(Fe) | Ca2Fe2+Al2BSi4O15OH |
| B | ⓘ Fluoborite | Mg3(BO3)(F,OH)3 |
| B | ⓘ Foitite | ◻(Fe22+Al)Al6(Si6O18)(BO3)3(OH)3(OH) |
| B | ⓘ Hellandite-(Y) | (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 |
| B | ⓘ Axinite-(Mn) | Ca2Mn2+Al2BSi4O15(OH) |
| B | ⓘ Mcallisterite | Mg2[B6O7(OH)6]2 · 9H2O |
| B | ⓘ Povondraite | NaFe33+(Mg2Fe43+)(Si6O18)(BO3)3(OH)3O |
| B | ⓘ Roweite | Ca2Mn22+B4O7(OH)6 |
| B | ⓘ Schorl | NaFe32+Al6(Si6O18)(BO3)3(OH)3(OH) |
| B | ⓘ Sussexite | Mn2+BO2(OH) |
| B | ⓘ Szaibélyite | MgBO2(OH) |
| B | ⓘ Tourmaline | AD3G6(T6O18)(BO3)3X3Z |
| B | ⓘ Fluor-uvite-Uvite Series | |
| B | ⓘ Wawayandaite | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| B | ⓘ Sussexite-Szaibélyite Series | |
| B | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| B | ⓘ Fluor-uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| B | ⓘ Uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| B | ⓘ Mineral B ("oyelite-like" mineral) | Ca10Si8B2O29 · 12.5H2O |
| C | Carbon | |
| C | ⓘ Meionite var. Algerite | Ca4Al6Si6O24CO3 |
| C | ⓘ Aragonite | CaCO3 |
| C | ⓘ Aurichalcite | (Zn,Cu)5(CO3)2(OH)6 |
| C | ⓘ Azurite | Cu3(CO3)2(OH)2 |
| C | ⓘ Brianyoungite | Zn3(CO3,SO4)(OH)4 |
| C | ⓘ Calcite | CaCO3 |
| C | ⓘ Canavesite | Mg2(HBO3)(CO3) · 5H2O |
| C | ⓘ Cerussite | PbCO3 |
| C | ⓘ Dolomite | CaMg(CO3)2 |
| C | ⓘ Dundasite | PbAl2(CO3)2(OH)4 · H2O |
| C | ⓘ Dypingite | Mg5(CO3)4(OH)2 · 5H2O |
| C | ⓘ Graphite | C |
| C | ⓘ Hauckite | Fe33+(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| C | ⓘ Hydrocerussite | Pb3(CO3)2(OH)2 |
| C | ⓘ Hydrotalcite | Mg6Al2(CO3)(OH)16 · 4H2O |
| C | ⓘ Hydrozincite | Zn5(CO3)2(OH)6 |
| C | ⓘ Kutnohorite | CaMn2+(CO3)2 |
| C | ⓘ Loseyite | (Mn2+,Zn,Mg)4Zn3(CO3)2(OH)10 |
| C | ⓘ Malachite | Cu2(CO3)(OH)2 |
| C | ⓘ Meionite | Ca4Al6Si6O24CO3 |
| C | ⓘ Monohydrocalcite | CaCO3 · H2O |
| C | ⓘ Otavite | CdCO3 |
| C | ⓘ Pyroaurite | Mg6Fe23+(OH)16[CO3] · 4H2O |
| C | ⓘ Rhodochrosite | MnCO3 |
| C | ⓘ Rosasite | (Cu,Zn)2(CO3)(OH)2 |
| C | ⓘ Sclarite | Zn7(CO3)2(OH)10 |
| C | ⓘ Siderite | FeCO3 |
| C | ⓘ Pyroaurite-2H | Mg6Fe23+(OH)16(CO3) · 4H2O |
| C | ⓘ Smithsonite | ZnCO3 |
| C | ⓘ Strontianite | SrCO3 |
| C | ⓘ Synchysite-(Ce) | CaCe(CO3)2F |
| C | ⓘ Tyrolite | Ca2Cu9(AsO4)4(CO3)(OH)8 · 11H2O |
| C | ⓘ Wurtzite var. Voltzite | (Zn,Fe,Mn) S [with O C H ] |
| C | ⓘ Znucalite | Zn10Ca0.83(UO2)0.83(CO3)4(OH)15.31(H2O)5.48 |
| C | ⓘ UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995) | Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O |
| C | ⓘ Pyroaurite-3R | Mg6Fe23+(OH)16(CO3) · 4H2O |
| C | ⓘ UM1986-11-CO:Zn | Zn-C-O-H ? |
| N | Nitrogen | |
| N | ⓘ Niahite | (NH4)Mn2+(PO4) · H2O |
| N | ⓘ Rouaite | Cu2(NO3)(OH)3 |
| O | Oxygen | |
| O | ⓘ Actinolite | ◻Ca2(Mg4.5-2.5Fe0.5-2.5)Si8O22(OH)2 |
| O | ⓘ Adamite | Zn2(AsO4)(OH) |
| O | ⓘ Adelite | CaMg(AsO4)(OH) |
| O | ⓘ Aegirine | NaFe3+Si2O6 |
| O | ⓘ Aegirine-augite | (NaaCabFec2+Mgd)(Fee3+AlfFeg2+Mgh)Si2O6 |
| O | ⓘ Akrochordite | MnMn2Mn2(AsO4)2(OH)4(H2O)4 |
| O | ⓘ Albite | Na(AlSi3O8) |
| O | ⓘ Meionite var. Algerite | Ca4Al6Si6O24CO3 |
| O | ⓘ Allactite | Mn72+(AsO4)2(OH)8 |
| O | ⓘ Allanite-(Ce) | (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) |
| O | ⓘ Alleghanyite | Mn52+(SiO4)2(OH)2 |
| O | ⓘ Microcline var. Amazonite | K(AlSi3O8) |
| O | ⓘ Amphibole Supergroup | AB2C5(T8O22)W2 |
| O | ⓘ Analcime | Na(AlSi2O6) · H2O |
| O | ⓘ Anatase | TiO2 |
| O | ⓘ Andradite | Ca3Fe23+(SiO4)3 |
| O | ⓘ Anglesite | PbSO4 |
| O | ⓘ Anhydrite | CaSO4 |
| O | ⓘ Annabergite | Ni3(AsO4)2 · 8H2O |
| O | ⓘ Annite | KFe32+(AlSi3O10)(OH)2 |
| O | ⓘ Anorthite | Ca(Al2Si2O8) |
| O | ⓘ Albite var. Anorthoclase | (Na,K)AlSi3O8 |
| O | ⓘ Antigorite | Mg3(Si2O5)(OH)4 |
| O | ⓘ Antlerite | Cu3(SO4)(OH)4 |
| O | ⓘ Arsenolite | As2O3 |
| O | ⓘ Aragonite | CaCO3 |
| O | ⓘ Arseniosiderite | Ca2Fe33+(AsO4)3O2 · 3H2O |
| O | ⓘ Atacamite | Cu2(OH)3Cl |
| O | ⓘ Augite | (CaxMgyFez)(Mgy1Fez1)Si2O6 |
| O | ⓘ Aurichalcite | (Zn,Cu)5(CO3)2(OH)6 |
| O | ⓘ Aurorite | Mn2+Mn34+O7 · 3H2O |
| O | ⓘ Austinite | CaZn(AsO4)(OH) |
| O | ⓘ Azurite | Cu3(CO3)2(OH)2 |
| O | ⓘ Almandine | Fe32+Al2(SiO4)3 |
| O | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| O | ⓘ Bariopharmacosiderite | Ba0.5Fe43+(AsO4)3(OH)4 · 5H2O |
| O | ⓘ Datolite var. Bakerite | Ca4(H5B5Si3O20) |
| O | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| O | ⓘ Barylite | Be2Ba(Si2O7) |
| O | ⓘ Barysilite | Pb8Mn2+[Si2O7]3 |
| O | ⓘ Baryte | BaSO4 |
| O | ⓘ Bassanite | Ca(SO4) · 0.5H2O |
| O | ⓘ Bementite | Mn7Si6O15(OH)8 |
| O | ⓘ Bianchite | Zn(H2O)6(SO4) |
| O | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| O | ⓘ Birnessite | (Na,Ca)0.5(Mn4+,Mn3+)2O4 · 1.5H2O |
| O | ⓘ Bostwickite | CaMn63+Si3O16 · 7H2O |
| O | ⓘ Datolite var. Botryolite | CaB(SiO4)(OH) |
| O | ⓘ Brandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| O | ⓘ Brianyoungite | Zn3(CO3,SO4)(OH)4 |
| O | ⓘ Brochantite | Cu4(SO4)(OH)6 |
| O | ⓘ Brookite | TiO2 |
| O | ⓘ Bultfonteinite | Ca2(HSiO4)F · H2O |
| O | ⓘ Bustamite | CaMn2+(Si2O6) |
| O | ⓘ Brucite | Mg(OH)2 |
| O | ⓘ Cahnite | Ca2[B(OH)4](AsO4) |
| O | ⓘ Calcite | CaCO3 |
| O | ⓘ Canavesite | Mg2(HBO3)(CO3) · 5H2O |
| O | ⓘ Carminite | PbFe23+(AsO4)2(OH)2 |
| O | ⓘ Caryopilite | Mn32+Si2O5(OH)4 |
| O | ⓘ Celestine | SrSO4 |
| O | ⓘ Celsian | Ba(Al2Si2O8) |
| O | ⓘ Cerussite | PbCO3 |
| O | ⓘ Chlorophoenicite | (Mn,Mg)3Zn2(AsO4)(OH,O)6 |
| O | ⓘ Chalcophanite | ZnMn34+O7 · 3H2O |
| O | ⓘ Chalcoalumite | CuAl4(SO4)(OH)12 · 3H2O |
| O | ⓘ Chamosite | Fe52+Al(AlSi3O10)(OH)8 |
| O | ⓘ Charlesite | Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O |
| O | ⓘ Chrysotile | Mg3(Si2O5)(OH)4 |
| O | ⓘ Chloritoid | Fe2+Al2O(SiO4)(OH)2 |
| O | ⓘ Chondrodite | Mg5(SiO4)2F2 |
| O | ⓘ Chrysocolla | Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| O | ⓘ Cianciulliite | Mn(Mg,Mn)2Zn2(OH)10 · 2-4H2O |
| O | ⓘ Clinoclase | Cu3(AsO4)(OH)3 |
| O | ⓘ Clinochlore | Mg5Al(AlSi3O10)(OH)8 |
| O | ⓘ Clinochrysotile | Mg3(Si2O5)(OH)4 |
| O | ⓘ Clinohedrite | CaZn(SiO4) · H2O |
| O | ⓘ Clinohumite | Mg9(SiO4)4F2 |
| O | ⓘ Clinozoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| O | ⓘ Clintonite | CaAlMg2(SiAl3O10)(OH)2 |
| O | ⓘ Conichalcite | CaCu(AsO4)(OH) |
| O | ⓘ Connellite | Cu19(SO4)(OH)32Cl4 · 3H2O |
| O | ⓘ Corundum | Al2O3 |
| O | ⓘ Cryptomelane | K(Mn74+Mn3+)O16 |
| O | ⓘ Cummingtonite | ◻Mg2Mg5(Si8O22)(OH)2 |
| O | ⓘ Cuprite | Cu2O |
| O | ⓘ Cuspidine | Ca8(Si2O7)2F4 |
| O | ⓘ Cyanotrichite | Cu4Al2(SO4)(OH)12 · 2H2O |
| O | ⓘ Descloizite | PbZn(VO4)(OH) |
| O | ⓘ Devilline | CaCu4(SO4)2(OH)6 · 3H2O |
| O | ⓘ Diopside | CaMgSi2O6 |
| O | ⓘ Dioptase | CuSiO3 · H2O |
| O | ⓘ Dolomite | CaMg(CO3)2 |
| O | ⓘ Dravite | NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| O | ⓘ Duftite | PbCu(AsO4)(OH) |
| O | ⓘ Dundasite | PbAl2(CO3)2(OH)4 · H2O |
| O | ⓘ Dypingite | Mg5(CO3)4(OH)2 · 5H2O |
| O | ⓘ Datolite | CaB(SiO4)(OH) |
| O | ⓘ Edenite | NaCa2Mg5(Si7Al)O22(OH)2 |
| O | ⓘ Enstatite | Mg2Si2O6 |
| O | ⓘ Epidote | (CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| O | ⓘ Epsomite | MgSO4 · 7H2O |
| O | ⓘ Erythrite | Co3(AsO4)2 · 8H2O |
| O | ⓘ Esperite | PbCa2Zn3(SiO4)3 |
| O | ⓘ Euchroite | Cu2(AsO4)(OH) · 3H2O |
| O | ⓘ Eveite | Mn22+(AsO4)(OH) |
| O | ⓘ Fayalite | Fe22+(SiO4) |
| O | ⓘ Axinite-(Fe) | Ca2Fe2+Al2BSi4O15OH |
| O | ⓘ Feitknechtite | Mn3+O(OH) |
| O | ⓘ Ferrimolybdite | Fe2(MoO4)3 · nH2O |
| O | ⓘ Ferro-actinolite | ◻Ca2Fe52+(Si8O22)(OH)2 |
| O | ⓘ Ferro-hornblende | ◻Ca2(Fe42+Al)(Si7Al)O22(OH)2 |
| O | ⓘ Ferro-pargasite | NaCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| O | ⓘ Fersmite | CaNb2O6 |
| O | ⓘ Flinkite | Mn22+Mn3+(AsO4)(OH)4 |
| O | ⓘ Fluckite | CaMn2+(AsO3OH)2 · 2H2O |
| O | ⓘ Fluoborite | Mg3(BO3)(F,OH)3 |
| O | ⓘ Fluorapatite | Ca5(PO4)3F |
| O | ⓘ Fluorapophyllite-(K) | KCa4(Si8O20)(F,OH) · 8H2O |
| O | ⓘ Fluorellestadite | Ca5(SiO4)1.5(SO4)1.5F |
| O | ⓘ Foitite | ◻(Fe22+Al)Al6(Si6O18)(BO3)3(OH)3(OH) |
| O | ⓘ Forsterite | Mg2(SiO4) |
| O | ⓘ Fraipontite | (Zn,Al)3((Si,Al)2O5)(OH)4 |
| O | ⓘ Franklinfurnaceite | Ca2Fe3+Mn32+Mn3+(Zn2Si2O10)(OH)8 |
| O | ⓘ Franklinite | Zn2+Fe23+O4 |
| O | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| O | ⓘ Friedelite | Mn82+Si6O15(OH,Cl)10 |
| O | ⓘ Gageite | Mn21(Si4O12)2O3(OH)20 |
| O | ⓘ Gahnite | ZnAl2O4 |
| O | ⓘ Ganomalite | Pb9Ca5Mn(Si2O7)4(SiO4)O |
| O | ⓘ Ganophyllite | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| O | ⓘ Genthelvite | Be3Zn4(SiO4)3S |
| O | ⓘ Gerstmannite | MnMgZn(SiO4)(OH)2 |
| O | ⓘ Glaucochroite | CaMn2+(SiO4) |
| O | ⓘ Goethite | Fe3+O(OH) |
| O | ⓘ Goldmanite | Ca3V23+(SiO4)3 |
| O | ⓘ Gonyerite | Mn52+Fe3+(Fe3+Si3O10)(OH)8 |
| O | ⓘ Grossular | Ca3Al2(SiO4)3 |
| O | ⓘ Groutite | Mn3+O(OH) |
| O | ⓘ Grunerite | ◻Fe22+Fe52+(Si8O22)(OH)2 |
| O | ⓘ Guérinite | Ca6(HAsO4)3(AsO4)2 · 10.5H2O |
| O | ⓘ Gypsum | CaSO4 · 2H2O |
| O | ⓘ Haidingerite | CaHAsO4 · H2O |
| O | ⓘ Halotrichite | Fe2+Al2(SO4)4 · 22H2O |
| O | ⓘ Hancockite | (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| O | ⓘ Hardystonite | Ca2Zn[Si2O7] |
| O | ⓘ Hastingsite | NaCa2(Fe42+Fe3+)(Si6Al2)O22(OH)2 |
| O | ⓘ Hauckite | Fe33+(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| O | ⓘ Hausmannite | Mn2+Mn23+O4 |
| O | ⓘ Hedenbergite | CaFe2+Si2O6 |
| O | ⓘ Hedyphane | Ca2Pb3(AsO4)3Cl |
| O | ⓘ Hellandite-(Y) | (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 |
| O | ⓘ Hematite | Fe2O3 |
| O | ⓘ Hemimorphite | Zn4Si2O7(OH)2 · H2O |
| O | ⓘ Hendricksite | KZn3(Si3Al)O10(OH)2 |
| O | ⓘ Hercynite | Fe2+Al2O4 |
| O | ⓘ Hetaerolite | ZnMn2O4 |
| O | ⓘ Heulandite Subgroup | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| O | ⓘ Hexahydrite | Mg(H2O)6(SO4) |
| O | ⓘ Hodgkinsonite | Mn2+Zn2(SiO4)(OH)2 |
| O | ⓘ Holdenite | (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 |
| O | ⓘ Hübnerite | MnWO4 |
| O | ⓘ Humite | Mg7(SiO4)3F2 |
| O | ⓘ Microcline var. Hyalophane | (K,Ba)[Al(Si,Al)Si2O8] |
| O | ⓘ Hydrocerussite | Pb3(CO3)2(OH)2 |
| O | ⓘ Grossular var. Hydrogrossular | Ca3Al2(SiO4)3 |
| O | ⓘ Hetaerolite var. Hydrohetaerolite | Zn(Mn,◻)2(O,OH)4 |
| O | ⓘ Hydrotalcite | Mg6Al2(CO3)(OH)16 · 4H2O |
| O | ⓘ Hydroxyapophyllite-(K) | KCa4(Si8O20)(OH,F) · 8H2O |
| O | ⓘ Hydroxylapatite | Ca5(PO4)3(OH) |
| O | ⓘ Hydrozincite | Zn5(CO3)2(OH)6 |
| O | ⓘ Hypersthene | (Mg,Fe)SiO3 |
| O | ⓘ Muscovite var. Illite | K0.65Al2.0[Al0.65Si3.35O10](OH)2 |
| O | ⓘ Ilmenite | Fe2+TiO3 |
| O | ⓘ Iowaite | Mg6Fe23+(OH)16Cl2 · 4H2O |
| O | ⓘ Jacobsite | Mn2+Fe23+O4 |
| O | ⓘ Jarosewichite | Mn32+Mn3+(AsO4)(OH)6 |
| O | ⓘ Jarosite | KFe33+(SO4)2(OH)6 |
| O | ⓘ Jeffersonite | Ca(Mn,Zn,Fe)Si2O6 |
| O | ⓘ Jerrygibbsite | Mn92+(SiO4)4(OH)2 |
| O | ⓘ Johannsenite | CaMn2+Si2O6 |
| O | ⓘ Johnbaumite | Ca5(AsO4)3(OH) |
| O | ⓘ Junitoite | CaZn2Si2O7 · H2O |
| O | ⓘ Kaolinite | Al2(Si2O5)(OH)4 |
| O | ⓘ Kentrolite | Pb2Mn23+(Si2O7)O2 |
| O | ⓘ Kittatinnyite | Ca2Mn2Mn(SiO4)2(OH)4 · 9H2O |
| O | ⓘ Kolicite | Mn72+Zn4(AsO4)2(SiO4)2(OH)8 |
| O | ⓘ Köttigite | Zn3(AsO4)2 · 8H2O |
| O | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| O | ⓘ Kutnohorite | CaMn2+(CO3)2 |
| O | ⓘ Larsenite | PbZnSiO4 |
| O | ⓘ Laumontite | CaAl2Si4O12 · 4H2O |
| O | ⓘ Lavendulan | NaCaCu5(AsO4)4Cl · 5H2O |
| O | ⓘ Lawsonbauerite | (Mn2+,Mg)9Zn4(SO4)2(OH)22 · 8H2O |
| O | ⓘ Legrandite | Zn2(AsO4)(OH) · H2O |
| O | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| O | ⓘ Leucophoenicite | Mn72+(SiO4)3(OH)2 |
| O | ⓘ Hydroxycalcioroméite | (Ca,Sb3+)2(Sb5+,Ti)2O6(OH) |
| O | ⓘ Linarite | PbCu(SO4)(OH)2 |
| O | ⓘ Liroconite | Cu2Al(AsO4)(OH)4 · 4H2O |
| O | ⓘ Lizardite | Mg3(Si2O5)(OH)4 |
| O | ⓘ Loseyite | (Mn2+,Zn,Mg)4Zn3(CO3)2(OH)10 |
| O | ⓘ Litharge | PbO |
| O | ⓘ Manganhumite | Mn72+(SiO4)3(OH)2 |
| O | ⓘ Manganberzeliite | (NaCa2)Mn22+(AsO4)3 |
| O | ⓘ Pyrosmalite-(Mn) | Mn82+Si6O15(OH,Cl)10 |
| O | ⓘ Manganohörnesite | Mn32+(AsO4)2 · 8H2O |
| O | ⓘ Magnesiochlorophoenicite | (Mg,Mn)3Zn2(AsO4)(OH,O)6 |
| O | ⓘ Axinite-(Mn) | Ca2Mn2+Al2BSi4O15(OH) |
| O | ⓘ Manganosite | MnO |
| O | ⓘ Macfallite | Ca2Mn33+(SiO4)(Si2O7)(OH)3 |
| O | ⓘ Magnesio-riebeckite | ◻Na2(Mg3Fe23+)(Si8O22)(OH)2 |
| O | ⓘ Manganite | Mn3+O(OH) |
| O | ⓘ Magnesio-hornblende | ◻Ca2(Mg4Al)(Si7Al)O22(OH)2 |
| O | ⓘ Magnetite | Fe2+Fe23+O4 |
| O | ⓘ Magnussonite | Mn102+(As3+O3)6(OH,Cl)2 |
| O | ⓘ Malachite | Cu2(CO3)(OH)2 |
| O | ⓘ Vesuvianite var. Manganese-bearing Vesuvianite | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| O | ⓘ Manjiroite | Na(Mn74+Mn3+)O16 |
| O | ⓘ Margarite | CaAl2(Al2Si2O10)(OH)2 |
| O | ⓘ Margarosanite | Ca2PbSi3O9 |
| O | ⓘ Marialite | Na4Al3Si9O24Cl |
| O | ⓘ Marsturite | NaCaMn3Si5O14(OH) |
| O | ⓘ Mcallisterite | Mg2[B6O7(OH)6]2 · 9H2O |
| O | ⓘ Mcgovernite | Mn19Zn3(AsO4)3(AsO3)(SiO4)3(OH)21 |
| O | ⓘ Meionite | Ca4Al6Si6O24CO3 |
| O | ⓘ Meta-ankoleite | K2(UO2)2(PO4)2 · 6H2O |
| O | ⓘ Metauranospinite | Ca(UO2)2(AsO4)2 · 8H2O |
| O | ⓘ Metalodèvite | Zn(UO2)2(AsO4)2 · 10H2O |
| O | ⓘ Metazeunerite | Cu(UO2)2(AsO4)2 · 8H2O |
| O | ⓘ Microcline | K(AlSi3O8) |
| O | ⓘ Mimetite | Pb5(AsO4)3Cl |
| O | ⓘ Minehillite | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| O | ⓘ Monazite-(Ce) | Ce(PO4) |
| O | ⓘ Monohydrocalcite | CaCO3 · H2O |
| O | ⓘ Mooreite | Mg9◻2Mn2Zn4(SO4)2(OH)26 · 8H2O |
| O | ⓘ Muscovite | KAl2(AlSi3O10)(OH)2 |
| O | ⓘ Nasonite | Pb6Ca4(Si2O7)3Cl2 |
| O | ⓘ Fluorapophyllite-(Na) | NaCa4(Si8O20)F · 8H2O |
| O | ⓘ Nelenite | (Mn,Fe)16(Si12O30)(OH)14[As33+O6(OH)3] |
| O | ⓘ Neotocite | (Mn,Fe)SiO3 · H2O (?) |
| O | ⓘ Newberyite | Mg(PO3OH) · 3H2O |
| O | ⓘ Niahite | (NH4)Mn2+(PO4) · H2O |
| O | ⓘ Nontronite | Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| O | ⓘ Norbergite | Mg3(SiO4)F2 |
| O | ⓘ Natrolite | Na2Al2Si3O10 · 2H2O |
| O | ⓘ Ogdensburgite | Ca2Fe43+(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O |
| O | ⓘ Ojuelaite | ZnFe23+(AsO4)2(OH)2 · 4H2O |
| O | ⓘ Albite var. Oligoclase | (Na,Ca)[Al(Si,Al)Si2O8] |
| O | ⓘ Opal | SiO2 · nH2O |
| O | ⓘ Thorite var. Orangite | Th(SiO4) |
| O | ⓘ Orthochrysotile | Mg3(Si2O5)(OH)4 |
| O | ⓘ Orthoclase | K(AlSi3O8) |
| O | ⓘ Orthoserpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| O | ⓘ Otavite | CdCO3 |
| O | ⓘ Parabrandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| O | ⓘ Paragonite | NaAl2(AlSi3O10)(OH)2 |
| O | ⓘ Parasymplesite | Fe32+(AsO4)2 · 8H2O |
| O | ⓘ Pargasite | NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| O | ⓘ Pectolite | NaCa2Si3O8(OH) |
| O | ⓘ Pennantite | Mn52+Al(AlSi3O10)(OH)8 |
| O | ⓘ Petedunnite | CaZnSi2O6 |
| O | ⓘ Pharmacolite | Ca(HAsO4) · 2H2O |
| O | ⓘ Pharmacosiderite | KFe43+(AsO4)3(OH)4 · 6-7H2O |
| O | ⓘ Phlogopite | KMg3(AlSi3O10)(OH)2 |
| O | ⓘ Picropharmacolite | Ca4Mg(AsO4)2(HAsO4)2 · 11H2O |
| O | ⓘ Piemontite | (CaCa)(AlAlMn3+)O[Si2O7][SiO4](OH) |
| O | ⓘ Povondraite | NaFe33+(Mg2Fe43+)(Si6O18)(BO3)3(OH)3O |
| O | ⓘ Powellite | Ca(MoO4) |
| O | ⓘ Prehnite | Ca2Al2Si3O10(OH)2 |
| O | ⓘ Pumpellyite-(Mg) | Ca2MgAl2[Si2O6OH][SiO4](OH)2(OH) |
| O | ⓘ Pyrobelonite | PbMn2+(VO4)(OH) |
| O | ⓘ Pyrochlore Group | A2Nb2(O,OH)6Z |
| O | ⓘ Pyrochroite | Mn(OH)2 |
| O | ⓘ Pyromorphite | Pb5(PO4)3Cl |
| O | ⓘ Pyrophanite | Mn2+TiO3 |
| O | ⓘ Pyroxferroite | (Fe,Mn,Ca)SiO3 |
| O | ⓘ Pyroxmangite | Mn2+SiO3 |
| O | ⓘ Pyroaurite | Mg6Fe23+(OH)16[CO3] · 4H2O |
| O | ⓘ Quartz | SiO2 |
| O | ⓘ Reinerite | Zn3(AsO3)2 |
| O | ⓘ Retzian-(La) | Mn22+La(AsO4)(OH)4 |
| O | ⓘ Retzian-(Nd) | Mn22+Nd(AsO4)(OH)4 |
| O | ⓘ Rhodochrosite | MnCO3 |
| O | ⓘ Rhodonite | CaMn3Mn[Si5O15] |
| O | ⓘ Ribbeite | Mn52+(SiO4)2(OH)2 |
| O | ⓘ Richterite | Na(CaNa)Mg5(Si8O22)(OH)2 |
| O | ⓘ Roeblingite | Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O |
| O | ⓘ Roméite Group | A2(Sb5+)2O6Z |
| O | ⓘ Rosasite | (Cu,Zn)2(CO3)(OH)2 |
| O | ⓘ Roweite | Ca2Mn22+B4O7(OH)6 |
| O | ⓘ Rutile | TiO2 |
| O | ⓘ Samfowlerite | Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 |
| O | ⓘ Saponite | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| O | ⓘ Sarkinite | Mn22+(AsO4)(OH) |
| O | ⓘ Sauconite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| O | ⓘ Schallerite | Mn162+As3Si12O36(OH)17 |
| O | ⓘ Scheelite | Ca(WO4) |
| O | ⓘ Diopside var. Schefferite | (Ca,Mn)(Mg,Fe,Mn)Si2O6 |
| O | ⓘ Schorl | NaFe32+Al6(Si6O18)(BO3)3(OH)3(OH) |
| O | ⓘ Sclarite | Zn7(CO3)2(OH)10 |
| O | ⓘ Scorodite | Fe3+AsO4 · 2H2O |
| O | ⓘ Segnitite | PbFe33+AsO4(AsO3OH)(OH)6 |
| O | ⓘ Sepiolite | Mg4(Si6O15)(OH)2 · 6H2O |
| O | ⓘ Serpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| O | ⓘ Siderite | FeCO3 |
| O | ⓘ Siderophyllite | KFe22+Al(Al2Si2O10)(OH)2 |
| O | ⓘ Sillimanite | Al2(SiO4)O |
| O | ⓘ Simonkolleite | Zn5Cl2(OH)8 · H2O |
| O | ⓘ Pyroaurite-2H | Mg6Fe23+(OH)16(CO3) · 4H2O |
| O | ⓘ Smithsonite | ZnCO3 |
| O | ⓘ Sonolite | Mn92+(SiO4)4(OH)2 |
| O | ⓘ Spangolite | Cu6Al(SO4)(OH)12Cl · 3H2O |
| O | ⓘ Spessartine | Mn32+Al2(SiO4)3 |
| O | ⓘ Spinel | MgAl2O4 |
| O | ⓘ Starkeyite | MgSO4 · 4H2O |
| O | ⓘ Sterlinghillite | Mn32+(AsO4)2 · 3H2O |
| O | ⓘ Stilbite Subgroup | M6-7[Al8-9Si27-28O72] · nH2O |
| O | ⓘ Stilpnomelane | K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 |
| O | ⓘ Strontianite | SrCO3 |
| O | ⓘ Sussexite | Mn2+BO2(OH) |
| O | ⓘ Svabite | Ca5(AsO4)3F |
| O | ⓘ Synadelphite | Mn92+(As5+O4)2(As3+O3)(OH)9 · 2H2O |
| O | ⓘ Synchysite-(Ce) | CaCe(CO3)2F |
| O | ⓘ Szaibélyite | MgBO2(OH) |
| O | ⓘ Talc | Mg3Si4O10(OH)2 |
| O | ⓘ Tenorite | CuO |
| O | ⓘ Tephroite | Mn22+(SiO4) |
| O | ⓘ Thomsonite-Ca | NaCa2[Al5Si5O20] · 6H2O |
| O | ⓘ Thorite | Th(SiO4) |
| O | ⓘ Thortveitite | Sc2Si2O7 |
| O | ⓘ Thorutite | (Th,U,Ca)Ti2(O,OH)6 |
| O | ⓘ Tilasite | CaMg(AsO4)F |
| O | ⓘ Titanite | CaTi(SiO4)O |
| O | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| O | ⓘ Torreyite | (Mg,Mn2+)7◻2Mn22+Zn4(SO4)2(OH)22 · 8H2O |
| O | ⓘ Tourmaline | AD3G6(T6O18)(BO3)3X3Z |
| O | ⓘ Tremolite | ◻Ca2Mg5(Si8O22)(OH)2 |
| O | ⓘ Turneaureite | Ca5(AsO4)3Cl |
| O | ⓘ Tyrolite | Ca2Cu9(AsO4)4(CO3)(OH)8 · 11H2O |
| O | ⓘ Amphibole Supergroup var. Uralite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| O | ⓘ Uraninite | UO2 |
| O | ⓘ Uranophane | Ca(UO2)2(SiO3OH)2 · 5H2O |
| O | ⓘ Uranospinite | Ca(UO2)2(AsO4)2 · 10H2O |
| O | ⓘ Uvarovite | Ca3Cr23+(SiO4)3 |
| O | ⓘ Fluor-uvite-Uvite Series | |
| O | ⓘ Sauconite var. Vanuxemite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| O | ⓘ Villyaellenite | (Mn,Ca)Mn2Ca2(AsO3OH)2(AsO4)2 · 4H2O |
| O | ⓘ Wurtzite var. Voltzite | (Zn,Fe,Mn) S [with O C H ] |
| O | ⓘ Vesuvianite | Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| O | ⓘ Wallkilldellite | Ca2Mn32+(AsO4)2(OH)4 · 9H2O |
| O | ⓘ Wawayandaite | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| O | ⓘ Wendwilsonite | Ca2Mg(AsO4)2 · 2H2O |
| O | ⓘ Willemite | Zn2SiO4 |
| O | ⓘ Winchite | ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 |
| O | ⓘ Woodruffite | Zn2+x/2(Mn4+1-xMnx3+)O2 · yH2O |
| O | ⓘ Woodwardite | Cu1-xAlx(OH)2(SO4)x/2 · nH2O |
| O | ⓘ Wulfenite | Pb(MoO4) |
| O | ⓘ Wollastonite | Ca3(Si3O9) |
| O | ⓘ Xonotlite | Ca6(Si6O17)(OH)2 |
| O | ⓘ Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| O | ⓘ Yeatmanite | Zn6Mn92+Sb25+(SiO4)4O12 |
| O | ⓘ Yukonite | Ca3Fe3+(AsO4)2(OH)3 · 5H2O |
| O | ⓘ Zeunerite | Cu(UO2)2(AsO4)2 · 12H2O |
| O | ⓘ Zincmelanterite | Zn(H2O)6(SO4) · H2O |
| O | ⓘ Zincite | ZnO |
| O | ⓘ Zircon | Zr(SiO4) |
| O | ⓘ Znucalite | Zn10Ca0.83(UO2)0.83(CO3)4(OH)15.31(H2O)5.48 |
| O | ⓘ Zoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| O | ⓘ Enstatite var. Bronzite | (Mg,Fe2+)2[SiO3]2 |
| O | ⓘ Gypsum var. Selenite | CaSO4 · 2H2O |
| O | ⓘ Willemite var. Troostite | (Zn,Mn)2SiO4 |
| O | ⓘ Arakiite | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| O | ⓘ Chabazite-Ca | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| O | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| O | ⓘ Fluoro-edenite | NaCa2Mg5(Si7Al)O22F2 |
| O | ⓘ Gageite-2M | (Mn,Mg,Zn)42Si16O54(OH)40 |
| O | ⓘ Graeserite | Fe43+Ti3As3+O13(OH) |
| O | ⓘ Heulandite-Ca | (Ca,Na)5(Si27Al9)O72 · 26H2O |
| O | ⓘ Zálesíite | CaCu6(AsO4)2(AsO3OH)(OH)6 · 3H2O |
| O | ⓘ Pimelite | Ni3Si4O10(OH)2 · 4H2O |
| O | ⓘ Stilbite-Ca | NaCa4(Si27Al9)O72 · 28H2O |
| O | ⓘ Andradite var. Melanite | Ca3Fe23+(SiO4)3 |
| O | ⓘ Hydroxylclinohumite | Mg9(SiO4)4(OH)2 |
| O | ⓘ Diopside var. Zinc-Schefferite | Ca(Mg,Mn,Zn)Si2O6 |
| O | ⓘ Sussexite-Szaibélyite Series | |
| O | ⓘ Powellite-Scheelite Series | |
| O | ⓘ Köttigite-Parasymplesite Series | |
| O | ⓘ Hornblende Root Name Group | ◻Ca2(C42+C3+)(AlSi7O22)W2 |
| O | ⓘ Plagioclase | (Na,Ca)[(Si,Al)AlSi2]O8 |
| O | ⓘ Andradite var. Polyadelphite | (Ca,Mn)3Fe23+(SiO4)3 |
| O | ⓘ Pyroxene Group | ADSi2O6 |
| O | ⓘ Garnet Group | X3Z2(SiO4)3 |
| O | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| O | ⓘ Stilpnomelane var. Ferristilpnomelane | K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| O | ⓘ Rouaite | Cu2(NO3)(OH)3 |
| O | ⓘ Muscovite var. Oellacherite | KAl2(AlSi3O10)(OH)2 |
| O | ⓘ Amphibole Supergroup var. Byssolite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| O | ⓘ Serpentine Subgroup | D3[Si2O5](OH)4 |
| O | ⓘ Fowlerite | (Mn2+,Zn,Ca)SiO3 |
| O | ⓘ Manganvesuvianite | Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| O | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| O | ⓘ Willemite var. Beta-Willemite | Zn2SiO4 |
| O | ⓘ Magnesio-fluoro-hastingsite | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| O | ⓘ Fluoro-pargasite | NaCa2(Mg4Al)(Si6Al2)O22F2 |
| O | ⓘ Fluorophlogopite | KMg3(Si3Al)O10F2 |
| O | ⓘ Apatite | Ca5(PO4)3A |
| O | ⓘ Fluoro-tremolite | ◻Ca2Mg5(Si8O22)F2 |
| O | ⓘ Zincolivenite | CuZn(AsO4)(OH) |
| O | ⓘ Epidote-(Sr) | (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| O | ⓘ Retzian Group | Mn22+REE(AsO4)(OH)4 |
| O | ⓘ Phlogopite-1M | KMg3(AlSi3O10)(OH)2 |
| O | ⓘ Phlogopite-3T | KMg3(AlSi3O10)(OH)2 |
| O | ⓘ Potassic-ferro-pargasite | KCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| O | ⓘ Potassic-hastingsite | KCa2(Fe42+Fe3+)(Al2Si6O22)(OH)2 |
| O | ⓘ UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995) | Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O |
| O | ⓘ Miguelromeroite | Mn52+(AsO3OH)2(AsO4)2(H2O)4 |
| O | ⓘ Hydroxycalciopyrochlore | (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) |
| O | ⓘ Strontiopharmacosiderite | Sr0.5Fe43+[(AsO4)3(OH)4] · 4H2O |
| O | ⓘ Edenite-Pargasite Root Name Series | |
| O | ⓘ Antigorite var. Vorhauserite | (Mg,Mn)3(Si2O5)(OH)4 |
| O | ⓘ Fluor-uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| O | ⓘ Fayalite var. Roepperite (of Brush) | (Fe2+,Mn,Zn)2SiO4 |
| O | ⓘ Ferriakasakaite-(La) | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| O | ⓘ Allanite Group | (A12+REE3+)(M13+M23+M32+)O[Si2O7][SiO4](OH) |
| O | ⓘ Epidote Group | (A12+A22+)(M13+M23+M33+)O[Si2O7][SiO4](OH) |
| O | ⓘ Pyroaurite-3R | Mg6Fe23+(OH)16(CO3) · 4H2O |
| O | ⓘ Cyprine | Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 |
| O | ⓘ Castellaroite | Mn32+(AsO4)2 · 4H2O |
| O | ⓘ UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D) | (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| O | ⓘ UM1985-26-SiO:CaMgPbZn (Also known as Mineral A) | Pb2Zn5Ca4Mg2Si7O27 |
| O | ⓘ Ferrorhodonite | CaMn3Fe[Si5O15] |
| O | ⓘ UM1986-11-CO:Zn | Zn-C-O-H ? |
| O | ⓘ UM1986-23-O:BaMnU | Ba-Mn-U-O |
| O | ⓘ UM1986-24-O:Cu | Cu-O ? |
| O | ⓘ Clino-suenoite | ◻Mn22+(Mg5)(Si8O22)(OH)2 |
| O | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| O | ⓘ Uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| O | ⓘ Mineral B ("oyelite-like" mineral) | Ca10Si8B2O29 · 12.5H2O |
| O | ⓘ Peterchinite | Zn3Zn2(OH)6As[O3(OH)3] |
| F | Fluorine | |
| F | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| F | ⓘ Bultfonteinite | Ca2(HSiO4)F · H2O |
| F | ⓘ Fluorite var. Chlorophane | CaF2 |
| F | ⓘ Chondrodite | Mg5(SiO4)2F2 |
| F | ⓘ Clinohumite | Mg9(SiO4)4F2 |
| F | ⓘ Cuspidine | Ca8(Si2O7)2F4 |
| F | ⓘ Fluoborite | Mg3(BO3)(F,OH)3 |
| F | ⓘ Fluorapatite | Ca5(PO4)3F |
| F | ⓘ Fluorapophyllite-(K) | KCa4(Si8O20)(F,OH) · 8H2O |
| F | ⓘ Fluorellestadite | Ca5(SiO4)1.5(SO4)1.5F |
| F | ⓘ Fluorite | CaF2 |
| F | ⓘ Humite | Mg7(SiO4)3F2 |
| F | ⓘ Hydroxyapophyllite-(K) | KCa4(Si8O20)(OH,F) · 8H2O |
| F | ⓘ Fluorapophyllite-(Na) | NaCa4(Si8O20)F · 8H2O |
| F | ⓘ Norbergite | Mg3(SiO4)F2 |
| F | ⓘ Svabite | Ca5(AsO4)3F |
| F | ⓘ Synchysite-(Ce) | CaCe(CO3)2F |
| F | ⓘ Tilasite | CaMg(AsO4)F |
| F | ⓘ Amphibole Supergroup var. Uralite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| F | ⓘ Fluor-uvite-Uvite Series | |
| F | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| F | ⓘ Fluoro-edenite | NaCa2Mg5(Si7Al)O22F2 |
| F | ⓘ Amphibole Supergroup var. Byssolite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| F | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| F | ⓘ Magnesio-fluoro-hastingsite | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| F | ⓘ Fluoro-pargasite | NaCa2(Mg4Al)(Si6Al2)O22F2 |
| F | ⓘ Fluorophlogopite | KMg3(Si3Al)O10F2 |
| F | ⓘ Fluoro-tremolite | ◻Ca2Mg5(Si8O22)F2 |
| F | ⓘ Edenite-Pargasite Root Name Series | |
| F | ⓘ Fluor-uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| F | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| Na | Sodium | |
| Na | ⓘ Aegirine | NaFe3+Si2O6 |
| Na | ⓘ Aegirine-augite | (NaaCabFec2+Mgd)(Fee3+AlfFeg2+Mgh)Si2O6 |
| Na | ⓘ Albite | Na(AlSi3O8) |
| Na | ⓘ Analcime | Na(AlSi2O6) · H2O |
| Na | ⓘ Albite var. Anorthoclase | (Na,K)AlSi3O8 |
| Na | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| Na | ⓘ Birnessite | (Na,Ca)0.5(Mn4+,Mn3+)2O4 · 1.5H2O |
| Na | ⓘ Dravite | NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| Na | ⓘ Edenite | NaCa2Mg5(Si7Al)O22(OH)2 |
| Na | ⓘ Ferro-pargasite | NaCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Na | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| Na | ⓘ Ganophyllite | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| Na | ⓘ Hastingsite | NaCa2(Fe42+Fe3+)(Si6Al2)O22(OH)2 |
| Na | ⓘ Heulandite Subgroup | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| Na | ⓘ Lavendulan | NaCaCu5(AsO4)4Cl · 5H2O |
| Na | ⓘ Manganberzeliite | (NaCa2)Mn22+(AsO4)3 |
| Na | ⓘ Magnesio-riebeckite | ◻Na2(Mg3Fe23+)(Si8O22)(OH)2 |
| Na | ⓘ Manjiroite | Na(Mn74+Mn3+)O16 |
| Na | ⓘ Marialite | Na4Al3Si9O24Cl |
| Na | ⓘ Marsturite | NaCaMn3Si5O14(OH) |
| Na | ⓘ Minehillite | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| Na | ⓘ Fluorapophyllite-(Na) | NaCa4(Si8O20)F · 8H2O |
| Na | ⓘ Nontronite | Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| Na | ⓘ Natrolite | Na2Al2Si3O10 · 2H2O |
| Na | ⓘ Albite var. Oligoclase | (Na,Ca)[Al(Si,Al)Si2O8] |
| Na | ⓘ Paragonite | NaAl2(AlSi3O10)(OH)2 |
| Na | ⓘ Pargasite | NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| Na | ⓘ Pectolite | NaCa2Si3O8(OH) |
| Na | ⓘ Povondraite | NaFe33+(Mg2Fe43+)(Si6O18)(BO3)3(OH)3O |
| Na | ⓘ Richterite | Na(CaNa)Mg5(Si8O22)(OH)2 |
| Na | ⓘ Sauconite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| Na | ⓘ Schorl | NaFe32+Al6(Si6O18)(BO3)3(OH)3(OH) |
| Na | ⓘ Thomsonite-Ca | NaCa2[Al5Si5O20] · 6H2O |
| Na | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| Na | ⓘ Sauconite var. Vanuxemite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| Na | ⓘ Winchite | ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 |
| Na | ⓘ Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| Na | ⓘ Chabazite-Ca | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| Na | ⓘ Fluoro-edenite | NaCa2Mg5(Si7Al)O22F2 |
| Na | ⓘ Heulandite-Ca | (Ca,Na)5(Si27Al9)O72 · 26H2O |
| Na | ⓘ Stilbite-Ca | NaCa4(Si27Al9)O72 · 28H2O |
| Na | ⓘ Plagioclase | (Na,Ca)[(Si,Al)AlSi2]O8 |
| Na | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| Na | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| Na | ⓘ Magnesio-fluoro-hastingsite | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| Na | ⓘ Fluoro-pargasite | NaCa2(Mg4Al)(Si6Al2)O22F2 |
| Na | ⓘ Hydroxycalciopyrochlore | (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) |
| Mg | Magnesium | |
| Mg | ⓘ Actinolite | ◻Ca2(Mg4.5-2.5Fe0.5-2.5)Si8O22(OH)2 |
| Mg | ⓘ Adelite | CaMg(AsO4)(OH) |
| Mg | ⓘ Aegirine-augite | (NaaCabFec2+Mgd)(Fee3+AlfFeg2+Mgh)Si2O6 |
| Mg | ⓘ Antigorite | Mg3(Si2O5)(OH)4 |
| Mg | ⓘ Augite | (CaxMgyFez)(Mgy1Fez1)Si2O6 |
| Mg | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| Mg | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| Mg | ⓘ Brucite | Mg(OH)2 |
| Mg | ⓘ Canavesite | Mg2(HBO3)(CO3) · 5H2O |
| Mg | ⓘ Chlorophoenicite | (Mn,Mg)3Zn2(AsO4)(OH,O)6 |
| Mg | ⓘ Chrysotile | Mg3(Si2O5)(OH)4 |
| Mg | ⓘ Chondrodite | Mg5(SiO4)2F2 |
| Mg | ⓘ Cianciulliite | Mn(Mg,Mn)2Zn2(OH)10 · 2-4H2O |
| Mg | ⓘ Clinochlore | Mg5Al(AlSi3O10)(OH)8 |
| Mg | ⓘ Clinochrysotile | Mg3(Si2O5)(OH)4 |
| Mg | ⓘ Clinohumite | Mg9(SiO4)4F2 |
| Mg | ⓘ Clintonite | CaAlMg2(SiAl3O10)(OH)2 |
| Mg | ⓘ Cummingtonite | ◻Mg2Mg5(Si8O22)(OH)2 |
| Mg | ⓘ Diopside | CaMgSi2O6 |
| Mg | ⓘ Dolomite | CaMg(CO3)2 |
| Mg | ⓘ Dravite | NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| Mg | ⓘ Dypingite | Mg5(CO3)4(OH)2 · 5H2O |
| Mg | ⓘ Edenite | NaCa2Mg5(Si7Al)O22(OH)2 |
| Mg | ⓘ Enstatite | Mg2Si2O6 |
| Mg | ⓘ Epsomite | MgSO4 · 7H2O |
| Mg | ⓘ Fluoborite | Mg3(BO3)(F,OH)3 |
| Mg | ⓘ Forsterite | Mg2(SiO4) |
| Mg | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| Mg | ⓘ Gerstmannite | MnMgZn(SiO4)(OH)2 |
| Mg | ⓘ Hauckite | Fe33+(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| Mg | ⓘ Hexahydrite | Mg(H2O)6(SO4) |
| Mg | ⓘ Holdenite | (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 |
| Mg | ⓘ Humite | Mg7(SiO4)3F2 |
| Mg | ⓘ Hydrotalcite | Mg6Al2(CO3)(OH)16 · 4H2O |
| Mg | ⓘ Hypersthene | (Mg,Fe)SiO3 |
| Mg | ⓘ Iowaite | Mg6Fe23+(OH)16Cl2 · 4H2O |
| Mg | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| Mg | ⓘ Lawsonbauerite | (Mn2+,Mg)9Zn4(SO4)2(OH)22 · 8H2O |
| Mg | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| Mg | ⓘ Lizardite | Mg3(Si2O5)(OH)4 |
| Mg | ⓘ Loseyite | (Mn2+,Zn,Mg)4Zn3(CO3)2(OH)10 |
| Mg | ⓘ Magnesiochlorophoenicite | (Mg,Mn)3Zn2(AsO4)(OH,O)6 |
| Mg | ⓘ Magnesio-riebeckite | ◻Na2(Mg3Fe23+)(Si8O22)(OH)2 |
| Mg | ⓘ Magnesio-hornblende | ◻Ca2(Mg4Al)(Si7Al)O22(OH)2 |
| Mg | ⓘ Vesuvianite var. Manganese-bearing Vesuvianite | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| Mg | ⓘ Mcallisterite | Mg2[B6O7(OH)6]2 · 9H2O |
| Mg | ⓘ Mooreite | Mg9◻2Mn2Zn4(SO4)2(OH)26 · 8H2O |
| Mg | ⓘ Newberyite | Mg(PO3OH) · 3H2O |
| Mg | ⓘ Norbergite | Mg3(SiO4)F2 |
| Mg | ⓘ Orthochrysotile | Mg3(Si2O5)(OH)4 |
| Mg | ⓘ Pargasite | NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| Mg | ⓘ Phlogopite | KMg3(AlSi3O10)(OH)2 |
| Mg | ⓘ Picropharmacolite | Ca4Mg(AsO4)2(HAsO4)2 · 11H2O |
| Mg | ⓘ Povondraite | NaFe33+(Mg2Fe43+)(Si6O18)(BO3)3(OH)3O |
| Mg | ⓘ Pumpellyite-(Mg) | Ca2MgAl2[Si2O6OH][SiO4](OH)2(OH) |
| Mg | ⓘ Pyroaurite | Mg6Fe23+(OH)16[CO3] · 4H2O |
| Mg | ⓘ Richterite | Na(CaNa)Mg5(Si8O22)(OH)2 |
| Mg | ⓘ Saponite | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| Mg | ⓘ Diopside var. Schefferite | (Ca,Mn)(Mg,Fe,Mn)Si2O6 |
| Mg | ⓘ Sepiolite | Mg4(Si6O15)(OH)2 · 6H2O |
| Mg | ⓘ Pyroaurite-2H | Mg6Fe23+(OH)16(CO3) · 4H2O |
| Mg | ⓘ Spinel | MgAl2O4 |
| Mg | ⓘ Starkeyite | MgSO4 · 4H2O |
| Mg | ⓘ Stilpnomelane | K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 |
| Mg | ⓘ Szaibélyite | MgBO2(OH) |
| Mg | ⓘ Talc | Mg3Si4O10(OH)2 |
| Mg | ⓘ Tilasite | CaMg(AsO4)F |
| Mg | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| Mg | ⓘ Torreyite | (Mg,Mn2+)7◻2Mn22+Zn4(SO4)2(OH)22 · 8H2O |
| Mg | ⓘ Tremolite | ◻Ca2Mg5(Si8O22)(OH)2 |
| Mg | ⓘ Fluor-uvite-Uvite Series | |
| Mg | ⓘ Vesuvianite | Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Mg | ⓘ Wendwilsonite | Ca2Mg(AsO4)2 · 2H2O |
| Mg | ⓘ Winchite | ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 |
| Mg | ⓘ Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| Mg | ⓘ Enstatite var. Bronzite | (Mg,Fe2+)2[SiO3]2 |
| Mg | ⓘ Arakiite | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| Mg | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| Mg | ⓘ Fluoro-edenite | NaCa2Mg5(Si7Al)O22F2 |
| Mg | ⓘ Gageite-2M | (Mn,Mg,Zn)42Si16O54(OH)40 |
| Mg | ⓘ Hydroxylclinohumite | Mg9(SiO4)4(OH)2 |
| Mg | ⓘ Diopside var. Zinc-Schefferite | Ca(Mg,Mn,Zn)Si2O6 |
| Mg | ⓘ Sussexite-Szaibélyite Series | |
| Mg | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| Mg | ⓘ Stilpnomelane var. Ferristilpnomelane | K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| Mg | ⓘ Manganvesuvianite | Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Mg | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| Mg | ⓘ Magnesio-fluoro-hastingsite | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| Mg | ⓘ Fluoro-pargasite | NaCa2(Mg4Al)(Si6Al2)O22F2 |
| Mg | ⓘ Fluorophlogopite | KMg3(Si3Al)O10F2 |
| Mg | ⓘ Fluoro-tremolite | ◻Ca2Mg5(Si8O22)F2 |
| Mg | ⓘ Phlogopite-1M | KMg3(AlSi3O10)(OH)2 |
| Mg | ⓘ Phlogopite-3T | KMg3(AlSi3O10)(OH)2 |
| Mg | ⓘ UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995) | Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O |
| Mg | ⓘ Antigorite var. Vorhauserite | (Mg,Mn)3(Si2O5)(OH)4 |
| Mg | ⓘ Fluor-uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| Mg | ⓘ Pyroaurite-3R | Mg6Fe23+(OH)16(CO3) · 4H2O |
| Mg | ⓘ Cyprine | Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 |
| Mg | ⓘ UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D) | (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| Mg | ⓘ UM1985-26-SiO:CaMgPbZn (Also known as Mineral A) | Pb2Zn5Ca4Mg2Si7O27 |
| Mg | ⓘ Clino-suenoite | ◻Mn22+(Mg5)(Si8O22)(OH)2 |
| Mg | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| Mg | ⓘ Uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| Al | Aluminium | |
| Al | ⓘ Aegirine-augite | (NaaCabFec2+Mgd)(Fee3+AlfFeg2+Mgh)Si2O6 |
| Al | ⓘ Albite | Na(AlSi3O8) |
| Al | ⓘ Meionite var. Algerite | Ca4Al6Si6O24CO3 |
| Al | ⓘ Allanite-(Ce) | (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) |
| Al | ⓘ Microcline var. Amazonite | K(AlSi3O8) |
| Al | ⓘ Analcime | Na(AlSi2O6) · H2O |
| Al | ⓘ Annite | KFe32+(AlSi3O10)(OH)2 |
| Al | ⓘ Anorthite | Ca(Al2Si2O8) |
| Al | ⓘ Albite var. Anorthoclase | (Na,K)AlSi3O8 |
| Al | ⓘ Almandine | Fe32+Al2(SiO4)3 |
| Al | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| Al | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| Al | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| Al | ⓘ Celsian | Ba(Al2Si2O8) |
| Al | ⓘ Chalcoalumite | CuAl4(SO4)(OH)12 · 3H2O |
| Al | ⓘ Chamosite | Fe52+Al(AlSi3O10)(OH)8 |
| Al | ⓘ Charlesite | Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O |
| Al | ⓘ Chloritoid | Fe2+Al2O(SiO4)(OH)2 |
| Al | ⓘ Chrysocolla | Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| Al | ⓘ Clinochlore | Mg5Al(AlSi3O10)(OH)8 |
| Al | ⓘ Clinozoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| Al | ⓘ Clintonite | CaAlMg2(SiAl3O10)(OH)2 |
| Al | ⓘ Corundum | Al2O3 |
| Al | ⓘ Cyanotrichite | Cu4Al2(SO4)(OH)12 · 2H2O |
| Al | ⓘ Dravite | NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| Al | ⓘ Dundasite | PbAl2(CO3)2(OH)4 · H2O |
| Al | ⓘ Edenite | NaCa2Mg5(Si7Al)O22(OH)2 |
| Al | ⓘ Epidote | (CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Al | ⓘ Axinite-(Fe) | Ca2Fe2+Al2BSi4O15OH |
| Al | ⓘ Ferro-hornblende | ◻Ca2(Fe42+Al)(Si7Al)O22(OH)2 |
| Al | ⓘ Ferro-pargasite | NaCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Al | ⓘ Foitite | ◻(Fe22+Al)Al6(Si6O18)(BO3)3(OH)3(OH) |
| Al | ⓘ Fraipontite | (Zn,Al)3((Si,Al)2O5)(OH)4 |
| Al | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| Al | ⓘ Gahnite | ZnAl2O4 |
| Al | ⓘ Ganophyllite | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| Al | ⓘ Grossular | Ca3Al2(SiO4)3 |
| Al | ⓘ Halotrichite | Fe2+Al2(SO4)4 · 22H2O |
| Al | ⓘ Hancockite | (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Al | ⓘ Hastingsite | NaCa2(Fe42+Fe3+)(Si6Al2)O22(OH)2 |
| Al | ⓘ Hellandite-(Y) | (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 |
| Al | ⓘ Hendricksite | KZn3(Si3Al)O10(OH)2 |
| Al | ⓘ Hercynite | Fe2+Al2O4 |
| Al | ⓘ Heulandite Subgroup | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| Al | ⓘ Microcline var. Hyalophane | (K,Ba)[Al(Si,Al)Si2O8] |
| Al | ⓘ Grossular var. Hydrogrossular | Ca3Al2(SiO4)3 |
| Al | ⓘ Hydrotalcite | Mg6Al2(CO3)(OH)16 · 4H2O |
| Al | ⓘ Muscovite var. Illite | K0.65Al2.0[Al0.65Si3.35O10](OH)2 |
| Al | ⓘ Kaolinite | Al2(Si2O5)(OH)4 |
| Al | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| Al | ⓘ Laumontite | CaAl2Si4O12 · 4H2O |
| Al | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| Al | ⓘ Liroconite | Cu2Al(AsO4)(OH)4 · 4H2O |
| Al | ⓘ Axinite-(Mn) | Ca2Mn2+Al2BSi4O15(OH) |
| Al | ⓘ Magnesio-hornblende | ◻Ca2(Mg4Al)(Si7Al)O22(OH)2 |
| Al | ⓘ Vesuvianite var. Manganese-bearing Vesuvianite | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| Al | ⓘ Margarite | CaAl2(Al2Si2O10)(OH)2 |
| Al | ⓘ Marialite | Na4Al3Si9O24Cl |
| Al | ⓘ Meionite | Ca4Al6Si6O24CO3 |
| Al | ⓘ Microcline | K(AlSi3O8) |
| Al | ⓘ Minehillite | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| Al | ⓘ Muscovite | KAl2(AlSi3O10)(OH)2 |
| Al | ⓘ Nontronite | Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| Al | ⓘ Natrolite | Na2Al2Si3O10 · 2H2O |
| Al | ⓘ Albite var. Oligoclase | (Na,Ca)[Al(Si,Al)Si2O8] |
| Al | ⓘ Orthoclase | K(AlSi3O8) |
| Al | ⓘ Paragonite | NaAl2(AlSi3O10)(OH)2 |
| Al | ⓘ Pargasite | NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| Al | ⓘ Pennantite | Mn52+Al(AlSi3O10)(OH)8 |
| Al | ⓘ Phlogopite | KMg3(AlSi3O10)(OH)2 |
| Al | ⓘ Piemontite | (CaCa)(AlAlMn3+)O[Si2O7][SiO4](OH) |
| Al | ⓘ Prehnite | Ca2Al2Si3O10(OH)2 |
| Al | ⓘ Pumpellyite-(Mg) | Ca2MgAl2[Si2O6OH][SiO4](OH)2(OH) |
| Al | ⓘ Saponite | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| Al | ⓘ Sauconite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| Al | ⓘ Schorl | NaFe32+Al6(Si6O18)(BO3)3(OH)3(OH) |
| Al | ⓘ Siderophyllite | KFe22+Al(Al2Si2O10)(OH)2 |
| Al | ⓘ Sillimanite | Al2(SiO4)O |
| Al | ⓘ Spangolite | Cu6Al(SO4)(OH)12Cl · 3H2O |
| Al | ⓘ Spessartine | Mn32+Al2(SiO4)3 |
| Al | ⓘ Spinel | MgAl2O4 |
| Al | ⓘ Stilbite Subgroup | M6-7[Al8-9Si27-28O72] · nH2O |
| Al | ⓘ Stilpnomelane | K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 |
| Al | ⓘ Thomsonite-Ca | NaCa2[Al5Si5O20] · 6H2O |
| Al | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| Al | ⓘ Amphibole Supergroup var. Uralite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| Al | ⓘ Fluor-uvite-Uvite Series | |
| Al | ⓘ Sauconite var. Vanuxemite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| Al | ⓘ Vesuvianite | Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Al | ⓘ Winchite | ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 |
| Al | ⓘ Woodwardite | Cu1-xAlx(OH)2(SO4)x/2 · nH2O |
| Al | ⓘ Zoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| Al | ⓘ Arakiite | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| Al | ⓘ Chabazite-Ca | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| Al | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| Al | ⓘ Fluoro-edenite | NaCa2Mg5(Si7Al)O22F2 |
| Al | ⓘ Heulandite-Ca | (Ca,Na)5(Si27Al9)O72 · 26H2O |
| Al | ⓘ Stilbite-Ca | NaCa4(Si27Al9)O72 · 28H2O |
| Al | ⓘ Hornblende Root Name Group | ◻Ca2(C42+C3+)(AlSi7O22)W2 |
| Al | ⓘ Plagioclase | (Na,Ca)[(Si,Al)AlSi2]O8 |
| Al | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| Al | ⓘ Stilpnomelane var. Ferristilpnomelane | K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| Al | ⓘ Muscovite var. Oellacherite | KAl2(AlSi3O10)(OH)2 |
| Al | ⓘ Amphibole Supergroup var. Byssolite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| Al | ⓘ Manganvesuvianite | Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Al | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| Al | ⓘ Magnesio-fluoro-hastingsite | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| Al | ⓘ Fluoro-pargasite | NaCa2(Mg4Al)(Si6Al2)O22F2 |
| Al | ⓘ Fluorophlogopite | KMg3(Si3Al)O10F2 |
| Al | ⓘ Epidote-(Sr) | (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Al | ⓘ Phlogopite-1M | KMg3(AlSi3O10)(OH)2 |
| Al | ⓘ Phlogopite-3T | KMg3(AlSi3O10)(OH)2 |
| Al | ⓘ Potassic-ferro-pargasite | KCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Al | ⓘ Potassic-hastingsite | KCa2(Fe42+Fe3+)(Al2Si6O22)(OH)2 |
| Al | ⓘ Edenite-Pargasite Root Name Series | |
| Al | ⓘ Fluor-uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| Al | ⓘ Ferriakasakaite-(La) | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| Al | ⓘ Cyprine | Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 |
| Al | ⓘ UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D) | (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| Al | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| Al | ⓘ Uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| Si | Silicon | |
| Si | ⓘ Actinolite | ◻Ca2(Mg4.5-2.5Fe0.5-2.5)Si8O22(OH)2 |
| Si | ⓘ Aegirine | NaFe3+Si2O6 |
| Si | ⓘ Aegirine-augite | (NaaCabFec2+Mgd)(Fee3+AlfFeg2+Mgh)Si2O6 |
| Si | ⓘ Albite | Na(AlSi3O8) |
| Si | ⓘ Meionite var. Algerite | Ca4Al6Si6O24CO3 |
| Si | ⓘ Allanite-(Ce) | (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) |
| Si | ⓘ Alleghanyite | Mn52+(SiO4)2(OH)2 |
| Si | ⓘ Microcline var. Amazonite | K(AlSi3O8) |
| Si | ⓘ Analcime | Na(AlSi2O6) · H2O |
| Si | ⓘ Andradite | Ca3Fe23+(SiO4)3 |
| Si | ⓘ Annite | KFe32+(AlSi3O10)(OH)2 |
| Si | ⓘ Anorthite | Ca(Al2Si2O8) |
| Si | ⓘ Albite var. Anorthoclase | (Na,K)AlSi3O8 |
| Si | ⓘ Antigorite | Mg3(Si2O5)(OH)4 |
| Si | ⓘ Augite | (CaxMgyFez)(Mgy1Fez1)Si2O6 |
| Si | ⓘ Almandine | Fe32+Al2(SiO4)3 |
| Si | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| Si | ⓘ Datolite var. Bakerite | Ca4(H5B5Si3O20) |
| Si | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| Si | ⓘ Barylite | Be2Ba(Si2O7) |
| Si | ⓘ Barysilite | Pb8Mn2+[Si2O7]3 |
| Si | ⓘ Bementite | Mn7Si6O15(OH)8 |
| Si | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| Si | ⓘ Bostwickite | CaMn63+Si3O16 · 7H2O |
| Si | ⓘ Datolite var. Botryolite | CaB(SiO4)(OH) |
| Si | ⓘ Bultfonteinite | Ca2(HSiO4)F · H2O |
| Si | ⓘ Bustamite | CaMn2+(Si2O6) |
| Si | ⓘ Caryopilite | Mn32+Si2O5(OH)4 |
| Si | ⓘ Celsian | Ba(Al2Si2O8) |
| Si | ⓘ Chamosite | Fe52+Al(AlSi3O10)(OH)8 |
| Si | ⓘ Charlesite | Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O |
| Si | ⓘ Chrysotile | Mg3(Si2O5)(OH)4 |
| Si | ⓘ Chloritoid | Fe2+Al2O(SiO4)(OH)2 |
| Si | ⓘ Chondrodite | Mg5(SiO4)2F2 |
| Si | ⓘ Chrysocolla | Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| Si | ⓘ Clinochlore | Mg5Al(AlSi3O10)(OH)8 |
| Si | ⓘ Clinochrysotile | Mg3(Si2O5)(OH)4 |
| Si | ⓘ Clinohedrite | CaZn(SiO4) · H2O |
| Si | ⓘ Clinohumite | Mg9(SiO4)4F2 |
| Si | ⓘ Clinozoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| Si | ⓘ Clintonite | CaAlMg2(SiAl3O10)(OH)2 |
| Si | ⓘ Cummingtonite | ◻Mg2Mg5(Si8O22)(OH)2 |
| Si | ⓘ Cuspidine | Ca8(Si2O7)2F4 |
| Si | ⓘ Diopside | CaMgSi2O6 |
| Si | ⓘ Dioptase | CuSiO3 · H2O |
| Si | ⓘ Dravite | NaMg3Al6(Si6O18)(BO3)3(OH)3(OH) |
| Si | ⓘ Datolite | CaB(SiO4)(OH) |
| Si | ⓘ Edenite | NaCa2Mg5(Si7Al)O22(OH)2 |
| Si | ⓘ Enstatite | Mg2Si2O6 |
| Si | ⓘ Epidote | (CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Si | ⓘ Esperite | PbCa2Zn3(SiO4)3 |
| Si | ⓘ Fayalite | Fe22+(SiO4) |
| Si | ⓘ Axinite-(Fe) | Ca2Fe2+Al2BSi4O15OH |
| Si | ⓘ Ferro-actinolite | ◻Ca2Fe52+(Si8O22)(OH)2 |
| Si | ⓘ Ferro-hornblende | ◻Ca2(Fe42+Al)(Si7Al)O22(OH)2 |
| Si | ⓘ Ferro-pargasite | NaCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Si | ⓘ Fluorapophyllite-(K) | KCa4(Si8O20)(F,OH) · 8H2O |
| Si | ⓘ Fluorellestadite | Ca5(SiO4)1.5(SO4)1.5F |
| Si | ⓘ Foitite | ◻(Fe22+Al)Al6(Si6O18)(BO3)3(OH)3(OH) |
| Si | ⓘ Forsterite | Mg2(SiO4) |
| Si | ⓘ Fraipontite | (Zn,Al)3((Si,Al)2O5)(OH)4 |
| Si | ⓘ Franklinfurnaceite | Ca2Fe3+Mn32+Mn3+(Zn2Si2O10)(OH)8 |
| Si | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| Si | ⓘ Friedelite | Mn82+Si6O15(OH,Cl)10 |
| Si | ⓘ Gageite | Mn21(Si4O12)2O3(OH)20 |
| Si | ⓘ Ganomalite | Pb9Ca5Mn(Si2O7)4(SiO4)O |
| Si | ⓘ Ganophyllite | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| Si | ⓘ Genthelvite | Be3Zn4(SiO4)3S |
| Si | ⓘ Gerstmannite | MnMgZn(SiO4)(OH)2 |
| Si | ⓘ Glaucochroite | CaMn2+(SiO4) |
| Si | ⓘ Goldmanite | Ca3V23+(SiO4)3 |
| Si | ⓘ Gonyerite | Mn52+Fe3+(Fe3+Si3O10)(OH)8 |
| Si | ⓘ Grossular | Ca3Al2(SiO4)3 |
| Si | ⓘ Grunerite | ◻Fe22+Fe52+(Si8O22)(OH)2 |
| Si | ⓘ Hancockite | (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Si | ⓘ Hardystonite | Ca2Zn[Si2O7] |
| Si | ⓘ Hastingsite | NaCa2(Fe42+Fe3+)(Si6Al2)O22(OH)2 |
| Si | ⓘ Hedenbergite | CaFe2+Si2O6 |
| Si | ⓘ Hellandite-(Y) | (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 |
| Si | ⓘ Hemimorphite | Zn4Si2O7(OH)2 · H2O |
| Si | ⓘ Hendricksite | KZn3(Si3Al)O10(OH)2 |
| Si | ⓘ Heulandite Subgroup | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| Si | ⓘ Hodgkinsonite | Mn2+Zn2(SiO4)(OH)2 |
| Si | ⓘ Holdenite | (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 |
| Si | ⓘ Humite | Mg7(SiO4)3F2 |
| Si | ⓘ Microcline var. Hyalophane | (K,Ba)[Al(Si,Al)Si2O8] |
| Si | ⓘ Grossular var. Hydrogrossular | Ca3Al2(SiO4)3 |
| Si | ⓘ Hydroxyapophyllite-(K) | KCa4(Si8O20)(OH,F) · 8H2O |
| Si | ⓘ Hypersthene | (Mg,Fe)SiO3 |
| Si | ⓘ Muscovite var. Illite | K0.65Al2.0[Al0.65Si3.35O10](OH)2 |
| Si | ⓘ Jeffersonite | Ca(Mn,Zn,Fe)Si2O6 |
| Si | ⓘ Jerrygibbsite | Mn92+(SiO4)4(OH)2 |
| Si | ⓘ Johannsenite | CaMn2+Si2O6 |
| Si | ⓘ Junitoite | CaZn2Si2O7 · H2O |
| Si | ⓘ Kaolinite | Al2(Si2O5)(OH)4 |
| Si | ⓘ Kentrolite | Pb2Mn23+(Si2O7)O2 |
| Si | ⓘ Kittatinnyite | Ca2Mn2Mn(SiO4)2(OH)4 · 9H2O |
| Si | ⓘ Kolicite | Mn72+Zn4(AsO4)2(SiO4)2(OH)8 |
| Si | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| Si | ⓘ Larsenite | PbZnSiO4 |
| Si | ⓘ Laumontite | CaAl2Si4O12 · 4H2O |
| Si | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| Si | ⓘ Leucophoenicite | Mn72+(SiO4)3(OH)2 |
| Si | ⓘ Lizardite | Mg3(Si2O5)(OH)4 |
| Si | ⓘ Manganhumite | Mn72+(SiO4)3(OH)2 |
| Si | ⓘ Pyrosmalite-(Mn) | Mn82+Si6O15(OH,Cl)10 |
| Si | ⓘ Axinite-(Mn) | Ca2Mn2+Al2BSi4O15(OH) |
| Si | ⓘ Macfallite | Ca2Mn33+(SiO4)(Si2O7)(OH)3 |
| Si | ⓘ Magnesio-riebeckite | ◻Na2(Mg3Fe23+)(Si8O22)(OH)2 |
| Si | ⓘ Magnesio-hornblende | ◻Ca2(Mg4Al)(Si7Al)O22(OH)2 |
| Si | ⓘ Vesuvianite var. Manganese-bearing Vesuvianite | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| Si | ⓘ Margarite | CaAl2(Al2Si2O10)(OH)2 |
| Si | ⓘ Margarosanite | Ca2PbSi3O9 |
| Si | ⓘ Marialite | Na4Al3Si9O24Cl |
| Si | ⓘ Marsturite | NaCaMn3Si5O14(OH) |
| Si | ⓘ Mcgovernite | Mn19Zn3(AsO4)3(AsO3)(SiO4)3(OH)21 |
| Si | ⓘ Meionite | Ca4Al6Si6O24CO3 |
| Si | ⓘ Microcline | K(AlSi3O8) |
| Si | ⓘ Minehillite | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| Si | ⓘ Muscovite | KAl2(AlSi3O10)(OH)2 |
| Si | ⓘ Nasonite | Pb6Ca4(Si2O7)3Cl2 |
| Si | ⓘ Fluorapophyllite-(Na) | NaCa4(Si8O20)F · 8H2O |
| Si | ⓘ Nelenite | (Mn,Fe)16(Si12O30)(OH)14[As33+O6(OH)3] |
| Si | ⓘ Neotocite | (Mn,Fe)SiO3 · H2O (?) |
| Si | ⓘ Nontronite | Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| Si | ⓘ Norbergite | Mg3(SiO4)F2 |
| Si | ⓘ Natrolite | Na2Al2Si3O10 · 2H2O |
| Si | ⓘ Albite var. Oligoclase | (Na,Ca)[Al(Si,Al)Si2O8] |
| Si | ⓘ Opal | SiO2 · nH2O |
| Si | ⓘ Thorite var. Orangite | Th(SiO4) |
| Si | ⓘ Orthochrysotile | Mg3(Si2O5)(OH)4 |
| Si | ⓘ Orthoclase | K(AlSi3O8) |
| Si | ⓘ Paragonite | NaAl2(AlSi3O10)(OH)2 |
| Si | ⓘ Pargasite | NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| Si | ⓘ Pectolite | NaCa2Si3O8(OH) |
| Si | ⓘ Pennantite | Mn52+Al(AlSi3O10)(OH)8 |
| Si | ⓘ Petedunnite | CaZnSi2O6 |
| Si | ⓘ Phlogopite | KMg3(AlSi3O10)(OH)2 |
| Si | ⓘ Piemontite | (CaCa)(AlAlMn3+)O[Si2O7][SiO4](OH) |
| Si | ⓘ Povondraite | NaFe33+(Mg2Fe43+)(Si6O18)(BO3)3(OH)3O |
| Si | ⓘ Prehnite | Ca2Al2Si3O10(OH)2 |
| Si | ⓘ Pumpellyite-(Mg) | Ca2MgAl2[Si2O6OH][SiO4](OH)2(OH) |
| Si | ⓘ Pyroxferroite | (Fe,Mn,Ca)SiO3 |
| Si | ⓘ Pyroxmangite | Mn2+SiO3 |
| Si | ⓘ Quartz | SiO2 |
| Si | ⓘ Rhodonite | CaMn3Mn[Si5O15] |
| Si | ⓘ Ribbeite | Mn52+(SiO4)2(OH)2 |
| Si | ⓘ Richterite | Na(CaNa)Mg5(Si8O22)(OH)2 |
| Si | ⓘ Roeblingite | Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O |
| Si | ⓘ Samfowlerite | Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 |
| Si | ⓘ Saponite | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| Si | ⓘ Sauconite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| Si | ⓘ Schallerite | Mn162+As3Si12O36(OH)17 |
| Si | ⓘ Diopside var. Schefferite | (Ca,Mn)(Mg,Fe,Mn)Si2O6 |
| Si | ⓘ Schorl | NaFe32+Al6(Si6O18)(BO3)3(OH)3(OH) |
| Si | ⓘ Sepiolite | Mg4(Si6O15)(OH)2 · 6H2O |
| Si | ⓘ Siderophyllite | KFe22+Al(Al2Si2O10)(OH)2 |
| Si | ⓘ Sillimanite | Al2(SiO4)O |
| Si | ⓘ Sonolite | Mn92+(SiO4)4(OH)2 |
| Si | ⓘ Spessartine | Mn32+Al2(SiO4)3 |
| Si | ⓘ Stilbite Subgroup | M6-7[Al8-9Si27-28O72] · nH2O |
| Si | ⓘ Stilpnomelane | K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 |
| Si | ⓘ Talc | Mg3Si4O10(OH)2 |
| Si | ⓘ Tephroite | Mn22+(SiO4) |
| Si | ⓘ Thomsonite-Ca | NaCa2[Al5Si5O20] · 6H2O |
| Si | ⓘ Thorite | Th(SiO4) |
| Si | ⓘ Thortveitite | Sc2Si2O7 |
| Si | ⓘ Titanite | CaTi(SiO4)O |
| Si | ⓘ Tremolite | ◻Ca2Mg5(Si8O22)(OH)2 |
| Si | ⓘ Amphibole Supergroup var. Uralite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| Si | ⓘ Uranophane | Ca(UO2)2(SiO3OH)2 · 5H2O |
| Si | ⓘ Uvarovite | Ca3Cr23+(SiO4)3 |
| Si | ⓘ Fluor-uvite-Uvite Series | |
| Si | ⓘ Sauconite var. Vanuxemite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| Si | ⓘ Vesuvianite | Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Si | ⓘ Wawayandaite | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| Si | ⓘ Willemite | Zn2SiO4 |
| Si | ⓘ Winchite | ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 |
| Si | ⓘ Wollastonite | Ca3(Si3O9) |
| Si | ⓘ Xonotlite | Ca6(Si6O17)(OH)2 |
| Si | ⓘ Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| Si | ⓘ Yeatmanite | Zn6Mn92+Sb25+(SiO4)4O12 |
| Si | ⓘ Zircon | Zr(SiO4) |
| Si | ⓘ Zoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| Si | ⓘ Enstatite var. Bronzite | (Mg,Fe2+)2[SiO3]2 |
| Si | ⓘ Willemite var. Troostite | (Zn,Mn)2SiO4 |
| Si | ⓘ Chabazite-Ca | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| Si | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| Si | ⓘ Fluoro-edenite | NaCa2Mg5(Si7Al)O22F2 |
| Si | ⓘ Gageite-2M | (Mn,Mg,Zn)42Si16O54(OH)40 |
| Si | ⓘ Heulandite-Ca | (Ca,Na)5(Si27Al9)O72 · 26H2O |
| Si | ⓘ Pimelite | Ni3Si4O10(OH)2 · 4H2O |
| Si | ⓘ Stilbite-Ca | NaCa4(Si27Al9)O72 · 28H2O |
| Si | ⓘ Andradite var. Melanite | Ca3Fe23+(SiO4)3 |
| Si | ⓘ Hydroxylclinohumite | Mg9(SiO4)4(OH)2 |
| Si | ⓘ Diopside var. Zinc-Schefferite | Ca(Mg,Mn,Zn)Si2O6 |
| Si | ⓘ Hornblende Root Name Group | ◻Ca2(C42+C3+)(AlSi7O22)W2 |
| Si | ⓘ Plagioclase | (Na,Ca)[(Si,Al)AlSi2]O8 |
| Si | ⓘ Andradite var. Polyadelphite | (Ca,Mn)3Fe23+(SiO4)3 |
| Si | ⓘ Pyroxene Group | ADSi2O6 |
| Si | ⓘ Garnet Group | X3Z2(SiO4)3 |
| Si | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| Si | ⓘ Stilpnomelane var. Ferristilpnomelane | K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| Si | ⓘ Muscovite var. Oellacherite | KAl2(AlSi3O10)(OH)2 |
| Si | ⓘ Amphibole Supergroup var. Byssolite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| Si | ⓘ Serpentine Subgroup | D3[Si2O5](OH)4 |
| Si | ⓘ Fowlerite | (Mn2+,Zn,Ca)SiO3 |
| Si | ⓘ Manganvesuvianite | Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Si | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| Si | ⓘ Willemite var. Beta-Willemite | Zn2SiO4 |
| Si | ⓘ Magnesio-fluoro-hastingsite | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| Si | ⓘ Fluoro-pargasite | NaCa2(Mg4Al)(Si6Al2)O22F2 |
| Si | ⓘ Fluorophlogopite | KMg3(Si3Al)O10F2 |
| Si | ⓘ Fluoro-tremolite | ◻Ca2Mg5(Si8O22)F2 |
| Si | ⓘ Epidote-(Sr) | (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Si | ⓘ Phlogopite-1M | KMg3(AlSi3O10)(OH)2 |
| Si | ⓘ Phlogopite-3T | KMg3(AlSi3O10)(OH)2 |
| Si | ⓘ Potassic-ferro-pargasite | KCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Si | ⓘ Potassic-hastingsite | KCa2(Fe42+Fe3+)(Al2Si6O22)(OH)2 |
| Si | ⓘ Edenite-Pargasite Root Name Series | |
| Si | ⓘ Antigorite var. Vorhauserite | (Mg,Mn)3(Si2O5)(OH)4 |
| Si | ⓘ Fluor-uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| Si | ⓘ Fayalite var. Roepperite (of Brush) | (Fe2+,Mn,Zn)2SiO4 |
| Si | ⓘ Ferriakasakaite-(La) | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| Si | ⓘ Allanite Group | (A12+REE3+)(M13+M23+M32+)O[Si2O7][SiO4](OH) |
| Si | ⓘ Epidote Group | (A12+A22+)(M13+M23+M33+)O[Si2O7][SiO4](OH) |
| Si | ⓘ Cyprine | Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 |
| Si | ⓘ UM1985-26-SiO:CaMgPbZn (Also known as Mineral A) | Pb2Zn5Ca4Mg2Si7O27 |
| Si | ⓘ Ferrorhodonite | CaMn3Fe[Si5O15] |
| Si | ⓘ Clino-suenoite | ◻Mn22+(Mg5)(Si8O22)(OH)2 |
| Si | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| Si | ⓘ Uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| Si | ⓘ Mineral B ("oyelite-like" mineral) | Ca10Si8B2O29 · 12.5H2O |
| P | Phosphorus | |
| P | ⓘ Fluorapatite | Ca5(PO4)3F |
| P | ⓘ Hydroxylapatite | Ca5(PO4)3(OH) |
| P | ⓘ Meta-ankoleite | K2(UO2)2(PO4)2 · 6H2O |
| P | ⓘ Monazite-(Ce) | Ce(PO4) |
| P | ⓘ Newberyite | Mg(PO3OH) · 3H2O |
| P | ⓘ Niahite | (NH4)Mn2+(PO4) · H2O |
| P | ⓘ Pyromorphite | Pb5(PO4)3Cl |
| P | ⓘ Apatite | Ca5(PO4)3A |
| S | Sulfur | |
| S | ⓘ Acanthite | Ag2S |
| S | ⓘ Alabandite | MnS |
| S | ⓘ Anglesite | PbSO4 |
| S | ⓘ Anhydrite | CaSO4 |
| S | ⓘ Antlerite | Cu3(SO4)(OH)4 |
| S | ⓘ Arsenopyrite | FeAsS |
| S | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| S | ⓘ Baryte | BaSO4 |
| S | ⓘ Bassanite | Ca(SO4) · 0.5H2O |
| S | ⓘ Baumhauerite | Pb12As16S36 |
| S | ⓘ Berthierite | FeSb2S4 |
| S | ⓘ Betekhtinite | Pb2(Cu,Fe)22-24S15 |
| S | ⓘ Bianchite | Zn(H2O)6(SO4) |
| S | ⓘ Bornite | Cu5FeS4 |
| S | ⓘ Brianyoungite | Zn3(CO3,SO4)(OH)4 |
| S | ⓘ Brochantite | Cu4(SO4)(OH)6 |
| S | ⓘ Carrollite | CuCo2S4 |
| S | ⓘ Celestine | SrSO4 |
| S | ⓘ Chalcopyrite | CuFeS2 |
| S | ⓘ Chalcoalumite | CuAl4(SO4)(OH)12 · 3H2O |
| S | ⓘ Chalcocite | Cu2S |
| S | ⓘ Charlesite | Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O |
| S | ⓘ Connellite | Cu19(SO4)(OH)32Cl4 · 3H2O |
| S | ⓘ Covellite | CuS |
| S | ⓘ Cyanotrichite | Cu4Al2(SO4)(OH)12 · 2H2O |
| S | ⓘ Devilline | CaCu4(SO4)2(OH)6 · 3H2O |
| S | ⓘ Digenite | Cu9S5 |
| S | ⓘ Djurleite | Cu31S16 |
| S | ⓘ Epsomite | MgSO4 · 7H2O |
| S | ⓘ Fluorellestadite | Ca5(SiO4)1.5(SO4)1.5F |
| S | ⓘ Galena | PbS |
| S | ⓘ Genthelvite | Be3Zn4(SiO4)3S |
| S | ⓘ Gersdorffite | NiAsS |
| S | ⓘ Glaucodot | (Co0.50Fe0.50)AsS |
| S | ⓘ Greenockite | CdS |
| S | ⓘ Gypsum | CaSO4 · 2H2O |
| S | ⓘ Halotrichite | Fe2+Al2(SO4)4 · 22H2O |
| S | ⓘ Hauckite | Fe33+(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| S | ⓘ Hawleyite | CdS |
| S | ⓘ Hexahydrite | Mg(H2O)6(SO4) |
| S | ⓘ Jarosite | KFe33+(SO4)2(OH)6 |
| S | ⓘ Lawsonbauerite | (Mn2+,Mg)9Zn4(SO4)2(OH)22 · 8H2O |
| S | ⓘ Linarite | PbCu(SO4)(OH)2 |
| S | ⓘ Marcasite | FeS2 |
| S | ⓘ Millerite | NiS |
| S | ⓘ Molybdenite | MoS2 |
| S | ⓘ Mooreite | Mg9◻2Mn2Zn4(SO4)2(OH)26 · 8H2O |
| S | ⓘ Orthoserpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| S | ⓘ Pararealgar | As4S4 |
| S | ⓘ Pyrite | FeS2 |
| S | ⓘ Pyrrhotite | Fe1-xS |
| S | ⓘ Realgar | As4S4 |
| S | ⓘ Roeblingite | Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O |
| S | ⓘ Roxbyite | Cu58S32 |
| S | ⓘ Seligmannite | PbCuAsS3 |
| S | ⓘ Serpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| S | ⓘ Smythite | (Fe,Ni)3+xS4 (x=0-0.3) |
| S | ⓘ Spangolite | Cu6Al(SO4)(OH)12Cl · 3H2O |
| S | ⓘ Sphalerite | ZnS |
| S | ⓘ Spionkopite | Cu39S28 |
| S | ⓘ Starkeyite | MgSO4 · 4H2O |
| S | ⓘ Stibnite | Sb2S3 |
| S | ⓘ Native Sulphur | S8 |
| S | ⓘ Tennantite Subgroup | Cu6(Cu4C22+)As4S12S |
| S | ⓘ Tetrahedrite Subgroup | Cu6(Cu4C22+)Sb4S12S |
| S | ⓘ Torreyite | (Mg,Mn2+)7◻2Mn22+Zn4(SO4)2(OH)22 · 8H2O |
| S | ⓘ Wurtzite var. Voltzite | (Zn,Fe,Mn) S [with O C H ] |
| S | ⓘ Wittichenite | Cu3BiS3 |
| S | ⓘ Woodwardite | Cu1-xAlx(OH)2(SO4)x/2 · nH2O |
| S | ⓘ Wurtzite | (Zn,Fe)S |
| S | ⓘ Zincmelanterite | Zn(H2O)6(SO4) · H2O |
| S | ⓘ Zinkenite | Pb9Sb22S42 |
| S | ⓘ Gypsum var. Selenite | CaSO4 · 2H2O |
| S | ⓘ Sphalerite var. Cleiophane | ZnS |
| S | ⓘ Tennantite-(Zn) | Cu6(Cu4Zn2)As4S12S |
| S | ⓘ Tetrahedrite-(Zn) | Cu6(Cu4Zn2)Sb4S12S |
| S | ⓘ Tetrahedrite-(Fe) | Cu6(Cu4Fe22+)Sb4S12S |
| Cl | Chlorine | |
| Cl | ⓘ Atacamite | Cu2(OH)3Cl |
| Cl | ⓘ Connellite | Cu19(SO4)(OH)32Cl4 · 3H2O |
| Cl | ⓘ Friedelite | Mn82+Si6O15(OH,Cl)10 |
| Cl | ⓘ Hedyphane | Ca2Pb3(AsO4)3Cl |
| Cl | ⓘ Iowaite | Mg6Fe23+(OH)16Cl2 · 4H2O |
| Cl | ⓘ Lavendulan | NaCaCu5(AsO4)4Cl · 5H2O |
| Cl | ⓘ Pyrosmalite-(Mn) | Mn82+Si6O15(OH,Cl)10 |
| Cl | ⓘ Magnussonite | Mn102+(As3+O3)6(OH,Cl)2 |
| Cl | ⓘ Marialite | Na4Al3Si9O24Cl |
| Cl | ⓘ Mimetite | Pb5(AsO4)3Cl |
| Cl | ⓘ Nasonite | Pb6Ca4(Si2O7)3Cl2 |
| Cl | ⓘ Pyromorphite | Pb5(PO4)3Cl |
| Cl | ⓘ Simonkolleite | Zn5Cl2(OH)8 · H2O |
| Cl | ⓘ Spangolite | Cu6Al(SO4)(OH)12Cl · 3H2O |
| Cl | ⓘ Turneaureite | Ca5(AsO4)3Cl |
| Cl | ⓘ Amphibole Supergroup var. Uralite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| Cl | ⓘ Wawayandaite | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| Cl | ⓘ Amphibole Supergroup var. Byssolite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| Cl | ⓘ UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995) | Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O |
| Cl | ⓘ Edenite-Pargasite Root Name Series | |
| Cl | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| K | Potassium | |
| K | ⓘ Microcline var. Amazonite | K(AlSi3O8) |
| K | ⓘ Annite | KFe32+(AlSi3O10)(OH)2 |
| K | ⓘ Albite var. Anorthoclase | (Na,K)AlSi3O8 |
| K | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| K | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| K | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| K | ⓘ Cryptomelane | K(Mn74+Mn3+)O16 |
| K | ⓘ Fluorapophyllite-(K) | KCa4(Si8O20)(F,OH) · 8H2O |
| K | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| K | ⓘ Ganophyllite | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| K | ⓘ Hendricksite | KZn3(Si3Al)O10(OH)2 |
| K | ⓘ Heulandite Subgroup | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| K | ⓘ Microcline var. Hyalophane | (K,Ba)[Al(Si,Al)Si2O8] |
| K | ⓘ Hydroxyapophyllite-(K) | KCa4(Si8O20)(OH,F) · 8H2O |
| K | ⓘ Muscovite var. Illite | K0.65Al2.0[Al0.65Si3.35O10](OH)2 |
| K | ⓘ Jarosite | KFe33+(SO4)2(OH)6 |
| K | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| K | ⓘ Meta-ankoleite | K2(UO2)2(PO4)2 · 6H2O |
| K | ⓘ Microcline | K(AlSi3O8) |
| K | ⓘ Minehillite | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| K | ⓘ Muscovite | KAl2(AlSi3O10)(OH)2 |
| K | ⓘ Orthoclase | K(AlSi3O8) |
| K | ⓘ Pharmacosiderite | KFe43+(AsO4)3(OH)4 · 6-7H2O |
| K | ⓘ Phlogopite | KMg3(AlSi3O10)(OH)2 |
| K | ⓘ Siderophyllite | KFe22+Al(Al2Si2O10)(OH)2 |
| K | ⓘ Stilpnomelane | K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 |
| K | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| K | ⓘ Chabazite-Ca | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| K | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| K | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| K | ⓘ Stilpnomelane var. Ferristilpnomelane | K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| K | ⓘ Muscovite var. Oellacherite | KAl2(AlSi3O10)(OH)2 |
| K | ⓘ Fluorophlogopite | KMg3(Si3Al)O10F2 |
| K | ⓘ Phlogopite-1M | KMg3(AlSi3O10)(OH)2 |
| K | ⓘ Phlogopite-3T | KMg3(AlSi3O10)(OH)2 |
| K | ⓘ Potassic-ferro-pargasite | KCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| K | ⓘ Potassic-hastingsite | KCa2(Fe42+Fe3+)(Al2Si6O22)(OH)2 |
| K | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| Ca | Calcium | |
| Ca | ⓘ Actinolite | ◻Ca2(Mg4.5-2.5Fe0.5-2.5)Si8O22(OH)2 |
| Ca | ⓘ Adelite | CaMg(AsO4)(OH) |
| Ca | ⓘ Aegirine-augite | (NaaCabFec2+Mgd)(Fee3+AlfFeg2+Mgh)Si2O6 |
| Ca | ⓘ Meionite var. Algerite | Ca4Al6Si6O24CO3 |
| Ca | ⓘ Allanite-(Ce) | (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) |
| Ca | ⓘ Andradite | Ca3Fe23+(SiO4)3 |
| Ca | ⓘ Anhydrite | CaSO4 |
| Ca | ⓘ Anorthite | Ca(Al2Si2O8) |
| Ca | ⓘ Aragonite | CaCO3 |
| Ca | ⓘ Arseniosiderite | Ca2Fe33+(AsO4)3O2 · 3H2O |
| Ca | ⓘ Augite | (CaxMgyFez)(Mgy1Fez1)Si2O6 |
| Ca | ⓘ Austinite | CaZn(AsO4)(OH) |
| Ca | ⓘ Datolite var. Bakerite | Ca4(H5B5Si3O20) |
| Ca | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| Ca | ⓘ Bassanite | Ca(SO4) · 0.5H2O |
| Ca | ⓘ Birnessite | (Na,Ca)0.5(Mn4+,Mn3+)2O4 · 1.5H2O |
| Ca | ⓘ Bostwickite | CaMn63+Si3O16 · 7H2O |
| Ca | ⓘ Datolite var. Botryolite | CaB(SiO4)(OH) |
| Ca | ⓘ Brandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| Ca | ⓘ Bultfonteinite | Ca2(HSiO4)F · H2O |
| Ca | ⓘ Bustamite | CaMn2+(Si2O6) |
| Ca | ⓘ Cahnite | Ca2[B(OH)4](AsO4) |
| Ca | ⓘ Calcite | CaCO3 |
| Ca | ⓘ Fluorite var. Chlorophane | CaF2 |
| Ca | ⓘ Charlesite | Ca6(Al,Si)2(SO4)2[B(OH)4](OH,O)12 · 26H2O |
| Ca | ⓘ Clinohedrite | CaZn(SiO4) · H2O |
| Ca | ⓘ Clinozoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| Ca | ⓘ Clintonite | CaAlMg2(SiAl3O10)(OH)2 |
| Ca | ⓘ Conichalcite | CaCu(AsO4)(OH) |
| Ca | ⓘ Cuspidine | Ca8(Si2O7)2F4 |
| Ca | ⓘ Devilline | CaCu4(SO4)2(OH)6 · 3H2O |
| Ca | ⓘ Diopside | CaMgSi2O6 |
| Ca | ⓘ Dolomite | CaMg(CO3)2 |
| Ca | ⓘ Datolite | CaB(SiO4)(OH) |
| Ca | ⓘ Edenite | NaCa2Mg5(Si7Al)O22(OH)2 |
| Ca | ⓘ Epidote | (CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Ca | ⓘ Esperite | PbCa2Zn3(SiO4)3 |
| Ca | ⓘ Axinite-(Fe) | Ca2Fe2+Al2BSi4O15OH |
| Ca | ⓘ Ferro-actinolite | ◻Ca2Fe52+(Si8O22)(OH)2 |
| Ca | ⓘ Ferro-hornblende | ◻Ca2(Fe42+Al)(Si7Al)O22(OH)2 |
| Ca | ⓘ Ferro-pargasite | NaCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Ca | ⓘ Fersmite | CaNb2O6 |
| Ca | ⓘ Fluckite | CaMn2+(AsO3OH)2 · 2H2O |
| Ca | ⓘ Fluorapatite | Ca5(PO4)3F |
| Ca | ⓘ Fluorapophyllite-(K) | KCa4(Si8O20)(F,OH) · 8H2O |
| Ca | ⓘ Fluorellestadite | Ca5(SiO4)1.5(SO4)1.5F |
| Ca | ⓘ Fluorite | CaF2 |
| Ca | ⓘ Franklinfurnaceite | Ca2Fe3+Mn32+Mn3+(Zn2Si2O10)(OH)8 |
| Ca | ⓘ Ganomalite | Pb9Ca5Mn(Si2O7)4(SiO4)O |
| Ca | ⓘ Ganophyllite | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| Ca | ⓘ Glaucochroite | CaMn2+(SiO4) |
| Ca | ⓘ Goldmanite | Ca3V23+(SiO4)3 |
| Ca | ⓘ Grossular | Ca3Al2(SiO4)3 |
| Ca | ⓘ Guérinite | Ca6(HAsO4)3(AsO4)2 · 10.5H2O |
| Ca | ⓘ Gypsum | CaSO4 · 2H2O |
| Ca | ⓘ Haidingerite | CaHAsO4 · H2O |
| Ca | ⓘ Hancockite | (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Ca | ⓘ Hardystonite | Ca2Zn[Si2O7] |
| Ca | ⓘ Hastingsite | NaCa2(Fe42+Fe3+)(Si6Al2)O22(OH)2 |
| Ca | ⓘ Hedenbergite | CaFe2+Si2O6 |
| Ca | ⓘ Hedyphane | Ca2Pb3(AsO4)3Cl |
| Ca | ⓘ Hellandite-(Y) | (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 |
| Ca | ⓘ Heulandite Subgroup | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O |
| Ca | ⓘ Grossular var. Hydrogrossular | Ca3Al2(SiO4)3 |
| Ca | ⓘ Hydroxyapophyllite-(K) | KCa4(Si8O20)(OH,F) · 8H2O |
| Ca | ⓘ Hydroxylapatite | Ca5(PO4)3(OH) |
| Ca | ⓘ Jeffersonite | Ca(Mn,Zn,Fe)Si2O6 |
| Ca | ⓘ Johannsenite | CaMn2+Si2O6 |
| Ca | ⓘ Johnbaumite | Ca5(AsO4)3(OH) |
| Ca | ⓘ Junitoite | CaZn2Si2O7 · H2O |
| Ca | ⓘ Kittatinnyite | Ca2Mn2Mn(SiO4)2(OH)4 · 9H2O |
| Ca | ⓘ Kutnohorite | CaMn2+(CO3)2 |
| Ca | ⓘ Laumontite | CaAl2Si4O12 · 4H2O |
| Ca | ⓘ Lavendulan | NaCaCu5(AsO4)4Cl · 5H2O |
| Ca | ⓘ Hydroxycalcioroméite | (Ca,Sb3+)2(Sb5+,Ti)2O6(OH) |
| Ca | ⓘ Manganberzeliite | (NaCa2)Mn22+(AsO4)3 |
| Ca | ⓘ Axinite-(Mn) | Ca2Mn2+Al2BSi4O15(OH) |
| Ca | ⓘ Macfallite | Ca2Mn33+(SiO4)(Si2O7)(OH)3 |
| Ca | ⓘ Magnesio-hornblende | ◻Ca2(Mg4Al)(Si7Al)O22(OH)2 |
| Ca | ⓘ Vesuvianite var. Manganese-bearing Vesuvianite | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| Ca | ⓘ Margarite | CaAl2(Al2Si2O10)(OH)2 |
| Ca | ⓘ Margarosanite | Ca2PbSi3O9 |
| Ca | ⓘ Marsturite | NaCaMn3Si5O14(OH) |
| Ca | ⓘ Meionite | Ca4Al6Si6O24CO3 |
| Ca | ⓘ Metauranospinite | Ca(UO2)2(AsO4)2 · 8H2O |
| Ca | ⓘ Minehillite | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| Ca | ⓘ Monohydrocalcite | CaCO3 · H2O |
| Ca | ⓘ Nasonite | Pb6Ca4(Si2O7)3Cl2 |
| Ca | ⓘ Fluorapophyllite-(Na) | NaCa4(Si8O20)F · 8H2O |
| Ca | ⓘ Ogdensburgite | Ca2Fe43+(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O |
| Ca | ⓘ Albite var. Oligoclase | (Na,Ca)[Al(Si,Al)Si2O8] |
| Ca | ⓘ Orthoserpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| Ca | ⓘ Parabrandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| Ca | ⓘ Pargasite | NaCa2(Mg4Al)(Si6Al2)O22(OH)2 |
| Ca | ⓘ Pectolite | NaCa2Si3O8(OH) |
| Ca | ⓘ Petedunnite | CaZnSi2O6 |
| Ca | ⓘ Pharmacolite | Ca(HAsO4) · 2H2O |
| Ca | ⓘ Picropharmacolite | Ca4Mg(AsO4)2(HAsO4)2 · 11H2O |
| Ca | ⓘ Piemontite | (CaCa)(AlAlMn3+)O[Si2O7][SiO4](OH) |
| Ca | ⓘ Powellite | Ca(MoO4) |
| Ca | ⓘ Prehnite | Ca2Al2Si3O10(OH)2 |
| Ca | ⓘ Pumpellyite-(Mg) | Ca2MgAl2[Si2O6OH][SiO4](OH)2(OH) |
| Ca | ⓘ Pyroxferroite | (Fe,Mn,Ca)SiO3 |
| Ca | ⓘ Rhodonite | CaMn3Mn[Si5O15] |
| Ca | ⓘ Richterite | Na(CaNa)Mg5(Si8O22)(OH)2 |
| Ca | ⓘ Roeblingite | Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O |
| Ca | ⓘ Roweite | Ca2Mn22+B4O7(OH)6 |
| Ca | ⓘ Samfowlerite | Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 |
| Ca | ⓘ Saponite | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| Ca | ⓘ Scheelite | Ca(WO4) |
| Ca | ⓘ Diopside var. Schefferite | (Ca,Mn)(Mg,Fe,Mn)Si2O6 |
| Ca | ⓘ Serpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| Ca | ⓘ Svabite | Ca5(AsO4)3F |
| Ca | ⓘ Synchysite-(Ce) | CaCe(CO3)2F |
| Ca | ⓘ Thomsonite-Ca | NaCa2[Al5Si5O20] · 6H2O |
| Ca | ⓘ Thorutite | (Th,U,Ca)Ti2(O,OH)6 |
| Ca | ⓘ Tilasite | CaMg(AsO4)F |
| Ca | ⓘ Titanite | CaTi(SiO4)O |
| Ca | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| Ca | ⓘ Tremolite | ◻Ca2Mg5(Si8O22)(OH)2 |
| Ca | ⓘ Turneaureite | Ca5(AsO4)3Cl |
| Ca | ⓘ Tyrolite | Ca2Cu9(AsO4)4(CO3)(OH)8 · 11H2O |
| Ca | ⓘ Uranophane | Ca(UO2)2(SiO3OH)2 · 5H2O |
| Ca | ⓘ Uranospinite | Ca(UO2)2(AsO4)2 · 10H2O |
| Ca | ⓘ Uvarovite | Ca3Cr23+(SiO4)3 |
| Ca | ⓘ Fluor-uvite-Uvite Series | |
| Ca | ⓘ Villyaellenite | (Mn,Ca)Mn2Ca2(AsO3OH)2(AsO4)2 · 4H2O |
| Ca | ⓘ Vesuvianite | Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Ca | ⓘ Wallkilldellite | Ca2Mn32+(AsO4)2(OH)4 · 9H2O |
| Ca | ⓘ Wawayandaite | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| Ca | ⓘ Wendwilsonite | Ca2Mg(AsO4)2 · 2H2O |
| Ca | ⓘ Winchite | ◻(CaNa)(Mg4Al)(Si8O22)(OH)2 |
| Ca | ⓘ Wollastonite | Ca3(Si3O9) |
| Ca | ⓘ Xonotlite | Ca6(Si6O17)(OH)2 |
| Ca | ⓘ Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| Ca | ⓘ Yukonite | Ca3Fe3+(AsO4)2(OH)3 · 5H2O |
| Ca | ⓘ Znucalite | Zn10Ca0.83(UO2)0.83(CO3)4(OH)15.31(H2O)5.48 |
| Ca | ⓘ Zoisite | (CaCa)(AlAlAl)O[Si2O7][SiO4](OH) |
| Ca | ⓘ Gypsum var. Selenite | CaSO4 · 2H2O |
| Ca | ⓘ Chabazite-Ca | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| Ca | ⓘ Fluoro-edenite | NaCa2Mg5(Si7Al)O22F2 |
| Ca | ⓘ Heulandite-Ca | (Ca,Na)5(Si27Al9)O72 · 26H2O |
| Ca | ⓘ Zálesíite | CaCu6(AsO4)2(AsO3OH)(OH)6 · 3H2O |
| Ca | ⓘ Stilbite-Ca | NaCa4(Si27Al9)O72 · 28H2O |
| Ca | ⓘ Andradite var. Melanite | Ca3Fe23+(SiO4)3 |
| Ca | ⓘ Diopside var. Zinc-Schefferite | Ca(Mg,Mn,Zn)Si2O6 |
| Ca | ⓘ Powellite-Scheelite Series | |
| Ca | ⓘ Hornblende Root Name Group | ◻Ca2(C42+C3+)(AlSi7O22)W2 |
| Ca | ⓘ Plagioclase | (Na,Ca)[(Si,Al)AlSi2]O8 |
| Ca | ⓘ Andradite var. Polyadelphite | (Ca,Mn)3Fe23+(SiO4)3 |
| Ca | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| Ca | ⓘ Fowlerite | (Mn2+,Zn,Ca)SiO3 |
| Ca | ⓘ Manganvesuvianite | Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Ca | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| Ca | ⓘ Magnesio-fluoro-hastingsite | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| Ca | ⓘ Fluoro-pargasite | NaCa2(Mg4Al)(Si6Al2)O22F2 |
| Ca | ⓘ Apatite | Ca5(PO4)3A |
| Ca | ⓘ Fluoro-tremolite | ◻Ca2Mg5(Si8O22)F2 |
| Ca | ⓘ Epidote-(Sr) | (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Ca | ⓘ Potassic-ferro-pargasite | KCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Ca | ⓘ Potassic-hastingsite | KCa2(Fe42+Fe3+)(Al2Si6O22)(OH)2 |
| Ca | ⓘ Hydroxycalciopyrochlore | (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) |
| Ca | ⓘ Edenite-Pargasite Root Name Series | |
| Ca | ⓘ Fluor-uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3F |
| Ca | ⓘ Ferriakasakaite-(La) | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| Ca | ⓘ Cyprine | Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 |
| Ca | ⓘ UM1985-26-SiO:CaMgPbZn (Also known as Mineral A) | Pb2Zn5Ca4Mg2Si7O27 |
| Ca | ⓘ Ferrorhodonite | CaMn3Fe[Si5O15] |
| Ca | ⓘ Uvite | CaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH) |
| Ca | ⓘ Mineral B ("oyelite-like" mineral) | Ca10Si8B2O29 · 12.5H2O |
| Sc | Scandium | |
| Sc | ⓘ Thortveitite | Sc2Si2O7 |
| Ti | Titanium | |
| Ti | ⓘ Anatase | TiO2 |
| Ti | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| Ti | ⓘ Brookite | TiO2 |
| Ti | ⓘ Ilmenite | Fe2+TiO3 |
| Ti | ⓘ Hydroxycalcioroméite | (Ca,Sb3+)2(Sb5+,Ti)2O6(OH) |
| Ti | ⓘ Pyrophanite | Mn2+TiO3 |
| Ti | ⓘ Rutile | TiO2 |
| Ti | ⓘ Thorutite | (Th,U,Ca)Ti2(O,OH)6 |
| Ti | ⓘ Titanite | CaTi(SiO4)O |
| Ti | ⓘ Amphibole Supergroup var. Uralite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| Ti | ⓘ Graeserite | Fe43+Ti3As3+O13(OH) |
| Ti | ⓘ Amphibole Supergroup var. Byssolite | AX2Z5((Si,Al,Ti)8O22)(OH,F,Cl,O)2 |
| Ti | ⓘ Hydroxycalciopyrochlore | (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) |
| V | Vanadium | |
| V | ⓘ Descloizite | PbZn(VO4)(OH) |
| V | ⓘ Goldmanite | Ca3V23+(SiO4)3 |
| V | ⓘ Pyrobelonite | PbMn2+(VO4)(OH) |
| Cr | Chromium | |
| Cr | ⓘ Uvarovite | Ca3Cr23+(SiO4)3 |
| Mn | Manganese | |
| Mn | ⓘ Akrochordite | MnMn2Mn2(AsO4)2(OH)4(H2O)4 |
| Mn | ⓘ Alabandite | MnS |
| Mn | ⓘ Allactite | Mn72+(AsO4)2(OH)8 |
| Mn | ⓘ Alleghanyite | Mn52+(SiO4)2(OH)2 |
| Mn | ⓘ Aurorite | Mn2+Mn34+O7 · 3H2O |
| Mn | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| Mn | ⓘ Barysilite | Pb8Mn2+[Si2O7]3 |
| Mn | ⓘ Bementite | Mn7Si6O15(OH)8 |
| Mn | ⓘ Birnessite | (Na,Ca)0.5(Mn4+,Mn3+)2O4 · 1.5H2O |
| Mn | ⓘ Bostwickite | CaMn63+Si3O16 · 7H2O |
| Mn | ⓘ Brandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| Mn | ⓘ Bustamite | CaMn2+(Si2O6) |
| Mn | ⓘ Caryopilite | Mn32+Si2O5(OH)4 |
| Mn | ⓘ Chlorophoenicite | (Mn,Mg)3Zn2(AsO4)(OH,O)6 |
| Mn | ⓘ Chalcophanite | ZnMn34+O7 · 3H2O |
| Mn | ⓘ Cianciulliite | Mn(Mg,Mn)2Zn2(OH)10 · 2-4H2O |
| Mn | ⓘ Cryptomelane | K(Mn74+Mn3+)O16 |
| Mn | ⓘ Eveite | Mn22+(AsO4)(OH) |
| Mn | ⓘ Feitknechtite | Mn3+O(OH) |
| Mn | ⓘ Flinkite | Mn22+Mn3+(AsO4)(OH)4 |
| Mn | ⓘ Fluckite | CaMn2+(AsO3OH)2 · 2H2O |
| Mn | ⓘ Franklinfurnaceite | Ca2Fe3+Mn32+Mn3+(Zn2Si2O10)(OH)8 |
| Mn | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| Mn | ⓘ Friedelite | Mn82+Si6O15(OH,Cl)10 |
| Mn | ⓘ Gageite | Mn21(Si4O12)2O3(OH)20 |
| Mn | ⓘ Ganomalite | Pb9Ca5Mn(Si2O7)4(SiO4)O |
| Mn | ⓘ Ganophyllite | (K,Na,Ca)2Mn8(Si,Al)12(O,OH)32 · 8H2O |
| Mn | ⓘ Gerstmannite | MnMgZn(SiO4)(OH)2 |
| Mn | ⓘ Glaucochroite | CaMn2+(SiO4) |
| Mn | ⓘ Gonyerite | Mn52+Fe3+(Fe3+Si3O10)(OH)8 |
| Mn | ⓘ Groutite | Mn3+O(OH) |
| Mn | ⓘ Hauckite | Fe33+(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| Mn | ⓘ Hausmannite | Mn2+Mn23+O4 |
| Mn | ⓘ Hetaerolite | ZnMn2O4 |
| Mn | ⓘ Hodgkinsonite | Mn2+Zn2(SiO4)(OH)2 |
| Mn | ⓘ Holdenite | (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 |
| Mn | ⓘ Hübnerite | MnWO4 |
| Mn | ⓘ Hetaerolite var. Hydrohetaerolite | Zn(Mn,◻)2(O,OH)4 |
| Mn | ⓘ Jacobsite | Mn2+Fe23+O4 |
| Mn | ⓘ Jarosewichite | Mn32+Mn3+(AsO4)(OH)6 |
| Mn | ⓘ Jeffersonite | Ca(Mn,Zn,Fe)Si2O6 |
| Mn | ⓘ Jerrygibbsite | Mn92+(SiO4)4(OH)2 |
| Mn | ⓘ Johannsenite | CaMn2+Si2O6 |
| Mn | ⓘ Kentrolite | Pb2Mn23+(Si2O7)O2 |
| Mn | ⓘ Kittatinnyite | Ca2Mn2Mn(SiO4)2(OH)4 · 9H2O |
| Mn | ⓘ Kolicite | Mn72+Zn4(AsO4)2(SiO4)2(OH)8 |
| Mn | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| Mn | ⓘ Kutnohorite | CaMn2+(CO3)2 |
| Mn | ⓘ Lawsonbauerite | (Mn2+,Mg)9Zn4(SO4)2(OH)22 · 8H2O |
| Mn | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| Mn | ⓘ Leucophoenicite | Mn72+(SiO4)3(OH)2 |
| Mn | ⓘ Loseyite | (Mn2+,Zn,Mg)4Zn3(CO3)2(OH)10 |
| Mn | ⓘ Manganhumite | Mn72+(SiO4)3(OH)2 |
| Mn | ⓘ Manganberzeliite | (NaCa2)Mn22+(AsO4)3 |
| Mn | ⓘ Pyrosmalite-(Mn) | Mn82+Si6O15(OH,Cl)10 |
| Mn | ⓘ Manganohörnesite | Mn32+(AsO4)2 · 8H2O |
| Mn | ⓘ Magnesiochlorophoenicite | (Mg,Mn)3Zn2(AsO4)(OH,O)6 |
| Mn | ⓘ Axinite-(Mn) | Ca2Mn2+Al2BSi4O15(OH) |
| Mn | ⓘ Manganosite | MnO |
| Mn | ⓘ Macfallite | Ca2Mn33+(SiO4)(Si2O7)(OH)3 |
| Mn | ⓘ Manganite | Mn3+O(OH) |
| Mn | ⓘ Magnussonite | Mn102+(As3+O3)6(OH,Cl)2 |
| Mn | ⓘ Vesuvianite var. Manganese-bearing Vesuvianite | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| Mn | ⓘ Manjiroite | Na(Mn74+Mn3+)O16 |
| Mn | ⓘ Marsturite | NaCaMn3Si5O14(OH) |
| Mn | ⓘ Mcgovernite | Mn19Zn3(AsO4)3(AsO3)(SiO4)3(OH)21 |
| Mn | ⓘ Mooreite | Mg9◻2Mn2Zn4(SO4)2(OH)26 · 8H2O |
| Mn | ⓘ Nelenite | (Mn,Fe)16(Si12O30)(OH)14[As33+O6(OH)3] |
| Mn | ⓘ Neotocite | (Mn,Fe)SiO3 · H2O (?) |
| Mn | ⓘ Niahite | (NH4)Mn2+(PO4) · H2O |
| Mn | ⓘ Ogdensburgite | Ca2Fe43+(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O |
| Mn | ⓘ Parabrandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| Mn | ⓘ Pennantite | Mn52+Al(AlSi3O10)(OH)8 |
| Mn | ⓘ Piemontite | (CaCa)(AlAlMn3+)O[Si2O7][SiO4](OH) |
| Mn | ⓘ Pyrobelonite | PbMn2+(VO4)(OH) |
| Mn | ⓘ Pyrochroite | Mn(OH)2 |
| Mn | ⓘ Pyrophanite | Mn2+TiO3 |
| Mn | ⓘ Pyroxferroite | (Fe,Mn,Ca)SiO3 |
| Mn | ⓘ Pyroxmangite | Mn2+SiO3 |
| Mn | ⓘ Retzian-(La) | Mn22+La(AsO4)(OH)4 |
| Mn | ⓘ Retzian-(Nd) | Mn22+Nd(AsO4)(OH)4 |
| Mn | ⓘ Rhodochrosite | MnCO3 |
| Mn | ⓘ Rhodonite | CaMn3Mn[Si5O15] |
| Mn | ⓘ Ribbeite | Mn52+(SiO4)2(OH)2 |
| Mn | ⓘ Roeblingite | Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O |
| Mn | ⓘ Roweite | Ca2Mn22+B4O7(OH)6 |
| Mn | ⓘ Samfowlerite | Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 |
| Mn | ⓘ Sarkinite | Mn22+(AsO4)(OH) |
| Mn | ⓘ Schallerite | Mn162+As3Si12O36(OH)17 |
| Mn | ⓘ Diopside var. Schefferite | (Ca,Mn)(Mg,Fe,Mn)Si2O6 |
| Mn | ⓘ Sonolite | Mn92+(SiO4)4(OH)2 |
| Mn | ⓘ Spessartine | Mn32+Al2(SiO4)3 |
| Mn | ⓘ Sterlinghillite | Mn32+(AsO4)2 · 3H2O |
| Mn | ⓘ Sussexite | Mn2+BO2(OH) |
| Mn | ⓘ Synadelphite | Mn92+(As5+O4)2(As3+O3)(OH)9 · 2H2O |
| Mn | ⓘ Tephroite | Mn22+(SiO4) |
| Mn | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| Mn | ⓘ Torreyite | (Mg,Mn2+)7◻2Mn22+Zn4(SO4)2(OH)22 · 8H2O |
| Mn | ⓘ Villyaellenite | (Mn,Ca)Mn2Ca2(AsO3OH)2(AsO4)2 · 4H2O |
| Mn | ⓘ Wurtzite var. Voltzite | (Zn,Fe,Mn) S [with O C H ] |
| Mn | ⓘ Wallkilldellite | Ca2Mn32+(AsO4)2(OH)4 · 9H2O |
| Mn | ⓘ Wawayandaite | Ca6Mn2BBe9Si6O23(OH,Cl)15 |
| Mn | ⓘ Woodruffite | Zn2+x/2(Mn4+1-xMnx3+)O2 · yH2O |
| Mn | ⓘ Yeatmanite | Zn6Mn92+Sb25+(SiO4)4O12 |
| Mn | ⓘ Willemite var. Troostite | (Zn,Mn)2SiO4 |
| Mn | ⓘ Arakiite | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| Mn | ⓘ Gageite-2M | (Mn,Mg,Zn)42Si16O54(OH)40 |
| Mn | ⓘ Diopside var. Zinc-Schefferite | Ca(Mg,Mn,Zn)Si2O6 |
| Mn | ⓘ Sussexite-Szaibélyite Series | |
| Mn | ⓘ Andradite var. Polyadelphite | (Ca,Mn)3Fe23+(SiO4)3 |
| Mn | ⓘ Fowlerite | (Mn2+,Zn,Ca)SiO3 |
| Mn | ⓘ Manganvesuvianite | Ca19Mn3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Mn | ⓘ Retzian Group | Mn22+REE(AsO4)(OH)4 |
| Mn | ⓘ UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995) | Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O |
| Mn | ⓘ Miguelromeroite | Mn52+(AsO3OH)2(AsO4)2(H2O)4 |
| Mn | ⓘ Antigorite var. Vorhauserite | (Mg,Mn)3(Si2O5)(OH)4 |
| Mn | ⓘ Fayalite var. Roepperite (of Brush) | (Fe2+,Mn,Zn)2SiO4 |
| Mn | ⓘ Ferriakasakaite-(La) | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| Mn | ⓘ Castellaroite | Mn32+(AsO4)2 · 4H2O |
| Mn | ⓘ UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D) | (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| Mn | ⓘ Ferrorhodonite | CaMn3Fe[Si5O15] |
| Mn | ⓘ UM1986-23-O:BaMnU | Ba-Mn-U-O |
| Mn | ⓘ Clino-suenoite | ◻Mn22+(Mg5)(Si8O22)(OH)2 |
| Fe | Iron | |
| Fe | ⓘ Actinolite | ◻Ca2(Mg4.5-2.5Fe0.5-2.5)Si8O22(OH)2 |
| Fe | ⓘ Aegirine | NaFe3+Si2O6 |
| Fe | ⓘ Aegirine-augite | (NaaCabFec2+Mgd)(Fee3+AlfFeg2+Mgh)Si2O6 |
| Fe | ⓘ Allanite-(Ce) | (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) |
| Fe | ⓘ Andradite | Ca3Fe23+(SiO4)3 |
| Fe | ⓘ Annite | KFe32+(AlSi3O10)(OH)2 |
| Fe | ⓘ Arsenopyrite | FeAsS |
| Fe | ⓘ Arseniosiderite | Ca2Fe33+(AsO4)3O2 · 3H2O |
| Fe | ⓘ Augite | (CaxMgyFez)(Mgy1Fez1)Si2O6 |
| Fe | ⓘ Almandine | Fe32+Al2(SiO4)3 |
| Fe | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| Fe | ⓘ Bariopharmacosiderite | Ba0.5Fe43+(AsO4)3(OH)4 · 5H2O |
| Fe | ⓘ Bannisterite | (Ca,K,Na)(Mn2+,Fe2+)10(Si,Al)16O38(OH)8 · nH2O |
| Fe | ⓘ Berthierite | FeSb2S4 |
| Fe | ⓘ Betekhtinite | Pb2(Cu,Fe)22-24S15 |
| Fe | ⓘ Biotite | K(Fe2+/Mg)2(Al/Fe3+/Mg/Ti)([Si/Al/Fe]2Si2O10)(OH/F)2 |
| Fe | ⓘ Bornite | Cu5FeS4 |
| Fe | ⓘ Carminite | PbFe23+(AsO4)2(OH)2 |
| Fe | ⓘ Chalcopyrite | CuFeS2 |
| Fe | ⓘ Chamosite | Fe52+Al(AlSi3O10)(OH)8 |
| Fe | ⓘ Chloritoid | Fe2+Al2O(SiO4)(OH)2 |
| Fe | ⓘ Epidote | (CaCa)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Fe | ⓘ Fayalite | Fe22+(SiO4) |
| Fe | ⓘ Axinite-(Fe) | Ca2Fe2+Al2BSi4O15OH |
| Fe | ⓘ Ferrimolybdite | Fe2(MoO4)3 · nH2O |
| Fe | ⓘ Ferro-actinolite | ◻Ca2Fe52+(Si8O22)(OH)2 |
| Fe | ⓘ Ferro-hornblende | ◻Ca2(Fe42+Al)(Si7Al)O22(OH)2 |
| Fe | ⓘ Ferro-pargasite | NaCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Fe | ⓘ Foitite | ◻(Fe22+Al)Al6(Si6O18)(BO3)3(OH)3(OH) |
| Fe | ⓘ Franklinfurnaceite | Ca2Fe3+Mn32+Mn3+(Zn2Si2O10)(OH)8 |
| Fe | ⓘ Franklinite | Zn2+Fe23+O4 |
| Fe | ⓘ Glaucodot | (Co0.50Fe0.50)AsS |
| Fe | ⓘ Goethite | Fe3+O(OH) |
| Fe | ⓘ Gonyerite | Mn52+Fe3+(Fe3+Si3O10)(OH)8 |
| Fe | ⓘ Grunerite | ◻Fe22+Fe52+(Si8O22)(OH)2 |
| Fe | ⓘ Halotrichite | Fe2+Al2(SO4)4 · 22H2O |
| Fe | ⓘ Hancockite | (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Fe | ⓘ Hastingsite | NaCa2(Fe42+Fe3+)(Si6Al2)O22(OH)2 |
| Fe | ⓘ Hauckite | Fe33+(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| Fe | ⓘ Hedenbergite | CaFe2+Si2O6 |
| Fe | ⓘ Hematite | Fe2O3 |
| Fe | ⓘ Hercynite | Fe2+Al2O4 |
| Fe | ⓘ Hypersthene | (Mg,Fe)SiO3 |
| Fe | ⓘ Ilmenite | Fe2+TiO3 |
| Fe | ⓘ Iowaite | Mg6Fe23+(OH)16Cl2 · 4H2O |
| Fe | ⓘ Jacobsite | Mn2+Fe23+O4 |
| Fe | ⓘ Jarosite | KFe33+(SO4)2(OH)6 |
| Fe | ⓘ Jeffersonite | Ca(Mn,Zn,Fe)Si2O6 |
| Fe | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| Fe | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| Fe | ⓘ Löllingite | FeAs2 |
| Fe | ⓘ Magnesio-riebeckite | ◻Na2(Mg3Fe23+)(Si8O22)(OH)2 |
| Fe | ⓘ Magnetite | Fe2+Fe23+O4 |
| Fe | ⓘ Vesuvianite var. Manganese-bearing Vesuvianite | Ca19(Fe3+,Mn2+,Mn3+)Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](O,OH)(OH)9 |
| Fe | ⓘ Marcasite | FeS2 |
| Fe | ⓘ Nelenite | (Mn,Fe)16(Si12O30)(OH)14[As33+O6(OH)3] |
| Fe | ⓘ Neotocite | (Mn,Fe)SiO3 · H2O (?) |
| Fe | ⓘ Nontronite | Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| Fe | ⓘ Ogdensburgite | Ca2Fe43+(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O |
| Fe | ⓘ Ojuelaite | ZnFe23+(AsO4)2(OH)2 · 4H2O |
| Fe | ⓘ Parasymplesite | Fe32+(AsO4)2 · 8H2O |
| Fe | ⓘ Pharmacosiderite | KFe43+(AsO4)3(OH)4 · 6-7H2O |
| Fe | ⓘ Povondraite | NaFe33+(Mg2Fe43+)(Si6O18)(BO3)3(OH)3O |
| Fe | ⓘ Pyrite | FeS2 |
| Fe | ⓘ Pyroxferroite | (Fe,Mn,Ca)SiO3 |
| Fe | ⓘ Pyrrhotite | Fe1-xS |
| Fe | ⓘ Pyroaurite | Mg6Fe23+(OH)16[CO3] · 4H2O |
| Fe | ⓘ Safflorite | (Co,Ni,Fe)As2 |
| Fe | ⓘ Saponite | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| Fe | ⓘ Diopside var. Schefferite | (Ca,Mn)(Mg,Fe,Mn)Si2O6 |
| Fe | ⓘ Schorl | NaFe32+Al6(Si6O18)(BO3)3(OH)3(OH) |
| Fe | ⓘ Scorodite | Fe3+AsO4 · 2H2O |
| Fe | ⓘ Segnitite | PbFe33+AsO4(AsO3OH)(OH)6 |
| Fe | ⓘ Siderite | FeCO3 |
| Fe | ⓘ Siderophyllite | KFe22+Al(Al2Si2O10)(OH)2 |
| Fe | ⓘ Pyroaurite-2H | Mg6Fe23+(OH)16(CO3) · 4H2O |
| Fe | ⓘ Smythite | (Fe,Ni)3+xS4 (x=0-0.3) |
| Fe | ⓘ Stilpnomelane | K(Fe2+,Mg,Fe3+)8(Si,Al)12(O,OH)27 |
| Fe | ⓘ Wurtzite var. Voltzite | (Zn,Fe,Mn) S [with O C H ] |
| Fe | ⓘ Vesuvianite | Ca19Fe3+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10]O(OH)9 |
| Fe | ⓘ Wurtzite | (Zn,Fe)S |
| Fe | ⓘ Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| Fe | ⓘ Yukonite | Ca3Fe3+(AsO4)2(OH)3 · 5H2O |
| Fe | ⓘ Enstatite var. Bronzite | (Mg,Fe2+)2[SiO3]2 |
| Fe | ⓘ Arakiite | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| Fe | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| Fe | ⓘ Graeserite | Fe43+Ti3As3+O13(OH) |
| Fe | ⓘ Andradite var. Melanite | Ca3Fe23+(SiO4)3 |
| Fe | ⓘ Köttigite-Parasymplesite Series | |
| Fe | ⓘ Andradite var. Polyadelphite | (Ca,Mn)3Fe23+(SiO4)3 |
| Fe | ⓘ Stilpnomelane var. Ferrostilpnomelane | (K,Ca,Na)(Fe,Mg,Al)8(Si,Al)12(O,OH)36 · nH2O |
| Fe | ⓘ Stilpnomelane var. Ferristilpnomelane | K(Fe3+,Mg,Fe2+)8(Si,Al)12(O,OH)27 |
| Fe | ⓘ Vesuvianite var. Beryllium-bearing Vesuvianite | (Ca,Na,◻)19(Al,Mg,Fe3+)13(◻,B,Al,Fe3+,Be)5(Si2O7)4(SiO4)10(OH,F,O)10 |
| Fe | ⓘ Magnesio-fluoro-hastingsite | NaCa2(Mg4Fe3+)(Si6Al2)O22F2 |
| Fe | ⓘ Epidote-(Sr) | (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Fe | ⓘ Potassic-ferro-pargasite | KCa2(Fe42+Al)(Si6Al2)O22(OH)2 |
| Fe | ⓘ Potassic-hastingsite | KCa2(Fe42+Fe3+)(Al2Si6O22)(OH)2 |
| Fe | ⓘ Strontiopharmacosiderite | Sr0.5Fe43+[(AsO4)3(OH)4] · 4H2O |
| Fe | ⓘ Fayalite var. Roepperite (of Brush) | (Fe2+,Mn,Zn)2SiO4 |
| Fe | ⓘ Ferriakasakaite-(La) | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| Fe | ⓘ Pyroaurite-3R | Mg6Fe23+(OH)16(CO3) · 4H2O |
| Fe | ⓘ UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D) | (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| Fe | ⓘ Ferrorhodonite | CaMn3Fe[Si5O15] |
| Fe | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| Fe | ⓘ Tetrahedrite-(Fe) | Cu6(Cu4Fe22+)Sb4S12S |
| Co | Cobalt | |
| Co | ⓘ Carrollite | CuCo2S4 |
| Co | ⓘ Erythrite | Co3(AsO4)2 · 8H2O |
| Co | ⓘ Glaucodot | (Co0.50Fe0.50)AsS |
| Co | ⓘ Safflorite | (Co,Ni,Fe)As2 |
| Co | ⓘ Skutterudite | CoAs3 |
| Ni | Nickel | |
| Ni | ⓘ Annabergite | Ni3(AsO4)2 · 8H2O |
| Ni | ⓘ Breithauptite | NiSb |
| Ni | ⓘ Gersdorffite | NiAsS |
| Ni | ⓘ Millerite | NiS |
| Ni | ⓘ Nickelskutterudite | NiAs3 |
| Ni | ⓘ Nickeline | NiAs |
| Ni | ⓘ Pararammelsbergite | NiAs2 |
| Ni | ⓘ Rammelsbergite | NiAs2 |
| Ni | ⓘ Safflorite | (Co,Ni,Fe)As2 |
| Ni | ⓘ Smythite | (Fe,Ni)3+xS4 (x=0-0.3) |
| Ni | ⓘ Pimelite | Ni3Si4O10(OH)2 · 4H2O |
| Cu | Copper | |
| Cu | ⓘ Antlerite | Cu3(SO4)(OH)4 |
| Cu | ⓘ Atacamite | Cu2(OH)3Cl |
| Cu | ⓘ Aurichalcite | (Zn,Cu)5(CO3)2(OH)6 |
| Cu | ⓘ Azurite | Cu3(CO3)2(OH)2 |
| Cu | ⓘ Betekhtinite | Pb2(Cu,Fe)22-24S15 |
| Cu | ⓘ Bornite | Cu5FeS4 |
| Cu | ⓘ Brochantite | Cu4(SO4)(OH)6 |
| Cu | ⓘ Carrollite | CuCo2S4 |
| Cu | ⓘ Chalcopyrite | CuFeS2 |
| Cu | ⓘ Chalcoalumite | CuAl4(SO4)(OH)12 · 3H2O |
| Cu | ⓘ Chalcocite | Cu2S |
| Cu | ⓘ Chrysocolla | Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| Cu | ⓘ Clinoclase | Cu3(AsO4)(OH)3 |
| Cu | ⓘ Conichalcite | CaCu(AsO4)(OH) |
| Cu | ⓘ Connellite | Cu19(SO4)(OH)32Cl4 · 3H2O |
| Cu | ⓘ Covellite | CuS |
| Cu | ⓘ Cuprite | Cu2O |
| Cu | ⓘ Cuprostibite | Cu2(Sb,Tl) |
| Cu | ⓘ Cyanotrichite | Cu4Al2(SO4)(OH)12 · 2H2O |
| Cu | ⓘ Native Copper | Cu |
| Cu | ⓘ Devilline | CaCu4(SO4)2(OH)6 · 3H2O |
| Cu | ⓘ Digenite | Cu9S5 |
| Cu | ⓘ Dioptase | CuSiO3 · H2O |
| Cu | ⓘ Djurleite | Cu31S16 |
| Cu | ⓘ Domeykite | Cu3As |
| Cu | ⓘ Duftite | PbCu(AsO4)(OH) |
| Cu | ⓘ Euchroite | Cu2(AsO4)(OH) · 3H2O |
| Cu | ⓘ Lavendulan | NaCaCu5(AsO4)4Cl · 5H2O |
| Cu | ⓘ Linarite | PbCu(SO4)(OH)2 |
| Cu | ⓘ Liroconite | Cu2Al(AsO4)(OH)4 · 4H2O |
| Cu | ⓘ Malachite | Cu2(CO3)(OH)2 |
| Cu | ⓘ Metazeunerite | Cu(UO2)2(AsO4)2 · 8H2O |
| Cu | ⓘ Orthoserpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| Cu | ⓘ Rosasite | (Cu,Zn)2(CO3)(OH)2 |
| Cu | ⓘ Roxbyite | Cu58S32 |
| Cu | ⓘ Seligmannite | PbCuAsS3 |
| Cu | ⓘ Serpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| Cu | ⓘ Spangolite | Cu6Al(SO4)(OH)12Cl · 3H2O |
| Cu | ⓘ Spionkopite | Cu39S28 |
| Cu | ⓘ Tennantite Subgroup | Cu6(Cu4C22+)As4S12S |
| Cu | ⓘ Tenorite | CuO |
| Cu | ⓘ Tetrahedrite Subgroup | Cu6(Cu4C22+)Sb4S12S |
| Cu | ⓘ Tyrolite | Ca2Cu9(AsO4)4(CO3)(OH)8 · 11H2O |
| Cu | ⓘ Umangite | Cu3Se2 |
| Cu | ⓘ Wittichenite | Cu3BiS3 |
| Cu | ⓘ Woodwardite | Cu1-xAlx(OH)2(SO4)x/2 · nH2O |
| Cu | ⓘ Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| Cu | ⓘ Zeunerite | Cu(UO2)2(AsO4)2 · 12H2O |
| Cu | ⓘ Zálesíite | CaCu6(AsO4)2(AsO3OH)(OH)6 · 3H2O |
| Cu | ⓘ Rouaite | Cu2(NO3)(OH)3 |
| Cu | ⓘ Zincolivenite | CuZn(AsO4)(OH) |
| Cu | ⓘ Cyprine | Ca19Cu2+Al4(Al6Mg2)(◻4)◻[Si2O7]4[(SiO4)10](OH)(OH)9 |
| Cu | ⓘ UM1986-24-O:Cu | Cu-O ? |
| Cu | ⓘ Tennantite-(Zn) | Cu6(Cu4Zn2)As4S12S |
| Cu | ⓘ Tetrahedrite-(Zn) | Cu6(Cu4Zn2)Sb4S12S |
| Cu | ⓘ Tetrahedrite-(Fe) | Cu6(Cu4Fe22+)Sb4S12S |
| Zn | Zinc | |
| Zn | ⓘ Adamite | Zn2(AsO4)(OH) |
| Zn | ⓘ Aurichalcite | (Zn,Cu)5(CO3)2(OH)6 |
| Zn | ⓘ Austinite | CaZn(AsO4)(OH) |
| Zn | ⓘ Bianchite | Zn(H2O)6(SO4) |
| Zn | ⓘ Brianyoungite | Zn3(CO3,SO4)(OH)4 |
| Zn | ⓘ Chlorophoenicite | (Mn,Mg)3Zn2(AsO4)(OH,O)6 |
| Zn | ⓘ Chalcophanite | ZnMn34+O7 · 3H2O |
| Zn | ⓘ Cianciulliite | Mn(Mg,Mn)2Zn2(OH)10 · 2-4H2O |
| Zn | ⓘ Clinohedrite | CaZn(SiO4) · H2O |
| Zn | ⓘ Descloizite | PbZn(VO4)(OH) |
| Zn | ⓘ Esperite | PbCa2Zn3(SiO4)3 |
| Zn | ⓘ Fraipontite | (Zn,Al)3((Si,Al)2O5)(OH)4 |
| Zn | ⓘ Franklinfurnaceite | Ca2Fe3+Mn32+Mn3+(Zn2Si2O10)(OH)8 |
| Zn | ⓘ Franklinite | Zn2+Fe23+O4 |
| Zn | ⓘ Franklinphilite | (K,Na)4(Mn2+,Mg,Zn)48(Si,Al)72(O,OH)216 · 6H2O |
| Zn | ⓘ Gahnite | ZnAl2O4 |
| Zn | ⓘ Genthelvite | Be3Zn4(SiO4)3S |
| Zn | ⓘ Gerstmannite | MnMgZn(SiO4)(OH)2 |
| Zn | ⓘ Hardystonite | Ca2Zn[Si2O7] |
| Zn | ⓘ Hauckite | Fe33+(Mg,Mn2+)24Zn18(SO4)4(CO3)2(OH)81 |
| Zn | ⓘ Hemimorphite | Zn4Si2O7(OH)2 · H2O |
| Zn | ⓘ Hendricksite | KZn3(Si3Al)O10(OH)2 |
| Zn | ⓘ Hetaerolite | ZnMn2O4 |
| Zn | ⓘ Hodgkinsonite | Mn2+Zn2(SiO4)(OH)2 |
| Zn | ⓘ Holdenite | (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 |
| Zn | ⓘ Hetaerolite var. Hydrohetaerolite | Zn(Mn,◻)2(O,OH)4 |
| Zn | ⓘ Hydrozincite | Zn5(CO3)2(OH)6 |
| Zn | ⓘ Jeffersonite | Ca(Mn,Zn,Fe)Si2O6 |
| Zn | ⓘ Junitoite | CaZn2Si2O7 · H2O |
| Zn | ⓘ Kolicite | Mn72+Zn4(AsO4)2(SiO4)2(OH)8 |
| Zn | ⓘ Köttigite | Zn3(AsO4)2 · 8H2O |
| Zn | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| Zn | ⓘ Larsenite | PbZnSiO4 |
| Zn | ⓘ Lawsonbauerite | (Mn2+,Mg)9Zn4(SO4)2(OH)22 · 8H2O |
| Zn | ⓘ Legrandite | Zn2(AsO4)(OH) · H2O |
| Zn | ⓘ Lennilenapeite | K6-7(Mg,Mn,Fe,Zn)48(Si,Al)72(O,OH)216 · 16H2O |
| Zn | ⓘ Loseyite | (Mn2+,Zn,Mg)4Zn3(CO3)2(OH)10 |
| Zn | ⓘ Magnesiochlorophoenicite | (Mg,Mn)3Zn2(AsO4)(OH,O)6 |
| Zn | ⓘ Mcgovernite | Mn19Zn3(AsO4)3(AsO3)(SiO4)3(OH)21 |
| Zn | ⓘ Metalodèvite | Zn(UO2)2(AsO4)2 · 10H2O |
| Zn | ⓘ Minehillite | (K,Na)2-3Ca28Zn4Al4Si40O112(OH)16 |
| Zn | ⓘ Mooreite | Mg9◻2Mn2Zn4(SO4)2(OH)26 · 8H2O |
| Zn | ⓘ Ogdensburgite | Ca2Fe43+(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O |
| Zn | ⓘ Ojuelaite | ZnFe23+(AsO4)2(OH)2 · 4H2O |
| Zn | ⓘ Orthoserpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| Zn | ⓘ Petedunnite | CaZnSi2O6 |
| Zn | ⓘ Reinerite | Zn3(AsO3)2 |
| Zn | ⓘ Rosasite | (Cu,Zn)2(CO3)(OH)2 |
| Zn | ⓘ Samfowlerite | Ca28Mn6Zn4(Be,Zn)4Be12[(OH)3(SiO4)3(Si2O7)2]4 |
| Zn | ⓘ Sauconite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| Zn | ⓘ Sclarite | Zn7(CO3)2(OH)10 |
| Zn | ⓘ Serpierite | Ca(Cu,Zn)4(SO4)2(OH)6 · 3H2O |
| Zn | ⓘ Simonkolleite | Zn5Cl2(OH)8 · H2O |
| Zn | ⓘ Smithsonite | ZnCO3 |
| Zn | ⓘ Sphalerite | ZnS |
| Zn | ⓘ Torreyite | (Mg,Mn2+)7◻2Mn22+Zn4(SO4)2(OH)22 · 8H2O |
| Zn | ⓘ Sauconite var. Vanuxemite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| Zn | ⓘ Wurtzite var. Voltzite | (Zn,Fe,Mn) S [with O C H ] |
| Zn | ⓘ Willemite | Zn2SiO4 |
| Zn | ⓘ Woodruffite | Zn2+x/2(Mn4+1-xMnx3+)O2 · yH2O |
| Zn | ⓘ Wurtzite | (Zn,Fe)S |
| Zn | ⓘ Yeatmanite | Zn6Mn92+Sb25+(SiO4)4O12 |
| Zn | ⓘ Zincmelanterite | Zn(H2O)6(SO4) · H2O |
| Zn | ⓘ Zincite | ZnO |
| Zn | ⓘ Znucalite | Zn10Ca0.83(UO2)0.83(CO3)4(OH)15.31(H2O)5.48 |
| Zn | ⓘ Willemite var. Troostite | (Zn,Mn)2SiO4 |
| Zn | ⓘ Arakiite | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| Zn | ⓘ Gageite-2M | (Mn,Mg,Zn)42Si16O54(OH)40 |
| Zn | ⓘ Sphalerite var. Cleiophane | ZnS |
| Zn | ⓘ Diopside var. Zinc-Schefferite | Ca(Mg,Mn,Zn)Si2O6 |
| Zn | ⓘ Köttigite-Parasymplesite Series | |
| Zn | ⓘ Fowlerite | (Mn2+,Zn,Ca)SiO3 |
| Zn | ⓘ Willemite var. Beta-Willemite | Zn2SiO4 |
| Zn | ⓘ Zincolivenite | CuZn(AsO4)(OH) |
| Zn | ⓘ UM1986-10-CO:ClHMgMnZn (also called Mineral F, Dunn, 1995) | Mg5(Zn,Mn)3(CO3)2(OH,Cl)12 · H2O |
| Zn | ⓘ Fayalite var. Roepperite (of Brush) | (Fe2+,Mn,Zn)2SiO4 |
| Zn | ⓘ UM1985-26-SiO:CaMgPbZn (Also known as Mineral A) | Pb2Zn5Ca4Mg2Si7O27 |
| Zn | ⓘ UM1986-11-CO:Zn | Zn-C-O-H ? |
| Zn | ⓘ Tennantite-(Zn) | Cu6(Cu4Zn2)As4S12S |
| Zn | ⓘ Tetrahedrite-(Zn) | Cu6(Cu4Zn2)Sb4S12S |
| Zn | ⓘ Peterchinite | Zn3Zn2(OH)6As[O3(OH)3] |
| As | Arsenic | |
| As | ⓘ Adamite | Zn2(AsO4)(OH) |
| As | ⓘ Adelite | CaMg(AsO4)(OH) |
| As | ⓘ Akrochordite | MnMn2Mn2(AsO4)2(OH)4(H2O)4 |
| As | ⓘ Allactite | Mn72+(AsO4)2(OH)8 |
| As | ⓘ Annabergite | Ni3(AsO4)2 · 8H2O |
| As | ⓘ Arsenolite | As2O3 |
| As | ⓘ Arsenopyrite | FeAsS |
| As | ⓘ Native Arsenic | As |
| As | ⓘ Arseniosiderite | Ca2Fe33+(AsO4)3O2 · 3H2O |
| As | ⓘ Austinite | CaZn(AsO4)(OH) |
| As | ⓘ Bariopharmacosiderite | Ba0.5Fe43+(AsO4)3(OH)4 · 5H2O |
| As | ⓘ Baumhauerite | Pb12As16S36 |
| As | ⓘ Brandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| As | ⓘ Cahnite | Ca2[B(OH)4](AsO4) |
| As | ⓘ Carminite | PbFe23+(AsO4)2(OH)2 |
| As | ⓘ Chlorophoenicite | (Mn,Mg)3Zn2(AsO4)(OH,O)6 |
| As | ⓘ Clinoclase | Cu3(AsO4)(OH)3 |
| As | ⓘ Conichalcite | CaCu(AsO4)(OH) |
| As | ⓘ Domeykite | Cu3As |
| As | ⓘ Duftite | PbCu(AsO4)(OH) |
| As | ⓘ Erythrite | Co3(AsO4)2 · 8H2O |
| As | ⓘ Euchroite | Cu2(AsO4)(OH) · 3H2O |
| As | ⓘ Eveite | Mn22+(AsO4)(OH) |
| As | ⓘ Flinkite | Mn22+Mn3+(AsO4)(OH)4 |
| As | ⓘ Fluckite | CaMn2+(AsO3OH)2 · 2H2O |
| As | ⓘ Gersdorffite | NiAsS |
| As | ⓘ Glaucodot | (Co0.50Fe0.50)AsS |
| As | ⓘ Guérinite | Ca6(HAsO4)3(AsO4)2 · 10.5H2O |
| As | ⓘ Haidingerite | CaHAsO4 · H2O |
| As | ⓘ Hedyphane | Ca2Pb3(AsO4)3Cl |
| As | ⓘ Holdenite | (Mn2+,Mg)6Zn3(AsO4)2(SiO4)(OH)8 |
| As | ⓘ Jarosewichite | Mn32+Mn3+(AsO4)(OH)6 |
| As | ⓘ Johnbaumite | Ca5(AsO4)3(OH) |
| As | ⓘ Kolicite | Mn72+Zn4(AsO4)2(SiO4)2(OH)8 |
| As | ⓘ Köttigite | Zn3(AsO4)2 · 8H2O |
| As | ⓘ Kraisslite | Zn3(Mn,Mg)25(Fe3+,Al)(As3+O3)2[(Si,As5+)O4]10(OH)16 |
| As | ⓘ Lavendulan | NaCaCu5(AsO4)4Cl · 5H2O |
| As | ⓘ Legrandite | Zn2(AsO4)(OH) · H2O |
| As | ⓘ Liroconite | Cu2Al(AsO4)(OH)4 · 4H2O |
| As | ⓘ Löllingite | FeAs2 |
| As | ⓘ Manganberzeliite | (NaCa2)Mn22+(AsO4)3 |
| As | ⓘ Manganohörnesite | Mn32+(AsO4)2 · 8H2O |
| As | ⓘ Magnesiochlorophoenicite | (Mg,Mn)3Zn2(AsO4)(OH,O)6 |
| As | ⓘ Magnussonite | Mn102+(As3+O3)6(OH,Cl)2 |
| As | ⓘ Mcgovernite | Mn19Zn3(AsO4)3(AsO3)(SiO4)3(OH)21 |
| As | ⓘ Metauranospinite | Ca(UO2)2(AsO4)2 · 8H2O |
| As | ⓘ Metalodèvite | Zn(UO2)2(AsO4)2 · 10H2O |
| As | ⓘ Metazeunerite | Cu(UO2)2(AsO4)2 · 8H2O |
| As | ⓘ Mimetite | Pb5(AsO4)3Cl |
| As | ⓘ Nelenite | (Mn,Fe)16(Si12O30)(OH)14[As33+O6(OH)3] |
| As | ⓘ Nickelskutterudite | NiAs3 |
| As | ⓘ Nickeline | NiAs |
| As | ⓘ Ogdensburgite | Ca2Fe43+(Zn,Mn2+)(AsO4)4(OH)6 · 6H2O |
| As | ⓘ Ojuelaite | ZnFe23+(AsO4)2(OH)2 · 4H2O |
| As | ⓘ Parabrandtite | Ca2Mn2+(AsO4)2 · 2H2O |
| As | ⓘ Pararammelsbergite | NiAs2 |
| As | ⓘ Pararealgar | As4S4 |
| As | ⓘ Parasymplesite | Fe32+(AsO4)2 · 8H2O |
| As | ⓘ Pharmacolite | Ca(HAsO4) · 2H2O |
| As | ⓘ Pharmacosiderite | KFe43+(AsO4)3(OH)4 · 6-7H2O |
| As | ⓘ Picropharmacolite | Ca4Mg(AsO4)2(HAsO4)2 · 11H2O |
| As | ⓘ Rammelsbergite | NiAs2 |
| As | ⓘ Realgar | As4S4 |
| As | ⓘ Reinerite | Zn3(AsO3)2 |
| As | ⓘ Retzian-(La) | Mn22+La(AsO4)(OH)4 |
| As | ⓘ Retzian-(Nd) | Mn22+Nd(AsO4)(OH)4 |
| As | ⓘ Safflorite | (Co,Ni,Fe)As2 |
| As | ⓘ Sarkinite | Mn22+(AsO4)(OH) |
| As | ⓘ Schallerite | Mn162+As3Si12O36(OH)17 |
| As | ⓘ Scorodite | Fe3+AsO4 · 2H2O |
| As | ⓘ Segnitite | PbFe33+AsO4(AsO3OH)(OH)6 |
| As | ⓘ Seligmannite | PbCuAsS3 |
| As | ⓘ Skutterudite | CoAs3 |
| As | ⓘ Sterlinghillite | Mn32+(AsO4)2 · 3H2O |
| As | ⓘ Svabite | Ca5(AsO4)3F |
| As | ⓘ Synadelphite | Mn92+(As5+O4)2(As3+O3)(OH)9 · 2H2O |
| As | ⓘ Tennantite Subgroup | Cu6(Cu4C22+)As4S12S |
| As | ⓘ Tilasite | CaMg(AsO4)F |
| As | ⓘ Turneaureite | Ca5(AsO4)3Cl |
| As | ⓘ Tyrolite | Ca2Cu9(AsO4)4(CO3)(OH)8 · 11H2O |
| As | ⓘ Uranospinite | Ca(UO2)2(AsO4)2 · 10H2O |
| As | ⓘ Villyaellenite | (Mn,Ca)Mn2Ca2(AsO3OH)2(AsO4)2 · 4H2O |
| As | ⓘ Wallkilldellite | Ca2Mn32+(AsO4)2(OH)4 · 9H2O |
| As | ⓘ Wendwilsonite | Ca2Mg(AsO4)2 · 2H2O |
| As | ⓘ Yukonite | Ca3Fe3+(AsO4)2(OH)3 · 5H2O |
| As | ⓘ Zeunerite | Cu(UO2)2(AsO4)2 · 12H2O |
| As | ⓘ Arakiite | (Zn,Mn2+)(Mn2+,Mg)12(Fe3+,Al)2(As5+O4)2(As3+O3)(OH)23 |
| As | ⓘ Graeserite | Fe43+Ti3As3+O13(OH) |
| As | ⓘ Zálesíite | CaCu6(AsO4)2(AsO3OH)(OH)6 · 3H2O |
| As | ⓘ Köttigite-Parasymplesite Series | |
| As | ⓘ Zincolivenite | CuZn(AsO4)(OH) |
| As | ⓘ Retzian Group | Mn22+REE(AsO4)(OH)4 |
| As | ⓘ Miguelromeroite | Mn52+(AsO3OH)2(AsO4)2(H2O)4 |
| As | ⓘ Strontiopharmacosiderite | Sr0.5Fe43+[(AsO4)3(OH)4] · 4H2O |
| As | ⓘ Castellaroite | Mn32+(AsO4)2 · 4H2O |
| As | ⓘ UM1983-30-AsO:FeHMgMnZn (Also known as Mineral D) | (Mn,Mg,Fe3+,Al)15(AsO3)(AsO4)2(OH)23 |
| As | ⓘ Tennantite-(Zn) | Cu6(Cu4Zn2)As4S12S |
| As | ⓘ Peterchinite | Zn3Zn2(OH)6As[O3(OH)3] |
| Se | Selenium | |
| Se | ⓘ Umangite | Cu3Se2 |
| Sr | Strontium | |
| Sr | ⓘ Celestine | SrSO4 |
| Sr | ⓘ Strontianite | SrCO3 |
| Sr | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| Sr | ⓘ Epidote-(Sr) | (CaSr)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Sr | ⓘ Strontiopharmacosiderite | Sr0.5Fe43+[(AsO4)3(OH)4] · 4H2O |
| Y | Yttrium | |
| Y | ⓘ Hellandite-(Y) | (Ca,REE)4Y2Al◻2(B4Si4O22) (OH)2 |
| Zr | Zirconium | |
| Zr | ⓘ Zircon | Zr(SiO4) |
| Nb | Niobium | |
| Nb | ⓘ Fersmite | CaNb2O6 |
| Nb | ⓘ Pyrochlore Group | A2Nb2(O,OH)6Z |
| Nb | ⓘ Hydroxycalciopyrochlore | (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) |
| Mo | Molybdenum | |
| Mo | ⓘ Ferrimolybdite | Fe2(MoO4)3 · nH2O |
| Mo | ⓘ Molybdenite | MoS2 |
| Mo | ⓘ Powellite | Ca(MoO4) |
| Mo | ⓘ Wulfenite | Pb(MoO4) |
| Mo | ⓘ Powellite-Scheelite Series | |
| Ag | Silver | |
| Ag | ⓘ Acanthite | Ag2S |
| Ag | ⓘ Native Silver | Ag |
| Cd | Cadmium | |
| Cd | ⓘ Greenockite | CdS |
| Cd | ⓘ Hawleyite | CdS |
| Cd | ⓘ Otavite | CdCO3 |
| Sb | Antimony | |
| Sb | ⓘ Berthierite | FeSb2S4 |
| Sb | ⓘ Breithauptite | NiSb |
| Sb | ⓘ Cuprostibite | Cu2(Sb,Tl) |
| Sb | ⓘ Hydroxycalcioroméite | (Ca,Sb3+)2(Sb5+,Ti)2O6(OH) |
| Sb | ⓘ Roméite Group | A2(Sb5+)2O6Z |
| Sb | ⓘ Stibnite | Sb2S3 |
| Sb | ⓘ Tetrahedrite Subgroup | Cu6(Cu4C22+)Sb4S12S |
| Sb | ⓘ Yeatmanite | Zn6Mn92+Sb25+(SiO4)4O12 |
| Sb | ⓘ Zinkenite | Pb9Sb22S42 |
| Sb | ⓘ Tetrahedrite-(Zn) | Cu6(Cu4Zn2)Sb4S12S |
| Sb | ⓘ Tetrahedrite-(Fe) | Cu6(Cu4Fe22+)Sb4S12S |
| Ba | Barium | |
| Ba | ⓘ Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| Ba | ⓘ Bariopharmacosiderite | Ba0.5Fe43+(AsO4)3(OH)4 · 5H2O |
| Ba | ⓘ Barylite | Be2Ba(Si2O7) |
| Ba | ⓘ Baryte | BaSO4 |
| Ba | ⓘ Celsian | Ba(Al2Si2O8) |
| Ba | ⓘ Microcline var. Hyalophane | (K,Ba)[Al(Si,Al)Si2O8] |
| Ba | ⓘ Todorokite | (Na,Ca,K,Ba,Sr)1-x(Mn,Mg,Al)6O12 · 3-4H2O |
| Ba | ⓘ Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| Ba | ⓘ UM1986-23-O:BaMnU | Ba-Mn-U-O |
| Ba | ⓘ Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| La | Lanthanum | |
| La | ⓘ Retzian-(La) | Mn22+La(AsO4)(OH)4 |
| La | ⓘ Ferriakasakaite-(La) | (CaLa)(Fe3+AlMn2+)O[Si2O7][SiO4](OH) |
| Ce | Cerium | |
| Ce | ⓘ Allanite-(Ce) | (CaCe)(AlAlFe2+)O[Si2O7][SiO4](OH) |
| Ce | ⓘ Monazite-(Ce) | Ce(PO4) |
| Ce | ⓘ Synchysite-(Ce) | CaCe(CO3)2F |
| Nd | Neodymium | |
| Nd | ⓘ Retzian-(Nd) | Mn22+Nd(AsO4)(OH)4 |
| W | Tungsten | |
| W | ⓘ Hübnerite | MnWO4 |
| W | ⓘ Scheelite | Ca(WO4) |
| W | ⓘ Powellite-Scheelite Series | |
| Au | Gold | |
| Au | ⓘ Native Gold | Au |
| Tl | Thallium | |
| Tl | ⓘ Cuprostibite | Cu2(Sb,Tl) |
| Pb | Lead | |
| Pb | ⓘ Anglesite | PbSO4 |
| Pb | ⓘ Barysilite | Pb8Mn2+[Si2O7]3 |
| Pb | ⓘ Baumhauerite | Pb12As16S36 |
| Pb | ⓘ Betekhtinite | Pb2(Cu,Fe)22-24S15 |
| Pb | ⓘ Carminite | PbFe23+(AsO4)2(OH)2 |
| Pb | ⓘ Cerussite | PbCO3 |
| Pb | ⓘ Descloizite | PbZn(VO4)(OH) |
| Pb | ⓘ Duftite | PbCu(AsO4)(OH) |
| Pb | ⓘ Dundasite | PbAl2(CO3)2(OH)4 · H2O |
| Pb | ⓘ Esperite | PbCa2Zn3(SiO4)3 |
| Pb | ⓘ Galena | PbS |
| Pb | ⓘ Ganomalite | Pb9Ca5Mn(Si2O7)4(SiO4)O |
| Pb | ⓘ Hancockite | (CaPb)(AlAlFe3+)O[Si2O7][SiO4](OH) |
| Pb | ⓘ Hedyphane | Ca2Pb3(AsO4)3Cl |
| Pb | ⓘ Hydrocerussite | Pb3(CO3)2(OH)2 |
| Pb | ⓘ Kentrolite | Pb2Mn23+(Si2O7)O2 |
| Pb | ⓘ Larsenite | PbZnSiO4 |
| Pb | ⓘ Native Lead | Pb |
| Pb | ⓘ Linarite | PbCu(SO4)(OH)2 |
| Pb | ⓘ Litharge | PbO |
| Pb | ⓘ Margarosanite | Ca2PbSi3O9 |
| Pb | ⓘ Mimetite | Pb5(AsO4)3Cl |
| Pb | ⓘ Nasonite | Pb6Ca4(Si2O7)3Cl2 |
| Pb | ⓘ Pyrobelonite | PbMn2+(VO4)(OH) |
| Pb | ⓘ Pyromorphite | Pb5(PO4)3Cl |
| Pb | ⓘ Roeblingite | Pb2Ca6Mn2+(Si3O9)2(SO4)2(OH)2 · 4H2O |
| Pb | ⓘ Segnitite | PbFe33+AsO4(AsO3OH)(OH)6 |
| Pb | ⓘ Seligmannite | PbCuAsS3 |
| Pb | ⓘ Wulfenite | Pb(MoO4) |
| Pb | ⓘ Zinkenite | Pb9Sb22S42 |
| Pb | ⓘ UM1985-26-SiO:CaMgPbZn (Also known as Mineral A) | Pb2Zn5Ca4Mg2Si7O27 |
| Bi | Bismuth | |
| Bi | ⓘ Wittichenite | Cu3BiS3 |
| Th | Thorium | |
| Th | ⓘ Thorite var. Orangite | Th(SiO4) |
| Th | ⓘ Thorite | Th(SiO4) |
| Th | ⓘ Thorutite | (Th,U,Ca)Ti2(O,OH)6 |
| U | Uranium | |
| U | ⓘ Meta-ankoleite | K2(UO2)2(PO4)2 · 6H2O |
| U | ⓘ Metauranospinite | Ca(UO2)2(AsO4)2 · 8H2O |
| U | ⓘ Metalodèvite | Zn(UO2)2(AsO4)2 · 10H2O |
| U | ⓘ Metazeunerite | Cu(UO2)2(AsO4)2 · 8H2O |
| U | ⓘ Thorutite | (Th,U,Ca)Ti2(O,OH)6 |
| U | ⓘ Uraninite | UO2 |
| U | ⓘ Uranophane | Ca(UO2)2(SiO3OH)2 · 5H2O |
| U | ⓘ Uranospinite | Ca(UO2)2(AsO4)2 · 10H2O |
| U | ⓘ Zeunerite | Cu(UO2)2(AsO4)2 · 12H2O |
| U | ⓘ Znucalite | Zn10Ca0.83(UO2)0.83(CO3)4(OH)15.31(H2O)5.48 |
| U | ⓘ Hydroxycalciopyrochlore | (Ca,Na,U,◻)2(Nb,Ti)2O6(OH) |
| U | ⓘ UM1986-23-O:BaMnU | Ba-Mn-U-O |
Mindat Articles
Franklin, New Jersey Essentials, Part 2: Localities by Stephen FritzHumite Group Minerals associated with the Franklin/Sterling Hill orebodies by Olav Revheim
Localities in this Region
- New Jersey
- Sussex County
- New Jersey
Other Regions, Features and Areas that Intersect
North AmericaContinent
North America PlateTectonic Plate
- Appalachian BasinBasin
- Laurentides DomainPassive Margin
USA
- New Jersey
- New Jersey HighlandsComplex
- Sussex County
This page contains all mineral locality references listed on mindat.org. This does not claim to be a complete list. If you know of more minerals from this site, please register so you can add to our database. This locality information is for reference purposes only. You should never attempt to
visit any sites listed in mindat.org without first ensuring that you have the permission of the land and/or mineral rights holders
for access and that you are aware of all safety precautions necessary.
References
Bayley, William S. (1910) Final Report of the State Geologist Vol. 7 - Iron Mines and Mining in N.J. Geological Survey of New Jersey.
Palache, Charles (1935) The minerals of Franklin and Sterling Hill, Sussex County, New Jersey. Professional Paper 180. US Geological Survey 135 pp. doi:10.3133/pp180
Franklin Mining District, Sussex County, New Jersey, USA
