Fluorophlogopite
A valid IMA mineral species
This page is currently not sponsored. Click here to sponsor this page.
About Fluorophlogopite
Formula:
KMg3(Si3Al)O10F2
Colour:
Pale yellow
Lustre:
Vitreous, Resinous
Hardness:
2 - 3
Specific Gravity:
2.83 (Calculated)
Crystal System:
Monoclinic
Member of:
Name:
Named in 1935 by D. P. Grigoriev in allusion to being fluorine dominant phlogopite.
Mica Group.
The fluorine analogue of phlogopite and the Mg analogue of fluorannite. Also the K analogue of UM2003-28-SiO:AlCsFFeHMg.
Forms a solid-solution series with yangzhumingite.
The fluorine analogue of phlogopite and the Mg analogue of fluorannite. Also the K analogue of UM2003-28-SiO:AlCsFFeHMg.
Forms a solid-solution series with yangzhumingite.
Unique Identifiers
Mindat ID:
29139
Long-form identifier:
mindat:1:1:29139:8
IMA Classification of Fluorophlogopite
Approved
Approval year:
2006
First published:
2007
Type description reference:
Classification of Fluorophlogopite
9.EC.20
9 : SILICATES (Germanates)
E : Phyllosilicates
C : Phyllosilicates with mica sheets, composed of tetrahedral and octahedral nets
9 : SILICATES (Germanates)
E : Phyllosilicates
C : Phyllosilicates with mica sheets, composed of tetrahedral and octahedral nets
Mineral Symbols
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
| Symbol | Source | Reference |
|---|---|---|
| Fphl | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Physical Properties of Fluorophlogopite
Vitreous, Resinous
Transparency:
Transparent
Colour:
Pale yellow
Hardness:
2 - 3 on Mohs scale
Tenacity:
Brittle
Cleavage:
Perfect
on {001}
on {001}
Fracture:
Micaceous
Comment:
Brittle to malleable
Density:
2.83 g/cm3 (Calculated)
Comment:
From single crystal data
Optical Data of Fluorophlogopite
Type:
Biaxial (-)
RI values:
nα = 1.543 nβ = 1.5682 nγ = 1.5688
2V:
Measured: 17° (2)
Max. Birefringence:
δ = 0.026
Based on recorded range of RI values above.
Based on recorded range of RI values above.
Interference Colours:
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
Surface Relief:
Moderate
Pleochroism:
Non-pleochroic
Chemistry of Fluorophlogopite
Mindat Formula:
KMg3(Si3Al)O10F2
Element Weights:
Crystallography of Fluorophlogopite
Crystal System:
Monoclinic
Class (H-M):
2/m - Prismatic
Space Group:
B2/m
Setting:
C2/m
Cell Parameters:
a = 5.3094(4) Å, b = 9.1933(7) Å, c = 10.1437(4) Å
β = 100.062(3)°
β = 100.062(3)°
Ratio:
a:b:c = 0.578 : 1 : 1.103
Unit Cell V:
487.51 ų (Calculated from Unit Cell)
Z:
2
Morphology:
Thin lamella
Comment:
1M polytype
Crystal Structure
Load
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Show
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Display Options
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
View
CIF File Best | x | y | z | a | b | c
CIF File Best | x | y | z | a | b | c
Rotation
Stop | Start
Stop | Start
Labels
Console Off | On | Grey | Yellow
Console Off | On | Grey | Yellow
Data courtesy of the American Mineralogist Crystal Structure Database. Click on an AMCSD ID to view structure
| ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
|---|---|---|---|---|---|---|---|
| 0000311 | Fluorophlogopite | McCauley J W, Newnham R E, Gibbs G V (1973) Crystal structure analysis of synthetic fluorophlogopite American Mineralogist 58 249-254 |  | 1973 | 0 | 293 | |
| 0000385 | Fluorophlogopite | Hazen R M, Burnham C W (1973) The crystal structures of one-layer phlogopite and annite American Mineralogist 58 889-900 | | 1973 | 0 | 293 | |
| 0000628 | Fluorophlogopite | Hazen R M, Finger L W (1978) The crystal structures and compressibilities of layer minerals at high pressure. II. Phlogopite and chlorite American Mineralogist 63 293-296 | | 1978 | 3.5 | 293 | |
| 0020180 | Fluorophlogopite | Scordari F, Schingaro E, Ventruti G, Nicotra E, Viccaro M, Tagliani S M (2013) Fluorophlogopite from Piano delle Concazze (Mt. Etna, Italy): Crystal chemistry and implications for the crystallization conditions American Mineralogist 98 1017-1025 | 2013 | Piano delle Concazze, Mt. Etna, Italy | 0 | 293 | |
| 0020181 | Fluorophlogopite | Scordari F, Schingaro E, Ventruti G, Nicotra E, Viccaro M, Tagliani S M (2013) Fluorophlogopite from Piano delle Concazze (Mt. Etna, Italy): Crystal chemistry and implications for the crystallization conditions American Mineralogist 98 1017-1025 | 2013 | Piano delle Concazze, Mt. Etna, Italy | 0 | 293 | |
| 0020182 | Fluorophlogopite | Scordari F, Schingaro E, Ventruti G, Nicotra E, Viccaro M, Tagliani S M (2013) Fluorophlogopite from Piano delle Concazze (Mt. Etna, Italy): Crystal chemistry and implications for the crystallization conditions American Mineralogist 98 1017-1025 | 2013 | Piano delle Concazze, Mt. Etna, Italy | 0 | 293 | |
| 0020183 | Fluorophlogopite | Scordari F, Schingaro E, Ventruti G, Nicotra E, Viccaro M, Tagliani S M (2013) Fluorophlogopite from Piano delle Concazze (Mt. Etna, Italy): Crystal chemistry and implications for the crystallization conditions American Mineralogist 98 1017-1025 | 2013 | Piano delle Concazze, Mt. Etna, Italy | 0 | 293 | |
| 0006911 | Fluorophlogopite | Ferraris G, Gula A, Ivaldi G, Nespolo M, Sokolova E, Uvarova Y, Khomyakov A P (2001) First structure determination of an MDO-2O mica polytype associated with a 1M polytype European Journal of Mineralogy 13 1013-1023 | 2001 | 0 | 293 |
CIF Raw Data - click here to close
X-Ray Powder Diffraction
Powder Diffraction Data:
| d-spacing | Intensity |
|---|---|
| 9.990 Å | (8) |
| 3.369 Å | (10) |
| 3.324 Å | (10) |
| 3.121 Å | (8) |
| 2.610 Å | (8) |
| 2.426 Å | (8) |
| 1.663 Å | (8) |
| 1.532 Å | (8) |
Reference:
Geological Environment
Paragenetic Mode(s):
| Paragenetic Mode | Earliest Age (Ga) |
|---|---|
| Stage 3a: Earth’s earliest Hadean crust | >4.50 |
| 11 : Volcanic fumarole minerals; reduced phases (see also #45) | |
| High-? alteration and/or metamorphism | |
| 31 : Thermally altered carbonate, phosphate, and iron formations | |
| Stage 4b: Highly evolved igneous rocks | >3.0 |
| 35 : Ultra-alkali and agpaitic igneous rocks | |
| 36 : Carbonatites, kimberlites, and related igneous rocks | |
| Stage 5: Initiation of plate tectonics | <3.5-2.5 |
| 40 : Regional metamorphism (greenschist, amphibolite, granulite facies) |
Type Occurrence of Fluorophlogopite
General Appearance of Type Material:
Very thin, flat laminae with a diameter of 200–400 µm.
Place of Conservation of Type Material:
Museo di Mineralogia, Dipartimento di Scienze della Terra, Università degli Studi di Roma “La Sapienza,” Italy, code 33003/1.
Geological Setting of Type Material:
Locally metasomatized benmoreitic autoclastic lavas.
Associated Minerals at Type Locality:
Reference:
Synonyms of Fluorophlogopite
Other Language Names for Fluorophlogopite
Varieties of Fluorophlogopite
| Zinc and Manganese-bearing Fluorophlogopite | From peralkaline phonolites of Ukraine, in a groundmass together with hendricksite. Has some tainiolite component in composition. |
Relationship of Fluorophlogopite to other Species
Member of:
Other Members of Biotite:
| Annite | KFe2+3(AlSi3O10)(OH)2 | Mon. 2/m : B2/m |
| Eastonite | KMg2Al(Al2Si2O10)(OH)2 | Mon. |
| Fluorannite | KFe2+3(Si3Al)O10F2 | Mon. 2/m : B2/m |
| Fluorotetraferriphlogopite | KMg3(Fe3+Si3O10)F2 | Mon. 2/m : B2/m |
| Oxyphlogopite | K(Mg,Ti,Fe)3[(Si,Al)4O10](O,F)2 | Mon. 2/m : B2/m |
| Phlogopite | KMg3(AlSi3O10)(OH)2 | Mon. 2/m : B2/m |
| Siderophyllite | KFe2+2Al(Al2Si2O10)(OH)2 | Mon. |
| Tetraferriannite | KFe2+3(Si3Fe3+)O10(OH)2 | Mon. 2/m : B2/m |
| Tetraferriphlogopite | KMg3(Fe3+Si3O10)(OH,F)2 | Mon. 2/m : B2/m |
Common Associates
Associated Minerals Based on Photo Data:
| 53 photos of Fluorophlogopite associated with Calcite | CaCO3 |
| 44 photos of Fluorophlogopite associated with Hematite | Fe2O3 |
| 19 photos of Fluorophlogopite associated with Magnetite | Fe2+Fe3+2O4 |
| 18 photos of Fluorophlogopite associated with Enstatite | Mg2Si2O6 |
| 18 photos of Fluorophlogopite associated with Tridymite | SiO2 |
| 14 photos of Fluorophlogopite associated with Pseudobrookite | Fe2TiO5 |
| 11 photos of Fluorophlogopite associated with Tremolite | ◻Ca2Mg5(Si8O22)(OH)2 |
| 10 photos of Fluorophlogopite associated with Fluoro-edenite | NaCa2Mg5(Si7Al)O22F2 |
| 10 photos of Fluorophlogopite associated with Fluorapatite | Ca5(PO4)3F |
| 8 photos of Fluorophlogopite associated with Diopside | CaMgSi2O6 |
Related Minerals - Strunz-mindat Grouping
| 9.EC. | Meifuite | KFe6(Si7Al)O19(OH)4Cl2 |
| 9.EC. | Balestraite | KLi2V5+Si4O12 |
| 9.EC.05 | Talc | Mg3Si4O10(OH)2 |
| 9.EC.05 | Minnesotaite | Fe2+3Si4O10(OH)2 |
| 9.EC.05 | Willemseite | Ni3Si4O10(OH)2 |
| 9.EC.9.EC. | Voloshinite | Rb(LiAl1.5◻0.5)(Al0.5Si3.5)O10F2 |
| 9.EC.10 | Fluorluanshiweiite | KLiAl1.5(Si3.5Al0.5)O10F2 |
| 9.EC.10 | Garmite | CsLiMg2(Si4O10)F2 |
| 9.EC.10 | Gorbunovite | CsLi2(Ti,Fe)Si4O10(F,OH,O)2 |
| 9.EC.10 | Ferripyrophyllite | Fe3+Si2O5(OH) |
| 9.EC.10 | Manganiceladonite | K(MgMn3+◻)(Si4O10)(OH)2 |
| 9.EC.10 | Luanshiweiite | KLiAl1.5(Si3.5Al0.5)O10(OH)2 |
| 9.EC.10 | Pyrophyllite | Al2Si4O10(OH)2 |
| 9.EC.15 | Paragonite | NaAl2(AlSi3O10)(OH)2 |
| 9.EC.15 | Ferroaluminoceladonite | K(Fe2+Al◻)(Si4O10)(OH)2 |
| 9.EC.15 | Nanpingite | CsAl2(AlSi3O10)(OH,F)2 |
| 9.EC.15 | Ferroceladonite | K(Fe2+Fe3+◻)(Si4O10)(OH)2 |
| 9.EC.15 | Ganterite | (Ba,Na,K)(Al,Mg)2(AlSi3O10)(OH)2 |
| 9.EC.15 | Kreiterite | CsLi2Fe3+(Si4O10)F2 |
| 9.EC.15 | Roscoelite | KV3+2(AlSi3O10)(OH)2 |
| 9.EC.15 | Aluminoceladonite | K(MgAl◻)(Si4O10)(OH)2 |
| 9.EC.15 | Tobelite | (NH4)Al2(AlSi3O10)(OH)2 |
| 9.EC.15 | Tainiolite | KLiMg2(Si4O10)F2 |
| 9.EC.15 | Celadonite | K(MgFe3+◻)(Si4O10)(OH)2 |
| 9.EC.15 | Chromceladonite | K(MgCr◻)(Si4O10)(OH)2 |
| 9.EC.15 | Montdorite | KFe2+1.5Mn2+0.5Mg0.5Si4O10(F,OH)2 |
| 9.EC.15 | Chromphyllite | KCr2(AlSi3O10)(OH)2 |
| 9.EC.15 | Boromuscovite | KAl2(BSi3O10)(OH)2 |
| 9.EC.15 | UM1988-22-SiO:AlCaFFeHKLiMg | KLiMgAl2Si3O10F2 |
| 9.EC.15 | Chernykhite | (Ba,Na)(V3+,Al,Mg)2((Si,Al)4O10)(OH)2 |
| 9.EC.15 | Muscovite | KAl2(AlSi3O10)(OH)2 |
| 9.EC.20 | Masutomilite | K(LiAlMn2+)[AlSi3O10]F2 |
| 9.EC.20 | Oxyphlogopite | K(Mg,Ti,Fe)3[(Si,Al)4O10](O,F)2 |
| 9.EC.20 | Chloroferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(Cl,OH,F)2 |
| 9.EC.20 | Siderophyllite | KFe2+2Al(Al2Si2O10)(OH)2 |
| 9.EC.20 | Sokolovaite | CsLi2Al(Si4O10)F2 |
| 9.EC.20 | Hendricksite | KZn3(Si3Al)O10(OH)2 |
| 9.EC.20 | Tetraferriphlogopite | KMg3(Fe3+Si3O10)(OH,F)2 |
| 9.EC.20 | Fluorannite | KFe2+3(Si3Al)O10F2 |
| 9.EC.20 | Aspidolite | NaMg3(AlSi3O10)(OH)2 |
| 9.EC.20 | Suhailite | (NH4)Fe2+3(AlSi3O10)(OH)2 |
| 9.EC.20 | Ephesite | NaLiAl2(Al2Si2O10)(OH)2 |
| 9.EC.20 | Norrishite | KLiMn3+2(Si4O10)O2 |
| 9.EC.20 | Phlogopite | KMg3(AlSi3O10)(OH)2 |
| 9.EC.20 | Yangzhumingite | KMg2.5(Si4O10)F2 |
| 9.EC.20 | Orlovite | KLi2Ti(Si4O10)OF |
| 9.EC.20 | Tetraferriannite | KFe2+3(Si3Fe3+)O10(OH)2 |
| 9.EC.20 | Shirokshinite | K(NaMg2)(Si4O10)F2 |
| 9.EC.20 | Trilithionite | K(Li1.5Al1.5)(AlSi3O10)(F,OH)2 |
| 9.EC.20 | Polylithionite | KLi2Al(Si4O10)(F,OH)2 |
| 9.EC.20 | Shirozulite | KMn2+3(Si3Al)O10(OH)2 |
| 9.EC.20 | Preiswerkite | NaMg2Al(Al2Si2O10)(OH)2 |
| 9.EC.20 | Wonesite | (Na,K)(Mg,Fe,Al)6((Al,Si)4O10)2(OH,F)4 |
| 9.EC.20 | UM2004-49-SiO:AlCsFHKLi | (Cs,K)(Al,Li)2.6((Si,Al)4O10)(F,OH)2 |
| 9.EC.20 | Fluorotetraferriphlogopite | KMg3(Fe3+Si3O10)F2 |
| 9.EC.20 | Annite | KFe2+3(AlSi3O10)(OH)2 |
| 9.EC.20 | Eastonite | KMg2Al(Al2Si2O10)(OH)2 |
| 9.EC.22 | Pimelite | Ni3Si4O10(OH)2 · 4H2O |
| 9.EC.30 | Margarite | CaAl2(Al2Si2O10)(OH)2 |
| 9.EC.30 | Chlorophaeite | (Ca,Mg,Fe)2Fe2Si4O13 · 10H2O |
| 9.EC.35 | Kinoshitalite | (Ba,K)(Mg,Mn2+,Al)3(Al2Si2O10)(OH)2 |
| 9.EC.35 | Ferrokinoshitalite | (Ba,K)(Fe2+,Mg)3(Al2Si2O10)(OH,F)2 |
| 9.EC.35 | Clintonite | CaAlMg2(SiAl3O10)(OH)2 |
| 9.EC.35 | Oxykinoshitalite | (Ba,K)(Mg,Ti,Fe3+,Fe2+)3((Si,Al)4O10)(O,OH,F)2 |
| 9.EC.35 | Fluorokinoshitalite | BaMg3(Al2Si2O10)F2 |
| 9.EC.35 | Bityite | CaLiAl2(AlBeSi2O10)(OH)2 |
| 9.EC.35 | Anandite | (Ba,K)(Fe2+,Mg)3((Si,Al,Fe)4O10)(S,OH)2 |
| 9.EC.40 | Montmorillonite | (Na,Ca)0.33(Al,Mg)2(Si4O10)(OH)2 · nH2O |
| 9.EC.40 | Beidellite | (Na,Ca0.5)0.3Al2((Si,Al)4O10)(OH)2 · nH2O |
| 9.EC.40 | Volkonskoite | Ca0.3(Cr,Mg,Fe)2((Si,Al)4O10)(OH)2 · 4H2O |
| 9.EC.40 | Nontronite | Na0.3Fe2((Si,Al)4O10)(OH)2 · nH2O |
| 9.EC.40 | Kurumsakite | (Zn,Ni,Cu)8Al8V5+2Si5O35 · 27H2O (?) |
| 9.EC.40 | Yakhontovite | (Ca,Na)0.5(Cu,Fe,Mg)2(Si4O10)(OH)2 · 3H2O |
| 9.EC.45 | Swinefordite | Li(Al,Li,Mg)3((Si,Al)4O10)2(OH,F)4 · nH2O |
| 9.EC.45 | Hectorite | Na0.3(Mg,Li)3(Si4O10)(F,OH)2 |
| 9.EC.45 | Zincsilite | Zn3Si4O10(OH)2 · 4H2O (?) |
| 9.EC.45 | Hanjiangite | Ba2CaV3+Al(H2AlSi3O12)(CO3)2F |
| 9.EC.45 | Spadaite | MgSiO2(OH)2 · H2O (?) |
| 9.EC.45 | Ferrosaponite | Ca0.3(Fe2+,Mg,Fe3+)3((Si,Al)4O10)(OH)2 · 4H2O |
| 9.EC.45 | Stevensite | (Ca,Na)xMg3-x(Si4O10)(OH)2 |
| 9.EC.45 | Saponite | Ca0.25(Mg,Fe)3((Si,Al)4O10)(OH)2 · nH2O |
| 9.EC.45 | Sauconite | Na0.3Zn3((Si,Al)4O10)(OH)2 · 4H2O |
| 9.EC.50 | Vermiculite | Mg0.7(Mg,Fe,Al)6(Si,Al)8O20(OH)4 · 8H2O |
| 9.EC.52 | Tarasovite | near NaKAl11Si13O40(OH)9 · 3H2O |
| 9.EC.55 | Clinochlore | Mg5Al(AlSi3O10)(OH)8 |
| 9.EC.55 | Borocookeite | (LiAl4◻)[BSi3O10](OH)8 |
| 9.EC.55 | Franklinfurnaceite | Ca2Fe3+Mn2+3Mn3+(Zn2Si2O10)(OH)8 |
| 9.EC.55 | Pennantite | Mn2+5Al(AlSi3O10)(OH)8 |
| 9.EC.55 | Vakhrushevaite | Mg5Cr(AlSi3O10)(OH)8 |
| 9.EC.55 | Nimite | (Ni,Mg,Al)6((Si,Al)4O10)(OH)8 |
| 9.EC.55 | Cookeite | (LiAl4◻)[AlSi3O10](OH)8 |
| 9.EC.55 | Gonyerite | (Mn2+,Mg)5Fe3+(Fe3+Si3O10)(OH)8 |
| 9.EC.55 | Chamosite | (Fe2+,Mg,Al,Fe3+)6(Si,Al)4O10(OH,O)8 |
| 9.EC.55 | Orthochamosite | (Fe2+,Mg,Fe3+)5Al(AlSi3O10)(OH,O)8 |
| 9.EC.55 | Baileychlore | (Zn,Fe2+,Al,Mg)6(Si,Al)4O10(OH)8 |
| 9.EC.55 | Sudoite | Mg2Al3(Si3Al)O10)(OH)8 |
| 9.EC.55 | Glagolevite | Na(Mg,Al)6(AlSi3O10)(OH,O)8 |
| 9.EC.55 | Donbassite | Al4.33(Si3Al)O10(OH)8 |
| 9.EC.60 | Dozyite | Mg7Al2(Al2Si4O15)(OH)12 |
| 9.EC.60 | Rectorite | (Na,Ca)Al4((Si,Al)8O20)(OH)4 · 2H2O |
| 9.EC.60 | Corrensite | (Mg,Fe)9((Si,Al)8O20)(OH)10 · nH2O |
| 9.EC.60 | Aliettite | Ca0.2Mg6((Si,Al)8O20)(OH)4 · 4H2O |
| 9.EC.60 | Karpinskite | (Ni,Mg)2Si2O5(OH)2 (?) |
| 9.EC.60 | Lunijianlaite | Li0.7Al6.2(AlSi7O20)(OH,O)10 |
| 9.EC.60 | Tosudite | Na0.5(Al,Mg)6((Si,Al)8O18)(OH)12 · 5H2O |
| 9.EC.60 | Hydrobiotite | K(Mg,Fe2+)6((Si,Al)8O20)(OH)4 · nH2O |
| 9.EC.60 | Saliotite | (Li,Na)Al3(AlSi3O10)(OH)5 |
| 9.EC.60 | Kulkeite | Mg8Al(AlSi7O20)(OH)10 |
| 9.EC.60 | Brinrobertsite | Na0.3Al4(Si4O10)2(OH)4 · 3.5 H2O |
| 9.EC.65 | Macaulayite | (Fe,Al)24Si4O43(OH)2 |
| 9.EC.70 | Burckhardtite | Pb2(Fe3+Te6+)[AlSi3O8]O6 |
| 9.EC.75 | Niksergievite | (Ba,Ca)2Al3(AlSi3O10)(CO3)(OH)6 · nH2O |
| 9.EC.75 | Ferrisurite | (Pb,Ca)2.4Fe3+2(Si4O10)(CO3)1.7(OH)3 · nH2O |
| 9.EC.75 | Surite | (Pb,Ca)3(Al,Fe2+,Mg)2((Si,Al)4O10)(CO3)2(OH)2 |
| 9.EC.80 | Kegelite | Pb8Al4(Si8O20)(SO4)2(CO3)4(OH)8 |
Radioactivity
Radioactivity:
| Element | % Content | Activity (Bq/kg) | Radiation Type |
|---|---|---|---|
| Uranium (U) | 0.0000% | 0 | α, β, γ |
| Thorium (Th) | 0.0000% | 0 | α, β, γ |
| Potassium (K) | 9.2817% | 2,877 | β, γ |
For comparison:
- Banana: ~15 Bq per fruit
- Granite: 1,000–3,000 Bq/kg
- EU exemption limit: 10,000 Bq/kg
Note: Risk is shown relative to daily recommended maximum exposure to non-background radiation of 1000 µSv/year. Note that natural background radiation averages around 2400 µSv/year so in reality these risks are probably extremely overstated! With infrequent handling and safe storage natural radioactive minerals do not usually pose much risk.
Interactive Simulator:
Note: The mass selector refers to the mass of radioactive mineral present, not the full specimen, also be aware that the matrix may also be radioactive, possibly more radioactive than this mineral!
Activity: –
| Distance | Dose rate | Risk |
|---|---|---|
| 1 cm | ||
| 10 cm | ||
| 1 m |
The external dose rate (D) from a radioactive mineral is estimated by summing the gamma radiation contributions from its Uranium, Thorium, and Potassium content, disregarding daughter-product which may have a significant effect in some cases (eg 'pitchblende'). This involves multiplying the activity (A, in Bq) of each element by its specific gamma ray constant (Γ), which accounts for its unique gamma emissions. The total unshielded dose at 1 cm is then scaled by the square of the distance (r, in cm) and multiplied by a shielding factor (μshield). This calculation provides a 'worst-case' or 'maximum risk' estimate because it assumes the sample is a point source and entirely neglects any self-shielding where radiation is absorbed within the mineral itself, meaning actual doses will typically be lower. The resulting dose rate (D) is expressed in microsieverts per hour (μSv/h).
D = ((AU × ΓU) + (ATh × ΓTh) + (AK × ΓK)) / r2 × μshield
Fluorescence of Fluorophlogopite
Not fluorescent
Other Information
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Internet Links for Fluorophlogopite
mindat.org URL:
https://www.mindat.org/min-29139.html
Please feel free to link to this page.
Please feel free to link to this page.
Search Engines:
External Links:
References for Fluorophlogopite
Reference List:
Yoder, H.S., Eugster, H.P. (1954) Phlogopite synthesis and stability range. Geochimica et Cosmochimica Acta, 6 (4) 157-185 doi:10.1016/0016-7037(54)90049-6
Kohn, J. A., Hatch, R. A. (1955) Synthetic mica investigations, VI: X-ray and optical data on synthetic fluor-phlogopite. American Mineralogist, 40 (1-2) 10-21
McCauley, James W., Newnham, R. E., Gibbs, and G. V. (1973) Crystal structure analysis of synthetic fluorophlogopite. American Mineralogist, 58 (3-4) 249-254
Gianfagna, A., Scordari, F., Mazziotti-Tagliani, S., Ventruti, G., Ottolini, L. (2007) Fluorophlogopite from Biancavilla (Mt. Etna, Sicily, Italy): Crystal structure and crystal chemistry of a new F-dominant analog of phlogopite. American Mineralogist, 92 (10) 1601-1609 doi:10.2138/am.2007.2502
Lacalamita, M., Balassone, G., Schingaro, E., Mesto, E., Mormone, A., Piochi, M., Ventruti, G., Joachimski, M. (2017) Fluorophlogopite-bearing and carbonate metamorphosed xenoliths from the Campanian Ignimbrite (Fiano, southern Italy): crystal chemical, geochemical and volcanological insights. Mineralogical Magazine, 81 (5). 1165-1189 doi:10.1180/minmag.2016.080.155
Localities for Fluorophlogopite
symbol to view information about a locality.
The Locality List
- This locality has map coordinates listed.
- This locality has estimated coordinates.
ⓘ - Click for references and further information on this occurrence.
? - Indicates mineral may be doubtful at this locality.
- Good crystals or important locality for species.
- World class for species or very significant.
(TL) - Type Locality for a valid mineral species.
(FRL) - First Recorded Locality for everything else (eg varieties).
All localities listed without proper references should be considered as questionable.
Antarctica | |
| Kimura et al. (2008) |
Australia | |
| Lottermoser et al. (1997) |
| Bottrill (2021) |
| R Bottrill |
| Kitto |
Austria | |
| Kolitsch (2016) |
Canada | |
| Peatfield (n.d.) |
| Chakhmouradian et al. (2015) |
| Groat et al. (2014) |
| Horváth et al. (2019) |
China | |
| Jinsha Xu and Ganfu Shen (2005) |
| Xiao et al. (2022) |
| Xiao et al. (2022) | |
| Liu et al. (2024) |
Egypt | |
| Abed et al. (2022) |
France | |
| Designolle (2023) |
| Designolle (2023) |
| Designolle (2021) |
| Médard et al. (2021) | |
| Philippe Rémy collection |
| Médard et al. (2021) |
| Médard et al. (2021) | |
| P & E Médard collection |
| Médard P. et al. (2009) |
| Georges FAVREAU collection & EDX ... +1 other reference |
Germany | |
| Marko Burkhardt Collection |
| XRD Analysis (05/11/2022) |
| Blaß et al. (2012) +1 other reference |
| A.D. Edgar | |
Greece | |
| Uwe Kolitsch and Branko Rieck analyses (see also http://lavrion.gr/Minerals/Updates.html) |
Hungary | |
| WDS: Béla Fehér |
Italy | |
| Russo et al. (2022) |
| Balassone et al. (2013) | |
| Balassone et al. (2002) +1 other reference |
| Stoppa et al. (2019) |
| Boari et al. (2009) |
| Boari et al. (2009) |
| in the collection of Christof Schäfer |
| Della Ventura et al. (1999) +1 other reference |
| "Giorgio Bortolozzi (visual identification) | |
| Ciriotti et al. (2011) |
| Boscardin M. et al. (2013) |
| Gianfagna et al. (2007) +1 other reference |
| Lacalamita et al. (2020) |
| Lacalamita et al. (2020) |
| Mittempergher (1965) +8 other references |
Madagascar | |
| Rakotondrabe et al. (2020) |
| www.minsocam.org (2004) | |
Myanmar | |
| Hughes (2020) |
| Gao et al. (2023) |
Pakistan | |
| Jose Zendrera Collection |
| imported from Shigar District +1 other reference | |
Romania | |
| Bojar et al. (2006) |
Russia | |
| Kislov (2024) |
| Sharygin et al. (2010) |
| Korinevsky et al. (2022) |
| Pekov et al. (2012) |
| Pekov et al. (2015) +6 other references | |
| Pekov et al. (2019) | |
| Shchipalkina et al. (2020) |
| Pekov et al. (2018) +1 other reference | |
| Pekov et al. (2014) |
| Pavel M. Kartashov analytical data (2013) |
| Pavel M. Kartashov analytical data (2010) |
| I.V.Pekov. E.A.Vlasov. E.A.Gerasimova Pitkyarantskaya mineralogical practice et al. (in Russisan) |
| Pavel.M. Kartashov (n.d.) |
| Erokhin et al. (2014) |
| Попов et al. (2018) +1 other reference |
Spain | |
| Sevillan et al. (2009) |
| Fleet (2003) | |
| Calvo Rebollar (2018) |
Ukraine | |
| Sharygin (2015) |
| Sharygin et al. (2011) |
USA | |
| Josef Vajdak (2002) |
| Färber (n.d.) |
| Gunow et al. (1980) |
| RRUFF samples R040039 |
| Palache (1935) | |
| Dunn (1995) | |
| and IMA CNMN Mica nomenclature committee +1 other reference | |
| Dunn (1995) | |
| Volkert (2005) |
| Tracy (1991) |
| Moritz (n.d.) |
| Walstrom (n.d.) |
| Maertens (2023) |
| Peterson et al. (1982) |
Quick NavTopAbout FluorophlogopiteUnique IdentifiersIMA Classification Classification Mineral SymbolsPhysical Properties Optical Data Chemistry Crystallography Crystal StructureX-Ray Powder DiffractionGeological EnvironmentType Occurrence SynonymsOther LanguagesVarietiesRelationshipsCommon AssociatesStrunz-MindatRadioactivityFluorescence Other InformationInternet Links References Localities Locality List

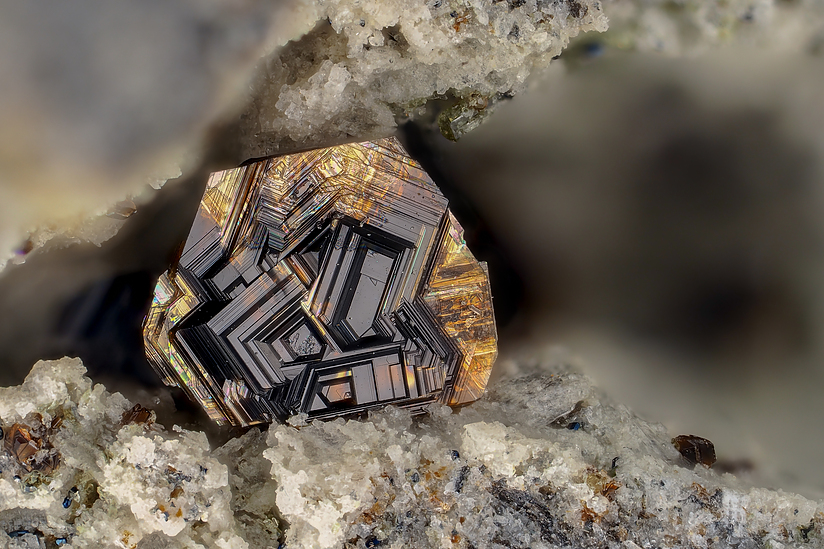

La Celia lamproite outcrops, Jumilla, Murcia, Spain
