Phillipsite-Na
A valid IMA mineral species - grandfathered
This page is currently not sponsored. Click here to sponsor this page.
About Phillipsite-Na
William Phillips
Formula:
(Na,K,Ca0.5,Ba0.5)4-7[Al4-7Si12-9O32] · 12H2O
Colour:
White
Lustre:
Vitreous
Hardness:
4 - 5
Crystal System:
Monoclinic
Member of:
Name:
Named after William Phillips (1775-1828), English mineralogist and founder of the Geologial Society of London.
Unique Identifiers
Mindat ID:
7229
Long-form identifier:
mindat:1:1:7229:4
IMA Classification of Phillipsite-Na
Approved, 'Grandfathered' (first described prior to 1959)
IMA Formula:
Na6(Si10Al6)O32 · 12H2O
Classification of Phillipsite-Na
9.GC.10
9 : SILICATES (Germanates)
G : Tektosilicates with zeolitic H2O; zeolite family
C : Chains of doubly-connected 4-membered rings
9 : SILICATES (Germanates)
G : Tektosilicates with zeolitic H2O; zeolite family
C : Chains of doubly-connected 4-membered rings
Mineral Symbols
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
Please only use the official IMA–CNMNC symbol. Older variants are listed for historical use only.
Please only use the official IMA–CNMNC symbol. Older variants are listed for historical use only.
| Symbol | Source | Reference |
|---|---|---|
| Php-Na | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
| Php | Whitney & Evans (2010) | Whitney, D.L. and Evans, B.W. (2010) Abbreviations for names of rock-forming minerals. American Mineralogist, 95, 185–187 doi:10.2138/am.2010.3371 |
Physical Properties of Phillipsite-Na
Optical Data of Phillipsite-Na
Type:
Biaxial (+/-)
RI values:
nα = 1.483 - 1.505 nβ = 1.484 - 1.511 nγ = 1.486 - 1.514
2V:
Measured: 60° to 90°, Calculated: 70° to 72°
Max. Birefringence:
δ = 0.003 - 0.009
Based on recorded range of RI values above.
Based on recorded range of RI values above.
Interference Colours:
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
Surface Relief:
Moderate
Dispersion:
r > v or r < v
Chemistry of Phillipsite-Na
Mindat Formula:
(Na,K,Ca0.5,Ba0.5)4-7[Al4-7Si12-9O32] · 12H2O
Element Weights:
Crystallography of Phillipsite-Na
Crystal System:
Monoclinic
Class (H-M):
2/m - Prismatic
Space Group:
P21/m
Setting:
P21/m
Cell Parameters:
a = 9.96 Å, b = 14.21 Å, c = 14.26 Å
β = 90°
β = 90°
Ratio:
a:b:c = 0.701 : 1 : 1.004
Unit Cell V:
2,018.24 ų (Calculated from Unit Cell)
Z:
2
Comment:
Space group ?
Crystal Structure
Load
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Show
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Display Options
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
View
CIF File Best | x | y | z | a | b | c
CIF File Best | x | y | z | a | b | c
Rotation
Stop | Start
Stop | Start
Labels
Console Off | On | Grey | Yellow
Console Off | On | Grey | Yellow
Data courtesy of the American Mineralogist Crystal Structure Database. Click on an AMCSD ID to view structure
| ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
|---|---|---|---|---|---|---|---|
| 0009270 | Phillipsite-Na | Steinfink H (1962) The crystal structure of the zeolite, phillipsite Acta Crystallographica 15 644-651 |  | 1962 | pelagic sediments of the Pacific Ocean | 0 | 293 |
CIF Raw Data - click here to close
Geological Environment
Paragenetic Mode(s):
| Paragenetic Mode | Earliest Age (Ga) |
|---|---|
| Stage 3a: Earth’s earliest Hadean crust | >4.50 |
| 9 : Lava/xenolith minerals (hornfels, sanidinite facies) | |
| 10 : Basalt-hosted zeolite minerals | |
| Stage 3b: Earth’s earliest hydrosphere | >4.45 |
| 16 : Low-? aqueous alteration of Hadean subaerial lithologies (see also #23) | |
| 17 : Marine authigenic Hadean minerals (see also #24) | |
| Near-surface Processes | |
| 22 : Hydration and low-? subsurface aqueous alteration (see also #23) | |
| 24 : Authigenic minerals in terrestrial sediments (see also #17) | |
| 25 : Evaporites (prebiotic) | |
| Stage 4b: Highly evolved igneous rocks | >3.0 |
| 35 : Ultra-alkali and agpaitic igneous rocks | |
| Stage 7: Great Oxidation Event | <2.4 |
| 47a : [Near-surface hydration of prior minerals] | |
| Stage 10a: Neoproterozoic oxygenation/terrestrial biosphere | <0.6 |
| 48 : Soil leaching zone minerals | <0.6 |
Type Occurrence of Phillipsite-Na
Other Language Names for Phillipsite-Na
Relationship of Phillipsite-Na to other Species
Member of:
Other Members of Phillipsite Subgroup:
| Harmotome | Ba2(Si12Al4)O32 · 12H2O | Mon. 2/m : P21/m |
| Phillipsite-Ca | Ca3(Si10Al6)O32 · 12H2O | Mon. 2/m : P21/m |
| Phillipsite-K | K6(Si10Al6)O32 · 12H2O | Mon. 2/m : P21/m |
Forms a series with:
Common Associates
Associated Minerals Based on Photo Data:
| 31 photos of Phillipsite-Na associated with Chabazite-Na | (Na2,K2,Ca,Sr,Mg)2[Al2Si4O12]2 · 12H2O |
| 21 photos of Phillipsite-Na associated with Calcite | CaCO3 |
| 18 photos of Phillipsite-Na associated with Gmelinite-Na | Na4(Si8Al4)O24 · 11H2O |
| 17 photos of Phillipsite-Na associated with Faujasite-Na | (Na2,Ca,Mg)3.5[Al7Si17O48] · 32H2O |
| 10 photos of Phillipsite-Na associated with Gonnardite | (Na,Ca)2(Si,Al)5O10 · 3H2O |
| 8 photos of Phillipsite-Na associated with Siderite | FeCO3 |
| 7 photos of Phillipsite-Na associated with Analcime | Na(AlSi2O6) · H2O |
| 6 photos of Phillipsite-Na associated with Microcline | K(AlSi3O8) |
| 5 photos of Phillipsite-Na associated with Montmorillonite | (Na,Ca)0.33(Al,Mg)2(Si4O10)(OH)2 · nH2O |
| 5 photos of Phillipsite-Na associated with Mckelveyite Group | A3B3(CO3)6 · 3H2O |
Related Minerals - Strunz-mindat Grouping
| 9.GC. | Gismondine-Sr | Sr4(Si8Al8O32) · 9H2O |
| 9.GC. | Garronite-Na | Na6(Al6Si10O32) · 8.5H2O |
| 9.GC.05 | Gismondine-Ba | Ba2Al4Si4O16 · 4-6H2O |
| 9.GC.05 | Garronite-Ca | Na2Ca5Al12Si20O64 · 27H2O |
| 9.GC.05 | Gismondine-Ca | CaAl2Si2O8 · 4H2O |
| 9.GC.05 | Gobbinsite | Na5(Si11Al5)O32 · 11H2O |
| 9.GC.05 | Amicite | K2Na2Al4Si4O16 · 5H2O |
| 9.GC.10 | Martinandresite | Ba2(Al4Si12O32) · 10H2O |
| 9.GC.10 | Harmotome | Ba2(Si12Al4)O32 · 12H2O |
| 9.GC.10 | Phillipsite-Ca | Ca3(Si10Al6)O32 · 12H2O |
| 9.GC.10 | Phillipsite-K | K6(Si10Al6)O32 · 12H2O |
| 9.GC.10 | Flörkeite | (K3Ca2Na)[Al8Si8O32] · 12H2O |
| 9.GC.15 | Merlinoite | K5Ca2(Si23Al9)O64 · 24H2O |
| 9.GC.20 | Mazzite-Na | Na8[Al4Si14O36]2 · 30H2O |
| 9.GC.20 | Mazzite-Mg | (Mg,K,Ca)5(Si26Al10)O72 · 28H2O |
| 9.GC.25 | Perlialite | K9Na(Ca,Sr)[Al2Si4O12]6 · 15H2O |
| 9.GC.30 | Boggsite | Ca8Na3(Si,Al)96O192 · 70H2O |
| 9.GC.35 | Paulingite-Ca | (Ca,K,Na,Ba, ◻)10 (Si, Al)42O84 · 34H2O |
| 9.GC.35 | Paulingite-K | (K2,Ca,Na2,Ba)5[Al10Si35O90] · 45H2O |
| 9.GC.35 | Paulingite-Na | (Na2,K2,Ca,Ba)5[Al10Si35O90] · 45H2O |
Fluorescence of Phillipsite-Na
Not fluorescent in UV
Other Information
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Internet Links for Phillipsite-Na
mindat.org URL:
https://www.mindat.org/min-7229.html
Please feel free to link to this page.
Please feel free to link to this page.
Search Engines:
External Links:
References for Phillipsite-Na
Reference List:
Galli, Ermanno, Ghittoni, Anna G. Losehi (1972) The crystal chemistry of phillipsites. American Mineralogist, 57 (7-8) 1125-1145
Rinaldi, R., Pluth, J. J., Smith, J. V. (1974) Zeolites of the phillipsite family. Refinement of the crystal structures of phillipsite and harmotome. Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 30 (10) 2426-2433 doi:10.1107/s0567740874007242
Coombs, Douglas S., Alberti, Alberto, Armbruster, Thomas, Artioli, Gilberto, Colella, Carmine, Galli, Ermanno, Grice, Joel D., Liebau, Friedrich, Mandarino, Joseph A., Minato, Hideo, Nickel, Ernest H., Passaglia, Elio, Peacor, Donald R., Quartieri, Simona, Rinaldi, Romano, Ross, Malcolm, Sheppard, Richard A., Tillmanns, Ekkehart, Vezzalini, Giovanna (1998) Recommended nomenclature for zeolite minerals: report of the subcommittee on zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names. Mineralogical Magazine, 62 (4) 533-571 doi:10.1180/002646198547800
Localities for Phillipsite-Na
symbol to view information about a locality.
The Locality List
- This locality has map coordinates listed.
- This locality has estimated coordinates.
ⓘ - Click for references and further information on this occurrence.
? - Indicates mineral may be doubtful at this locality.
- Good crystals or important locality for species.
- World class for species or very significant.
(TL) - Type Locality for a valid mineral species.
(FRL) - First Recorded Locality for everything else (eg varieties).
All localities listed without proper references should be considered as questionable.
Australia | |
| England (2000) |
| Judd et al. (2013) +1 other reference |
| Birch (1989) |
| Birch (1989) +1 other reference |
| B. Birch chemical analysis +1 other reference |
| Birch (1989) |
| Birch (1989) |
| Gatta et al. (2009) | |
Canada | |
| Horváth et al. (1990) +1 other reference |
France | |
| Leconte J. (2015) |
Germany | |
| Blass et al. (2006) |
Hungary | |
| Szakáll et al. (2014) |
| Kónya-MÁFI |
| Kónya-MÁFI +1 other reference |
Italy | |
| Russo M. (2008) |
| Russo (2008) +1 other reference | |
| Di Franco (1904) +4 other references |
| Sturiale (1963) +1 other reference | |
| Sicurella et al. (2010) | |
| Boscardin et al. (2011) |
| Passaglia et al. (2009) +1 other reference | |
Japan | |
| Chiba et al (1995) |
Portugal | |
| Alves (n.d.) |
South Africa | |
| Heron +2 other references |
Spain | |
| Erich Keck |
| Analyzed by XRD by Dr. Joan Vinals (Barcelona) |
| Dill et al. (2023) |
| Collection Agustin Agudo Espinosa ... |
| Dill et al. (2023) |
USA | |
| Tschernich (1992) +1 other reference |
| Fred DeVito collection |
| Robert Housley pers.comm. |
| Micro Probe Vol. 9 No 3 +1 other reference |
Quick NavTopAbout Phillipsite-NaUnique IdentifiersIMA Classification Classification Mineral SymbolsPhysical Properties Optical Data Chemistry Crystallography Crystal StructureGeological EnvironmentType Occurrence Other LanguagesRelationshipsCommon AssociatesStrunz-MindatFluorescence Other InformationInternet Links References Localities Locality List

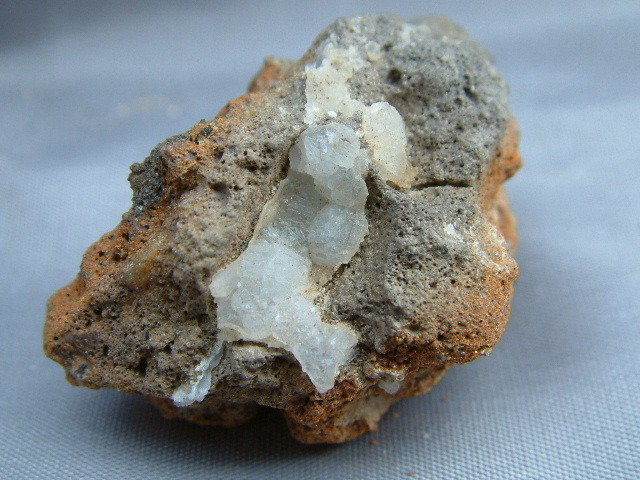

Rupe di Aci Castello, Aci Castello, Metropolitan City of Catania, Sicily, Italy
