Halloysite
A valid IMA mineral species
This page is currently not sponsored. Click here to sponsor this page.
About Halloysite
Jean-Baptiste-Julien d'Omalius d'Halloy (1783-1875)
Formula:
Al2(Si2O5)(OH)4
Colour:
White to tan, sometimes greenish or bluish, also chocolate brown to reddish.
Lustre:
Waxy, Earthy
Hardness:
1 - 2
Specific Gravity:
2 - 2.65
Crystal System:
Monoclinic
Member of:
Name:
Originally named halloysite by French geologist and mining engineer Pierre Berthier in 1826 after the Belgian geologist Jean-Baptiste Julien d'Omalius d'Halloy (16 February 1783, Liège, Belgium - 15 January 1875, Brussels, Belgium), who discovered the mineral. He was a nobleman, a statesman, and a pioneer of modern geology in Belgium. He was the geologist who first defined and named the Cretaceous period (after chalk strata in the Paris basin).
After the discovery that some of this material was a more hydrated species, with a greater interlayer spacing (later called halloysite-10A and currently hydrohalloysite), the name metahalloysite was sometimes used for this species (Alexander et al. 1943, Faust 1955). The name was changed by the IMA to halloysite-7Å in 1980 (Bailey, 1980), where the suffix refers to the 7-Ångström layer thickness that is identified in XRD patterns. The species name was reverted to halloysite, without the suffix, in 2022.
After the discovery that some of this material was a more hydrated species, with a greater interlayer spacing (later called halloysite-10A and currently hydrohalloysite), the name metahalloysite was sometimes used for this species (Alexander et al. 1943, Faust 1955). The name was changed by the IMA to halloysite-7Å in 1980 (Bailey, 1980), where the suffix refers to the 7-Ångström layer thickness that is identified in XRD patterns. The species name was reverted to halloysite, without the suffix, in 2022.

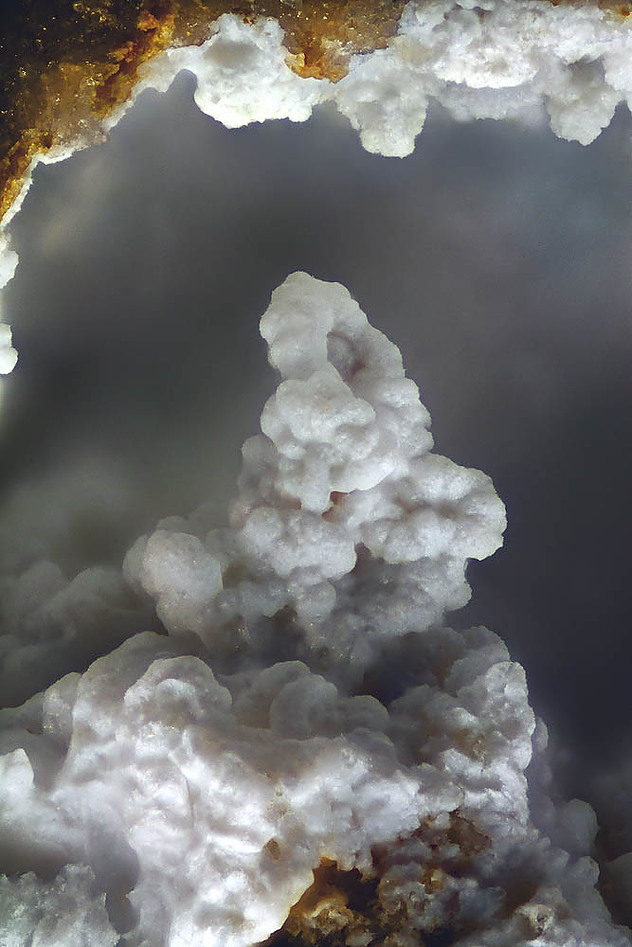

Typically found as earthy to somewhat waxy looking extremely fine-grained clayey masses, white to tan and also occasionally bluish or greenish.
Also known as halloysite-7A and Metahalloysite, it is dehydrated hydrohalloysite (halloysite-10A) and is characterised by a reduced interlayer spacing.
Originally reported from Angleur, Liège, Liège Province, Belgium.
Also reported as a biomineral formed by the action of lichen (e.g., Lasallia spp., Mucor spp., etc.) on cave deposits and waters (vide Burford et al., 2003).
Also known as halloysite-7A and Metahalloysite, it is dehydrated hydrohalloysite (halloysite-10A) and is characterised by a reduced interlayer spacing.
Originally reported from Angleur, Liège, Liège Province, Belgium.
Also reported as a biomineral formed by the action of lichen (e.g., Lasallia spp., Mucor spp., etc.) on cave deposits and waters (vide Burford et al., 2003).
Unique Identifiers
Mindat ID:
1808
Long-form identifier:
mindat:1:1:1808:7
IMA Classification of Halloysite
Classification of Halloysite
9.ED.10
9 : SILICATES (Germanates)
E : Phyllosilicates
D : Phyllosilicates with kaolinite layers composed of tetrahedral and octahedral nets
9 : SILICATES (Germanates)
E : Phyllosilicates
D : Phyllosilicates with kaolinite layers composed of tetrahedral and octahedral nets
Dana 7th ed.:
71.1.1.4
71.1.1.4
71 : PHYLLOSILICATES Sheets of Six-Membered Rings
1 : Sheets of 6-membered rings with 1:1 layers
71 : PHYLLOSILICATES Sheets of Six-Membered Rings
1 : Sheets of 6-membered rings with 1:1 layers
15.10
15 : Silicates of Aluminum
15 : Silicates of Aluminum
Mineral Symbols
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
| Symbol | Source | Reference |
|---|---|---|
| Hly-7Å | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Physical Properties of Halloysite
Waxy, Earthy
Transparency:
Translucent, Opaque
Colour:
White to tan, sometimes greenish or bluish, also chocolate brown to reddish.
Streak:
Paler than the color, or white.
Hardness:
1 - 2 on Mohs scale
Fracture:
Sub-Conchoidal
Density:
2 - 2.65 g/cm3 (Measured) 2.14 g/cm3 (Calculated)
Optical Data of Halloysite
Type:
Biaxial
RI values:
nα = 1.553 - 1.565 nβ = 1.559 - 1.569 nγ = 1.56 - 1.57
Max. Birefringence:
δ = 0.005 - 0.007
Based on recorded range of RI values above.
Based on recorded range of RI values above.
Interference Colours:
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
Surface Relief:
Moderate
Dispersion:
r < v moderate
Chemistry of Halloysite
Mindat Formula:
Al2(Si2O5)(OH)4
Element Weights:
Elements listed:
Common Impurities:
Ti,Ca,Na,K,Fe,Cr,Mg,Ni,Cu
Crystallography of Halloysite
Crystal System:
Monoclinic
Class (H-M):
m - Domatic
Space Group:
Bb
Cell Parameters:
a = 5.14 Å, b = 8.9 Å, c = 7.214 Å
β = 99.7°
β = 99.7°
Ratio:
a:b:c = 0.578 : 1 : 0.811
Unit Cell V:
325.29 ų (Calculated from Unit Cell)
Z:
2
Morphology:
Typically found as extremely fine-grained clayey masses. The two "forms" Halloysite-7Å and Halloysite-10Å are the most common. It has a tubular morphology at the nanometer scale.
X-Ray Powder Diffraction
Powder Diffraction Data:
| d-spacing | Intensity |
|---|---|
| 7.5 Å | (90) |
| 4.42 Å | (100) |
| 3.63 Å | (90) |
| 2.56 Å | (80) |
| 1.68 Å | (80) |
| 1.48 Å | (90) |
| 1.28 Å | (70) |
| 1.23 Å | (70) |
Comments:
Data for Halloysite-7A
Geological Environment
Paragenetic Mode(s):
| Paragenetic Mode | Earliest Age (Ga) |
|---|---|
| Stage 7: Great Oxidation Event | <2.4 |
| 47a : [Near-surface hydration of prior minerals] |
Geological Setting:
Halloysite is found in widely varied environments, including as an alteration of basaltic rocks, in hydrothermally altered fissure deposits in monzonites; it is also derived from feldspars, chlorites, micas, rhyolites, granites, volcanic ash, tuffs and pumices. More rarely found in granitic pegmatites, bauxites or laterites, and in some marine and glacial clays.
Synonyms of Halloysite
Other Language Names for Halloysite
Dutch:Halloysiet
Esperanto:Halojzito
Varieties of Halloysite
| Chrome-Halloysite | A pale blue chromian Halloysite |
| Copper-bearing Halloysite | A cupriferous variety of halloysite. Note formula is not balanced. |
| Ferrian Halloysite | An Fe-rich variety of halloysite. |
| Zirconium-bearing Halloysite | Halloysite with content 3-4 wt.% ZrO2, probably due to zircon impurities. |
Relationship of Halloysite to other Species
Member of:
Other Members of Kaolinite Subgroup:
Common Associates
Associated Minerals Based on Photo Data:
| 145 photos of Halloysite associated with Atacamite | Cu2(OH)3Cl |
| 82 photos of Halloysite associated with Libethenite | Cu2(PO4)(OH) |
| 64 photos of Halloysite associated with Quartz | SiO2 |
| 50 photos of Halloysite associated with Chrysocolla | Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| 46 photos of Halloysite associated with Pseudomalachite | Cu5(PO4)2(OH)4 |
| 16 photos of Halloysite associated with Azurite | Cu3(CO3)2(OH)2 |
| 14 photos of Halloysite associated with Olivenite | Cu2(AsO4)(OH) |
| 14 photos of Halloysite associated with Malachite | Cu2(CO3)(OH)2 |
| 12 photos of Halloysite associated with Conichalcite | CaCu(AsO4)(OH) |
| 12 photos of Halloysite associated with Calcite | CaCO3 |
Related Minerals - Strunz-mindat Grouping
| 9.ED. | Clinochrysotile | Mg3(Si2O5)(OH)4 |
| 9.ED.05 | Dickite | Al2(Si2O5)(OH)4 |
| 9.ED.05 | Nacrite | Al2(Si2O5)(OH)4 |
| 9.ED.05 | Kaolinite | Al2(Si2O5)(OH)4 |
| 9.ED.05 | Odinite | (Fe,Mg,Al,Fe,Ti,Mn)2.4((Si,Al)2O5)(OH)4 |
| 9.ED.10 | Hisingerite | Fe3+2(Si2O5)(OH)4 · 2H2O |
| 9.ED.10 | Hydrohalloysite | Al2Si2O5(OH)4 · 2H2O |
| 9.ED.15 | Antigorite | Mg3(Si2O5)(OH)4 |
| 9.ED.15 | Brindleyite | (Ni,Al)3(Si,Al)2O5(OH)4 |
| 9.ED.15 | Fraipontite | (Zn,Al)3((Si,Al)2O5)(OH)4 |
| 9.ED.15 | Népouite | Ni3Si2O5(OH)4 |
| 9.ED.15 | Pecoraite | Ni3(Si2O5)(OH)4 |
| 9.ED.15 | Guidottiite | Mn2Fe3+(Fe3+SiO5)(OH)4 |
| 9.ED.15 | Lizardite | Mg3(Si2O5)(OH)4 |
| 9.ED.15 | Berthierine | (Fe2+,Fe3+,Al)3(Si,Al)2O5(OH)4 |
| 9.ED.15 | Kellyite | Mn2+2Al(AlSiO5)(OH)4 |
| 9.ED.15 | Cronstedtite | Fe2+2Fe3+((Si,Fe3+)2O5)(OH)4 |
| 9.ED.15 | Caryopilite | Mn2+3Si2O5(OH)4 |
| 9.ED.15 va | Chromoamesite | Mg2(Al,Cr)(AlSiO5)(OH)4 |
| 9.ED.15 | Amesite | Mg2Al(AlSiO5)(OH)4 |
| 9.ED.15 | Greenalite | (Fe2+,Fe3+)2-3Si2O5(OH)4 |
| 9.ED.15 | Manandonite | Li2Al4(Si2AlB)O10(OH)8 |
| 9.ED.20 | Chrysocolla | Cu2-xAlx(H2-xSi2O5)(OH)4 · nH2O, x < 1 |
| 9.ED.20 | Neotocite | (Mn,Fe)SiO3 · H2O (?) |
| 9.ED.20 | Allophane | (Al2O3)(SiO2)1.3-2 · 2.5-3H2O |
| 9.ED.20 | Imogolite | Al2SiO3(OH)4 |
| 9.ED.25 | Bismutoferrite | Fe3+2Bi(SiO4)2(OH) |
| 9.ED.25 | Chapmanite | Fe3+2Sb3+(Si2O5)O3(OH) |
| 9.ED.30 | Pianlinite | Al2Si2O6(OH)2 |
Other Information
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Industrial Uses:
Used in applications similar to those of kaolinite, such as high-strength cements and high-quality ceramics.
Halloysite in petrology
An essential component of rock names highlighted in red, an accessory component in rock names highlighted in green.
Internet Links for Halloysite
mindat.org URL:
https://www.mindat.org/min-1808.html
Please feel free to link to this page.
Please feel free to link to this page.
Search Engines:
External Links:
References for Halloysite
Reference List:
BURFORD, EUAN P., KIERANS, MARTIN, GADD, GEOFFREY M. (2003) Geomycology: fungi in mineral substrata. Mycologist, 17 (3). 98-107 doi:10.1017/s0269915x03003112
Kogure, T., Mori, K., Drits, V. A., Takai, Y. (2013) Structure of prismatic halloysite. American Mineralogist, 98 (5) 1008-1016 doi:10.2138/am.2013.4385
