Bellbergite
A valid IMA mineral species
This page is currently not sponsored. Click here to sponsor this page.
About Bellbergite
Formula:
(K,Ba,Sr)2Sr2Ca2(Ca,Na)4[Al3Si3O12]6 · 30H2O
Colour:
Colourless to white
Lustre:
Vitreous
Hardness:
5
Specific Gravity:
2.2
Crystal System:
Hexagonal
Member of:
Name:
Named for the Bellberg (or Bellerberg) volcano, Germany, the type locality.
Unique Identifiers
Mindat ID:
610
Long-form identifier:
mindat:1:1:610:7
IMA Classification of Bellbergite
Approved
IMA Formula:
(K,Ba,Sr)2Sr2Ca2(Ca,Na)4(Si,Al)36O72 · 30H2O
First published:
1993
Classification of Bellbergite
9.GD.20
9 : SILICATES (Germanates)
G : Tektosilicates with zeolitic H2O; zeolite family
D : Chains of 6-membered rings – tabular zeolites
9 : SILICATES (Germanates)
G : Tektosilicates with zeolitic H2O; zeolite family
D : Chains of 6-membered rings – tabular zeolites
Dana 7th ed.:
77.1.8.1
77.1.8.1
77 : TECTOSILICATES Zeolites
1 : Zeolite group - True zeolites
77 : TECTOSILICATES Zeolites
1 : Zeolite group - True zeolites
Mineral Symbols
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
| Symbol | Source | Reference |
|---|---|---|
| Blb | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Physical Properties of Bellbergite
Vitreous
Transparency:
Transparent
Colour:
Colourless to white
Streak:
White
Hardness:
5 on Mohs scale
Cleavage:
None Observed
Fracture:
Conchoidal
Density:
2.2 g/cm3 (Measured) 2.19 g/cm3 (Calculated)
Optical Data of Bellbergite
Type:
Uniaxial (-)
RI values:
nω = 1.522 nε = 1.507
Max. Birefringence:
δ = 0.015
Based on recorded range of RI values above.
Based on recorded range of RI values above.
Interference Colours:
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
Surface Relief:
Moderate
Chemistry of Bellbergite
Mindat Formula:
(K,Ba,Sr)2Sr2Ca2(Ca,Na)4[Al3Si3O12]6 · 30H2O
Element Weights:
Crystallography of Bellbergite
Crystal System:
Hexagonal
Cell Parameters:
a = 13.244(1) Å, c = 15.988(2) Å
Ratio:
a:c = 1 : 1.207
Unit Cell V:
2,428.64 ų (Calculated from Unit Cell)
Z:
1

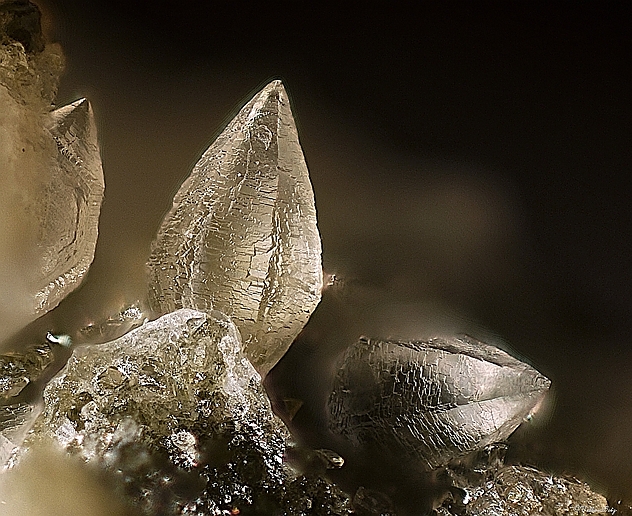

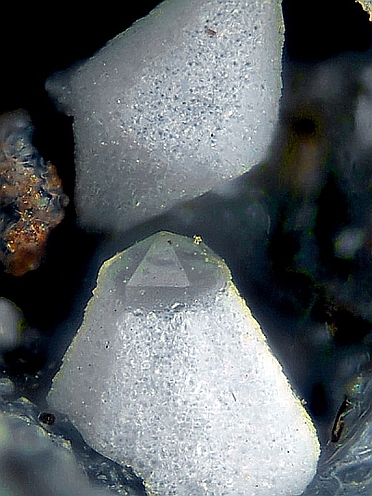

Morphology:
Hexagonal dipyramidal crystals.
Comment:
Point Group: 6/m 2/m 2/m; 6m2; or 6mm; Space Group: P63 /mmc; P63mc; or P62c
Crystal Structure
Load
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Show
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Display Options
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
View
CIF File Best | x | y | z | a | b | c
CIF File Best | x | y | z | a | b | c
Rotation
Stop | Start
Stop | Start
Labels
Console Off | On | Grey | Yellow
Console Off | On | Grey | Yellow
Data courtesy of the American Mineralogist Crystal Structure Database. Click on an AMCSD ID to view structure
| ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
|---|---|---|---|---|---|---|---|
| 0014631 | Bellbergite | Ruedinger B, Tillmanns E, Hentschel G (1993) Bellbergite - a new mineral with the zeolite structure type EAB Mineralogy and Petrology 48 147-152 | 1993 | 0 | 293 |
CIF Raw Data - click here to close
X-Ray Powder Diffraction
Powder Diffraction Data:
| d-spacing | Intensity |
|---|---|
| 3.80 Å | (100) |
| 6.58 Å | (80) |
| 2.95 Å | (70) |
| 2.21 Å | (70) |
| 2.70 Å | (50) |
| 2.50 Å | (50) |
| 1.83 Å | (50) |
Comments:
Data from type description.
Geological Environment
Paragenetic Mode(s):
| Paragenetic Mode | Earliest Age (Ga) |
|---|---|
| Stage 3a: Earth’s earliest Hadean crust | >4.50 |
| 9 : Lava/xenolith minerals (hornfels, sanidinite facies) | |
| Stage 4b: Highly evolved igneous rocks | >3.0 |
| 35 : Ultra-alkali and agpaitic igneous rocks |
Type Occurrence of Bellbergite
Co-Type Localities:
General Appearance of Type Material:
Hexagonal dipyramidal crystals.
Place of Conservation of Type Material:
University of Vienna, Vienna, Austria.
Geological Setting of Type Material:
In leucite tephrite lava at contacts between lava and calcium-rich xenoliths.
Associated Minerals at Type Locality:
Synonyms of Bellbergite
Ba Zeolite (in part)
Other Language Names for Bellbergite
Relationship of Bellbergite to other Species
Member of:
Other Members of Zeolite Group:
| Alflarsenite | NaCa2Be3Si4O13(OH) · 2H2O | Mon. 2 : P21 |
| Amicite | K2Na2Al4Si4O16 · 5H2O | Mon. 2 |
| Ammonioleucite | (NH4)(AlSi2O6) | Tet. 4/m : I41/a |
| Analcime | Na(AlSi2O6) · H2O | Tric. 1 : P1 |
| Arzamastsevite | K6Al5Si6O20(OH)4Cl | Tet. 4 2m : I4 2m |
| Bikitaite | LiAlSi2O6 · H2O | Tric. 1 : P1 |
| Boggsite | Ca8Na3(Si,Al)96O192 · 70H2O | Orth. mmm (2/m 2/m 2/m) : Imma |
| Brewsterite Subgroup | Zeolite Group. | |
| Chabazite-Levyne Subgroup | M[Al2Si4O12] · 6H2O | |
| Chiavennite | CaMnBe2Si5O13(OH)2 · 2H2O | Mon. 2/m : P21/b |
| Clinoptilolite Subgroup | (Na/Ca/K)3-6[Al6-7Si29-30O72] · 20H2O | |
| Cowlesite | CaAl2Si3O10 · 6H2O | Orth. mmm (2/m 2/m 2/m) |
| Dachiardite Subgroup | Zeolite Group. | |
| Direnzoite | NaK6MgCa2(Al13Si47O120) · 36H2O | Orth. mmm (2/m 2/m 2/m) : Pmmn |
| Edingtonite | Ba[Al2Si3O10] · 4H2O | Orth. 2 2 2 : P21 21 21 |
| Epistilbite | CaAl2Si6O16 · 5H2O | Mon. |
| Erionite Subgroup | M2[Al4Si14O36] · 15H2O | |
| Fabrièsite | Na3Al3Si3O12 · 2H2O | Orth. mm2 : Pmm2 |
| Faujasite Subgroup | M3.5[Al7Si17O48] · 32H2O | |
| Ferrierite Subgroup | Zeolite Group. | |
| Ferrochiavennite | Ca1-2Fe[(Si,Al,Be)5Be2O13(OH)2] · 2H2O | Mon. 2/m : P21/b |
| Flörkeite | (K3Ca2Na)[Al8Si8O32] · 12H2O | Tric. 1 : P1 |
| Garronite Subgroup | ||
| Gaultite | Na4Zn2Si7O18 · 5H2O | Orth. mm2 : Fdd2 |
| Gismondine Subgroup | Zeolite Group. | |
| Gmelinite Subgroup | In 1997, gmelinite was split into Gmelinite-Ca, Gmelinite-Na and Gmelinite-K. | |
| Gobbinsite | Na5(Si11Al5)O32 · 11H2O | Orth. mmm (2/m 2/m 2/m) : Pnma |
| Goosecreekite | Ca[Al2Si6O16] · 5H2O | Mon. 2 : P21 |
| Gottardiite | Na3Mg3Ca5Al19Si117O272 · 93H2O | Orth. mmm (2/m 2/m 2/m) : Cmca |
| Heulandite Subgroup | (Na/Ca/K)5-6[Al8-9 Si27-28 O72] · nH2O | |
| Hsianghualite | Ca3Li2(Be3Si3O12)F2 | Iso. 4 3 2 : I41 3 2 |
| Kalborsite | K6Al4BSi6O20(OH)4Cl | Tet. 4 2m : P4 21c |
| Kirchhoffite | Cs(BSi2O6) | Tet. 4/mmm (4/m 2/m 2/m) : I41/acd |
| Laumontite | CaAl2Si4O12 · 4H2O | Mon. 2/m : B2/m |
| Leucite | K(AlSi2O6) | Tet. 4/m : I41/a |
| Limousinite | BaCa[Be4P4O16] · 6H2O | Mon. 2/m : P21/b |
| Lithosite | K6Al4Si8O25 · 2H2O | Mon. |
| Loomisite | Ba[Be2P2O8] · H2O | Mon. m |
| Lovdarite | K2Na6Be4Si14O36 · 9H2O | Orth. mm2 |
| Maricopaite | Pb7Ca2(Si,Al)48O100 · 32H2O | Orth. |
| Martinandresite | Ba2(Al4Si12O32) · 10H2O | Orth. mmm (2/m 2/m 2/m) : Pmmn |
| Mazzite Subgroup | Zeolite Group. | |
| Meierite | Ba44Si66Al30O192Cl25(OH)33 | Iso. m3m (4/m 3 2/m) : Im3m |
| Merlinoite | K5Ca2(Si23Al9)O64 · 24H2O | Orth. mmm (2/m 2/m 2/m) : Immm |
| Montesommaite | (K,Na)9Al9Si23O64 · 10H2O | Orth. mm2 : Fdd2 |
| Mordenite | (Na2,Ca,K2)4(Al8Si40)O96 · 28H2O | Orth. |
| Mountainite | KNa2Ca2[Si8O19(OH)] · 6H2O | Mon. 2/m : P2/b |
| Mutinaite | Na3Ca4Si85Al11O192 · 60H2O | Orth. mmm (2/m 2/m 2/m) : Pnma |
| Nabesite | Na2BeSi4O10 · 4H2O | Orth. 2 2 2 : P21 21 21 |
| Natrolite Subgroup | A subgroup of the Zeolite Group. | |
| Offretite | KCaMg(Si13Al5)O36 · 15H2O | Hex. 6 m2 : P6m2 |
| Pahasapaite | Li8(Ca,Li,K)10.5Be24(PO4)24 · 38H2O | Iso. 2 3 : I2 3 |
| Parthéite | Ca2(Si4Al4) O15 (OH)2 · 4H2O | Mon. 2/m : B2/b |
| Paulingite Subgroup | Paulingite was originally described in 1960. | |
| Perlialite | K9Na(Ca,Sr)[Al2Si4O12]6 · 15H2O | Hex. 6/mmm (6/m 2/m 2/m) : P6/mmm |
| Phillipsite Subgroup | (Ca0.5,K,Na,Ba0.5)4-7[Al4-7Si12-9O32] . 12H2O | |
| Pollucite | (Cs,Na)2(Al2Si4O12) · 2H2O | Iso. m3m (4/m 3 2/m) : Ia3d |
| Roggianite | Ca2Be(OH)2Al2Si4O13 · 2.5H2O | Tet. 4/mmm (4/m 2/m 2/m) : I4/mcm |
| Rongibbsite | Pb2(Si4Al)O11(OH) | Mon. 2/m : B2/m |
| Stilbite Subgroup | M6-7[Al8-9Si27-28O72] · nH2O | |
| Terranovaite | (Na,Ca)8(Si68Al12)O160 · 29H2O | Orth. |
| Thomsonite Subgroup | The large majority of "thomsonite" is thomsonite-Ca. | |
| Thornasite | (Na,K)12Th3[Si8O19]4 · 18H2O | Trig. 3m : R3m |
| Tschernichite | (Ca,Na2)[Al2Si4O12] · 4-8H2O | Tet. 4/mmm (4/m 2/m 2/m) : P4/mmm |
| Tschörtnerite | Ca4(Ca,Sr,K,Ba)3Cu3[Al3Si3O12]4(OH)8 · nH2O | Iso. m3m (4/m 3 2/m) : Fm3m |
| UM1996-38-SiO:AlCaHNa | Na-Ca-Al-Si-O-H | |
| UM1999-33-SiO:AlHKNa | K7Na5Al12Si20O64 · 24H2O | |
| UM2002-40-SiO:AlCaHKMgNa | (Mg,Ca,Na,K)7.5(Al12.8Si51.2)O128 · 65H2O | Tet. 4 2 2 : P41 2 2 |
| Unnamed (Ca analogue of Merlinoite) | (Ca,K,Na)5(Ca,Ba)2Al9Si23O64 · 23H2O ? | |
| Wairakite | Ca(Al2Si4O12) · 2H2O | Mon. 2/m : B2/m |
| Weinebeneite | CaBe3(PO4)2(OH)2 · 4H2O | Mon. m : Bb |
| Wenkite | (Ba,K)4(Ca,Na)6[(Si,Al)20O39(OH)2](SO4)3 · 0.5H2O | Hex. 6 m2 : P62m |
| Wilancookite | (Ba5Li2◻)Ba6Be24P24O96 · 26H2O | Iso. 2 3 : I2 3 |
| Willhendersonite | KCa[Al3Si3O12] · 5H2O | Tric. 1 : P1 |
| Yugawaralite | CaAl2Si6O16 · 4H2O | Mon. m : Pb |
Common Associates
Associated Minerals Based on Photo Data:
| 5 photos of Bellbergite associated with Lévyne-Ca | (Ca,Na2,K2)[Al2Si4O12] · 6H2O |
| 5 photos of Bellbergite associated with Ettringite | Ca6Al2(SO4)3(OH)12 · 26H2O |
| 4 photos of Bellbergite associated with Willhendersonite | KCa[Al3Si3O12] · 5H2O |
| 2 photos of Bellbergite associated with Pyroxene Group | ADSi2O6 |
| 1 photo of Bellbergite associated with Melilite Group | Ca2M(XSiO7) |
Related Minerals - Strunz-mindat Grouping
| 9.GD.05 | Gmelinite-Ca | Ca2(Si8Al4)O24 · 11H2O |
| 9.GD.05 | Gmelinite-K | K4(Si8Al4O24) · 11H2O |
| 9.GD.05 | Gmelinite-Na | Na4(Si8Al4)O24 · 11H2O |
| 9.GD.10 | Chabazite-Mg | (Mg0.7K0.5Ca0.5Na0.1)[Al3Si9O24] · 10H2O |
| 9.GD.10 | Willhendersonite | KCa[Al3Si3O12] · 5H2O |
| 9.GD.10 | Chabazite-Ca | (Ca,K2,Na2)2[Al2Si4O12]2 · 12H2O |
| 9.GD.10 | Chabazite-K | (K2,Ca,Na2,Sr,Mg)2[Al2Si4O12]2 · 12H2O |
| 9.GD.10 | Chabazite-Na | (Na2,K2,Ca,Sr,Mg)2[Al2Si4O12]2 · 12H2O |
| 9.GD.10 | Chabazite-Sr | Sr2[Al2Si4O12]2 · 12H2O |
| 9.GD.15 | Lévyne-Ca | (Ca,Na2,K2)[Al2Si4O12] · 6H2O |
| 9.GD.15 | Lévyne-Na | (Na2,Ca,K2)[Al2Si4O12] · 6H2O |
| 9.GD.20 | Erionite-Ca | (Ca,K2,Na2)2[Al4Si14O36] · 15H2O |
| 9.GD.20 | Erionite-K | (K2,Ca,Na2)2[Al4Si14O36] · 15H2O |
| 9.GD.20 | Erionite-Na | (Na2,K2,Ca)2[Al4Si14O36] · 15H2O |
| 9.GD.25 | Offretite | KCaMg(Si13Al5)O36 · 15H2O |
| 9.GD.25 | Wenkite | (Ba,K)4(Ca,Na)6[(Si,Al)20O39(OH)2](SO4)3 · 0.5H2O |
| 9.GD.30 | Faujasite-Ca | (Ca,Na2,Mg)3.5[Al7Si17O48] · 32H2O |
| 9.GD.30 | Faujasite-Mg | (Mg,Na2,Ca)3.5[Al7Si17O48] · 32H2O |
| 9.GD.30 | Faujasite-Na | (Na2,Ca,Mg)3.5[Al7Si17O48] · 32H2O |
| 9.GD.35 | Maricopaite | Pb7Ca2(Si,Al)48O100 · 32H2O |
| 9.GD.35 | Mordenite | (Na2,Ca,K2)4(Al8Si40)O96 · 28H2O |
| 9.GD.40 | Dachiardite-K | K4(Si20Al4O48) · 13H2O |
| 9.GD.40 | Dachiardite-Ca | (Ca,Na2,K2)5Al10Si38O96 · 25H2O |
| 9.GD.40 | Dachiardite-Na | (Na2,Ca,K2)5Al10Si38O96 · 25H2O |
| 9.GD.45 | Epistilbite | CaAl2Si6O16 · 5H2O |
| 9.GD.50 | Ferrierite-K | (K,Na)5(Si31Al5)O72 · 18H2O |
| 9.GD.50 | Ferrierite-Mg | [Mg2(K,Na)2Ca0.5](Si29Al7)O72 · 18H2O |
| 9.GD.50 | Ferrierite-Na | (Na,K)5(Si31Al5)O72 · 18H2O |
| 9.GD.50 | Ferrierite-NH4 | (NH4,Mg0.5)5(Al5Si31O72) · 22H2O |
| 9.GD.55 | Bikitaite | LiAlSi2O6 · H2O |
Radioactivity
Radioactivity:
| Element | % Content | Activity (Bq/kg) | Radiation Type |
|---|---|---|---|
| Uranium (U) | 0.0000% | 0 | α, β, γ |
| Thorium (Th) | 0.0000% | 0 | α, β, γ |
| Potassium (K) | 2.4609% | 763 | β, γ |
For comparison:
- Banana: ~15 Bq per fruit
- Granite: 1,000–3,000 Bq/kg
- EU exemption limit: 10,000 Bq/kg
Note: Risk is shown relative to daily recommended maximum exposure to non-background radiation of 1000 µSv/year. Note that natural background radiation averages around 2400 µSv/year so in reality these risks are probably extremely overstated! With infrequent handling and safe storage natural radioactive minerals do not usually pose much risk.
Interactive Simulator:
Note: The mass selector refers to the mass of radioactive mineral present, not the full specimen, also be aware that the matrix may also be radioactive, possibly more radioactive than this mineral!
Activity: –
| Distance | Dose rate | Risk |
|---|---|---|
| 1 cm | ||
| 10 cm | ||
| 1 m |
The external dose rate (D) from a radioactive mineral is estimated by summing the gamma radiation contributions from its Uranium, Thorium, and Potassium content, disregarding daughter-product which may have a significant effect in some cases (eg 'pitchblende'). This involves multiplying the activity (A, in Bq) of each element by its specific gamma ray constant (Γ), which accounts for its unique gamma emissions. The total unshielded dose at 1 cm is then scaled by the square of the distance (r, in cm) and multiplied by a shielding factor (μshield). This calculation provides a 'worst-case' or 'maximum risk' estimate because it assumes the sample is a point source and entirely neglects any self-shielding where radiation is absorbed within the mineral itself, meaning actual doses will typically be lower. The resulting dose rate (D) is expressed in microsieverts per hour (μSv/h).
D = ((AU × ΓU) + (ATh × ΓTh) + (AK × ΓK)) / r2 × μshield
Other Information
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Internet Links for Bellbergite
mindat.org URL:
https://www.mindat.org/min-610.html
Please feel free to link to this page.
Please feel free to link to this page.
Search Engines:
External Links:
References for Bellbergite
Reference List:
Rüdinger, B., Tillmanns, E., Hentschel, G., Rüdinger, B., Tillmanns, E., Hentschel, G. (1993) Bellbergite—a new mineral with the zeolite structure type EAB. Mineralogy and Petrology, 48 (2) 147-152 doi:10.1007/bf01163093
Jambor, John L., Roberts, Andrew C., Puziewicz, Jacek (1994) New Mineral Names. American Mineralogist, 79 (5-6) 570-574
Coombs, Douglas S., Alberti, Alberto, Armbruster, Thomas, Artioli, Gilberto, Colella, Carmine, Galli, Ermanno, Grice, Joel D., Liebau, Friedrich, Mandarino, Joseph A., Minato, Hideo, et al. (1997) Recommended nomenclature for zeolite minerals; report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names. The Canadian Mineralogist, 35 (6). 1571-1606
Localities for Bellbergite
symbol to view information about a locality.
The Locality List
- This locality has map coordinates listed.
- This locality has estimated coordinates.
ⓘ - Click for references and further information on this occurrence.
? - Indicates mineral may be doubtful at this locality.
- Good crystals or important locality for species.
- World class for species or very significant.
(TL) - Type Locality for a valid mineral species.
(FRL) - First Recorded Locality for everything else (eg varieties).
All localities listed without proper references should be considered as questionable.
Bolivia | |
| Schultz et al. (2004) |
Germany (TL) | |
| Rüdinger +1 other reference |
| Rüdinger et al. (1993) | |
| Blaß et al. (1998) |
Quick NavTopAbout BellbergiteUnique IdentifiersIMA Classification Classification Mineral SymbolsPhysical Properties Optical Data Chemistry Crystallography Crystal StructureX-Ray Powder DiffractionGeological EnvironmentType Occurrence SynonymsOther LanguagesRelationshipsCommon AssociatesStrunz-MindatRadioactivityOther InformationInternet Links References Localities Locality List
Caspar quarry, Ettringen, Vordereifel, Mayen-Koblenz, Rhineland-Palatinate, Germany
