Joteite
A valid IMA mineral species
This page is currently not sponsored. Click here to sponsor this page.
About Joteite
Formula:
Ca2CuAl(AsO4)[AsO3(OH)]2(OH)2 · 5H2O
Colour:
Sky blue to greenish blue
Lustre:
Vitreous
Hardness:
2 - 3
Specific Gravity:
3.056 (Calculated)
Crystal System:
Triclinic
Name:
Named for the type locality. Jote mine, Chile. The name is pronounced hou-tei-ait.
This page provides mineralogical data about Joteite.
Unique Identifiers
Mindat ID:
43856
Long-form identifier:
mindat:1:1:43856:4
IMA Classification of Joteite
Approved
Approval year:
2012
First published:
2013
Approval history:
IMA2012-091
Type description reference:
Classification of Joteite
8.DH.70
8 : PHOSPHATES, ARSENATES, VANADATES
D : Phosphates, etc. with additional anions, with H2O
H : With large and medium-sized cations, (OH, etc.):RO4 < 1:1
8 : PHOSPHATES, ARSENATES, VANADATES
D : Phosphates, etc. with additional anions, with H2O
H : With large and medium-sized cations, (OH, etc.):RO4 < 1:1
Mineral Symbols
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
| Symbol | Source | Reference |
|---|---|---|
| Jot | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Physical Properties of Joteite
Vitreous
Transparency:
Transparent
Colour:
Sky blue to greenish blue
Streak:
Pale blue
Hardness:
2 - 3 on Mohs scale
Tenacity:
Brittle
Cleavage:
Perfect
{001}
{001}
Fracture:
Sub-Conchoidal
Density:
3.056 g/cm3 (Calculated)
Optical Data of Joteite
Type:
Biaxial (-)
RI values:
nα = 1.634 nβ = 1.644 nγ = 1.651
2V:
Measured: 78°
Max. Birefringence:
δ = 0.017
Based on recorded range of RI values above.
Based on recorded range of RI values above.
Interference Colours:
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
Surface Relief:
Moderate
Pleochroism:
Weak
Comments:
Z=Greenish blue > Y pale greenish blue > X colorless
Chemistry of Joteite
Mindat Formula:
Ca2CuAl(AsO4)[AsO3(OH)]2(OH)2 · 5H2O
Element Weights:
Crystallography of Joteite
Crystal System:
Triclinic
Class (H-M):
1 - Pinacoidal
Space Group:
P1
Cell Parameters:
a = 6.0530(2) Å, b = 10.2329(3) Å, c = 12.9112(4) Å
α = 87.572(2)°, β = 78.480(2)°, γ = 78.697(2)°
α = 87.572(2)°, β = 78.480(2)°, γ = 78.697(2)°
Ratio:
a:b:c = 0.592 : 1 : 1.262
Unit Cell V:
768.40 ų (Calculated from Unit Cell)
Crystal Structure
Load
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Show
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Display Options
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
View
CIF File Best | x | y | z | a | b | c
CIF File Best | x | y | z | a | b | c
Rotation
Stop | Start
Stop | Start
Labels
Console Off | On | Grey | Yellow
Console Off | On | Grey | Yellow
Data courtesy of the American Mineralogist Crystal Structure Database. Click on an AMCSD ID to view structure
| ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
|---|---|---|---|---|---|---|---|
| 0019980 | Joteite | Kampf A R, Mills S J, Housley R M, Rossman G R, Nash B P, Dini M, Jenkins R A (2013) Joteite, Ca2CuAl[AsO4][AsO3(OH)]2(OH)2*5H2O, a new arsenate with a sheet structure and unconnected acid arsenate groups Mineralogical Magazine 77 2811-2823 | 2013 | Jote mine, Tierra Amarilla, Copiapo Province, Atacama, Chile | 0 | 293 |
CIF Raw Data - click here to close
X-Ray Powder Diffraction
Powder Diffraction Data:
| d-spacing | Intensity |
|---|---|
| 12.76 Å | (100) |
| 5.009 Å | (23) |
| 4.206 Å | (26) |
| 3.92 Å | (24) |
| 3.40 Å | (25) |
| 3.233 Å | (19) |
| 2.97 Å | (20) |
| 2.91 Å | (15) |
Reference:
Comments:
From Type Description.
Geological Environment
Paragenetic Mode(s):
| Paragenetic Mode | Earliest Age (Ga) |
|---|---|
| Stage 7: Great Oxidation Event | <2.4 |
| 47a : [Near-surface hydration of prior minerals] | |
| 47d : [Arsenates, antimonates, selenates, bismuthinates] |
Type Occurrence of Joteite
Place of Conservation of Type Material:
Natural History Museum of Los Angeles County, 900 Exposition Boulevard, Los Angeles, CA 90007, USA, catalogue numbers 63592 63593 and 63594
Geological Setting of Type Material:
oxidized hydrothermal sulfide vein in volcanoclastic rocks
Reference:
Synonyms of Joteite
Other Language Names for Joteite
Common Associates
Associated Minerals Based on Photo Data:
Related Minerals - Strunz-mindat Grouping
| 8.DH. | Thebaite-(NH4) | (NH4)3Al(C2O4)(PO3OH)2(H2O) |
| 8.DH. | Whiteite-(MnMnMn) | Mn2+Mn2+Mn2+2Al2(PO4)4(OH)2 · 8H2O |
| 8.DH. | Ferroberaunite | Fe2+Fe3+5(PO4)4(OH)5 · 6H2O |
| 8.DH. | Regerite | KFe6(PO4)4(OH)7(H2O)6 · 4H2O |
| 8.DH. | Ammoniotinsleyite | (NH4)Al2(PO4)2(OH) · 2H2O |
| 8.DH. | Dendoraite-(NH4) | (NH4)2NaAl(C2O4)(PO3OH)2(H2O)2 |
| 8.DH. | Rowleyite | [Na(NH4,K)9Cl4][V5+,4+2(P,As)O8]6 · n[H2O,Na,NH4,K,Cl] |
| 8.DH. | Hochleitnerite | Mn2Ti3(PO4)4O2(H2O)2 · 14H2O |
| 8.DH. | Whiteite-(CaMnFe) | CaMnFe2Al2(PO4)4(OH)2 · 8H2O |
| 8.DH.05 | Minyulite | KAl2(PO4)2F · 4H2O |
| 8.DH.10 | Leucophosphite | KFe3+2(PO4)2(OH) · 2H2O |
| 8.DH.10 | Tinsleyite | KAl2(PO4)2(OH) · 2H2O |
| 8.DH.10 | Spheniscidite | (NH4,K)(Fe3+,Al)2(PO4)2(OH) · 2H2O |
| 8.DH.15 | Jahnsite-(CaMnFe) | {Ca}{Mn2+}{Fe2+2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(NaMnMn) | {Na}{Mn2+}{(Mn2+,Fe3+)2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(CaMnMg) | {Ca}{Mn2+}{(Mg,Fe2+)2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(CaMnMn) | {Ca}{Mn2+}{Mn2+2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Whiteite-(MnMnMg) | MnMnMg2Al2(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(CaMnZn) | {Ca}{Mn2+}{Zn2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(MnMnMg) | {Mn2+}{Mn2+}{Mg2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(MnMnFe) | {Mn2+}{Mn2+}{Fe2+2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(CaFeFe) | {Ca}{Fe2+}{Fe2+2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Rittmannite | {(Mn2+,Ca)}{Mn2+}{(Fe2+,Mn2+,Mg)2}{(Al,Fe3+)2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Keckite | CaMn2+(Fe3+Mn2+)Fe3+2(PO4)4(OH)3 · 7H2O |
| 8.DH.15 | Jahnsite-(NaMnMg) | {(Na,Ca)}{(Mn2+,Fe3+)}{(Mg,Fe3+)2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(CaMgMg) | {Ca}{Mg}{Mg2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(MnMnZn) | {Mn2+}{Mn2+}{Zn2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Whiteite-(CaMgMg) | CaMg3Al2(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Whiteite-(CaFeMg) | {Ca}{(Fe2+,Mn2+)}{Mg2}{Al2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Whiteite-(CaMnMg) | {Ca}{Mn2+}{Mg2}{Al2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Whiteite-(MnFeMg) | {(Mn2+,Ca)}{(Fe2+,Mn2+)}{Mg2}{Al2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(MnMnMn) | {Mn2+}{Mn2+}{Mn2+2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Kaluginite | (Mn2+,Ca)MgFe3+(PO4)2(OH) · 4H2O |
| 8.DH.15 | Jahnsite-(CaFeMg) | {Ca}{Fe2+}{Mg2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Whiteite-(CaMnMn) | {Ca}{Mn2+}{Mn2}{Al2}(PO4)4(OH)2 · 8H2O |
| 8.DH.15 | Jahnsite-(NaFeMg) | {Na}{Fe3+}{Mg2}{Fe3+2}(PO4)4(OH)2 · 8H2O |
| 8.DH.20 | Segelerite | Ca2 Mg2 Fe3+2(PO4)4(OH)2 · 8H2O |
| 8.DH.20 | Lun'okite | (Mn,Ca)(Mg,Fe,Mn)Al(PO4)2OH · 4H2O |
| 8.DH.20 | Manganosegelerite | (Mn2+,Ca)(Mn2+,Fe2+,Mg)Fe3+(PO4)2(OH) · 4H2O |
| 8.DH.20 | Wilhelmvierlingite | CaMnFe3+(PO4)2(OH) · 2H2O |
| 8.DH.20 | Juonniite | CaMgSc(PO4)2(OH) · 4H2O |
| 8.DH.20 | Overite | CaMgAl(PO4)2(OH) · 4H2O |
| 8.DH.25 | Calcioferrite | Ca2Fe3+2(PO4)3(OH) · 7H2O |
| 8.DH.25 | Zodacite | Ca4Mn2+Fe3+4(PO4)6(OH)4 · 12H2O |
| 8.DH.25 | Fanfaniite | Ca4MnAl4(PO4)6(OH)4 · 12H2O |
| 8.DH.25 | Kingsmountite | Ca3MnFeAl4(PO4)6(OH)4 · 12H2O |
| 8.DH.25 | Montgomeryite | Ca4MgAl4(PO4)6(OH)4 · 12H2O |
| 8.DH.30 | Pararobertsite | Ca2Mn3+3(PO4)3O2 · 3H2O |
| 8.DH.30 | Robertsite | Ca2Mn3+3(PO4)3O2 · 3H2O |
| 8.DH.30 | Arseniosiderite | Ca2Fe3+3(AsO4)3O2 · 3H2O |
| 8.DH.30 | Sailaufite | (Ca,Na,◻)2Mn3+3(AsO4)2(CO3)O2 · 3H2O |
| 8.DH.30 | Mitridatite | Ca2Fe3+3(PO4)3O2 · 3H2O |
| 8.DH.30 | Kolfanite | Ca2Fe3+3O2(AsO4)3 · 2H2O |
| 8.DH.35 | Mantienneite | KMg2Al2Ti(PO4)4(OH)3 · 15H2O |
| 8.DH.35 | Sperlingite | (H2O)K(Mn2+Fe3+)(Al2Ti)(PO4)4[O(OH)] [(H2O)9(OH)] · 4H2O |
| 8.DH.35 | Paulkerrite | K(Mg,Mn2+)2(Fe3+,Al,Ti,Mg)2Ti(PO4)4(OH)3 · 15H2O |
| 8.DH.35 | Hydroxylbenyacarite | (H2O)2Mn2(Ti2Fe)(PO4)4[O(OH)](H2O)10 · 4H2O |
| 8.DH.35 | Macraeite | K(H2O)Mn2(Fe2Ti)(PO4)4[O(OH)](H2O)10 · 4H2O |
| 8.DH.35 | Benyacarite | (H2O)2Mn2Ti2Fe3+(PO4)4(OF)(H2O)10 · 4H2O |
| 8.DH.35 | Fluormacraeite | [(H2O)K]Mn2(Fe2Ti)(PO4)4(OF)(H2O)10 · 4H2O |
| 8.DH.40 | Xanthoxenite | Ca4Fe3+2(PO4)4(OH)2 · 3H2O |
| 8.DH.45 | Mahnertite | NaCu3(AsO4)2Cl · 5H2O |
| 8.DH.50 | Andyrobertsite | KCdCu5(AsO4)4(H2AsO4) · 2H2O |
| 8.DH.50 | Calcioandyrobertsite | KCaCu5(AsO4)4(H2AsO4) · 2H2O |
| 8.DH.55 | Englishite | K3Na2Ca10Al15(PO4)21(OH)7 · 26H2O |
| 8.DH.60 | Bouazzerite | Bi6(Mg,Co)11Fe3+14(AsO4)18(OH)4O12 · 86H2O |
| 8.DH.65 | Galliskiite | Ca4Al2(PO4)2F8 · 5H2O |
| 8.DH.75 | Kampelite | Ba6Mg3Sc8(PO4)12(OH)6 · 7H2O |
| 8.DH.80 | Kapundaite | NaCaFe4(PO4)4(OH)3 · 5H2O |
| 8.DH.85 | Vaniniite | Ca2Mn2+3Mn3+2O2(AsO4)4 · 2H2O |
Other Information
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Internet Links for Joteite
mindat.org URL:
https://www.mindat.org/min-43856.html
Please feel free to link to this page.
Please feel free to link to this page.
Search Engines:
External Links:
References for Joteite
Reference List:
Kampf, A. R., Mills, S. J., Housley, R. M., Rossman, G. R., Nash, B. P., Dini, M., Jenkins, R. A. (2013) Joteite, Ca2CuAl[AsO4][AsO3(OH)]2(OH)2·5H2O, a new arsenate with a sheet structure and unconnected acid arsenate groups. Mineralogical Magazine, 77 (6) 2811-2823 doi:10.1180/minmag.2013.077.6.08
Localities for Joteite
symbol to view information about a locality.
The Locality List
- This locality has map coordinates listed.
- This locality has estimated coordinates.
ⓘ - Click for references and further information on this occurrence.
? - Indicates mineral may be doubtful at this locality.
- Good crystals or important locality for species.
- World class for species or very significant.
(TL) - Type Locality for a valid mineral species.
(FRL) - First Recorded Locality for everything else (eg varieties).
All localities listed without proper references should be considered as questionable.
Chile (TL) | |
| Kampf et al. (2013) |
Quick NavTopAbout JoteiteUnique IdentifiersIMA Classification Classification Mineral SymbolsPhysical Properties Optical Data Chemistry Crystallography Crystal StructureX-Ray Powder DiffractionGeological EnvironmentType Occurrence SynonymsOther LanguagesCommon AssociatesStrunz-MindatOther InformationInternet Links References Localities Locality List

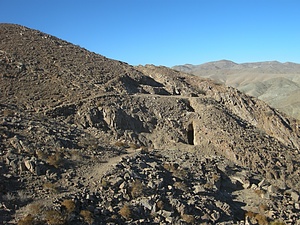

Jote Mine, Pampa Larga mining district, Tierra Amarilla, Copiapó Province, Atacama, Chile
