Performance and stability testing \w Gatling

With Gatling
Performance & Stability Testing

@Me
Dmitry Vrublevsky,
Software developer @
/in/dmitryvrublevsky

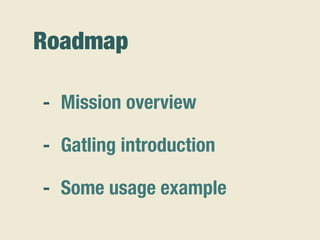

Roadmap
- Mission overview
- Gatling introduction
- Some usage example

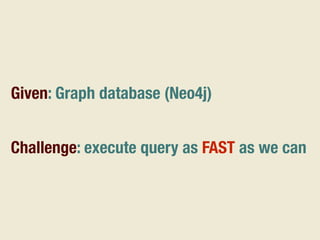

Given: Graph database (Neo4j)
Challenge: execute query as FAST as we can

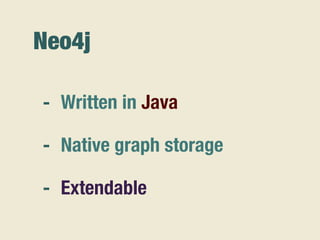

Neo4j
- Written in Java
- Native graph storage
- Extendable

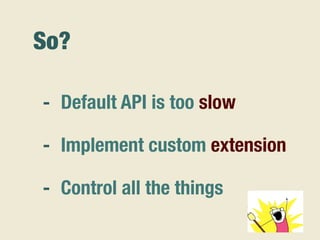

So?
- Default API is too slow
- Implement custom extension
- Control all the things

1. Developed
2. Deployed
3. ???
4. Success!

Speciﬁcation
Do “X” operations
in “Y” seconds

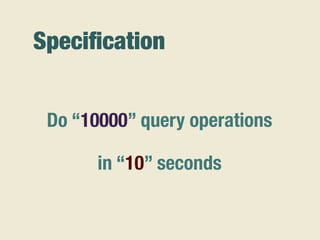

Speciﬁcation
Do “10000” query operations
in “10” seconds

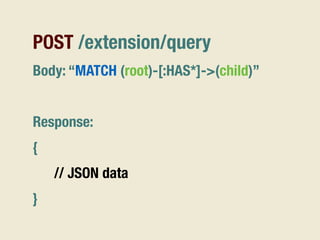

POST /extension/query
Body: “MATCH (root)-[:HAS*]->(child)”
Response:
{
// JSON data
}

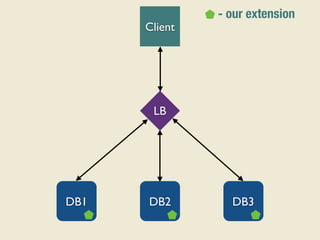

Client
LB
DB1 DB2 DB3
- our extension

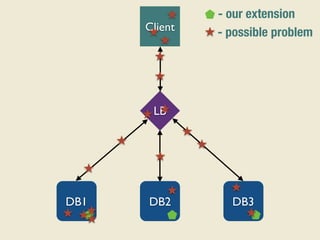

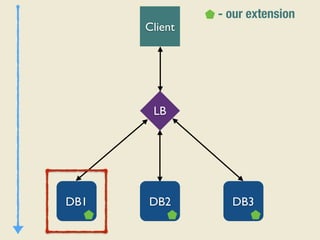

Client
LB
DB1 DB2 DB3
- our extension
- possible problem

Friendly DSL

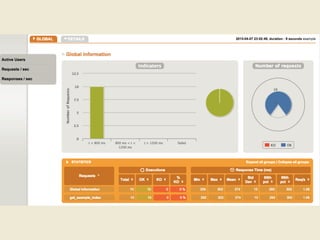

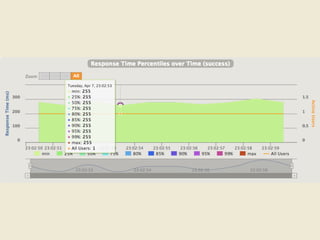

Nice html reports

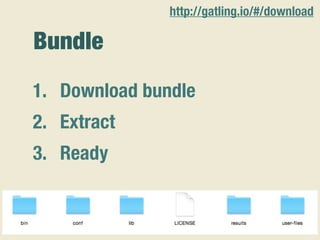

Bundle
1. Download bundle
2. Extract
3. Ready
http://gatling.io/#/download

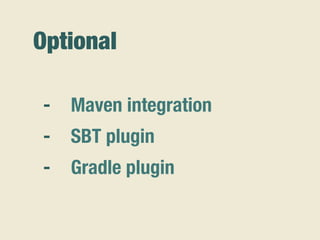

Optional
- Maven integration
- SBT plugin
- Gradle plugin

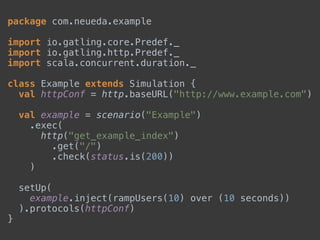

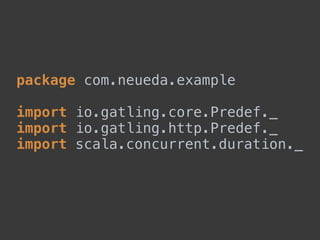

package com.neueda.example 
 
import io.gatling.core.Predef._ 
import io.gatling.http.Predef._ 
import scala.concurrent.duration._ 
 

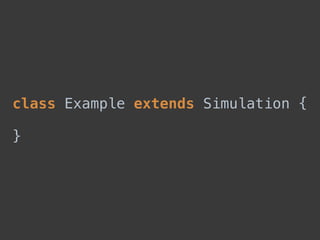

class Example extends Simulation { 
val httpConf = http.baseURL("http://www.example.com") 
 

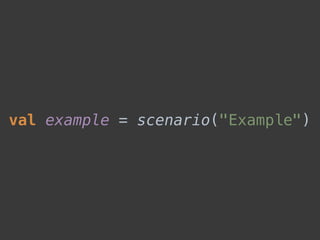

val example = scenario("Example") 
.exec( 
http("get_example_index") 
.get("/") 
.check(status.is(200)) 
) 
 
setUp( 
example.inject(rampUsers(10) over (10 seconds)) 
).protocols(httpConf) 
}

package com.neueda.example 
 
import io.gatling.core.Predef._ 
import io.gatling.http.Predef._ 
import scala.concurrent.duration._

class Example extends Simulation { 
 
}

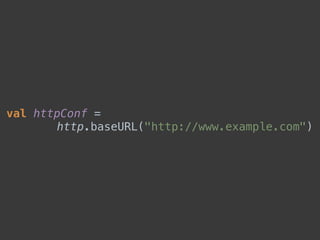

val httpConf =
http.baseURL("http://www.example.com")

val example = scenario("Example")

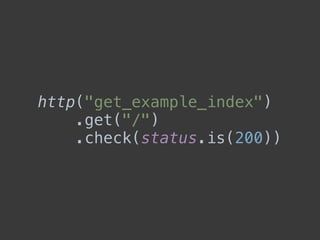

http("get_example_index") 
.get("/") 
.check(status.is(200))

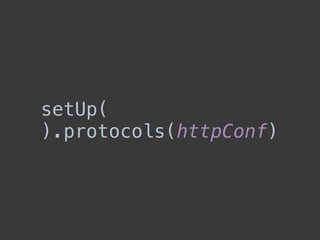

setUp( 
).protocols(httpConf)

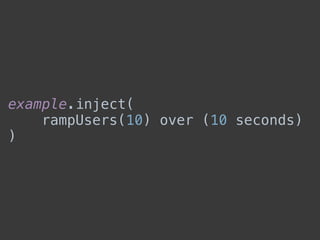

example.inject(
rampUsers(10) over (10 seconds)
)

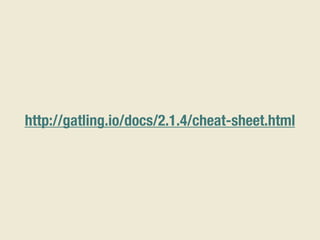

http://gatling.io/docs/2.1.4/cheat-sheet.html

================================================================================

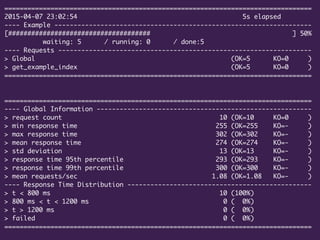

2015-04-07 23:02:54 5s elapsed
---- Example -------------------------------------------------------------------
[##################################### ] 50%
waiting: 5 / running: 0 / done:5
---- Requests ------------------------------------------------------------------
> Global (OK=5 KO=0 )
> get_example_index (OK=5 KO=0 )
================================================================================
================================================================================
---- Global Information --------------------------------------------------------
> request count 10 (OK=10 KO=0 )
> min response time 255 (OK=255 KO=- )
> max response time 302 (OK=302 KO=- )
> mean response time 274 (OK=274 KO=- )
> std deviation 13 (OK=13 KO=- )
> response time 95th percentile 293 (OK=293 KO=- )
> response time 99th percentile 300 (OK=300 KO=- )
> mean requests/sec 1.08 (OK=1.08 KO=- )

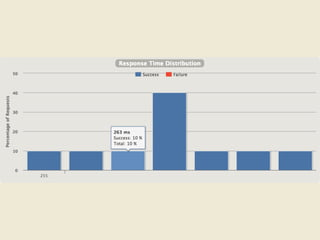

---- Response Time Distribution ------------------------------------------------
> t < 800 ms 10 (100%)
> 800 ms < t < 1200 ms 0 ( 0%)
> t > 1200 ms 0 ( 0%)
> failed 0 ( 0%)
================================================================================

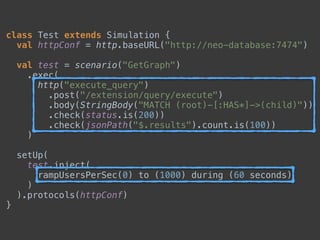

class Test extends Simulation { 
val httpConf = http.baseURL("http://neo-database:7474") 
 
val test = scenario("GetGraph") 
.exec( 
http("execute_query") 
.post("/extension/query/execute") 
.body(StringBody("MATCH (root)-[:HAS*]->(child)")) 
.check(jsonPath("$.results").count.is(100)) 
) 
 
setUp( 
test.inject( 
rampUsersPerSec(0) to (1000) during (60 seconds) 
) 
).protocols(httpConf) 
}

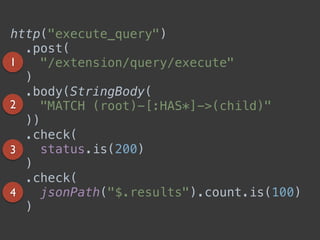

http("execute_query") 
.post(
"/extension/query/execute"
) 
.body(StringBody(
"MATCH (root)-[:HAS*]->(child)"
)) 
.check(
status.is(200)
) 
.check(
jsonPath("$.results").count.is(100)
)
1
2
3
4

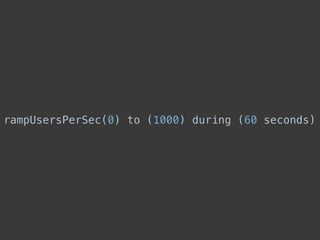

rampUsersPerSec(0) to (1000) during (60 seconds)

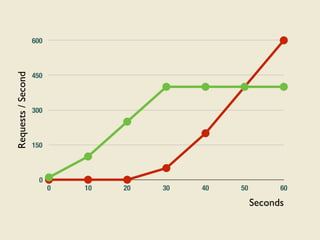

Requests/Second
0
150
300
450
600
Seconds
0 10 20 30 40 50 60

When request/second goes up
And some threshold reached
Then we receive Timeout error

Everything is ok?
Maybe we can do higher load?
How to spot the problem?

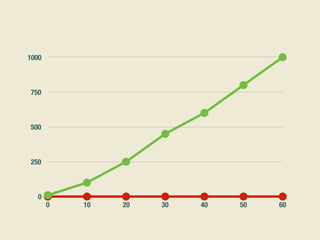

0
250
500
750
1000
0 10 20 30 40 50 60

Client - Server
communication
problems

• Incorrect server setup
• Unconﬁgured networking
• Low max open connection limit

Learned
- Performance testing should be done
- Test results should be interpreted
properly
- Test results should be veriﬁed in
different environments

We need to test
different queries
Feeders!

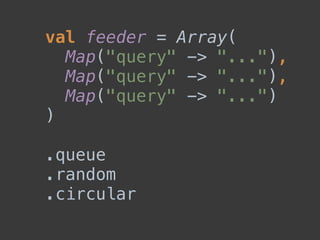

val feeder = Array( 
Map("query" -> "..."), 
Map("query" -> "..."), 
Map("query" -> "...") 
)
.queue
.random
.circular

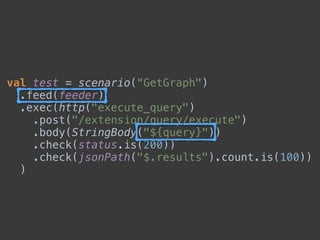

val test = scenario(“GetGraph")
.feed(feeder) 
.exec(http("execute_query") 
.post("/extension/query/execute") 
.body(StringBody("${query}")) 
.check(jsonPath("$.results").count.is(100)) 
)

CSV
JSON
JDBC
Sitemap
Redis
Custom
http://gatling.io/docs/2.1.4/session/feeder.html

Our own feeder
- Custom feeder
- Lazy loads data
- Performant

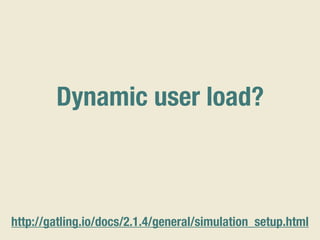

Dynamic user load?
http://gatling.io/docs/2.1.4/general/simulation_setup.html

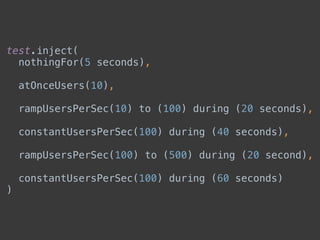

test.inject( 
nothingFor(5 seconds),
atOnceUsers(10), 
rampUsersPerSec(10) to (100) during (20 seconds), 
constantUsersPerSec(100) during (40 seconds), 
rampUsersPerSec(100) to (500) during (20 second), 
constantUsersPerSec(100) during (60 seconds) 
)

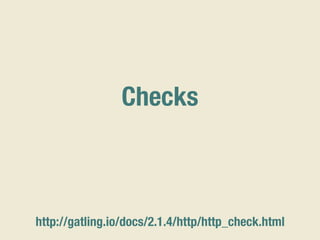

Checks
http://gatling.io/docs/2.1.4/http/http_check.html

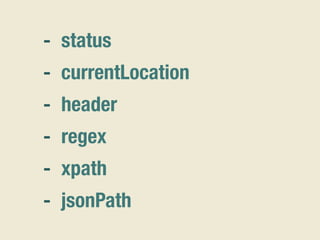

- status
- currentLocation
- header
- regex
- xpath
- jsonPath

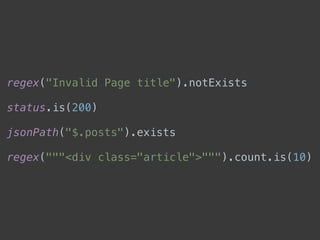

regex("Invalid Page title").notExists 
status.is(200) 
jsonPath("$.posts").exists 
regex("""<div class="article">""").count.is(10)

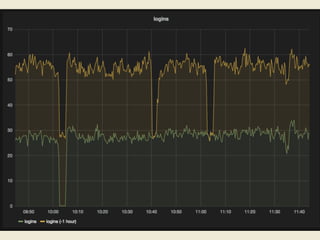

Realtime monitoring
http://gatling.io/docs/2.1.4/realtime_monitoring/index.html
Execution progress visual feedback

Graphite (InﬂuxDB)
+
Grafana

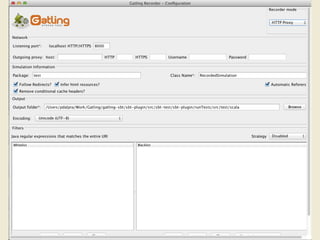

Recorder
http://gatling.io/docs/2.1.4/http/recorder.html

HTTP
http://gatling.io/docs/2.1.4/http/recorder.html
- HTTP Protocol
- SSL
- WebSocket
- SSE

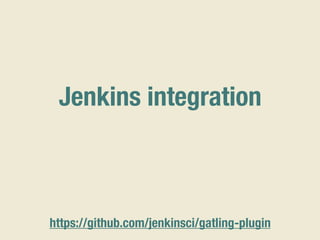

Jenkins integration
https://github.com/jenkinsci/gatling-plugin

- Any IDE with Scala support is OK
- Intellij IDEA
- Eclipse (Scala IDE)
- Netbeans

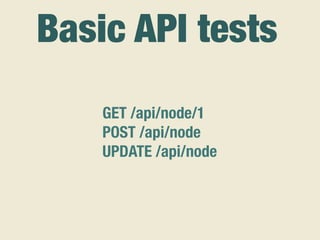

GET /api/node/1
POST /api/node
UPDATE /api/node
Basic API tests

- Generate background load
- Make stability tests
- Cluster communications
- Load balancer setup
- Spikes
Load generator

- Simulate signiﬁcant write load
- Check how database reacts
Data import
