Graphite mine, Röhrenbach, Horn District, Lower Austria, Austriai
Regional Level Types
Graphite mineMine
RöhrenbachMunicipality
Horn DistrictDistrict
Lower AustriaState
AustriaCountry

This page is currently not sponsored. Click here to sponsor this page.

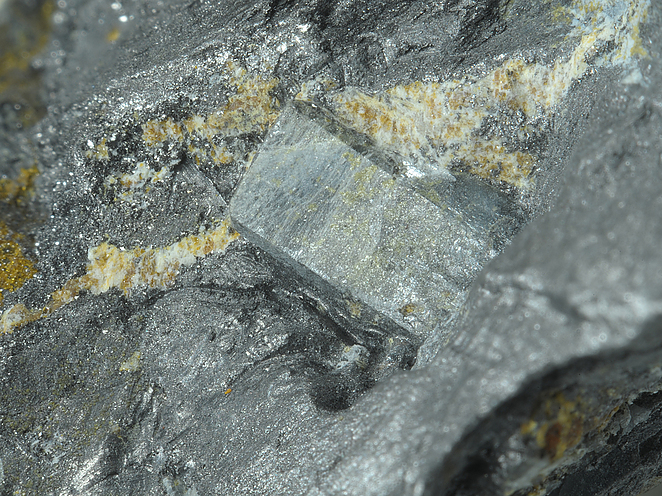

Kyanite, etc.

Graphite mine, Röhrenbach, Horn District, Lower Austria, Austria

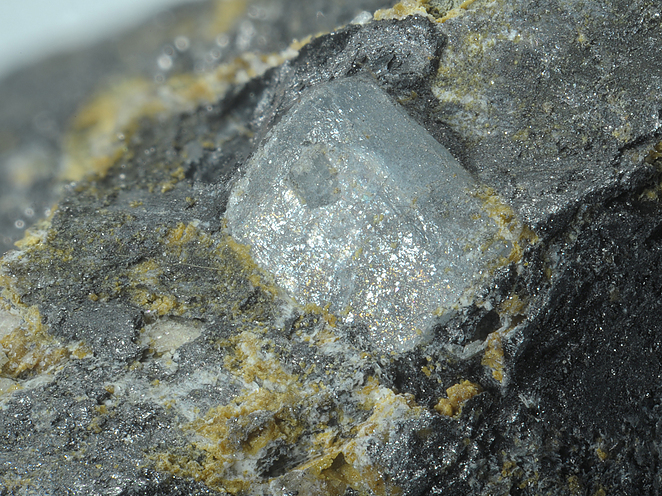

Kyanite, etc.

Graphite mine, Röhrenbach, Horn District, Lower Austria, Austria

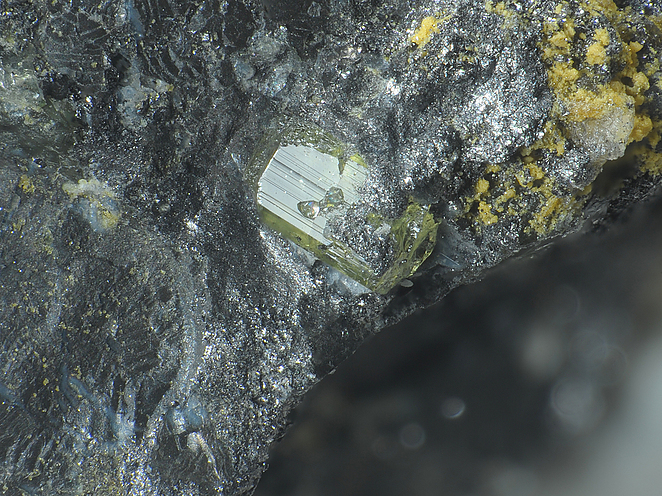

Tourmaline, etc.

Graphite mine, Röhrenbach, Horn District, Lower Austria, Austria
Kyanite, etc.

Graphite mine, Röhrenbach, Horn District, Lower Austria, Austria
Kyanite, etc.

Graphite mine, Röhrenbach, Horn District, Lower Austria, Austria
Tourmaline, etc.

Graphite mine, Röhrenbach, Horn District, Lower Austria, Austria
Kyanite, etc.

Graphite mine, Röhrenbach, Horn District, Lower Austria, Austria
Kyanite, etc.

Graphite mine, Röhrenbach, Horn District, Lower Austria, Austria
Latitude & Longitude (WGS84):
48° 39' 50'' North , 15° 30' 5'' East
Latitude & Longitude (decimal):
48.66389,15.50139
GRN:
N33E08
Type:
Mine
Köppen climate type:
Cfb : Temperate oceanic climate
Nearest Settlements:
PlacePopulationDistance
Röhrenbach152 (2018)1.5km
Winkl113 (2018)1.7km
Brunn an der Wild302 (2018)3.6km
Neupölla243 (2018)4.5km
Fuglau110 (2018)4.9km
Mindat Locality ID:
246291
Long-form identifier:
mindat:1:2:246291:5
GUID (UUID V4):
0
Other Languages:
German:
Graphitgrube, Röhrenbach, Bezirk Horn, Niederösterreich, Österreich


Small graphite mine, operated between 1924 and 1937.
Several parallel lenses (strike: NNE) hosted in marble and paragneisses were exploited with shafts and open cuts, in a relatively large area N and S of the Taffa creek.

Located about 400 m west of the church of Eich Maria, on both sides of the road to Winkl.

Select Mineral List Type

Standard Detailed Gallery Strunz Chemical Elements

Detailed Mineral List:

ⓘ Copiapite
Formula: Fe2+Fe3+4(SO4)6(OH)2 · 20H2O
ⓘ Corundum
Formula: Al2O3
ⓘ Dravite
Formula: NaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
ⓘ Graphite
Formula: C
ⓘ Kyanite
Formula: Al2(SiO4)O
ⓘ Muscovite
Formula: KAl2(AlSi3O10)(OH)2
ⓘ Pyrite
Formula: FeS2
ⓘ Quartz
Formula: SiO2
ⓘ Quartz var. Chalcedony
Formula: SiO2
ⓘ Rutile
Formula: TiO2
ⓘ Sillimanite ?
Formula: Al2(SiO4)O
ⓘ 'Tourmaline'
Formula: AD3G6(T6O18)(BO3)3X3Z
ⓘ Tremolite
Formula: ◻Ca2Mg5(Si8O22)(OH)2

List of minerals arranged by Strunz 10th Edition classification

Group 1 - Elements
ⓘGraphite1.CB.05aC
Group 2 - Sulphides and Sulfosalts
ⓘPyrite2.EB.05aFeS2
Group 4 - Oxides and Hydroxides
ⓘCorundum4.CB.05Al2O3
ⓘQuartz
var. Chalcedony		4.DA.05SiO2
ⓘ4.DA.05SiO2
ⓘRutile4.DB.05TiO2
Group 7 - Sulphates, Chromates, Molybdates and Tungstates
ⓘCopiapite7.DB.35Fe2+Fe3+4(SO4)6(OH)2 · 20H2O
Group 9 - Silicates
ⓘSillimanite ?9.AF.05Al2(SiO4)O
ⓘKyanite9.AF.15Al2(SiO4)O
ⓘDravite9.CK.05NaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
ⓘTremolite9.DE.10◻Ca2Mg5(Si8O22)(OH)2
ⓘMuscovite9.EC.15KAl2(AlSi3O10)(OH)2
Unclassified
ⓘ'Tourmaline'-AD3G6(T6O18)(BO3)3X3Z

List of minerals for each chemical element

HHydrogen
Hⓘ CopiapiteFe2+Fe43+(SO4)6(OH)2 · 20H2O
Hⓘ DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
Hⓘ MuscoviteKAl2(AlSi3O10)(OH)2
Hⓘ Tremolite◻Ca2Mg5(Si8O22)(OH)2
BBoron
Bⓘ DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
Bⓘ TourmalineAD3G6(T6O18)(BO3)3X3Z
CCarbon
Cⓘ GraphiteC
OOxygen
Oⓘ Quartz var. ChalcedonySiO2
Oⓘ CopiapiteFe2+Fe43+(SO4)6(OH)2 · 20H2O
Oⓘ CorundumAl2O3
Oⓘ DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
Oⓘ KyaniteAl2(SiO4)O
Oⓘ MuscoviteKAl2(AlSi3O10)(OH)2
Oⓘ QuartzSiO2
Oⓘ RutileTiO2
Oⓘ SillimaniteAl2(SiO4)O
Oⓘ TourmalineAD3G6(T6O18)(BO3)3X3Z
Oⓘ Tremolite◻Ca2Mg5(Si8O22)(OH)2
NaSodium
Naⓘ DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
MgMagnesium
Mgⓘ DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
Mgⓘ Tremolite◻Ca2Mg5(Si8O22)(OH)2
AlAluminium
Alⓘ CorundumAl2O3
Alⓘ DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
Alⓘ KyaniteAl2(SiO4)O
Alⓘ MuscoviteKAl2(AlSi3O10)(OH)2
Alⓘ SillimaniteAl2(SiO4)O
SiSilicon
Siⓘ Quartz var. ChalcedonySiO2
Siⓘ DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)
Siⓘ KyaniteAl2(SiO4)O
Siⓘ MuscoviteKAl2(AlSi3O10)(OH)2
Siⓘ QuartzSiO2
Siⓘ SillimaniteAl2(SiO4)O
Siⓘ Tremolite◻Ca2Mg5(Si8O22)(OH)2
SSulfur
Sⓘ CopiapiteFe2+Fe43+(SO4)6(OH)2 · 20H2O
Sⓘ PyriteFeS2
KPotassium
Kⓘ MuscoviteKAl2(AlSi3O10)(OH)2
CaCalcium
Caⓘ Tremolite◻Ca2Mg5(Si8O22)(OH)2
TiTitanium
Tiⓘ RutileTiO2
FeIron
Feⓘ CopiapiteFe2+Fe43+(SO4)6(OH)2 · 20H2O
Feⓘ PyriteFeS2

Other Regions, Features and Areas containing this locality

Austria
Eurasian PlateTectonic Plate
EuropeContinent

This page contains all mineral locality references listed on mindat.org. This does not claim to be a complete list. If you know of more minerals from this site, please register so you can add to our database. This locality information is for reference purposes only. You should never attempt to visit any sites listed in mindat.org without first ensuring that you have the permission of the land and/or mineral rights holders for access and that you are aware of all safety precautions necessary.

References

www.mineralienatlas.de (n.d.) https://www.mineralienatlas.de/?l=34699
Kolitsch, U. (2025): Reinvestigation of the mineralogy of graphite deposits and occurrences in the Bohemian Massif of Lower Austria. 2. Wiener Rohstofftag - Graphite Symposium, 15-16 May 2025, Vienna, Austria, abstracts volume, 29-30.
Mayrhofer, R. (1935): Zur Mineralogie Niederösterreichs. Unsere Heimat 8 (3), 75-83.
Himmelbauer, A. (1926): Besichtigung des Graphitwerkes Röhrenbach bei Horn am 21. Mai 1925. Mitt. Wiener Mineral. Ges. Nr. 87, 12.
Himmelbauer, A. (1926): Minerale der Graphitlagerstätte Röhrenbach. Tschermaks Mineral. Petrogr. Mitt. 37 (3-6), 207-208.
Kammel, K. (1927): Die niederösterreichischen Graphite und ihre Lagerstätten. Mont. Rdsch. 19, 647-650.
Holzer, H. (1963): Über einige weitere niederösterreichische Graphitlagerstätten (mit einem Beitrag von E. J. Zirkl). Verh. Geolog. B.-A., 1963, 79-91.
Huber, Simone, Huber, Peter (1977) Mineralfundstellen - Ein Führer zum Selbstsammeln Vol. 8 - Oberösterreich, Niederösterreich und Burgenland. Christian Weise Verlag. 270 pp.
