Neural Network in Rust on MNIST dataset from scratch

#machinelearning #rust #programming #beginners

Implement and train a neural network from scratch on MNIST dataset in Rust without using high-level libraries like TensorFlow or PyTorch.

You can find the code at: https://github.com/dhruvkjain/mnist-nn-rs

It demonstrates:

Manual forward and backward propagation
Use of ReLU and softmax activation functions
One-hot encoding
Gradient descent for training
Accuracy evaluation
Model parameter export to CSV using polars

🔧 Dependencies

ndarray (store 2d array of data)
ndarray-rand (generate intial random weights(w) and biases(b))
polars (to read write data in csv)

🧠 Model Overview

input layer, 1 hidden layer, output layer
Input: 784-dimensional MNIST images
Hidden layer: 10 neurons with ReLU as activation function
Output layer: 10 neurons with softmax as activation function for multi-class classification

📂 Structure

main.rs: Training loop and evaluation
lib.rs: Core model logic — forward, backward, update, softmax, etc.
mnistdata/: Contains input dataset

📦 Dataset

Make sure the MNIST dataset is placed in mnistdata/.

Prerequisite:

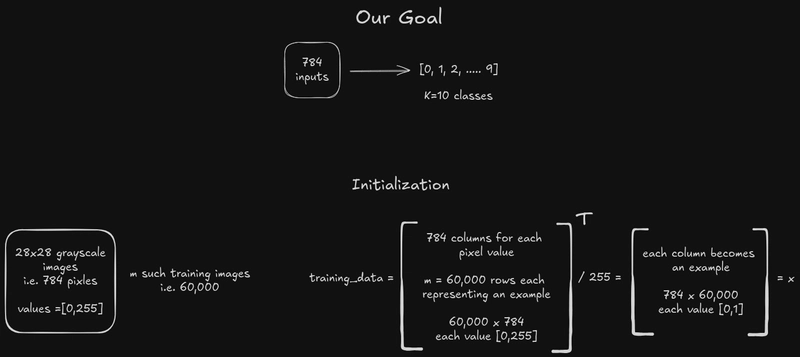

Intialization of data using polars crate:

pub fn load_training_data() -> Result<(Array2<f32>, Array2<f32>), Box<dyn Error>> {
    let q = LazyCsvReader::new("./mnistdata/mnist_train.csv")
    .with_has_header(true)
    .finish()?;

    let training_labels = q
        .clone()
        .with_streaming(true)
        .select([col("label")])
        .collect()?;

    let training_data = q
        .clone()
        .with_streaming(true)
        .drop([col("label")])
        .collect()?;

    let mut traning_data_ndarray = training_data
        .to_ndarray::<Float32Type>(IndexOrder::Fortran)
        .unwrap();
    let mut training_labels_ndarray = training_labels
        .to_ndarray::<Float32Type>(IndexOrder::Fortran)
        .unwrap();

    traning_data_ndarray = traning_data_ndarray.reversed_axes()/ 255.0;
    training_labels_ndarray = training_labels_ndarray.reversed_axes();

    let data_dimensions:&[usize] = traning_data_ndarray.shape();
    let labels_dimensions:&[usize] = training_labels_ndarray.shape();

    // println!("{}", traning_data_ndarray);
    // println!("{}", training_labels_ndarray);
    println!("DATA: {}, {}", data_dimensions[0], data_dimensions[1]);
    println!("LABELS: {}, {}", labels_dimensions[0], labels_dimensions[1]);
    Ok((traning_data_ndarray, training_labels_ndarray))
}

What is Neural Network and how to use it to recognize digits:

Our Approach for Neural Network:

Declaring intial weights and biasis using ndarray_rand crate:

pub fn init_params()->(Array2<f32>, Array2<f32>, Array2<f32>, Array2<f32>){

    let w1 = Array2::random((10, 784), Uniform::new(-0.5, 0.5));
    let b1 = Array2::random((10, 1), Uniform::new(-0.5, 0.5));
    let w2 = Array2::random((10, 10), Uniform::new(-0.5, 0.5));
    let b2 = Array2::random((10, 1), Uniform::new(-0.5, 0.5));

    (w1,b1,w2,b2)
}

Forward Propagation:


pub fn relu(z:&mut Array2<f32>){
    z.mapv_inplace(|x| x.max(0.0))
}

pub fn softmax(z: &mut Array2<f32>) {
    for mut col in z.axis_iter_mut(Axis(1)) {
        // Subtract max for numerical stability
        let max = col.iter().cloned().fold(f32::NEG_INFINITY, f32::max);
        col.mapv_inplace(|x| (x - max).exp());

        let sum = col.sum();
        col.mapv_inplace(|x| x / sum);
    }
}

pub fn forward_propagation(
    w1:&mut Array2<f32>,
    b1:&mut Array2<f32>,
    w2:&mut Array2<f32>,
    b2:&mut Array2<f32>,
    x:&mut  Array2<f32>
) -> (Array2<f32>, Array2<f32>, Array2<f32>, Array2<f32>)
{
    let z1 = w1.dot(x) + &*b1;
    let mut a1 = z1.clone();
    relu(&mut a1);

    let z2 = w2.dot(&a1) + &*b2;
    let mut a2 = z2.clone();
    softmax(&mut a2);

    (z1,a1,z2,a2)
}

Back Propagation:

pub fn one_hot_encoded(y:&mut Array2<f32>, num_classes:usize) -> Array2<f32> {
    let ydash= y.flatten();
    let label_dimensions:&[usize] = ydash.shape();
    let mut one_hot_y = Array2::<f32>::zeros((label_dimensions[0], num_classes));

    for (row, &label) in ydash.iter().enumerate(){
        let class_index = label as usize;
        one_hot_y[(row, class_index)] = 1.0;
    }
    one_hot_y.reversed_axes()
}

pub fn deriv_relu(z:&mut Array2<f32>){
    z.mapv_inplace(|x| if x > 0.0 { 1.0 } else { 0.0 });
}

pub fn backward_propagation(
    z1:&mut Array2<f32>,
    a1:&mut Array2<f32>,
    a2:&mut Array2<f32>,
    w2:&mut Array2<f32>,
    x:&mut Array2<f32>,
    y:&mut Array2<f32>,
)->(Array2<f32>, Array2<f32>, Array2<f32>, Array2<f32>){
    let m = y.len() as f32;
    let a1t = a1.view().reversed_axes();
    let w2t = w2.view().reversed_axes();
    let xt = x.view().reversed_axes();
    let one_hot_y = one_hot_encoded(y, 10);

    let dz2 = &*a2 - &one_hot_y;
    let dw2 = (1.0/m)*(dz2.dot(&a1t));
    let db2 = dz2.sum_axis(Axis(1)).insert_axis(Axis(1)) * (1.0 / m);

    let mut z1_deriv = z1.clone();
    deriv_relu(&mut z1_deriv);
    let dz1 = w2t.dot(&dz2)*z1_deriv;
    let dw1 = (1.0/m)*(dz1.dot(&xt));
    let db1 = dz1.sum_axis(Axis(1)).insert_axis(Axis(1)) * (1.0 / m);

    (dw1, db1, dw2, db2)
}

Update weights and biasis:

pub fn update_params(
    w1: &mut Array2<f32>,
    b1: &mut Array2<f32>,
    w2: &mut Array2<f32>,
    b2: &mut Array2<f32>,
    dw1: &Array2<f32>,
    db1: &Array2<f32>,
    dw2: &Array2<f32>,
    db2: &Array2<f32>,
    alpha: f32,
) {
    *w1 -= &(alpha * dw1);
    *b1 -= &(alpha * db1);
    *w2 -= &(alpha * dw2);
    *b2 -= &(alpha * db2);
}

Function to find accuracy of our model:

pub fn get_accuracy(predictions: &Array2<f32>, labels: &Array2<f32>) -> f32 {
    let pred_classes: Array1<usize> = predictions
        .axis_iter(Axis(1))
        .map(|col| {
            col.iter()
                .enumerate()
                .max_by(|a, b| a.1.partial_cmp(b.1).unwrap())
                .unwrap()
                .0
        })
        .collect();

    let true_classes: Array1<usize> = labels.iter().map(|x| *x as usize).collect();

    let correct = pred_classes
        .iter()
        .zip(true_classes.iter())
        .filter(|(pred, truth)| pred == truth)
        .count();

    correct as f32 / labels.len() as f32
}

Finally using all functions in main:

fn main() -> Result<(), Box<dyn Error>> {
    let (mut training_data, mut training_label) = load_training_data()?;
    let (mut w1,mut b1, mut w2, mut b2) = init_params();

    let iterations = 501;
    let alpha = 0.1;
    println!("{}", training_label);

    for i in 0..iterations{
        let (mut z1, mut a1, mut z2, mut a2) = forward_propagation(&mut w1, &mut b1, &mut w2, &mut b2, &mut training_data);
        let (dw1, db1, dw2, db2) = backward_propagation(&mut z1, &mut a1, &mut a2, &mut w2, &mut training_data, &mut training_label);
        update_params(&mut w1, &mut b1, &mut w2, &mut b2, &dw1, &db1, &dw2, &db2, alpha);
        if i%50 == 0{
            println!("Iteration: {}", i);
            let acc = get_accuracy(&a2, &training_label);
            println!("Accuracy: {:.2}%", acc * 100.0);
        }
    }

    Ok(())
}

Results for 200 iterations and learning rate = 0.1

DATA: 784, 60000
LABELS: 1, 60000
[[5, 0, 4, 1, 9, ..., 8, 3, 5, 6, 8]]

Iteration: 0
Accuracy: 10.86%

Iteration: 50
Accuracy: 56.97%

Iteration: 100
Accuracy: 69.91%

Iteration: 150
Accuracy: 75.45%

Iteration: 200
Accuracy: 78.56%

Results for 500 iterations and learning rate = 0.1

DATA: 784, 60000
LABELS: 1, 60000
[[5, 0, 4, 1, 9, ..., 8, 3, 5, 6, 8]]

Iteration: 0
Accuracy: 12.46%

Iteration: 50
Accuracy: 47.05%

Iteration: 100
Accuracy: 61.53%

Iteration: 150
Accuracy: 69.01%

Iteration: 200
Accuracy: 73.28%

Iteration: 250
Accuracy: 76.48%

Iteration: 300
Accuracy: 78.93%

Iteration: 350
Accuracy: 80.81%

Iteration: 400
Accuracy: 82.38%

Iteration: 450
Accuracy: 83.53%

Iteration: 500
Accuracy: 84.48%

Medium Blog: https://medium.com/@dkjain2005co/neural-network-in-rust-on-mnist-dataset-from-scratch-f42971eaead3
